SP501E Alexa Google Home Smart пиксельный светодиодный Wi Fi SPI контроллер Голосовое управление для WS 2811 2812 2815 SK6812 пикселей полосы DC5 24V

1.Smart Wifi APP control
2.Work with Amazon Alexa and Google Home, Voice control
3.16 million colors
4.Brightness adjustable
5.180 dynamic color modes
6.Remote Control
7.Timer/Schedule Function
8.Favourites Function

  Kindly Note
  The controller cannot regulate the output voltage at the VCC.
  That means the output voltage of your power supply must be the same as the work voltage of your led lights.
  If your lights need 5V input, please use a 5V power supply, never use 12V or 24V power supply.



 Operation Steps
1. Connect the LED strip, power supply and controller.
2. Search “FairyNest” app or scanning the QR code on the operating instructions to download and install the App. IOS 10.0 or Android 4.4 or later edition required. Your smart device should support wifi.
3. Connect the controller to “FairyNest” app.
4. Open app and press SETTING button, rename the controller and correct RGB order according to your LED light.
5. Enter controlling page to control your lights.

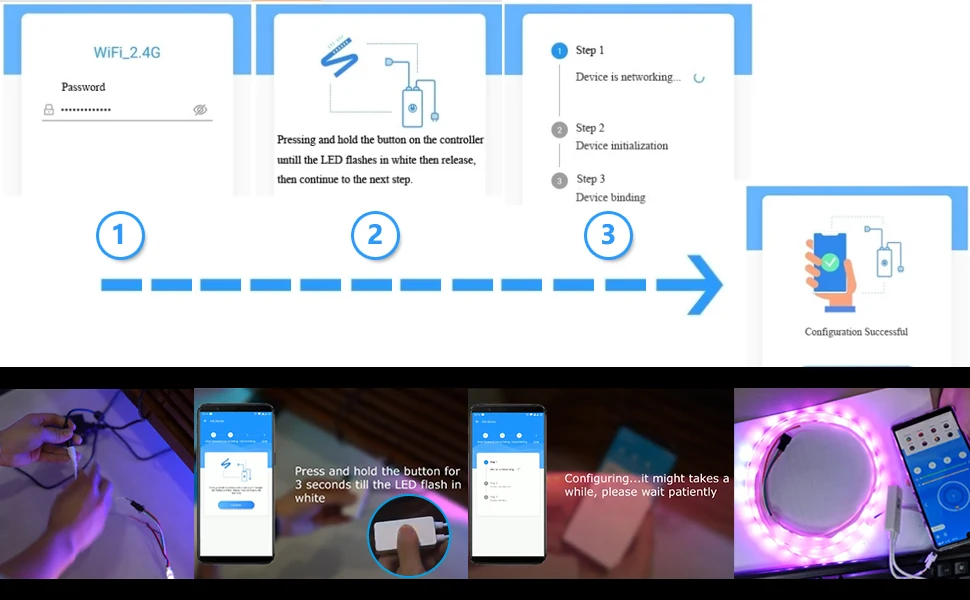

Controller Configuration

1. Scan the QR code(search for "FairyNest" on Google Play or App Store) to download the FairyNest App. Open the App and Sign up.

2. Connect your phone or tablet to a 2.4G WiFi network.(Does not support 5.0G WiFi network)

3. Power up SP501E controller(DC5-24V), and connect the controller to the LED strip.

4. Click "+" button to configure the new SP501E controller:

* Input your WiFi network password.

* Pressing and hold the button on the controller untill the LED flashes in white.

* Please keep your phone, the WiFi router and the controller closer together to maintain a better signal connection during configuration.

5. After the configuration is completed, the controller will successfully access the Internet.

Package included

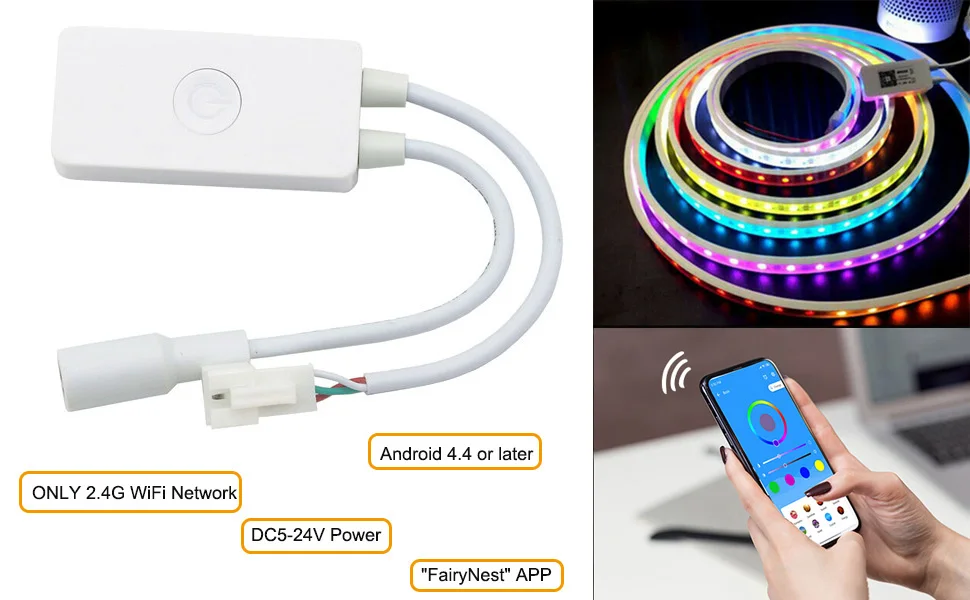

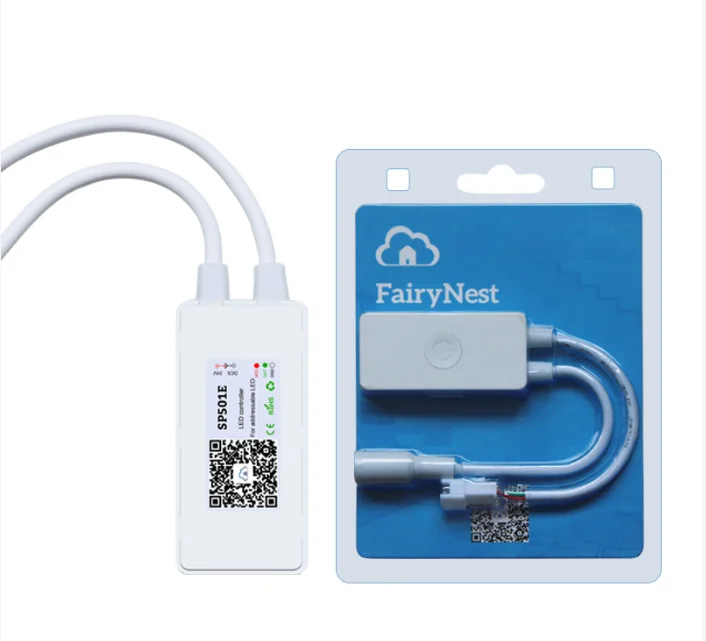

1x SP501E Smart Wi-Fi Addressable LED Controller
