Энергосберегающий промышленный вакуумный испаритель MVR дистиллятор для сточных вод
- Категория: >>>
- Поставщик: Hangzhou Enco Machinery Co. Ltd.
Сохранить в закладки 1600256485003:
Описание и отзывы
Характеристики
Product Parameter
MVR is the abbreviation of Mechanical Vapor Re-compression "steam mechanical recompression", is currently the most energy-saving evaporation technology.
The technical principle of MVR evaporator is to compress and reuse the secondary steam that needs to be condensed by the steam compressor to replace the fresh steam. It not only avoids the use of fresh steam, but also completely abandons a large amount of circulating water supply, which greatly reduces operating costs. Achieved environmental protection, energy saving, water saving and cost saving!

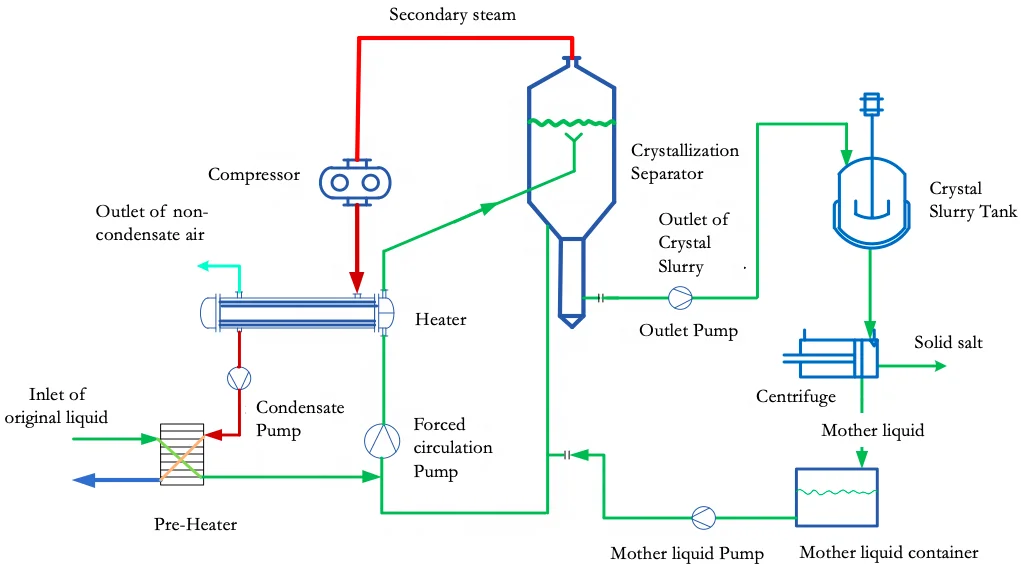

MVR evaporator principle: steam mechanical recompression technology uses secondary steam to be compressed and reused by a steam compressor. At present, the most stable and reasonable temperature rise of single stage steam compressor technology is within 20℃. In order to form an effective heating temperature difference, the boiling point of the material to be treated is increased within 15°C.
What is "boiling point increase"? The temperature at which the solution is in a boiling state under a certain pressure is the boiling point of the solution under this pressure. The boiling point of the mixed solution increases with the increase in concentration and evaporation pressure, and the difference between the increase is the increase in boiling point. Taking NaOH as an example, under standard atmospheric pressure, the boiling point of 20% NaOH is 108°C, that is, the boiling point is 8°C higher than the boiling point of pure water. This 8℃ is the boiling point increase value.
MVR evaporator is used in milk, glucose, organic acids, VC, xylose, pharmaceutical, chemical, biological engineering, environmental engineering, waste recycling, paper, salt and other industries concentrated by evaporation, crystallization.
The technical principle of MVR evaporator is to compress and reuse the secondary steam that needs to be condensed by the steam compressor to replace the fresh steam. It not only avoids the use of fresh steam, but also completely abandons a large amount of circulating water supply, which greatly reduces operating costs. Achieved environmental protection, energy saving, water saving and cost saving!
MVR evaporator principle: steam mechanical recompression technology uses secondary steam to be compressed and reused by a steam compressor. At present, the most stable and reasonable temperature rise of single stage steam compressor technology is within 20℃. In order to form an effective heating temperature difference, the boiling point of the material to be treated is increased within 15°C.
What is "boiling point increase"? The temperature at which the solution is in a boiling state under a certain pressure is the boiling point of the solution under this pressure. The boiling point of the mixed solution increases with the increase in concentration and evaporation pressure, and the difference between the increase is the increase in boiling point. Taking NaOH as an example, under standard atmospheric pressure, the boiling point of 20% NaOH is 108°C, that is, the boiling point is 8°C higher than the boiling point of pure water. This 8℃ is the boiling point increase value.
MVR evaporator is used in milk, glucose, organic acids, VC, xylose, pharmaceutical, chemical, biological engineering, environmental engineering, waste recycling, paper, salt and other industries concentrated by evaporation, crystallization.
Company Profile
Certificate
Transport
FAQ
Q1: How to choose the suitable products?
We are professional and responsible manufacturer with 500+ projects delivered globally, and we have zero lawsuit or cases from any Client. Fact tells everything!
We are professional and responsible manufacturer with 500+ projects delivered globally, and we have zero lawsuit or cases from any Client. Fact tells everything!
