Соединитель для труб с гальваническим покрытием 114 3 мм соединительная муфта со стальной пластиной силиконовой или прокладкой EPDM вакуумной транспортировки
- Категория: >>>
- Поставщик: Wenan Rongmao Hardware Product Co. Ltd.Wenan Ltd.
Сохранить в закладки 1600257311739:
Описание и отзывы
Характеристики
Product Description
Pneumatic / Vacuum conveying system compression pipe coupling with Black or White gasket. Connection size from 38mm up to 202mm.
Our tube and pipe compression coupling is designed for permanent installation in plain end joints in a pneumatic conveying system. The band type construction of our compression couplings holds the entire surface of the joint in uniform compression. Couplings are fabricated from heavy gauge zinc-plated steel – aluminum and stainless steel are also available – and we provide a side band design for higher operating pressures or where vibration is an issue.
Metric size(mm) | Inch size | Housing Material | Lining materials | Bolt Numbers |
φ38 * 100 | 1.5" | stainless steel / GI | EPDM/Neoprene/Silicone | 2 |
φ50 * 100 | 2" | stainless steel / GI | EPDM/Neoprene/Silicone | 2 |
φ63 * 100 | 2.5" | stainless steel / GI | EPDM/Neoprene/Silicone | 2 |
φ76 * 100 | 3" | stainless steel / GI | EPDM/Neoprene/Silicone | 2 |
φ89 * 100 | 3.5" | stainless steel / GI | EPDM/Neoprene/Silicone | 2 |
φ102 * 150 | 4" | stainless steel / GI | EPDM/Neoprene/Silicone | 3 |
φ108 * 150 | 4.25" | stainless steel / GI | EPDM/Neoprene/Silicone | 3 |
φ114 * 150 | 4.5" | stainless steel / GI | EPDM/Neoprene/Silicone | 3 |
φ127 * 150 | 5" | stainless steel / GI | EPDM/Neoprene/Silicone | 3 |
φ152 * 150 | 6" | stainless steel / GI | EPDM/Neoprene/Silicone | 3 |
φ202 * 200 | 8" | stainless steel / GI | EPDM/Neoprene/Silicone | 3 or 4 |
Specification
Customized support | OEM, ODM |
Place of Origin | China |
Model Number | RMPC114 |
Technics | STAMPING |
Connection | BOLTED |
Shape | Equal |
Head Code | ROUND |
Product name | GI pipe connector SS sleeve coupling with Silicone or EPDM gasket |
Connection size | 1.5"-8", 38mm-202mm |
Materials | Stainless less steel 201 / 430 / 304 or galvanized steel |
Surface treatment | Polished |
Usage | vacuum / pneumatic conveying pipe coupling |
Feature | Sealed and Simple connect |
Gasket | EPDM or silicone rubber or Neoprene |
Relative product | Pipe bend, pipe branches, T piece |
Packages | Cartons |
Application scope | Pneumatic / vacuum compression conveying system |
Details Images

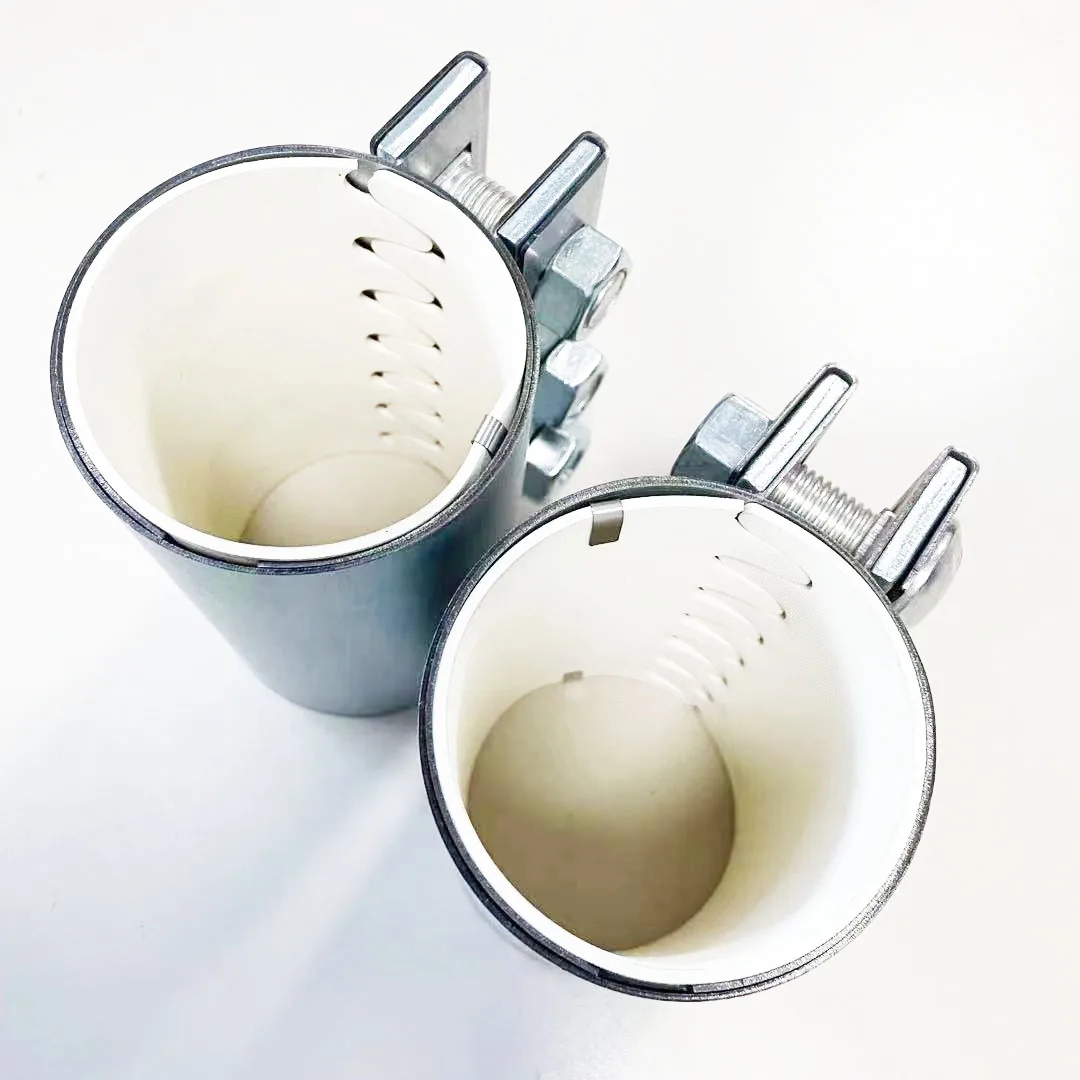

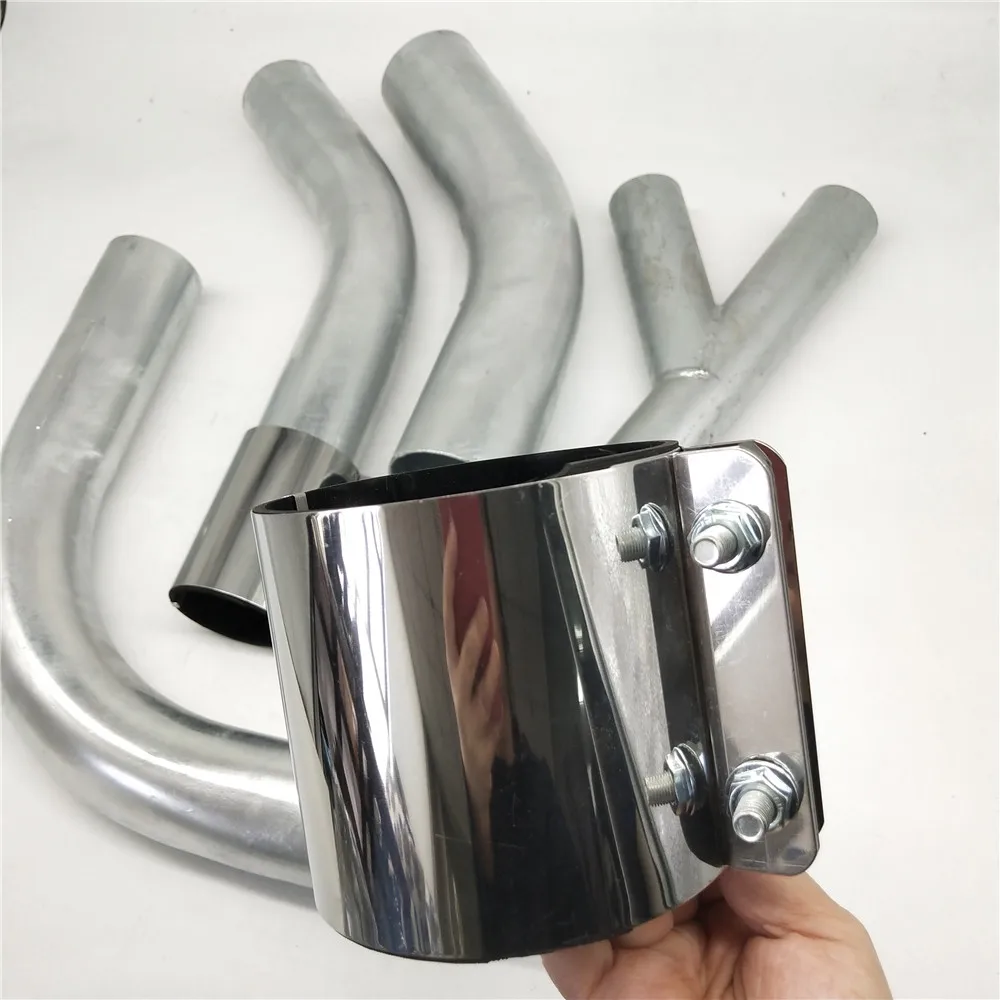

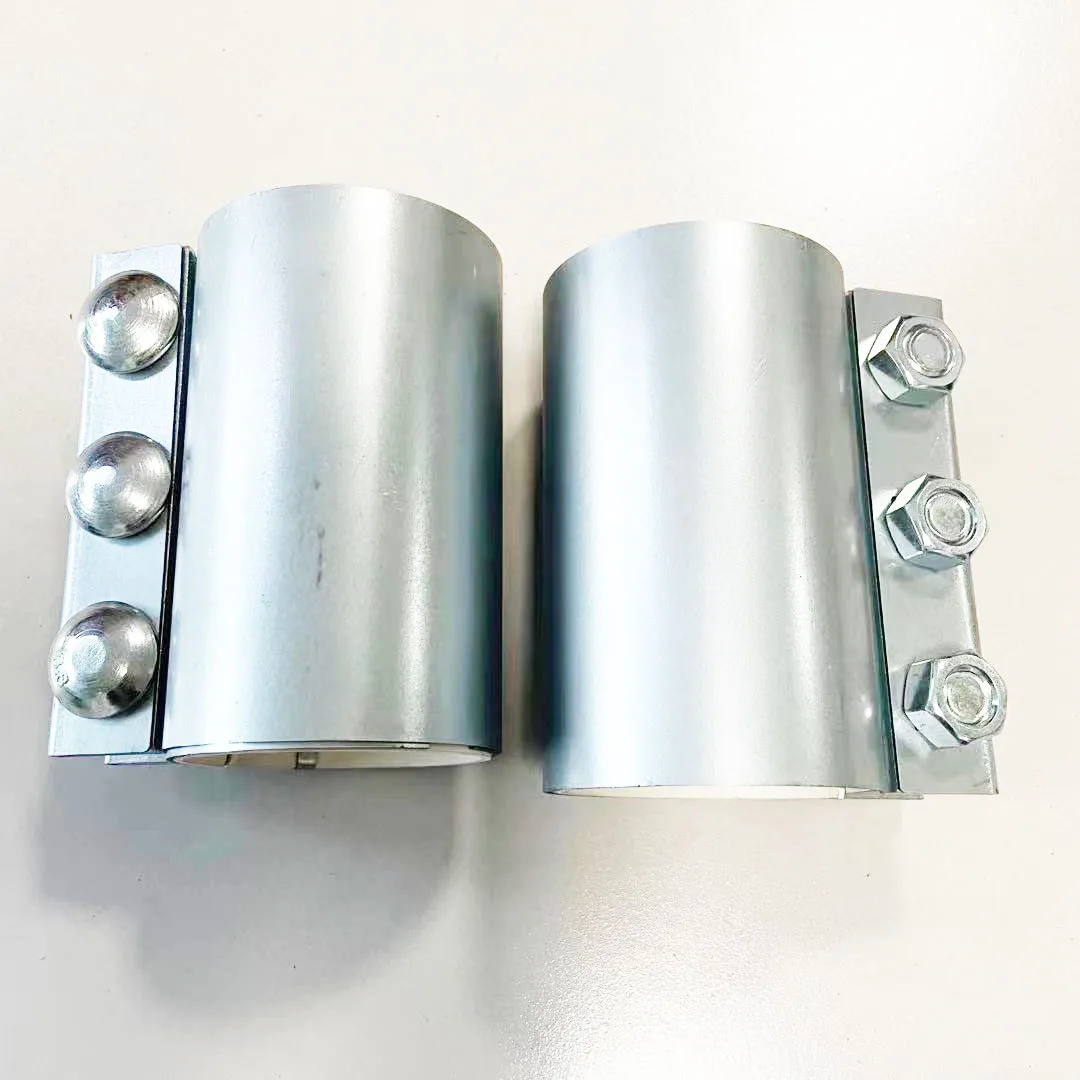

Stainless Steel Compression coupling
The inner gasket makes the seal between the two pipe segments, with interlocking finger structure which make the coupling air/fine
product leakage during the conveying; material could be black rubber (or white silicone rubber). Inside of the pipe coupling, a
conductivity strip which transfer the electrostatic charge generated due to conveying. There’s a conductivity protective ring available preventing easy wear of the gasket.
product leakage during the conveying; material could be black rubber (or white silicone rubber). Inside of the pipe coupling, a
conductivity strip which transfer the electrostatic charge generated due to conveying. There’s a conductivity protective ring available preventing easy wear of the gasket.
Application
This pipe coupling is made of stainless steel material or superior galvanized steel, mostly used for Central Material feeding system, Industrial Vacuum System, Material conveying system and any other high pressure system.
Features
* Easy to install. Reduced installation cost with light components and quick connections
* High quality –Stainless steel 304/316 materials housing with Food grade lining apply to pharmaceutical industry, food industry and chemical industry.
* Fast-sealing
* Metric size and Imperial size are both available.
* High quality –Stainless steel 304/316 materials housing with Food grade lining apply to pharmaceutical industry, food industry and chemical industry.
* Fast-sealing
* Metric size and Imperial size are both available.
Company Profile
Wenan Rongmao Hardware Product Co., Ltd. is a leading manufacturer of high quality customized metal products in China. We are located in Langfang, near Tianjin and Beijing. Therefore, we enjoy convenient transportation.
With 10 years of manufacture and management experience, we have been providing various OEM metal fabrications which combine stamping, machining, casting and welding process. Our products are widely applied to household, industrial, mechanical, auto and other industries. 90% of our goods are exported to the USA and Europe.
Our company has a lot of senior engineers and skilled workers engaged in all types of work. We can provide quick and professional response on customers' inquiries. Additionally, our production department will ensure the lead time of order while our QC department will take full charge of the quality.
We warmly welcome customers at home and abroad to visit us and we are willing to cooperate with you to promote mutual development.
With 10 years of manufacture and management experience, we have been providing various OEM metal fabrications which combine stamping, machining, casting and welding process. Our products are widely applied to household, industrial, mechanical, auto and other industries. 90% of our goods are exported to the USA and Europe.
Our company has a lot of senior engineers and skilled workers engaged in all types of work. We can provide quick and professional response on customers' inquiries. Additionally, our production department will ensure the lead time of order while our QC department will take full charge of the quality.
We warmly welcome customers at home and abroad to visit us and we are willing to cooperate with you to promote mutual development.
Contact me
Похожие товары

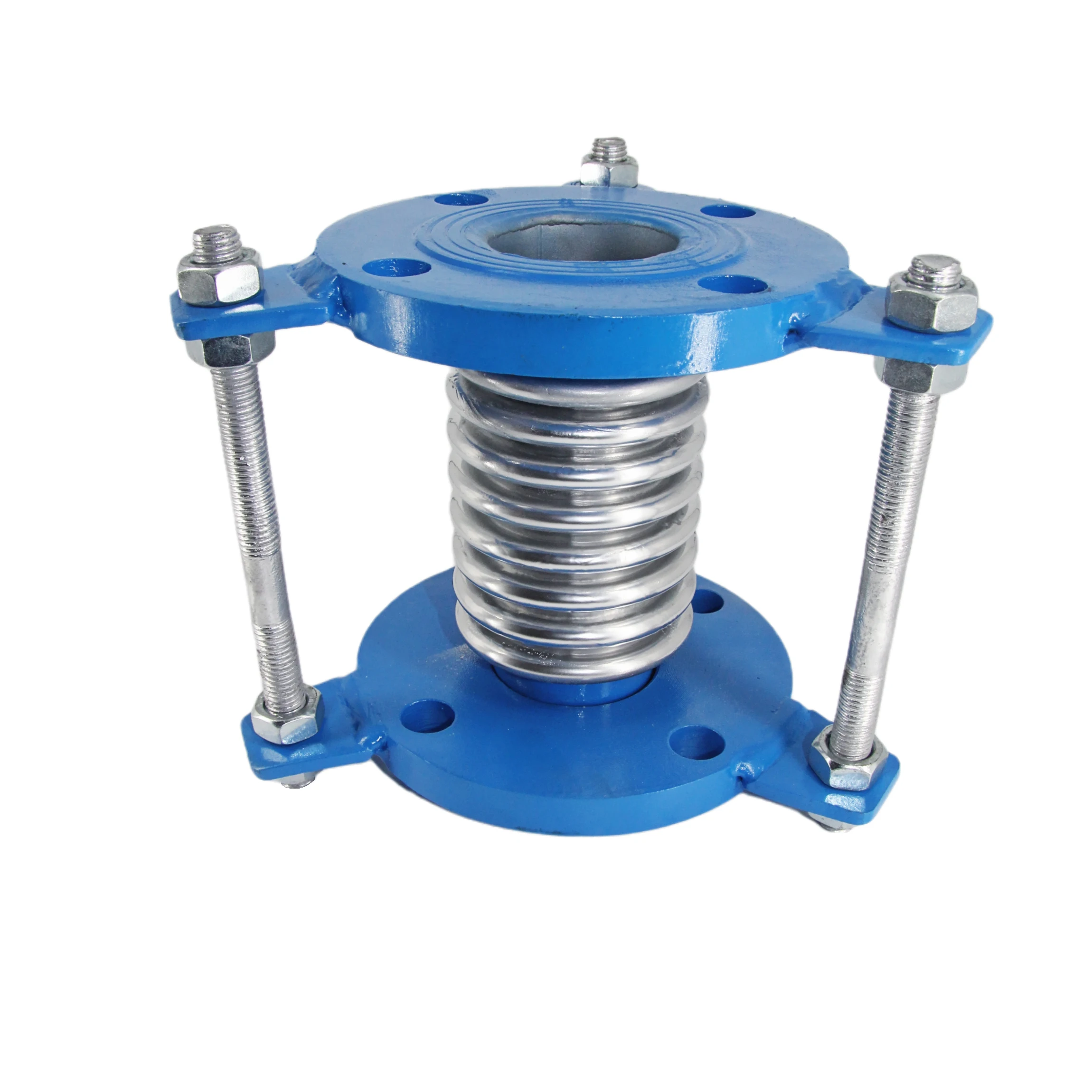

Jiufu расширительный шарнир по хорошей цене Фланцевый Тип металлический производитель индивидуальный OEM фланец пластиковый фитинг для труб
5,00 $

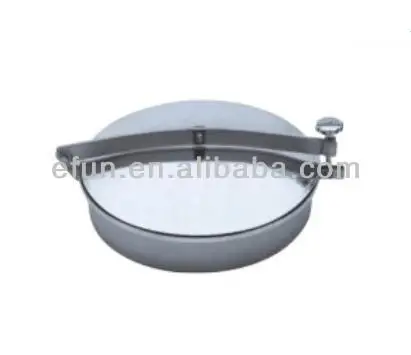

санитарно танкер люк( без давления) люком

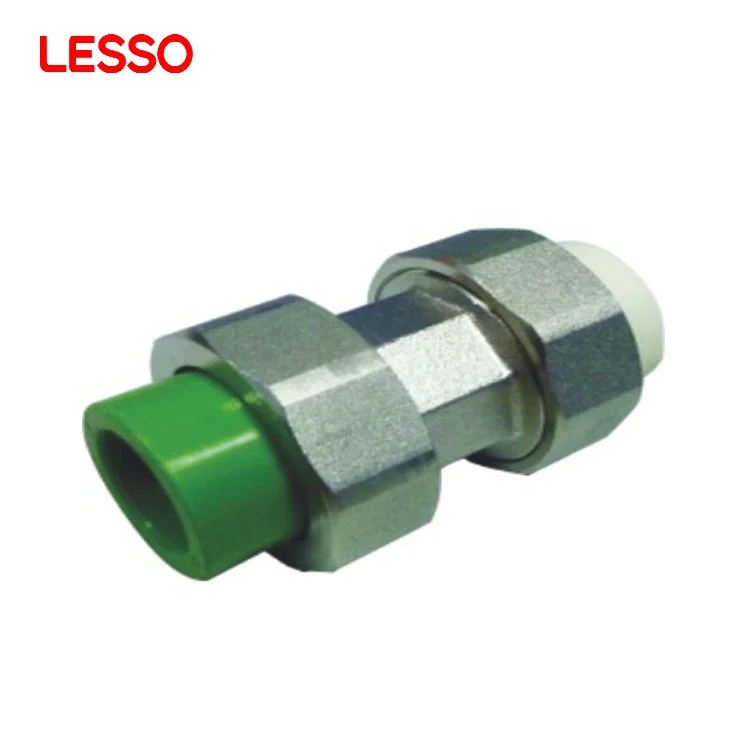

LESSO наконечники для водонапорных труб PPR трубы фитинги и PE-RT Соединительная муфта
2,50 $

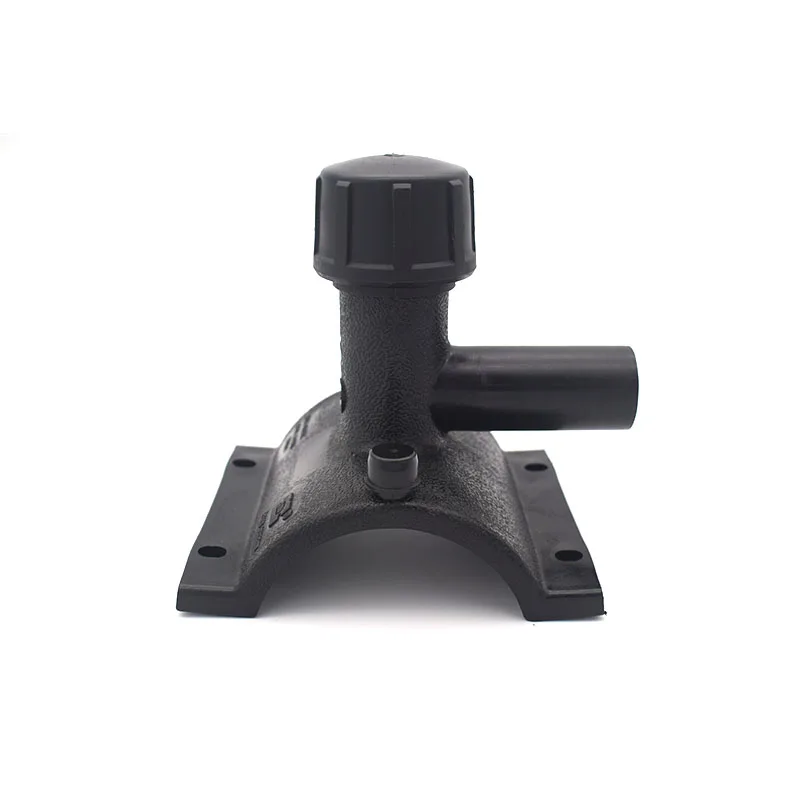

Полиэтиленовое седло для резки
1,00-10,00 $
Австралийское стандартное металлическое полуседло для крепления труб
0,29-0,31 $

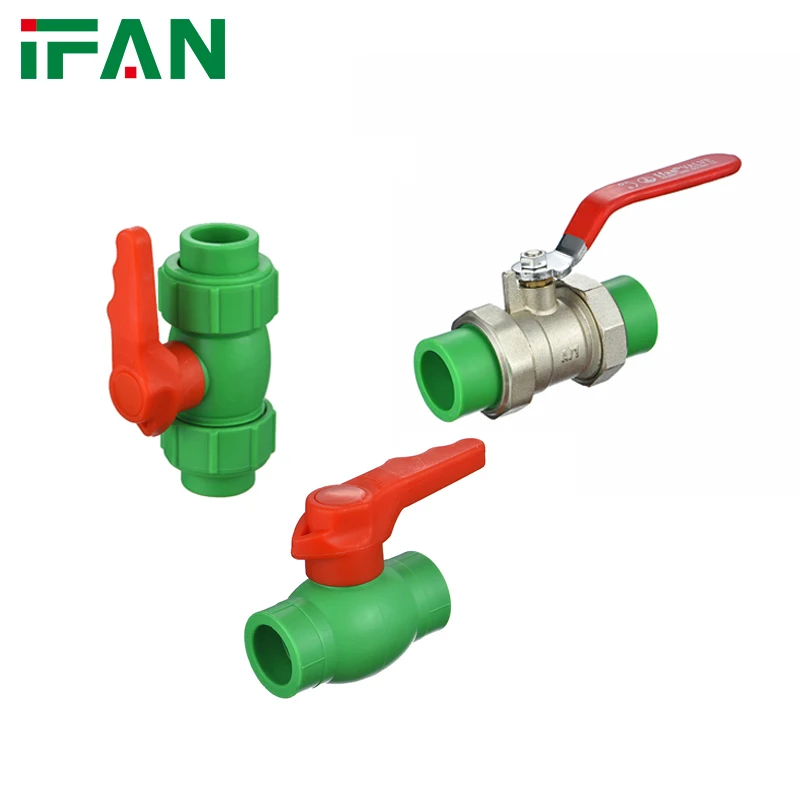

IFAN оптовая продажа строительные сантехнические материалы пластиковые PN25 PPR двойной Соединительный латунный шаровой клапан
0,69-1,65 $

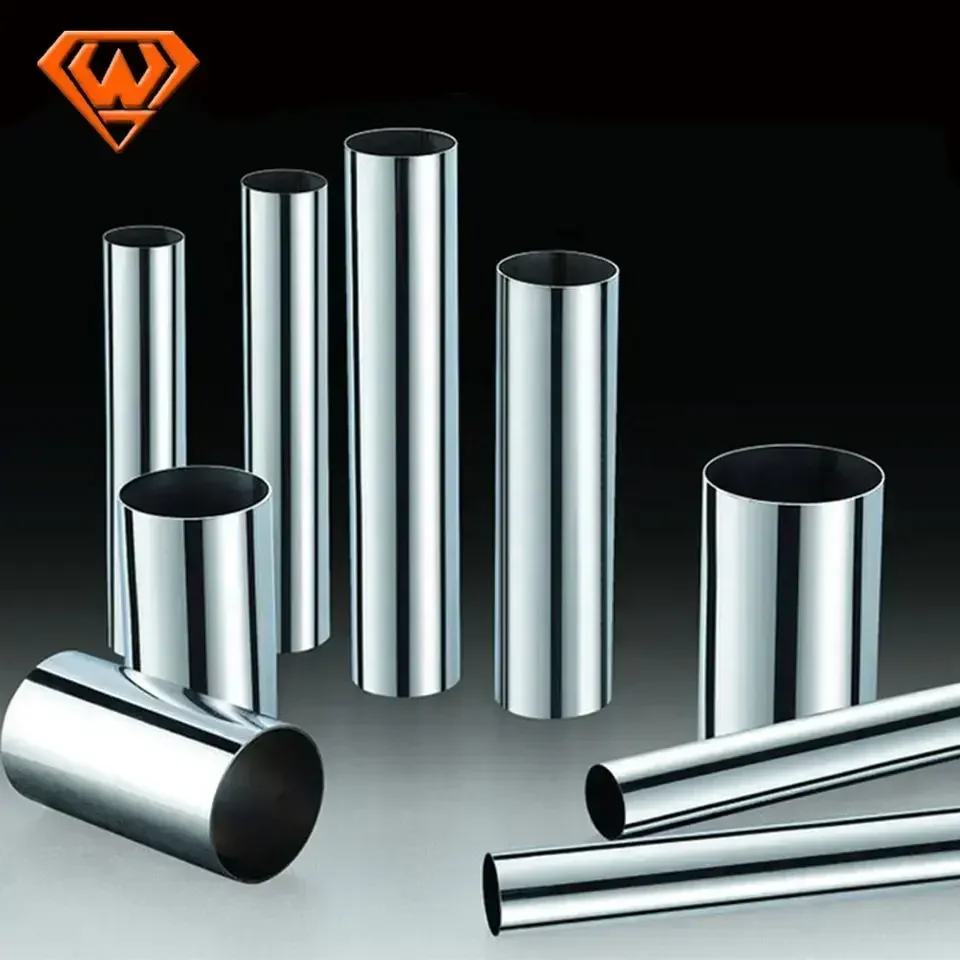

Большой размер железные алюминиевые бесшовные стальные трубы
