32 42 43 49 50 55 65 70 75 82 86 дюймов ИК сенсорная рамка инфракрасный сенсорный экран верхнее покрытие для ЖК мониторов Интерактивный планшет
- Категория: >>>
- Поставщик: Huizhou U-Touch Technology Co. Ltd.
Сохранить в закладки 1600260246460:
Описание и отзывы
Характеристики
Infrared touch screen 55 inch IR multitouch frame, ir touch panel overlay for TV and LCD
Product Description
Touch Force | No pressure required |
Transmittance | >92% (100% without glass) |
Reported Touch Resolution | Without Driver：32768*32768 |
Touch Response Time (multi-point mode) | 10-15ms |
Response speed (single point mode) | 7ms |
Minimum Recognition Point Size | 4mm*4mm |
Touch Object Size Recognition | Support |
Connection | Socket USB cable 1.5m, Socket 7P USB+serial cable 1.5m |
Product performance description

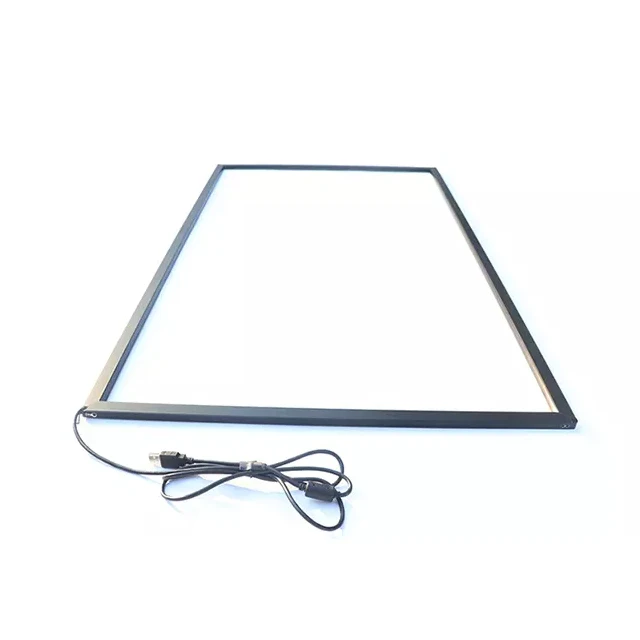

IR touch frame - instantly transform any LCD, Plasma or front / rear projection display into an interactive touch screen.
Principles and advantages: The 36mm slim line interactive frame uses a matrix of horizontal and vertical infrared beams which pinpoint touch on the screen surface.
Unlike most other touch screen technologies our IR frames provide the perfect image quality and clarity as no other films or elements are placed in front of the screen.
Details Images

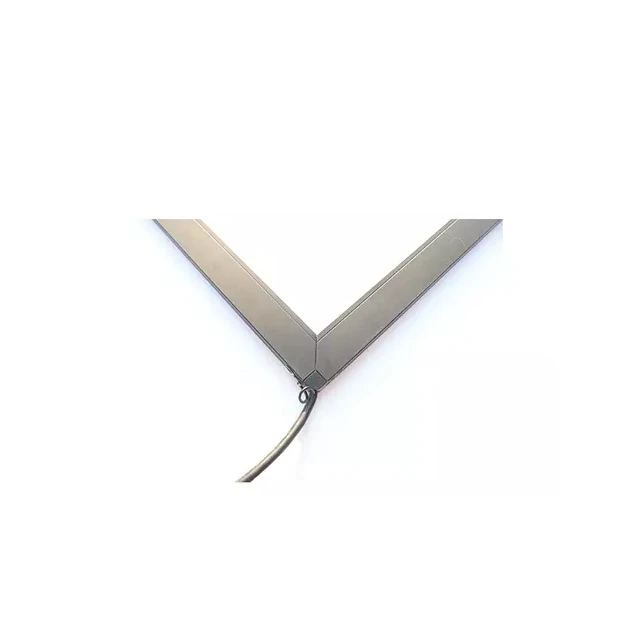

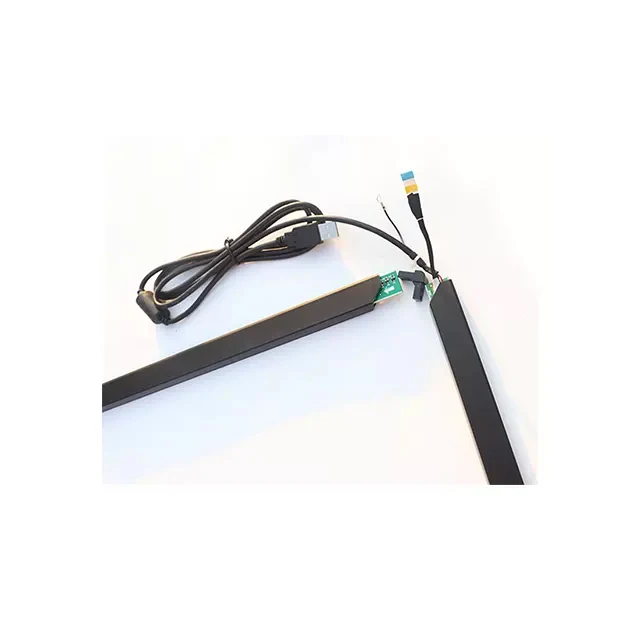

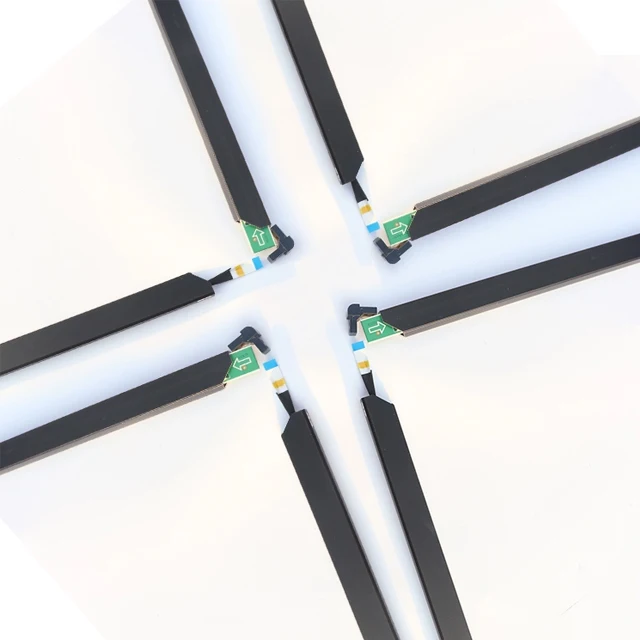

IR touch frame is combined by four pieces frames.
Each frame connects by a FPC ribbon.
- Infrared Touch Technology
- Plug and Play USB Connection
- Permanent or Removable Fixings
- Sizes from 15” to 580” (4:3 and 16:9) - Custom Sizes Available
- Easy to Install
- High Stability / Reliability
- Extremely Durable / Scratch Resistant
- No Touch Stylus Required
- Extremely Durable / Scratch Resistant
- No Touch Stylus Required
Product Usage
Our IR touch frame's consist of a touch frame which can be simply assembled and retro-fit to any existing display. The frame is integrated with a printed circuit board which contains a line of IR-LEDs(diodes) and phototransistors hidden behind the bezel of the touch frame.
The IR touch frame comes as a 4 piece kit, which is simple to install and can be up and running within a matter of minutes. Simply affix the bezel to the screen surface using VHB or Velcro, depending on whether you require a permanent or temporary installation (tapes provided).
This versatile range of IR touch screen bezels means that you can quickly and easily convert any large format monitor/TV screen into an interactive display at a very affordable price -- Just plug and play. When touch is applied to the screen surface, the X & Y IR light beams are interrupted.
The Phototransistors from the X & Y axes detects the IR light beams which have been interrupted and transmits a signal identifying the relevant X & Y axes coordinates to the PC.
Related Products
Packing&Shipping
Disassembly, tube packing.
1 piece in a box.
Company Introduction
Huizhou U-Touch Technology Co., Ltd.(www.u-touch.com.cn) is a manufacturer which is professional in manufacturing and exporting IR touch products including Interactive Flat Panel, Interactive Whiteboard, IR Touch Frame and Floor Stand Digital Signage & capacitive touch products including Capacitive Touch Screen and Capacitive Touch foil. Our factory is located in Guangdong, China.
It covers an area of more than 80 acres and has a factory building area of 100,000 square meters. It has four 250-meter-long production lines.
It covers an area of more than 80 acres and has a factory building area of 100,000 square meters. It has four 250-meter-long production lines.
Our Services & Strength
OEM & ODM is provided for custom-designed solutions as per customers' requirements. Strong after-service team. Prompt response to your inquiry. Help you to get your projects success.
Quality is the life of the company: All commercial products use A+ materials.
FAQ
Q: Does the touch frame need driver?
A: It is free driver, plug and play.
Q: Can i use bigger touch frame for smaller tv?
A: Yes, you can but it's not recommended, as the back side of our IR touch frame need to be mounted/adhered to a flat surface.
Normally they are mounted/adhered to the bezel frame of the display you are trying to make interactive.
If you need a custom size, we can do that as well.
Q: How many touch points can you provide?
A: We can offer 20 touch points.
Q: Is customized IR touch frame acceptable?
A: Yes, we can customize IR touch frame per your dimensions. Please provide the active size of touch area and we'll make a drawing for you.
Q: How to mount the touch screen on the monitor?
A: We will provide you 3M double sided tapes.
Q: Can you send IR touch frame with glass or without glass?
A: For small size 15” to 24” is with glass. For sizes from 26” or bigger, we suggest to ship without glass.
Q: How to calibrate the touch?
A: Firstly, you can calibrate it by “TABLET PC” under windows system. If it can’t work accurately, please let us know.We will send you calibration software to adjust.
Q: How to install the touch frame?
A: We'll provide an installation instruction or video to you.
A: It is free driver, plug and play.
Q: Can i use bigger touch frame for smaller tv?
A: Yes, you can but it's not recommended, as the back side of our IR touch frame need to be mounted/adhered to a flat surface.
Normally they are mounted/adhered to the bezel frame of the display you are trying to make interactive.
If you need a custom size, we can do that as well.
Q: How many touch points can you provide?
A: We can offer 20 touch points.
Q: Is customized IR touch frame acceptable?
A: Yes, we can customize IR touch frame per your dimensions. Please provide the active size of touch area and we'll make a drawing for you.
Q: How to mount the touch screen on the monitor?
A: We will provide you 3M double sided tapes.
Q: Can you send IR touch frame with glass or without glass?
A: For small size 15” to 24” is with glass. For sizes from 26” or bigger, we suggest to ship without glass.
Q: How to calibrate the touch?
A: Firstly, you can calibrate it by “TABLET PC” under windows system. If it can’t work accurately, please let us know.We will send you calibration software to adjust.
Q: How to install the touch frame?
A: We'll provide an installation instruction or video to you.
