Промышленная вращающаяся барабанная сушилка для древесины, пилы, пыли, песка, кукурузы, риса, зерновой сушилки
2 000,00 $ - 2 800,00 $
Печь безпылевая с горячим воздухом класс 350 1000 градусов Цельсия
- Категория: Hot Air Furnace >>>
- Поставщик: Guangdong Grande Automatic Test Equipment Limited
Сохранить в закладки 1600260253069:
Описание и отзывы
Характеристики
Product Description

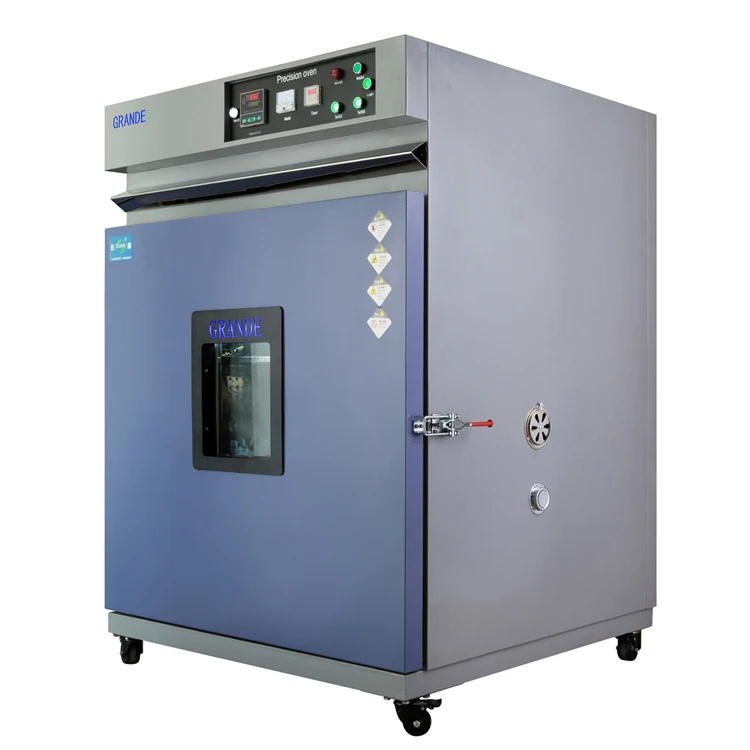

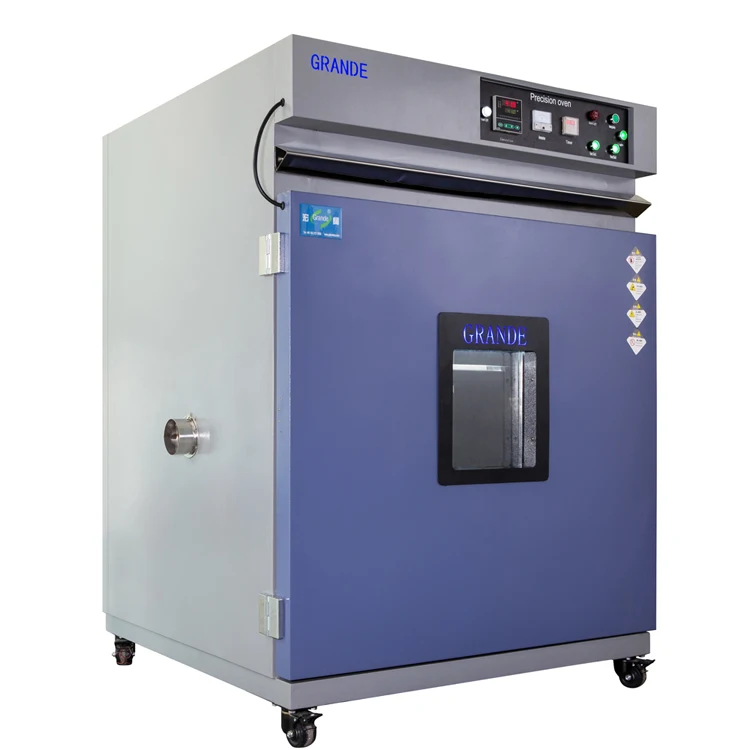

Class 100 Clean Oven
Indoor temperature +10℃~50℃,100℃,150℃,200℃,250℃,300℃,350℃,500℃,600℃,700℃,800℃,
900℃,1000℃,1200℃,1400℃,1600℃,1800℃,2000℃,Customization is available
Includes a HEPA filter to maintain cleanliness
These models are used extensively in heat treatment/drying or burn-in of semiconductor wafers, liquid crystals, disks,mining,medical,pharmacy,biology,electric,chemical industry,scientific research and other components and devices requiring clean air conditions.
It is applicable to such test as drying, cure melting, sterilizing in industrial and mining enterprises as well as in laboratory and scientific research institutes.
These units can also be prepared for installation in clean-room environments. Class 100 or Class 1000 cleanliness is achieved by employing a HEPA filter and a back-to-front laminar circulation system. The high-performance models (with MS suffix) provides stable performance even during heat-up or cooling.
Features
· Heat-resistant HEPA filter
· Clean meter indicates when filter needs replacement
· Compact vertical design

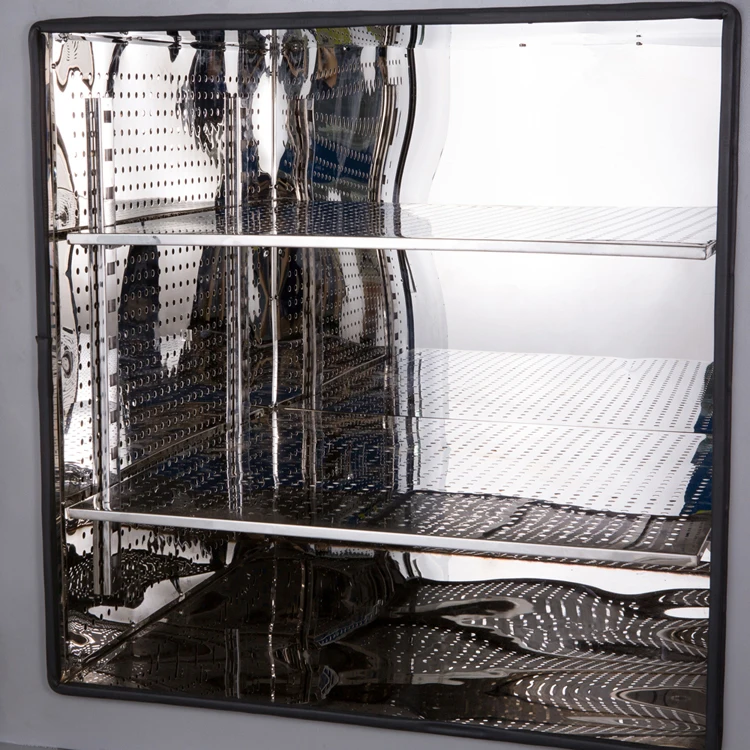

· SUS#304 Stainless steel interior
· Controller with large LED display
· Two-step programmability with functions for automatic start, stop, ramp, and repeat
· Visual and audible alarm with diagnostic fault code
· Two-step programmability with functions for automatic start, stop, ramp, and repeat
· Specimen power supply control terminal--turns specimen off if chamber faults
· Four-tiered safety system for overheat conditions
· Two shelves included standard, rated for 40 lbs. or more
Optional accessories
USB,RS-232 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.
900℃,1000℃,1200℃,1400℃,1600℃,1800℃,2000℃,Customization is available
Includes a HEPA filter to maintain cleanliness
These models are used extensively in heat treatment/drying or burn-in of semiconductor wafers, liquid crystals, disks,mining,medical,pharmacy,biology,electric,chemical industry,scientific research and other components and devices requiring clean air conditions.
It is applicable to such test as drying, cure melting, sterilizing in industrial and mining enterprises as well as in laboratory and scientific research institutes.
These units can also be prepared for installation in clean-room environments. Class 100 or Class 1000 cleanliness is achieved by employing a HEPA filter and a back-to-front laminar circulation system. The high-performance models (with MS suffix) provides stable performance even during heat-up or cooling.
Features
· Heat-resistant HEPA filter
· Clean meter indicates when filter needs replacement
· Compact vertical design
· SUS#304 Stainless steel interior
· Controller with large LED display
· Two-step programmability with functions for automatic start, stop, ramp, and repeat
· Visual and audible alarm with diagnostic fault code
· Two-step programmability with functions for automatic start, stop, ramp, and repeat
· Specimen power supply control terminal--turns specimen off if chamber faults
· Four-tiered safety system for overheat conditions
· Two shelves included standard, rated for 40 lbs. or more
Optional accessories
USB,RS-232 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.
Class 5 cleanliness level
Class 5 cleanliness level is achieved by employing HEPA filters and a back-to-front horizontal laminar circulation system which produces uniform high-temperature airflow.
Distance of airflow in the chamber is shortened,resulting in smooth air delivery is between specimens and uniform heat treatment.Additionally,it prevents dust generated from specimens placed upstream from flowing downstream.

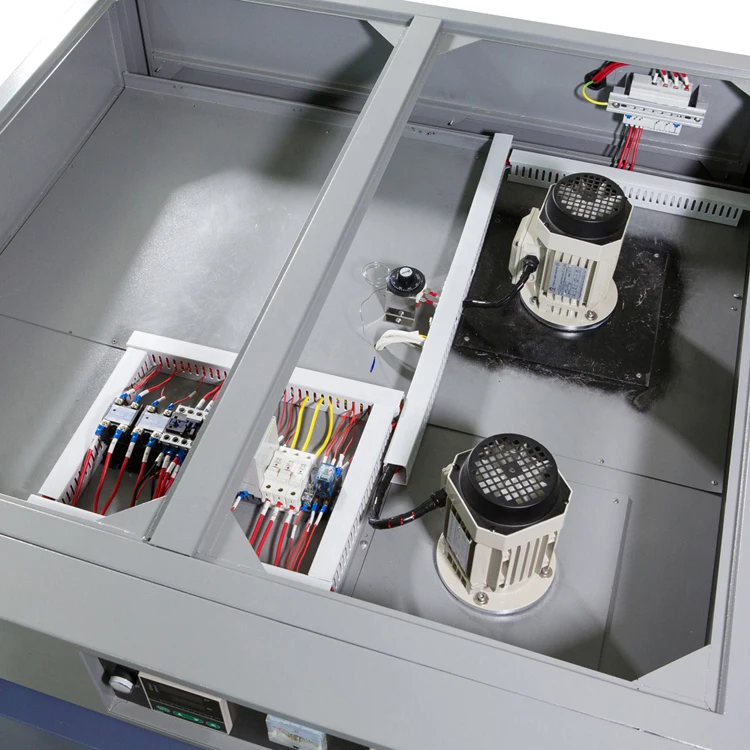

The upright design with instrumentation,heater,and other mechanisms gathered on the upper side saves installation space.
Class 5 cleanliness level is achieved by employing HEPA filters and a back-to-front horizontal laminar circulation system which produces uniform high-temperature airflow.
Distance of airflow in the chamber is shortened,resulting in smooth air delivery is between specimens and uniform heat treatment.Additionally,it prevents dust generated from specimens placed upstream from flowing downstream.
The upright design with instrumentation,heater,and other mechanisms gathered on the upper side saves installation space.
Specification
Model No | GIOC-072 | GIOC-270 | GIOC-480 | GIOC-600 | GIOC-1000 | ||||
Volume(L) | 72 | 270 | 480 | 600 | 720 | ||||
Inner chamber size(mm)W*H*D | 450*400*400 | 600*900*500 | 800*1000*600 | 1000*1000*600 | 1200*1000*600 | ||||
Exterior chamber size(mm)W*H*D | 900*1050*550 | 1100*1600*650 | 1200*1700*840 | 1400*1750*840 | 1750*1750*840 | ||||
Temperature range | Indoor temperature +10℃～+200℃,300℃,500℃,600℃,700℃,Customization is available | ||||||||
Product name | Clean Oven/ Dust Free Oven |
Color | Grande Blue |
Type | Drying Oven |
Application | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
Condition | New |
Place of Origin | China |
Guangdong | |
Brand Name | Grande |
Voltage | 220V/50-60Hz |
Power | 20W |
Certification | CE |
Key Selling Points | Long Service Life |
Warranty | 2 Year |
Weight (KG) | 500 |
After Warranty Service | Video technical support, Online support |
Applicable Industries | Manufacturing Plant |
Local Service Location | Viet Nam |
Showroom Location | Viet Nam |
Marketing Type | New Product 2020 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Pump, Gear, Motor, PLC, Pressure vessel |
Heating Method | Electric Heating |
Material | SUS304, SUS316 |
Temperature fluctuation | ±0.3℃ |
Temperature Uniformity | ±1℃ |
Temperature resolution | 0.1℃ |
Dustproof class | Class 100,Class 1000 |
Heating up tim | 30min |
Inner chamber material | SUS#304 stainless steel plate |
Exterior chamber materia | Stainless steel plate+ Power Coated |
Filters | HEPA Filters |
Insulation Materia | PU& Fiberglass wool |
circulation system | Sirocco fan |
Heating system | SUS#304 stainless steel high-speed heater |
Controller | Touch-screen controller or Omron E5AZ controller+ S.S.R. |
Other Components | Cable port(50mm), control status indicator lights, loading shelves(2pcs for free) |
Safety protection device | Over-heat protection circuit breaker,Control system overload protection,Overload indicator lamp. |
Power Supply | AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz |
Customized service | Welcome to Non-standard and Specail requirements,OEM/ODM orders.Customization of inner chamber size, tempreture&humidity range,ect. |
Technical parameters:
Company Profile
About GRANDE
Grande Electronics Tchonology Limited is Professional R&D,Manufacture,Global sales service and After-
sales Service,Maintenance of Environmental and Climatic Simulation Test Chamber,Mechanical Tester,Ultra Freezers.,etc.
Grande always adhere to China Price,Germany Quality.Quality is not just a word.Our engineers are available to provide After-sales,Installation,Training,Service Oversea.Warranty 2 Years.
To help our customers improving the testing requirements,Grande has established strategic cooperative partnership with first-class Universities,whose Cryogenics and Test Centers possess the the world's leading inspection techniques,cryogenics,mechanic inspections,equipments,test chambers,testers and instruments.
As an enterprice responsible for society,environment and safety,Grande has initially built ISO9001 2015 International Quality Management Systems,ISO1400 2004 Environmental Management System and GB/T28001 2001 Occupation and Health Safety Management System.Besides,Grande Adheres to the Operation Principle of The best Quality Environmental Test Chamber Manufacturer in China.Quality is not just a word.
Our products are widely used in electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions and so on.Our products have been exported to more than 100 countries and regions, such USA, Canada, Germany, Spain, Russia, Argentina, Brazil, India,Indonesia.,etc.Our main market includes Asia,North America,South America,Europe,Middle East,Africa,Australia.
Our import and export team can serve you with fluent Chinese,English,Spanish,Japanese and Indonesian.We have been to more than 30 countries for Installation,Training,After-sales Service.
We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget.We also provide timely delivery.
We are recruiting agents over the world. If interested, please feel free to contact us.
More information,pls kindly check our website www.grandetop.com
Pls feel free to contact us for any question,we are glad to be any help to you and you are welcome to visit our company any time.
We are looking forward to have a long-term good business relationship with you in near future.
Grande Electronics Tchonology Limited is Professional R&D,Manufacture,Global sales service and After-
sales Service,Maintenance of Environmental and Climatic Simulation Test Chamber,Mechanical Tester,Ultra Freezers.,etc.
Grande always adhere to China Price,Germany Quality.Quality is not just a word.Our engineers are available to provide After-sales,Installation,Training,Service Oversea.Warranty 2 Years.
To help our customers improving the testing requirements,Grande has established strategic cooperative partnership with first-class Universities,whose Cryogenics and Test Centers possess the the world's leading inspection techniques,cryogenics,mechanic inspections,equipments,test chambers,testers and instruments.
As an enterprice responsible for society,environment and safety,Grande has initially built ISO9001 2015 International Quality Management Systems,ISO1400 2004 Environmental Management System and GB/T28001 2001 Occupation and Health Safety Management System.Besides,Grande Adheres to the Operation Principle of The best Quality Environmental Test Chamber Manufacturer in China.Quality is not just a word.
Our products are widely used in electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions and so on.Our products have been exported to more than 100 countries and regions, such USA, Canada, Germany, Spain, Russia, Argentina, Brazil, India,Indonesia.,etc.Our main market includes Asia,North America,South America,Europe,Middle East,Africa,Australia.
Our import and export team can serve you with fluent Chinese,English,Spanish,Japanese and Indonesian.We have been to more than 30 countries for Installation,Training,After-sales Service.
We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget.We also provide timely delivery.
We are recruiting agents over the world. If interested, please feel free to contact us.
More information,pls kindly check our website www.grandetop.com
Pls feel free to contact us for any question,we are glad to be any help to you and you are welcome to visit our company any time.
We are looking forward to have a long-term good business relationship with you in near future.
Product packaging
