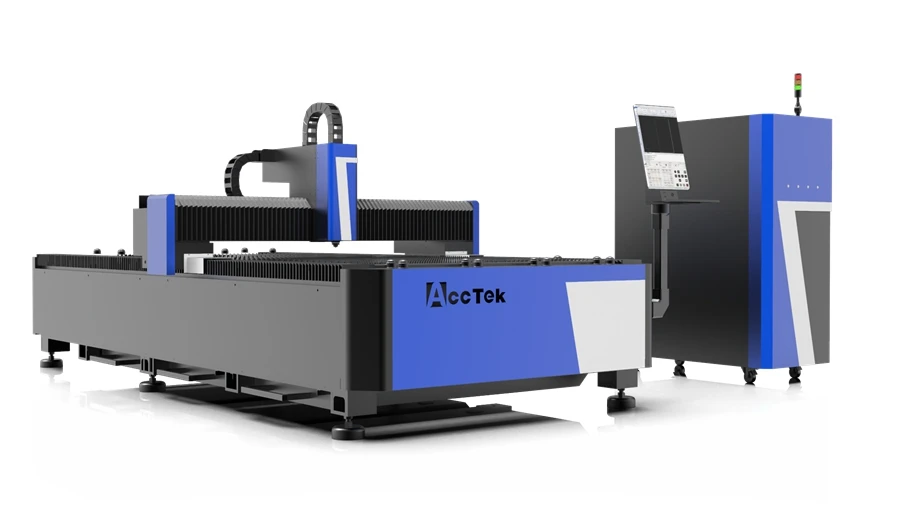

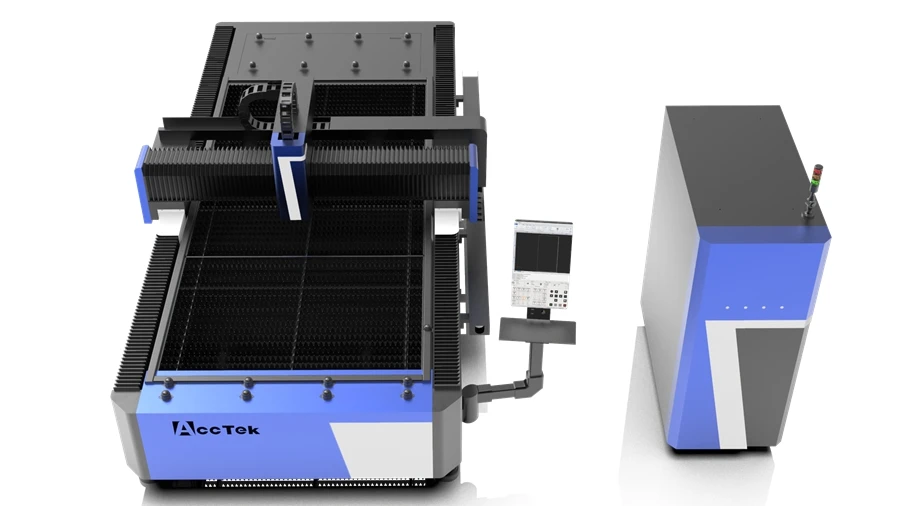

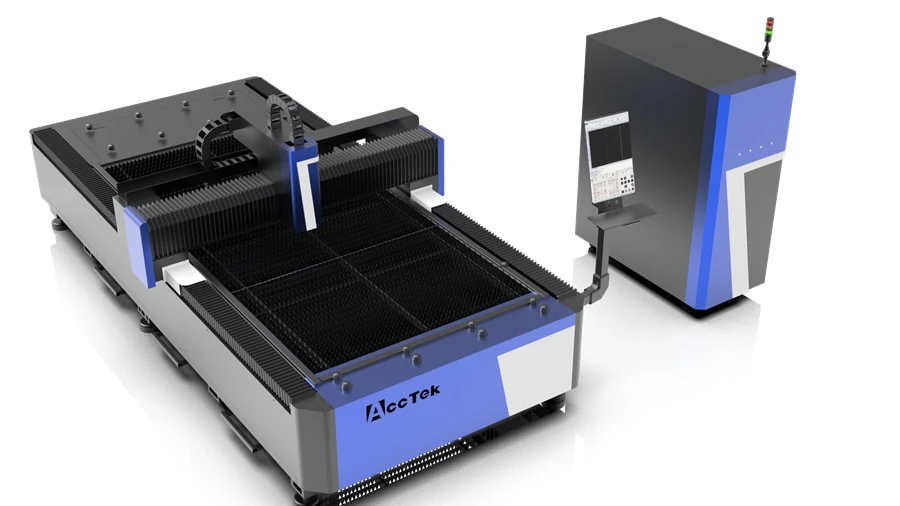

Высокое качество 6 м металлический профиль для труб стальной волоконный лазерный резак 3000 Вт машина резки кВт
1 204 952,00-1 445 942,40 ₽
3000 Вт аппарат для волоконной лазерной резки Raycus SS аппараты 1530 5*10 футов
- Категория: >>>
- Поставщик: Acctek Machinery Co. Ltd.(shandong)Acctek Ltd.(shandong)
Сохранить в закладки 1600260504947:
Описание и отзывы
Характеристики

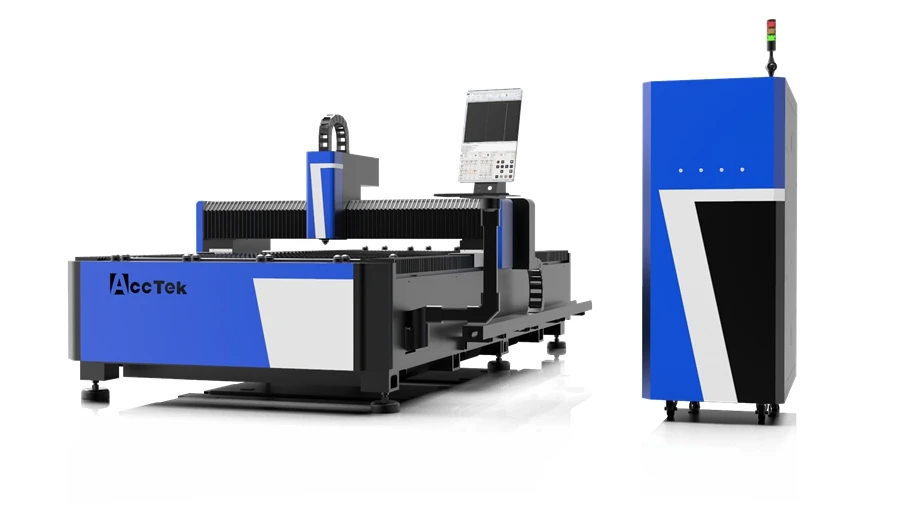

Product Description
ACCTEK fiber laser cutting machine adopts RAYCUS/ IPG laser source which has international advanced laser technology.
Equipped with an efficient transmission system by Taiwan high-precision gear rack after grinding process and high-precision linear guide.
Advanced control system, group into high precision CNC fiber laser cutting machine.
1. High efficiency: high-speed digital motion control by Germany technology system, especially for high-speed, high-precision laser cutting.
2. The high power fiber laser cutting machine's cutting slot is very slim, which can reach up to 0.05mm.
It is very suitable for processing precision parts with high efficiency.
3. Automatic lubrication system for mechanic, which can lubricate the linear guide rail nearly 500 times/minute to make sure its high precision.

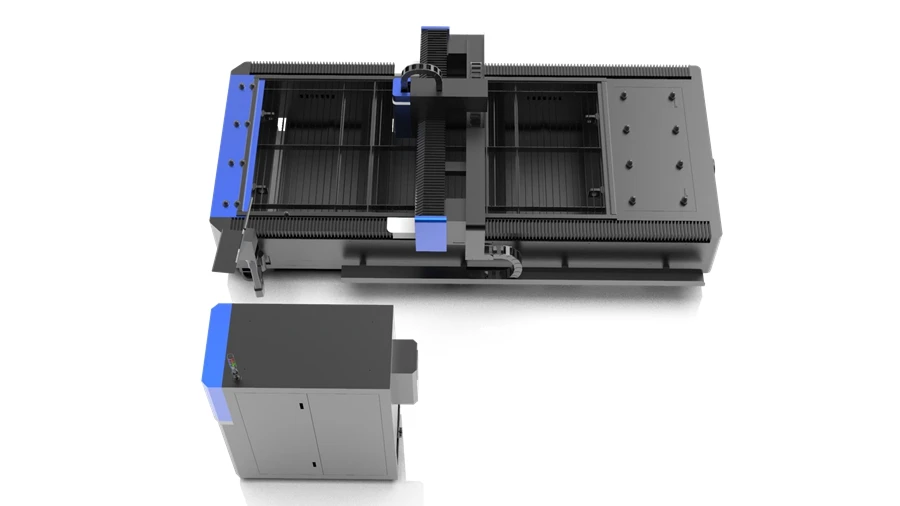

4. Stable running: adopting gantry structure with synchronous bilateral gear and rack drive, and high-strength aluminum beams enhance its stability.
5. Low energy consumption: photoelectric conversion rate is up to 25-30% which can save energy and power. Electric power consumption for this type fiber cutting machine is only about 20%-30% of the traditional Co2 laser cutting machine.
It is very suitable for processing precision parts with high efficiency.
3. Automatic lubrication system for mechanic, which can lubricate the linear guide rail nearly 500 times/minute to make sure its high precision.
4. Stable running: adopting gantry structure with synchronous bilateral gear and rack drive, and high-strength aluminum beams enhance its stability.
5. Low energy consumption: photoelectric conversion rate is up to 25-30% which can save energy and power. Electric power consumption for this type fiber cutting machine is only about 20%-30% of the traditional Co2 laser cutting machine.
Details Images
Raycus Laser Source
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost(Germany IPG Laser source is optional)
Raytools laser cutting head
Highly dust-proof: the dust-proof grade is IP65, and the light path is fully enclosed, so the possibility of lens contamination is almost zero.
Efficient water cooling: The focusing lens, collimating lens and nozzle have
Efficient water cooling: The focusing lens, collimating lens and nozzle have
built-in cooling function.
Anti-collision design, height adjustment high sensitivity.
With raise system, adjust focal length automatically according to the height of metal plate.
With raise system, adjust focal length automatically according to the height of metal plate.
Cypcut control system
Advanced technology, suit for all kinds of metal materials cutting.
Automatic optimization of imported graphics, Concise and clear process settings, For the use of machine tools, it can provide rich and timely statistics. Accurate edge finding aid.
Automatic optimization of imported graphics, Concise and clear process settings, For the use of machine tools, it can provide rich and timely statistics. Accurate edge finding aid.
Panasonic /Yaskawa servo motor
Faster speed with signal feedback .Low heat radiation .Run smoothly at ultra-low speed.
Simple operation, excellent stability, high-speed,high-precision processing can be achieved,even if the machine has not been replaced for many years or the equipment has different differences,there will be no oscillation,and stable operation can be achieved.
Simple operation, excellent stability, high-speed,high-precision processing can be achieved,even if the machine has not been replaced for many years or the equipment has different differences,there will be no oscillation,and stable operation can be achieved.
Water chiller
Dual temperature fiber chiller is used to cool both the fiber laser and the QBH connector.
Users can manually set water temperature control working mode according to actual needs.
Users can manually set water temperature control working mode according to actual needs.
French MOTOVARIO reducer
High performance, wide application, high rigidity, high efficiency, low noise and low backlash.
Specification
1 | Model | AKJ1530F2 |
2 | Laser power | 1000W/1500W/2000W/3000W (Optional) |
3 | Dimensions | 4440* 2500*1860mm |
4 | Working area | 3000mm x 1500mm |
5 | Repeat positioning accuracy | ±0.02mm |
6 | Maximum speed | 80m/min |
7 | Max acceleration | 1.0G |
8 | Max Cutting Speed | 60m/min |
9 | Control System | Cypcut |
10 | Laser head | Raytools |
11 | Voltage | 380V 50Hz/60Hz/60A |
12 | Weight | 3500Kg |
Sample & Application
Fiber laser cutting machine is good at processing on common metal items in daily life such as advertising metal letter, kitchenware, environmental protection equipment.
Laser cutting machines are widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries. Stainless steel, carbon steel, alloy steel, copper, brass, silicon steel, galvanized steel sheet, nickel titanium alloy, inconel, titanium alloy, etc.
Fiber laser cutting has no deformation in processing; no tool wear, good material adaptability; no matter simple or complex parts, it can be cut with laser precision and rapid forming at one time; its cutting seam is narrow, cutting quality is good, and the degree of automation is high, and the operation Simple, low labor intensity, no pollution; automatic cutting and nesting can be realized, material utilization rate is improved, production cost is low, and economic benefits are good
Packing & Delivery
1.Whole film packaging machine.
2.Anti-collision package edge.
3.Fumigation-free plywood wooden box with an iron-binding belt.
4.According to the customer's requirements for loading the whole container or LCL at Qingdao Port.
2.Anti-collision package edge.
3.Fumigation-free plywood wooden box with an iron-binding belt.
4.According to the customer's requirements for loading the whole container or LCL at Qingdao Port.
Company Profile
After sale service
1. 3 years quality guaranty (1.5 years for laser generator), the machine with main parts(excluding the consumables) shall be changed free of charge when if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours of online service each day, free technical support.
6. Machine has been adjusted before delivery, operation disk and manual was included. If there is also any questions, please kindly tell me.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours of online service each day, free technical support.
6. Machine has been adjusted before delivery, operation disk and manual was included. If there is also any questions, please kindly tell me.
FAQ
Q1: I knew nothing about this machine, what kind of machine I should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: Are you trading company or manufacturer?
A: We are factory.
Q3: When I got this machine, but I don’t know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts,
Our technical team can talk by telephone or skype and e-mail.
We will send engineer to your workshop if you need.
(please notice, client should bear air tickets and hotel and meal )
Q4:How about the documents after shipment?
After shipment, we 'll send all original documents to you by TNT, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
Q5:How long is the delivery time?
For standard machines, it would be 20-25 days; For non-standard machines and customized
machines according to the client s specific requirements, it would be 25 to 30 days.
Q6:Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW(factory) price, clients need to arrange shipment by themselves or their agents.
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: Are you trading company or manufacturer?
A: We are factory.
Q3: When I got this machine, but I don’t know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts,
Our technical team can talk by telephone or skype and e-mail.
We will send engineer to your workshop if you need.
(please notice, client should bear air tickets and hotel and meal )
Q4:How about the documents after shipment?
After shipment, we 'll send all original documents to you by TNT, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
Q5:How long is the delivery time?
For standard machines, it would be 20-25 days; For non-standard machines and customized
machines according to the client s specific requirements, it would be 25 to 30 days.
Q6:Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW(factory) price, clients need to arrange shipment by themselves or their agents.
Похожие товары
Дешевая цена лазерная машина для резки ключей 1000 Вт волоконно-лазерная металла

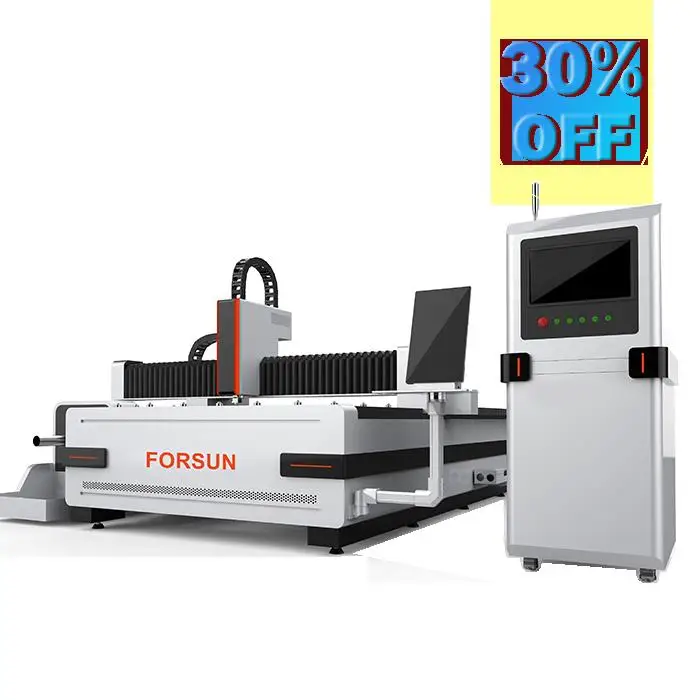

1000 Вт 2000 3000 волоконно-многофункциональные лазерные режущие машины промышленное лазерное оборудование для металла
1 879 725,12-2 048 418,40 ₽

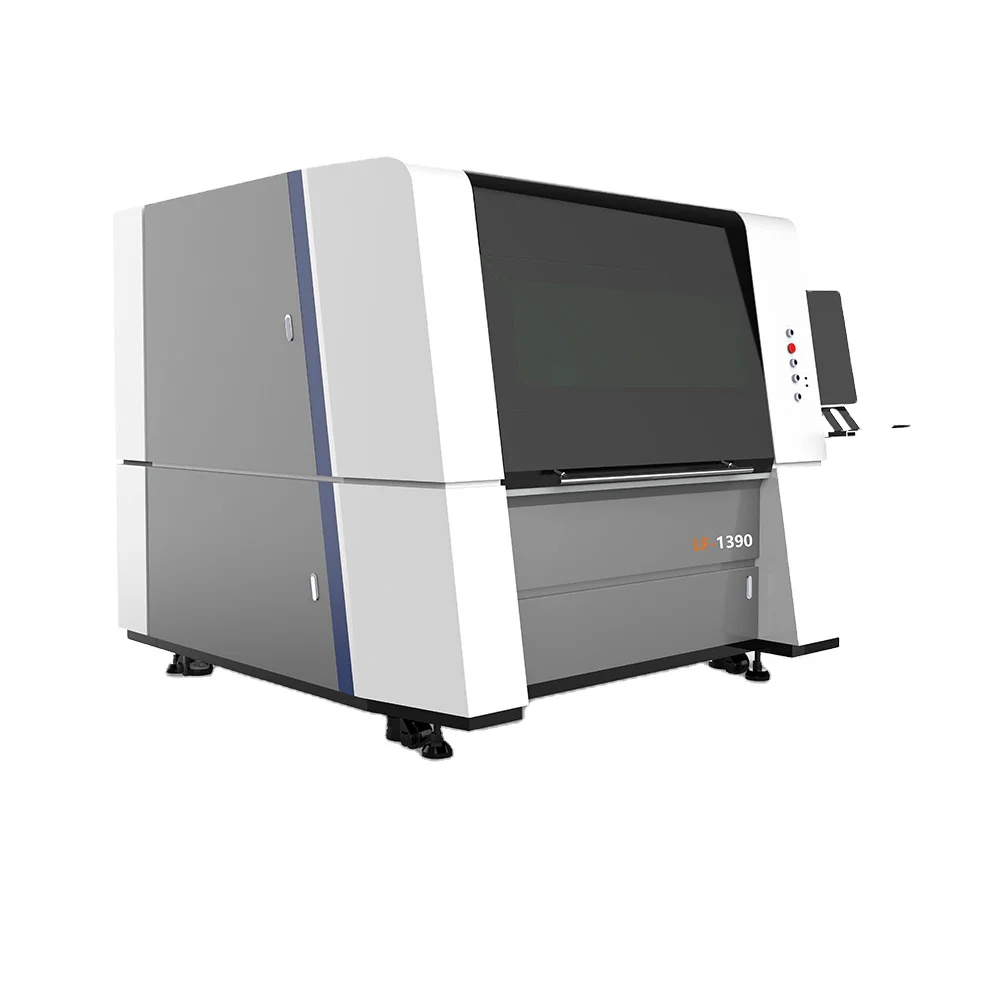

Быстрая скорость высокая точность 1390 мини серебро золото латунь нержавеющая углеродистая сталь Волокна Лазерной резки с полным покрытием
2 168 913,60-2 409 904,00 ₽
Целая крышка высокой точности мини небольшой размер 3 мм 5 8 листового металла из нержавеющей стали волоконно-лазерной резки
2 168 913,60-2 409 904,00 ₽

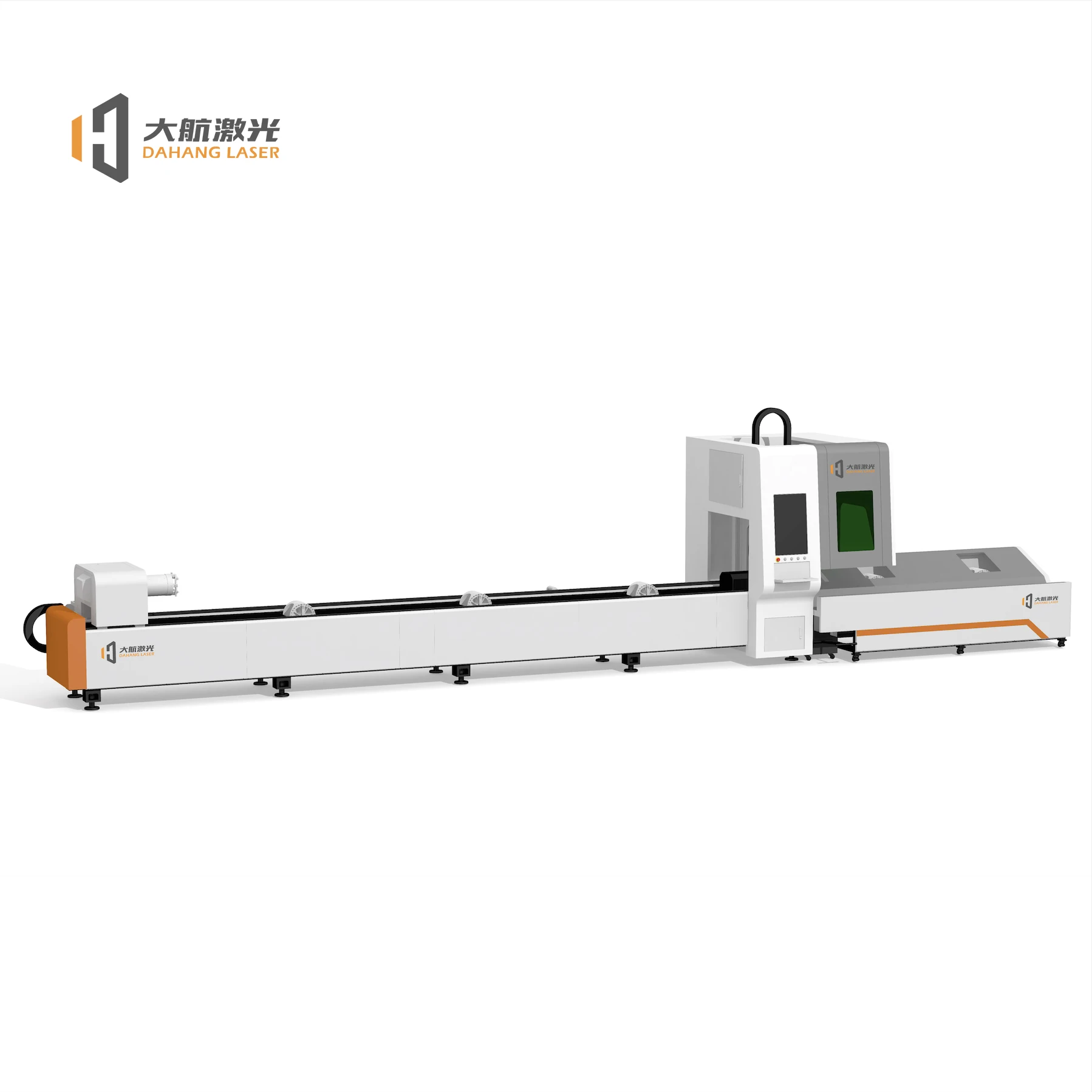

Самая продаваемая волоконно-лазерная машина для резки труб из нержавеющей стали углеродистая сталь алюминиевая
747 070,24-1 397 744,32 ₽

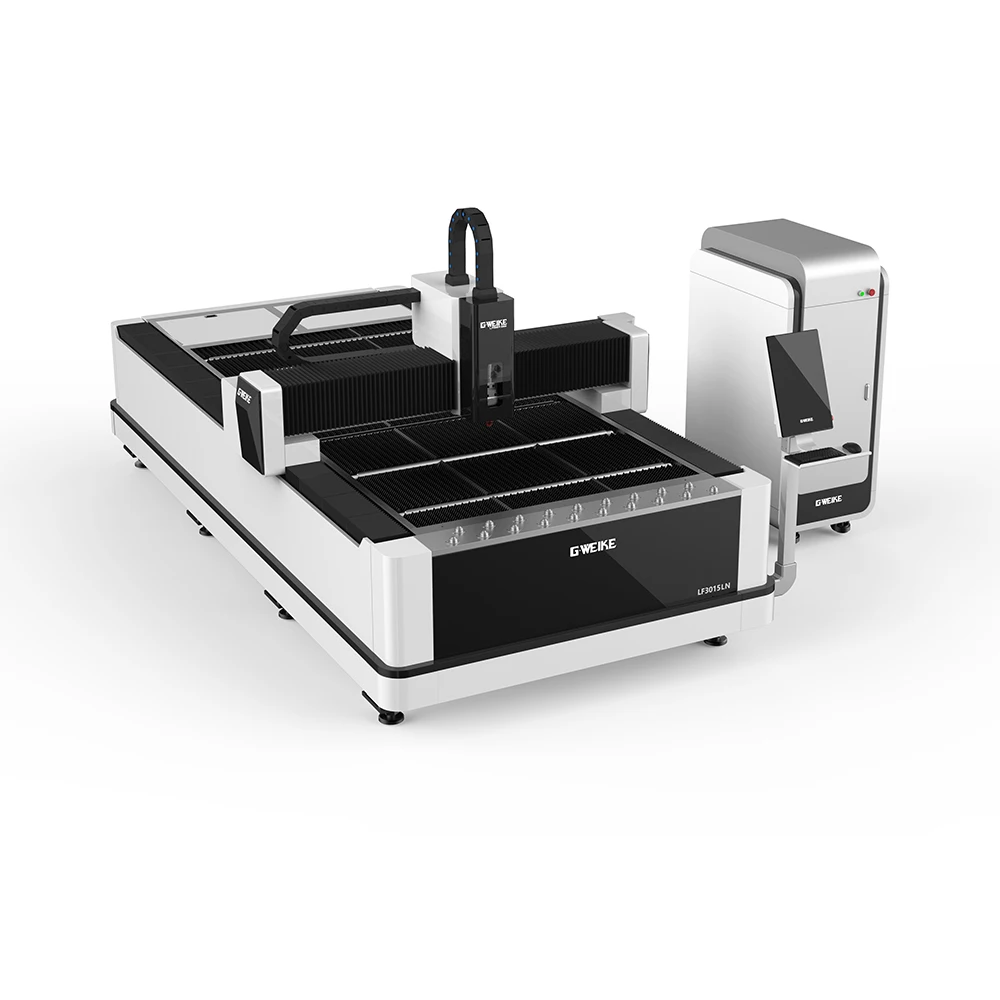

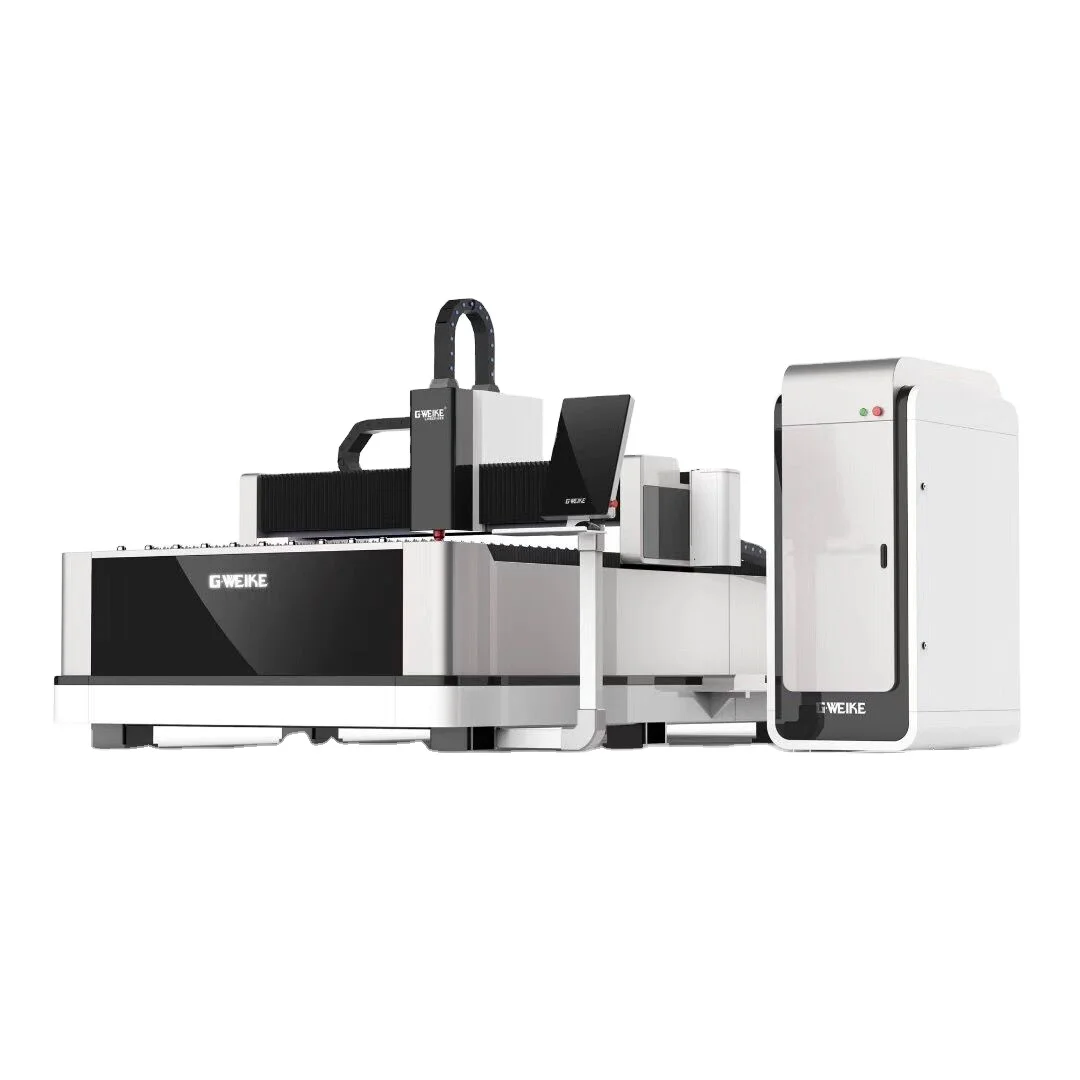

Распродажа модель LF3015LN 1000 ватт 2000 3000 Ватт IPG RAYCUS MAX RECI волоконно-лазерная машина для резки металла
