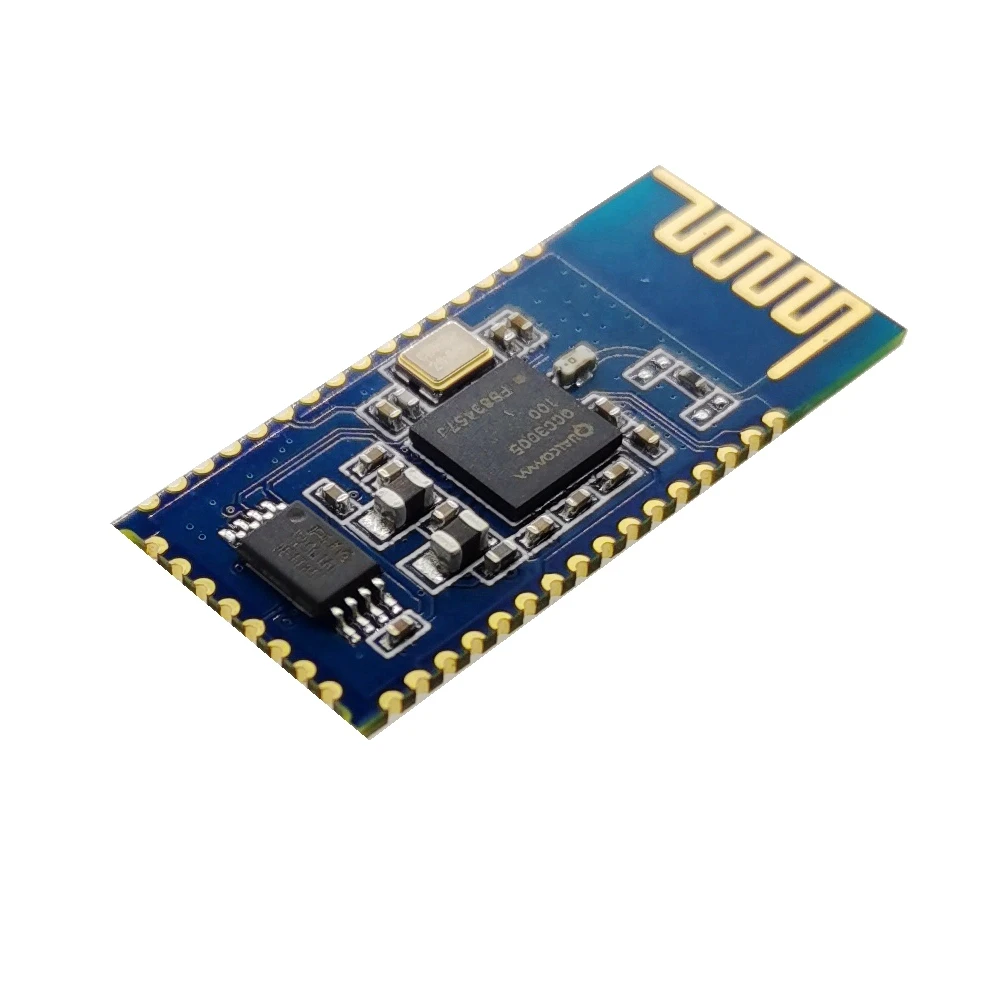

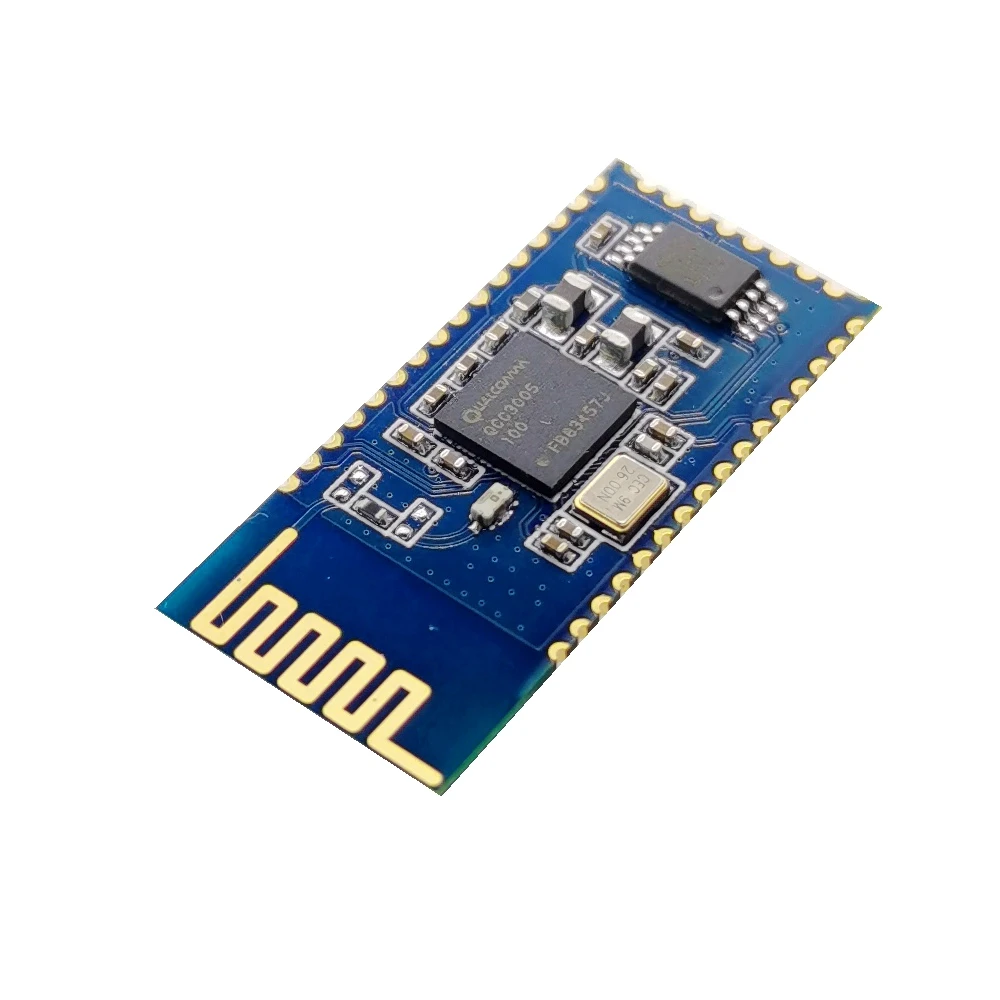

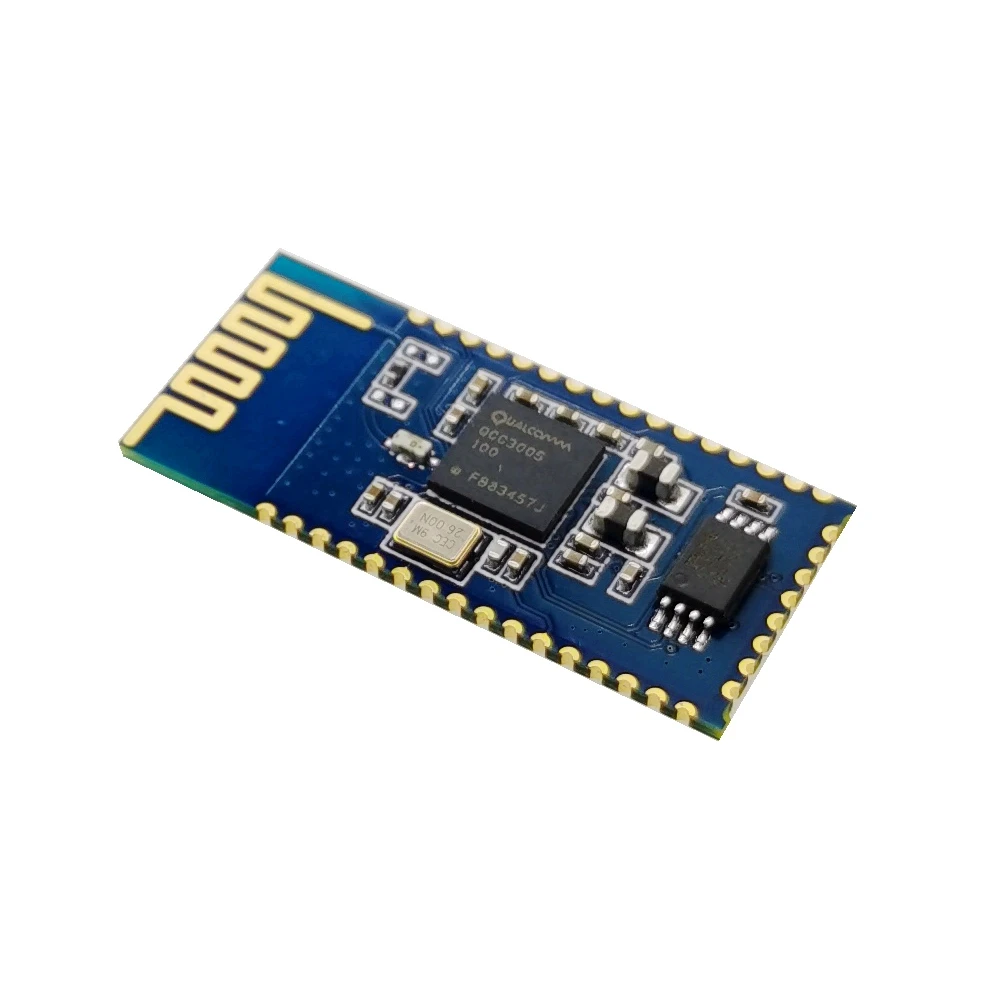

QCC3005 Bluetooth 5 0 Модуль I2S выход/aptx ll однокристальный двухрежимный модуль

Сохранить в закладки 1600262608826:


Цена:4,60 $ - 5,80 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



PRODUCT INFORMATION


Brand:
Canruo
Model:
Bluetooth 5.0 audio module
Board size:
11.5mm x 11.5mm x 2.5mm
supports:
LDAC APTX-HD APTX-LL I2S IIS SPDIF
Audio input method:
Bluetooth 5.0 audio transmitter
OEM&ODM:
yes
supports:
LDAC APTX-HD APTX-LL I2S IIS SPDIF


CSR8675 Bluetooth module LDAC APTX-HD APTX-LL I2S IIS SPDIF Bluetooth audio module

1: Introduction
BTM875-E introduces the pioneer of the Bluetooth 5.0 modules BTM875-E which is a high performance, cost effective, low power and compact solution. The Bluetooth module provides a complete 2.4GHz Bluetooth system based on the CSR8675 BGA chipset which is a single chip radio and baseband IC for Bluetooth 2.4GHz systems,. This module is fully qualified single-chip dual mode Bluetooth@v5.0 system.
2: Key Features
Bluetooth Profiles:
 Bluetooth v5.0 specification support
 Qualcomm® Bluetooth® Low Energy secure connection
 A2DP v1.3.1
 AVRCP v1.6
 HFP v1.7
 HSP v1.2
 MAP v1.1
 PBAP v1.1.1
 DID v1.1
 QTIL's proximity pairing and QTIL's proximity connection
Music Enhancements:
 aptX, aptX Low Latency, SBC, and AAC audio codecs
 Qualcomm TrueWireless™ Stereo (TWS), which allows two devices to be configured as a stereo pair
 Configurable Signal Detection to trigger events
 1 bank of up to 10-stage Speaker Parametric EQ
 6 banks of up to 5-stage User Parametric EQ for music enhancement
 Qualcomm® meloD™ Expansion audio processing: 3D stereo widening
 Compander to compress or expand the dynamic range of the audio
 Post Mastering to improve DAC fidelity
 Dual I²S outputs with crossover
Additional Functionality:
 Support for multi-language programmable audio prompts
 Multipoint support for A2DP connection to 2 A2DP sources for music playback
 Talk-time extension, which automatically reduces processor functions to extend use when a low battery condition is detected
 Slim module with 11.5mm x11.5mm x 2.5mm
3: Applications
 Stereo Headsets
 Wired Stereo headsets and headphones
 Portable Bluetooth Stereo speakers
4: General specifications
Model Name: BTM875-E
Product Description: Bluetooth 5.0 Class2 Module
Bluetooth Standard: Bluetooth 5.0
Chipset: CSR8675 BGA
Dimension: 11.5mm x 11.5mm x 2.5mm
Operating Conditions
Voltage: 2.8~4.2V
Temperature: -10~+70℃
Storage Temperature: -40~+85℃
Electrical Specifications
Frequency Range: 2402~2480MHz
Maximum RF Transmit Power: 9dBm
π/4 DQPSK Receive Sensitivity: -91dBm
8DPSK Receive Sensitivity: -81dBm


PRODUCT SHOW










APPLICATION AREA


Consumer Electronics
Wearable Devices
Industrial Manufacture
