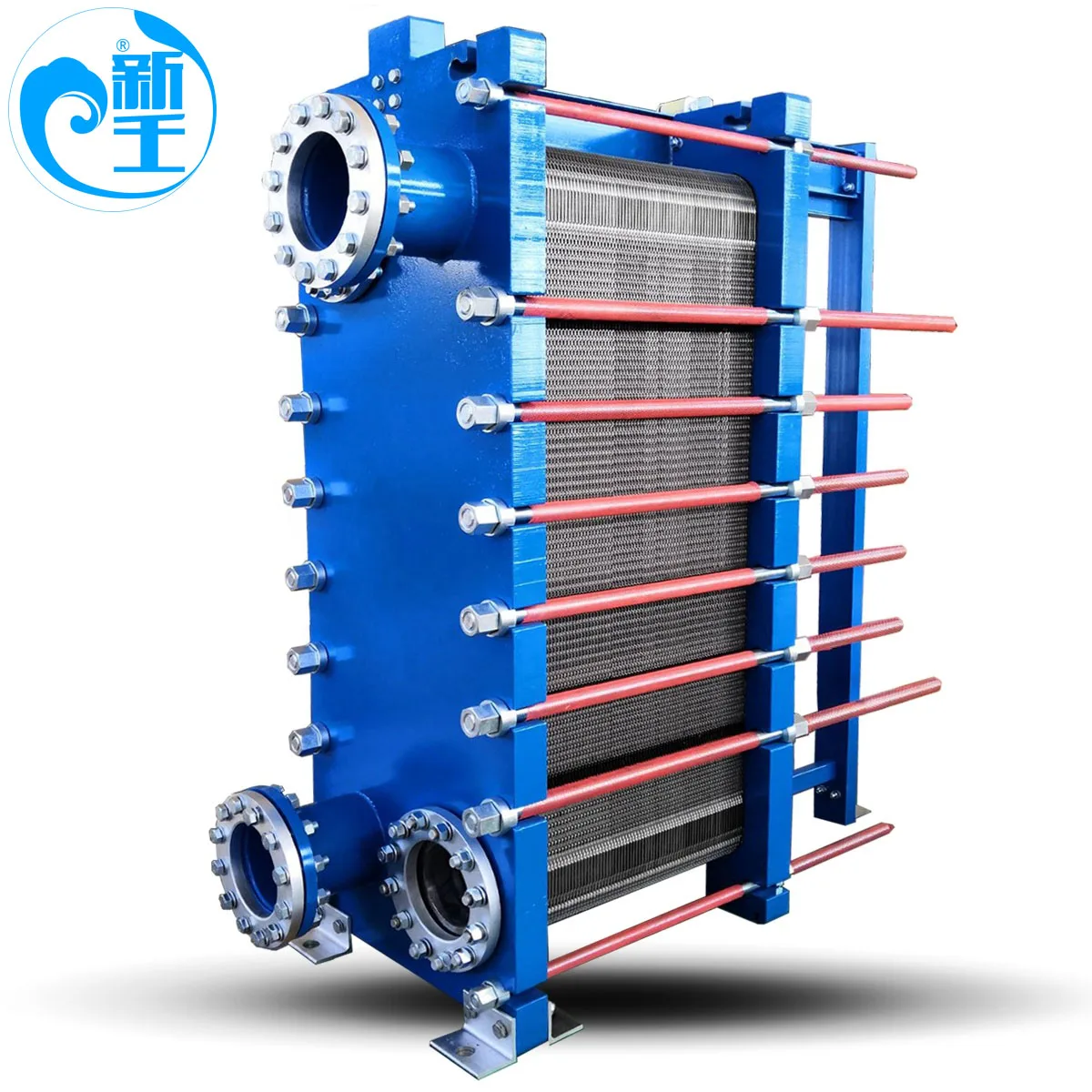

Пластинчатый теплообменник, производственная линия, замена an35l1 an35l2 an35l3 an35l4
399,00 $ - 500,00 $
Гарантия качества высокоэффективный энергосберегающий новый продукт 2021 лучшая заводская цена объемный пластинчатый теплообменник
- Категория: >>>
- Поставщик: Shandong Zhaozhou Import And Export Group Co. Ltd.
Сохранить в закладки 1600265564981:
Описание и отзывы
Характеристики
Product Overview
I About Volumetric Plate Heat Exchanger
The volumetric heat exchanger uses less metal materials to achieve the best heat exchange effect. The volumetric heat exchanger has a high heat conversion rate and can efficiently convert electrical energy into more heat. material. In many industrial and civil equipment, efficient heat exchange is required. At this time, it is necessary to combine the working conditions, choose materials, arrangement forms, and heat exchange methods reasonably. Features: high heat exchange efficiency, low thermal resistance, low thermal inertia, sensitivity, saving materials and space, saving power, low flow resistance, low noise, etc.
Energy-saving volumetric heat exchanger, which makes full use of steam energy, high efficiency and energy saving, is a new type of water heater. Ordinary water heaters generally need to be equipped with water-to-water heat exchangers to reduce the temperature of steam condensate for reuse. The energy-saving heat exchanger condensate outlet temperature is around 45 ℃, or directly back to the boiler room for reuse. This reduces the equipment investment, saves the area of the heat exchanger machine room, and thus reduces the basic construction cost. Therefore, the energy-saving volumetric heat exchanger is very popular among the majority of design and user units
Energy-saving volumetric heat exchanger, which makes full use of steam energy, high efficiency and energy saving, is a new type of water heater. Ordinary water heaters generally need to be equipped with water-to-water heat exchangers to reduce the temperature of steam condensate for reuse. The energy-saving heat exchanger condensate outlet temperature is around 45 ℃, or directly back to the boiler room for reuse. This reduces the equipment investment, saves the area of the heat exchanger machine room, and thus reduces the basic construction cost. Therefore, the energy-saving volumetric heat exchanger is very popular among the majority of design and user units
II Introduction of Zhaozhou Group
Zhaozhou Group consists of 5 sub companies: Dezhou Zhaozhou Import and Export Trading Co. Ltd., Dezhou Zhemai Electric Factory, Dezhou Xinyi Heat Exchanger Equipment Co. Ltd., Dezhou Luda Environmental Technology Co., Ltd., Dezhou Pangda Furniture Co., Ltd.. Established with 13 producing workshops, Zhaozhou Group is a scientific research, design, development, production, sales and installation set in one-scale enterprises. Our company is a garden-type and modern enterprise with all-round development in technology、industry and trade.
Adhering to our operating philosophy of "Treat market as the orientation, technology as the lifeline, management as the basis, customer as the focus" , the Group has constantly realized the technical innovation and quality escalation. Based on its cutting-edge technology, superior performance, reliable quality and perfect after-sales service system, our products provide water supply guarantee for users. Our products remained a popular choice among users domestic and overseas since they first came onto the market.
Insisting on the purpose of "quality first, users first, credibility first", Zhaozhou provides customers with more reliable water supply system solutions and perfect services based on the principle of "from society to society ". Zhaozhou will always work with you committed to create a great future!
Adhering to our operating philosophy of "Treat market as the orientation, technology as the lifeline, management as the basis, customer as the focus" , the Group has constantly realized the technical innovation and quality escalation. Based on its cutting-edge technology, superior performance, reliable quality and perfect after-sales service system, our products provide water supply guarantee for users. Our products remained a popular choice among users domestic and overseas since they first came onto the market.
Insisting on the purpose of "quality first, users first, credibility first", Zhaozhou provides customers with more reliable water supply system solutions and perfect services based on the principle of "from society to society ". Zhaozhou will always work with you committed to create a great future!
III Advantages of Our Plate Heat Exchanger
a.Descaling Function
b.High efficiency of heat transfer
c.Large water storage
d.Safe and steady water supply
e.Long life span
b.High efficiency of heat transfer
c.Large water storage
d.Safe and steady water supply
e.Long life span
IV Instructions
1.The tube pass of the volumetric plate heat exchanger is the thermal medium tunnel,and the shell side is the tunnel for heated water. Thermal medium is steam or high(low)-temperature water.
2.High-quality carbon steel plate is used as its shell material, and users can choose the copper pipes or the stainless steel pipes as its heating coil.
3.Safety valve is installed on the top of the heat exchanger, whose pressure should be suitable to the highest working pressure of the heat exchanger. Or an expansion tank shall be designed to be connected with the heat exchanger, in order to discharging the expanded water.
4.The heat exchanger need to be examined regularly among its using process. Use the thermal shock to descale automatically at least once a month and drain the water once a week, which could maintain water quality.
5.The specific method of using the thermal shock to descale is : draining the water inside the tube first, then keep passing through steam, whose inlet pressure is 0.3 MPa, until hear the sounds coming from the heating tube, which indicates the inflated heating tube. After that, close the steam inlet valve and use the water pipe to squirt the heated tubes, repeat like this for 3 or 4 times, then you’ll find the fouling products flowing from the sewage outfalls. Finally, fill it up with water and continue its work.
6.In this heat exchanger, the design pressure of shell side and tube is normally 0.6-1.6 MPa. The temperature of the hot water outlet would not be higher than 90 centigrade. Tube resistance is below 4mH2O. The small tube resistance loss could be negligible.
7.A temperature-control valve should be installed on the steam inlet tube to control the steam flow and the temperature of hot water because of the high heat-transfer efficiency of this heat exchanger. Considering the personal security, temperature control is more necessary particularly for the hot water supply system.
8.Leave a space around the engine.
2.High-quality carbon steel plate is used as its shell material, and users can choose the copper pipes or the stainless steel pipes as its heating coil.
3.Safety valve is installed on the top of the heat exchanger, whose pressure should be suitable to the highest working pressure of the heat exchanger. Or an expansion tank shall be designed to be connected with the heat exchanger, in order to discharging the expanded water.
4.The heat exchanger need to be examined regularly among its using process. Use the thermal shock to descale automatically at least once a month and drain the water once a week, which could maintain water quality.
5.The specific method of using the thermal shock to descale is : draining the water inside the tube first, then keep passing through steam, whose inlet pressure is 0.3 MPa, until hear the sounds coming from the heating tube, which indicates the inflated heating tube. After that, close the steam inlet valve and use the water pipe to squirt the heated tubes, repeat like this for 3 or 4 times, then you’ll find the fouling products flowing from the sewage outfalls. Finally, fill it up with water and continue its work.
6.In this heat exchanger, the design pressure of shell side and tube is normally 0.6-1.6 MPa. The temperature of the hot water outlet would not be higher than 90 centigrade. Tube resistance is below 4mH2O. The small tube resistance loss could be negligible.
7.A temperature-control valve should be installed on the steam inlet tube to control the steam flow and the temperature of hot water because of the high heat-transfer efficiency of this heat exchanger. Considering the personal security, temperature control is more necessary particularly for the hot water supply system.
8.Leave a space around the engine.
V Demonstration of the type:
RL(W)S(Q)-2-1.0/1.0
R: volumetric
L(W): vertical (horizontal) type
S:use high/low-temperature hot water as the primary heat source
Q:use steam as the primary heat source
-2: total volume of shell(m3)
-1.0:design pressure of the shell side
/1.0:design pressure of the tube pass
R: volumetric
L(W): vertical (horizontal) type
S:use high/low-temperature hot water as the primary heat source
Q:use steam as the primary heat source
-2: total volume of shell(m3)
-1.0:design pressure of the shell side
/1.0:design pressure of the tube pass
FEATURES AT A GLANCE
HIGH EFFICIENCY
SMALL OCCUPATION
LOW RESISTANCE LOSS
WIDE APPLICATION
CLEAN CONVENIENT
ADAPTABLE
SAVE ENERGY
SMALL OCCUPATION
LOW RESISTANCE LOSS
WIDE APPLICATION
CLEAN CONVENIENT
ADAPTABLE
SAVE ENERGY
PRODUCT SPECIFICATIONS
Parameter | RLS(RLQ)-2 | RLS(RLQ)-3 | RLS(RLQ)-4 | ||||
Model | |||||||
Tank Diameter DN(mm) | 1200 | 1200 | 1600 | ||||
H | See the Technical Parameter Sheet | ||||||
H1 | 1300 | 2300 | 1500 | ||||
H2 | 500 | 500 | 600 | ||||
H3 | 350 | 350 | 350 | ||||
L1 | 180 | 180 | 200 | ||||
L2 | 190 | 190 | 210 | ||||
L3 | 140 | 140 | 150 | ||||
DN1 | 65 | 65 | 80 | ||||
DN2 | 40 | 40 | 40 | ||||
DN3 | 65 | 65 | 80 | ||||
DN4 | 65(25) | 65(25) | 80(40) | ||||
DN5 | 50 | 50 | 50 | ||||
DN6 | 65 | 65 | 80 | ||||
R | 420 | 420 | 600 | ||||
Parameter | RLS(RLQ)-5 | RLS(RLQ)-6 | RLS(RLQ)-8 | ||||
Model | |||||||
Tank Diameter DN(mm) | 1600 | 1800 | 1800 | ||||
H | See the Technical Parameter Sheet | ||||||
H1 | 2000 | 1800 | 2600 | ||||
H2 | 600 | 700 | 700 | ||||
H3 | 350 | 350 | 350 | ||||
L1 | 200 | 220 | 220 | ||||
L2 | 210 | 230 | 230 | ||||
L3 | 150 | 170 | 170 | ||||
DN1 | 80 | 80 | 80 | ||||
DN2 | 40 | 40 | 40 | ||||
DN3 | 80 | 80 | 80 | ||||
DN4 | 80(40) | 80(40) | 80(40) | ||||
DN5 | 50 | 50 | 50 | ||||
DN6 | 80 | 80 | 80 | ||||
R | 600 | 675 | 675 | ||||
Workshop Pictures
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
Packing & Delivery
FAQ
Q1: Could you give me your best price?
A1:Definitely, we are a professional manufacturer, so we could give you competitive price.
Q2: How long would the delivery time?
A2: It is based on production season and order quantity.
Q3: How can you guarantee the quality?
A3: We have a powerful QC team to control the quality in every production process. We believe the best quality is our enterprise
life.
That’s why we have lots of big group companies.
Q4: I want to buy your products, how can I make the payment?
A4: We can accept the T/T and western union.
A1:Definitely, we are a professional manufacturer, so we could give you competitive price.
Q2: How long would the delivery time?
A2: It is based on production season and order quantity.
Q3: How can you guarantee the quality?
A3: We have a powerful QC team to control the quality in every production process. We believe the best quality is our enterprise
life.
That’s why we have lots of big group companies.
Q4: I want to buy your products, how can I make the payment?
A4: We can accept the T/T and western union.
Похожие товары

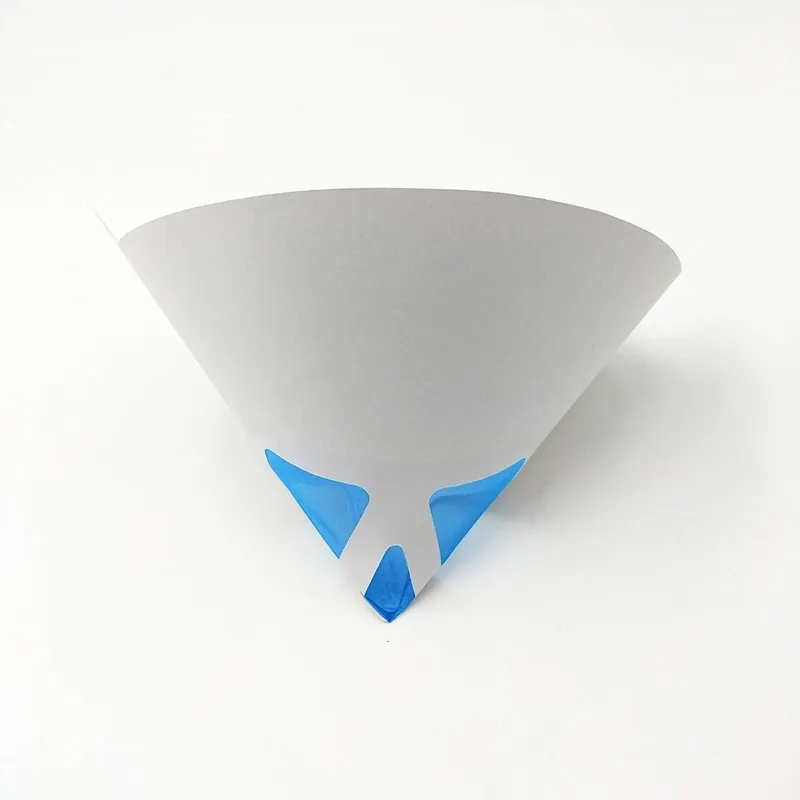

Фильтровальная краска 190 микрон 150 г, бумажный конический фильтр
Высокое качество 304 пластинчатый теплообменник из нержавеющей стали блок
9 000,00 $ - 30 000,00 $
Xinren Лучшая цена Mx25 SUS316L Морской Двигатель Дизельный пластинчатый теплообменник

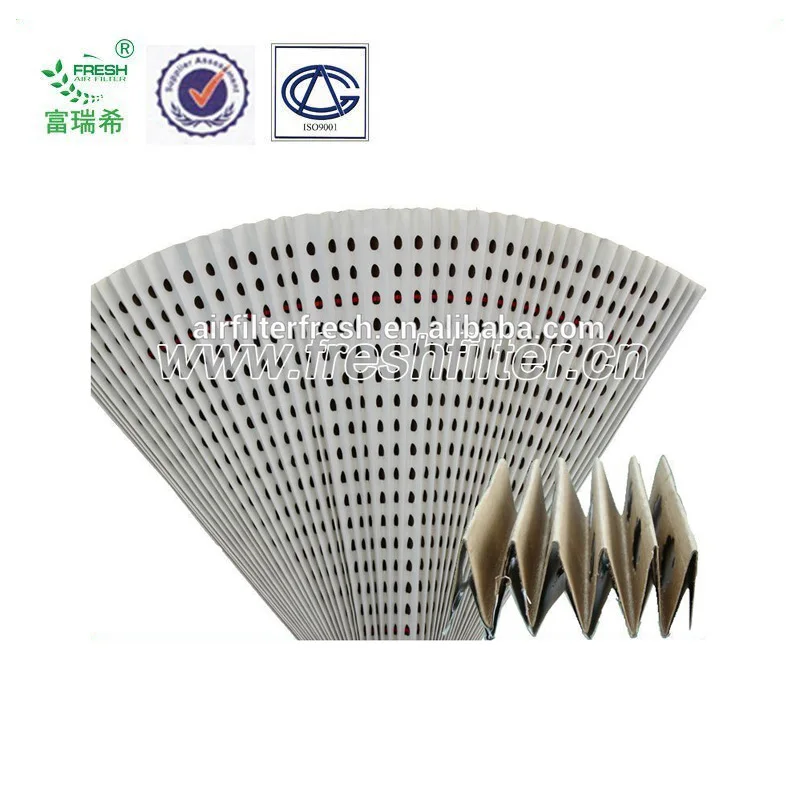

коричневый большой бумагу краски фильтр

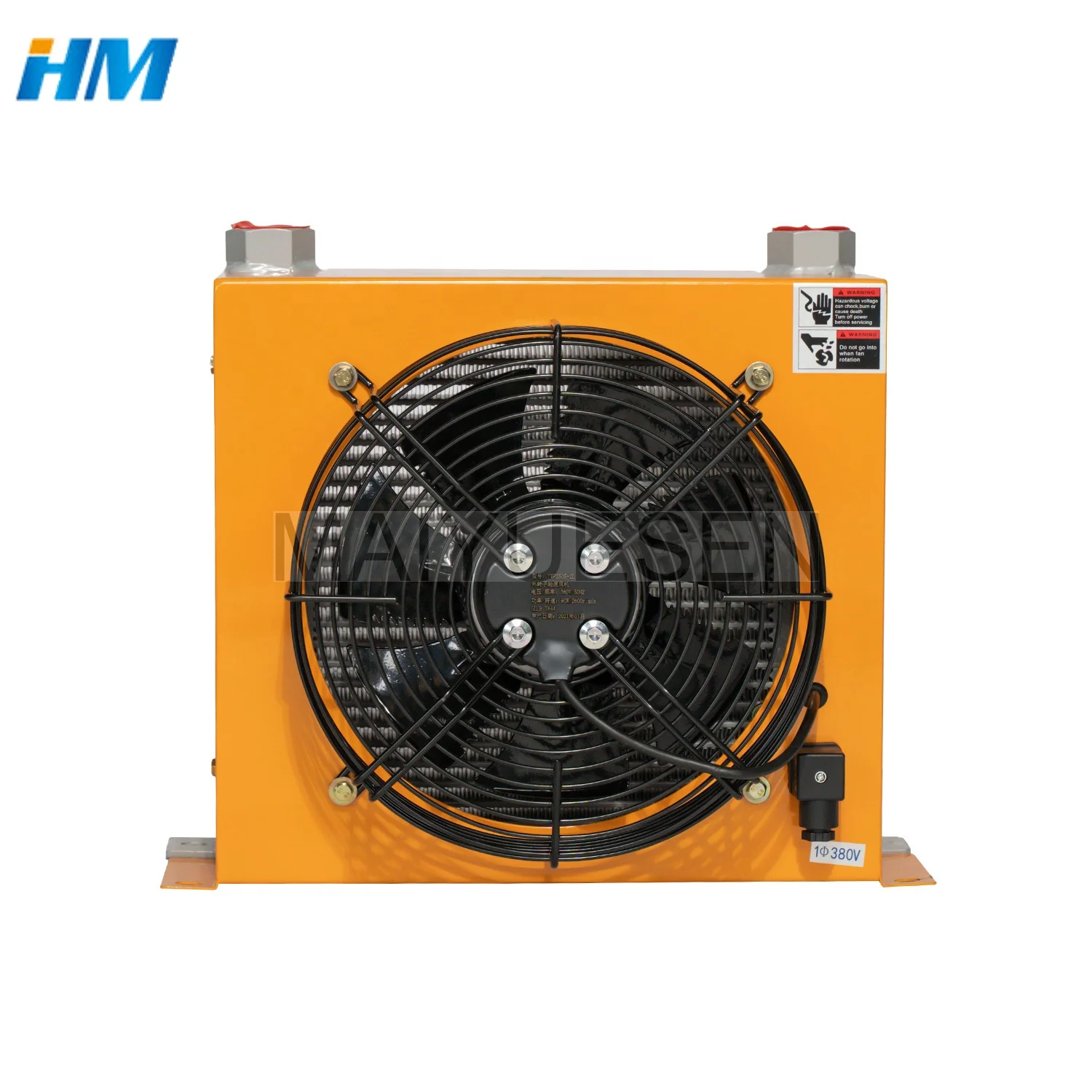

Масляный охлаждающий вентилятор AH1012T, 12 В, 24 В, 220 В, 380 В, воздушный теплообменник, теплообменник двигателя, Гидравлический масляный радиатор
70,00 $ - 85,00 $

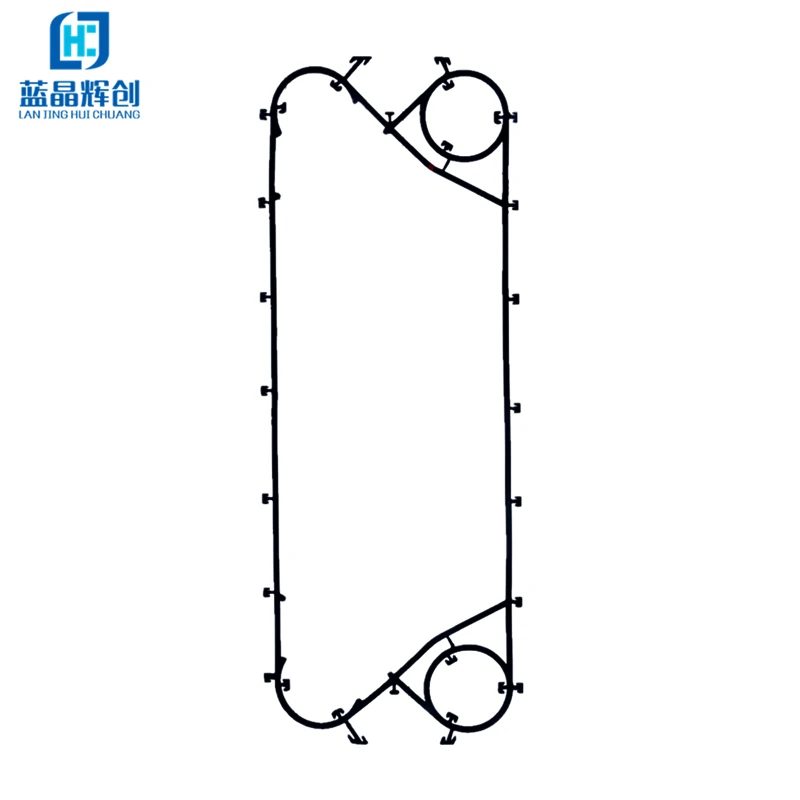

Промышленный теплообменник NBR, высокотемпературный пищевой EPDM Резиновый прокладка, теплообменник фторрезиновых пластин

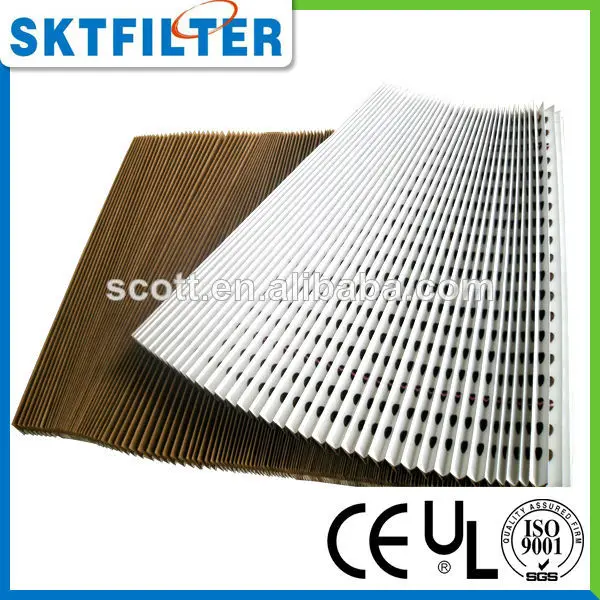

FRS-ETD свежий лакокрасочная фильтрованная бумага 60 мм толщиной для малярки
