16-тонный 18-тонный однобалочный козловой кран
5 000,00 $

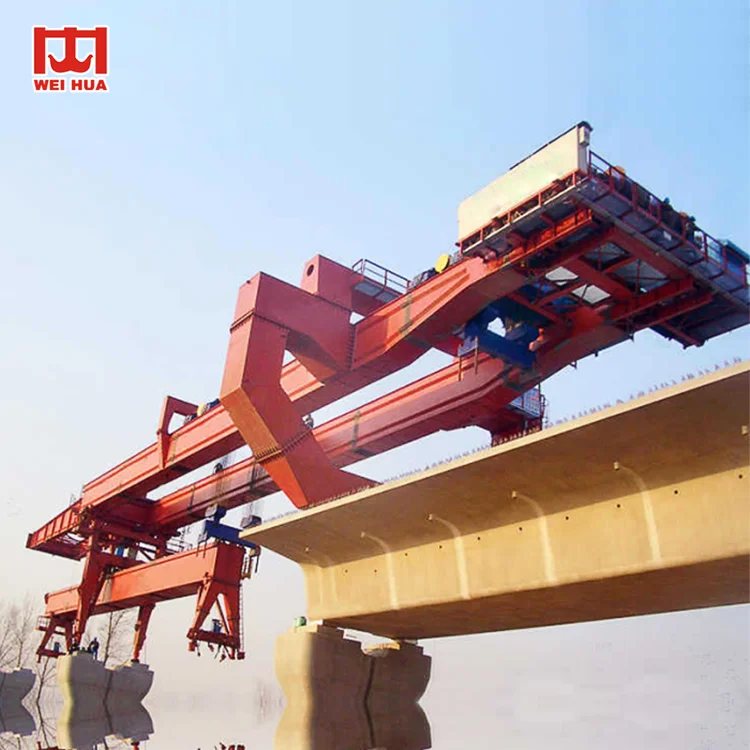

Пусковое устройство Weihua Crane Beam используемое в строительстве моста и запуске бетонных пучков
- Категория: >>>
- Поставщик: Henan Weihua Heavy Machinery Co. Ltd.Henan Ltd.
Сохранить в закладки 1600265889673:
Описание и отзывы
Характеристики
Products Description

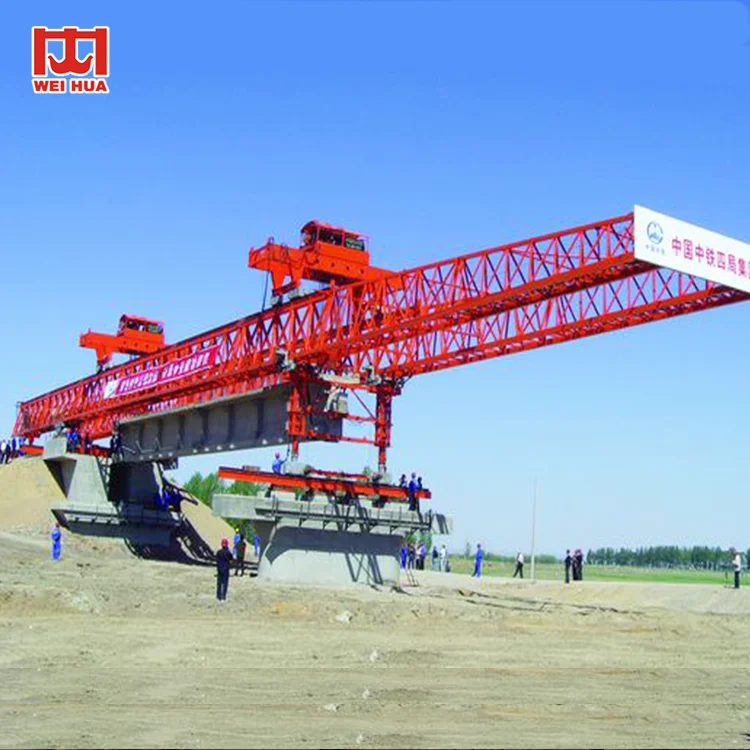

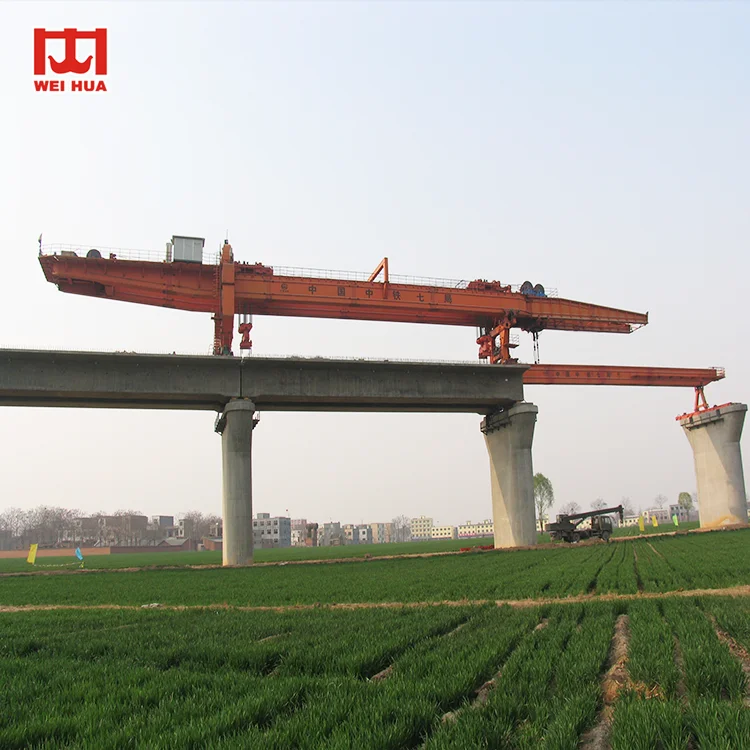

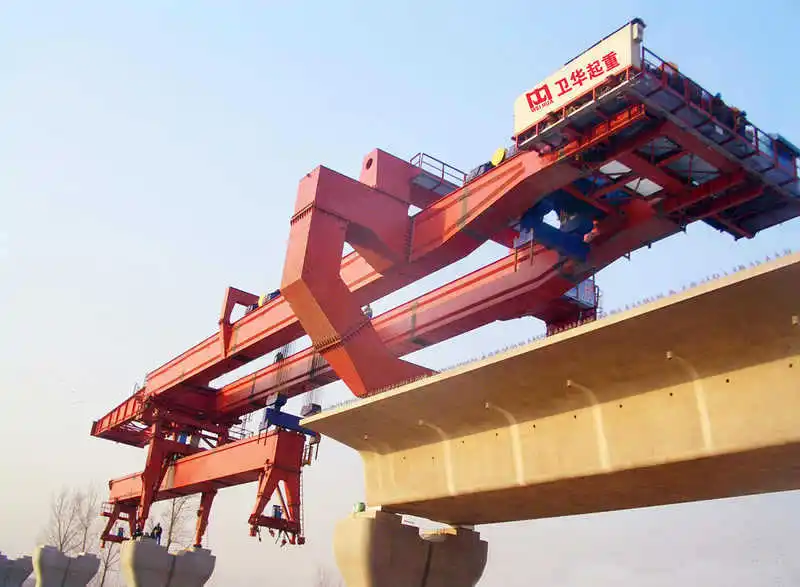

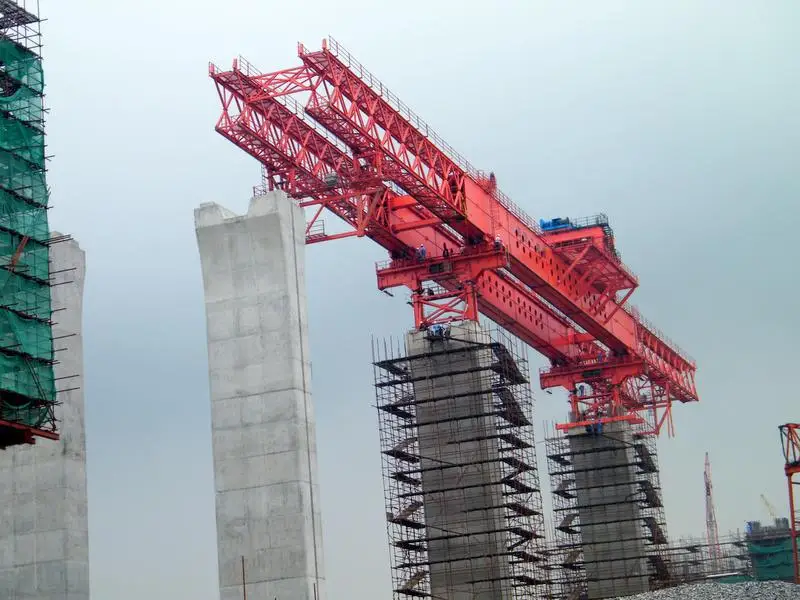

Beam launcher used in bridge construction & Highway bridge erecting crane concrete beam launching
Bridge girder erection machine merges an adaptation of a wide range of work, excellent performance, convenient operation, safety structure into a single whole. It has the steel structure of rail type precast beam hoisting rack equipment. This product can be used not only in plain construction, but also to meet the construction of mountain highway slope, small radius curved bridge, skew bridge and tunnel bridge requirements.
The bridge girder erection machine consists of main girder, crane, front legs, rear legs, front leg cylinder, rear leg cylinder and the transverse connection of front, middle, rear legs. The control part is composed of hydraulic system and electric control system. The bridge girder erection machine is characterized by reasonable compact structure and convenient installation, the main standard girder is connected by pin connection. The double girder structure is connected between the two frame girders by welded
pipe.
The bridge girder erection machine not only can meet the standard set up, but also it can meet the cross curve erection, variable span erection, span continuous beam, composite beam, continuous steel etc. In addition to bridge erection, simply supported girder erection and point lifting, it is characterized by good stability, high efficiency, safety and reliability, variable span convenient adjustment and convenient operation and etc.
The bridge girder erection machine consists of main girder, crane, front legs, rear legs, front leg cylinder, rear leg cylinder and the transverse connection of front, middle, rear legs. The control part is composed of hydraulic system and electric control system. The bridge girder erection machine is characterized by reasonable compact structure and convenient installation, the main standard girder is connected by pin connection. The double girder structure is connected between the two frame girders by welded
pipe.
The bridge girder erection machine not only can meet the standard set up, but also it can meet the cross curve erection, variable span erection, span continuous beam, composite beam, continuous steel etc. In addition to bridge erection, simply supported girder erection and point lifting, it is characterized by good stability, high efficiency, safety and reliability, variable span convenient adjustment and convenient operation and etc.
The bridge girder erection machine Features:
* Unique pin connection, firm and reliable, easy to install
* A-type fracture surface, continuous girder with low center of gravity, convenient and reliable.
* The machine can accomplish the build of girders with carrying and erection at the same time.
* Low deflection and high stiffness .
* Safe and reliable .
* High efficiency.
* A-type fracture surface, continuous girder with low center of gravity, convenient and reliable.
* The machine can accomplish the build of girders with carrying and erection at the same time.
* Low deflection and high stiffness .
* Safe and reliable .
* High efficiency.
Lifting capacity (t) | 200 | 160 | 120 | 100 | 80 |
applicable span (m) | ≤55 | ≤50 | ≤40 | ≤35 | ≤30 |
applicable skew bridge angle | 0-450 | 0-450 | 0-450 | 0-450 | 0-450 |
trolley lifting speed (m/min) | 0.8 | 0.8 | 0.8 | 1.27 | 0.8 |
rolley longitudinal moving speed (m/min) | 4.25 | 4.25 | 4.25 | 4.25 | 4.25 |
cart longitudinal moving speed (m/min) | 4.25 | 4.25 | 4.25 | 4.25 | 4.25 |
cart transverse moving speed (m/min) | 2.45 | 2.45 | 2.45 | 2.45 | 2.45 |
transportation capacity (t) | 100X2 | 80 X2 | 60X2 | 50X2 | 50X2 |
speed of bridge transport vehicle (m/min) | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 |
return speed (m/min) | 17 | 17 | 17 | 17 | 17 |
Related Products
Main Products
The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, other industries of universal bridge crane, overhead crane, eot crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane,grab bucket crane, jib crane,marine decke crane,electric hoist,electric winch,mobile platforms and other types of hydraulic crane technical requirements.
Company Profile
Weihua Group was founded in 1988. After 33 years of development, it has developed products such as lifting machinery, port machinery, mining machinery,electric hoists, electric winch, parking equipment, special robots and other products.The total assets are 7.076 billion yuan, the brand value is 7.19 billion yuan, there are more than 6,800 employees, and it covers an area of 3.65 million square meters.
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.
Packing and shipping
FAQ
Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
