Products Description

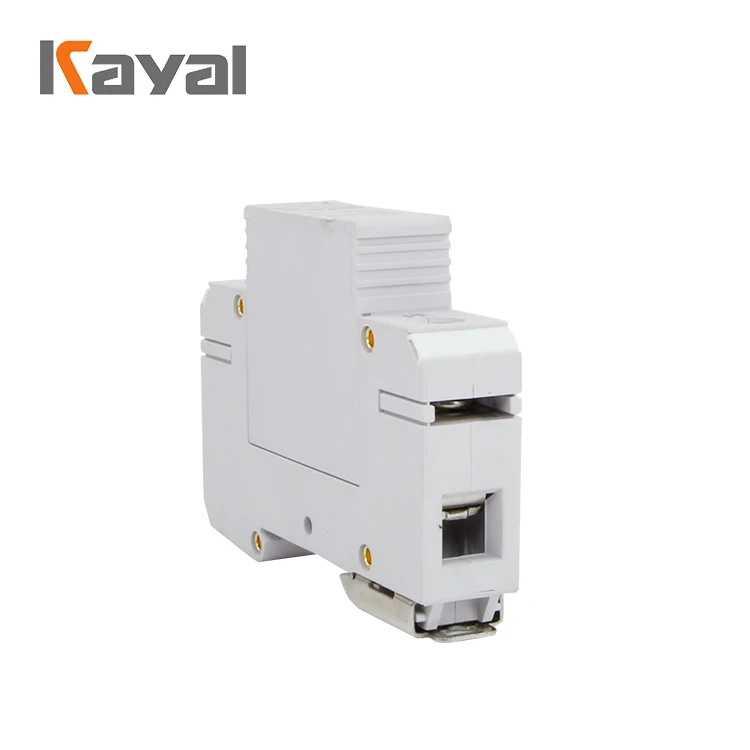

DC surge protector
Description

KYV-SP series Surge Protection are designed to protect against lighting surge voltages in photovoltaic power supply networks.These units must be installed in parallel on the DC networks to be protected and provide common and differential modes protection.
Features
Conform to IEC61643-11 standards
DC Surge Protection Devices for Photovoltaic protection
Common mode or Common+Differential mode protection
Un dc:500V~1000V
Class 1/Type 1 and Class 2/Type 2 available
Technical Data


Specifications
KYV-SP600
KYV-SP1000
KYV-SP1200
Nominal Voltage(Vac)
600DC
1000DC
1200DC
MCOV(Ucpv)L-PE
720 VDC
1200 VDC
1440 VDC
Nominal Discharge Current(Ln’kA)
20
10
10
Max. Discharge Current(Lmax’8/20,kA)
50
50
50
Voltage Protection Level(Up@ln’kA)
<2.0
<4.0
<4.0
Operation Temperature
-40℃ to 80℃
ISCWPV(kA)
10
L/R
1mS
Application
Type 2
Degree of Protection
IP20
