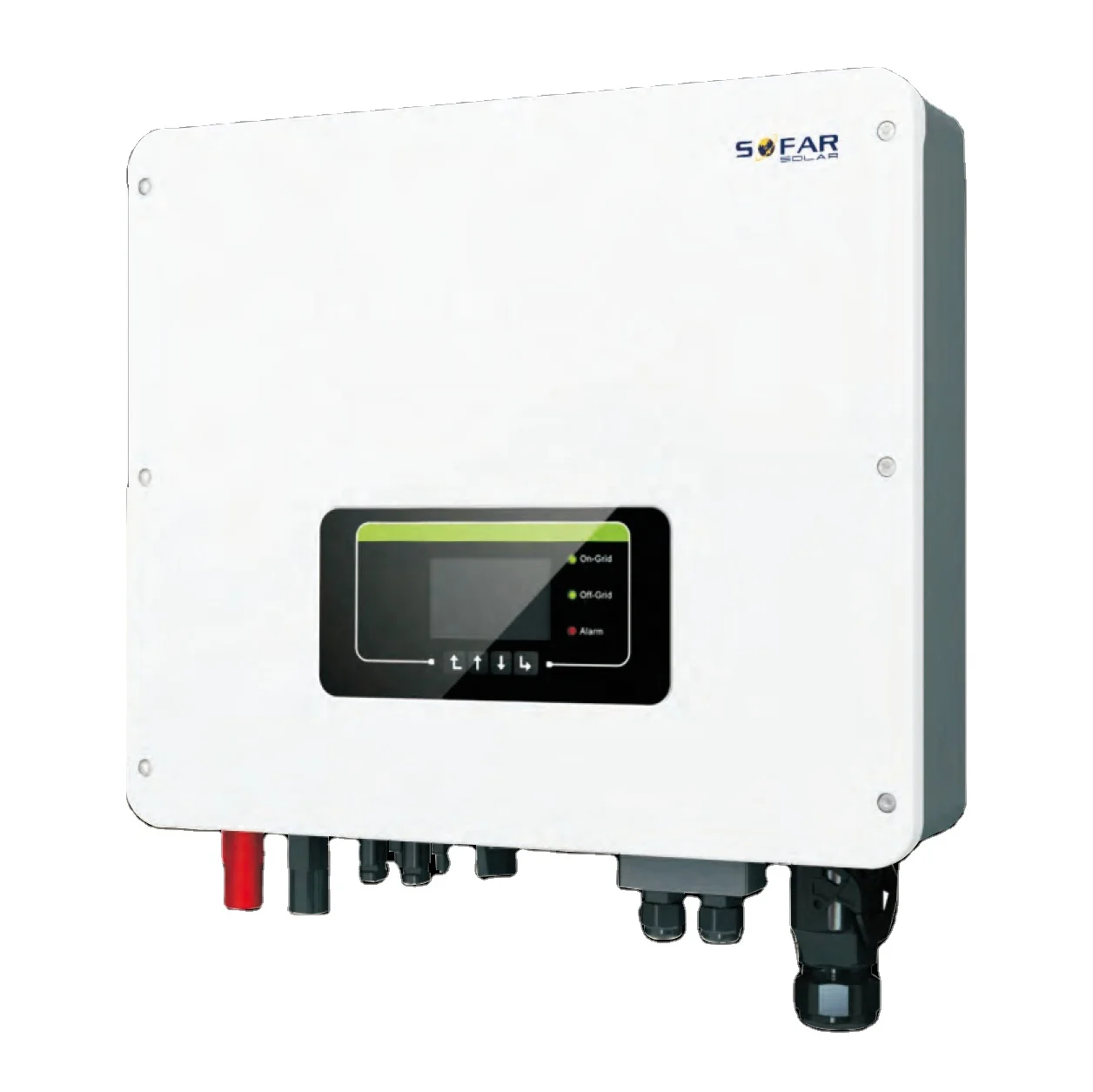

Datasheet | HYD 6000-EP | |||||||
Battery Parameters | ||||||||
Battery Type | Lithium-ion, Lead-acid | |||||||
Nominal battery voltage | 48V | |||||||
Battery voltage range | 42-58V | |||||||
Battery Capacity | 50-2000Ah | |||||||
Maximum Charging/ Discharging Power | 5000W | |||||||
Maximum Charging Current | 100A (Programmable) | |||||||
Maximum Discharging Current | 100A (Programmable) | |||||||
Charging curve(Lithium-ion) | BMS | |||||||
Charging curve(Lead-acid) | 3-Stage adaptive with maintenance | |||||||
Depth of discharge | Lithium-ion:0-90% DOD adjustable, Lead-acid:0-50% DOD adjustable | |||||||
Input DC (PV side) | ||||||||
Recommended Max.PV input power | 7980Wp | |||||||
Max DC power for single MPPT | 3500W | |||||||
Max.Input voltage | 600V | |||||||
Start-up voltage | 120V | |||||||
Norminal DC voltage | 360V | |||||||
MPPT operating voltage range | 90-580V | |||||||
Full power MPPT voltage range | 300V-520V | |||||||
MPPT number | 2 | |||||||
The max DC input current | 12A/12A | |||||||
The max DC input short current | 15A/15A | |||||||
Output AC (Grid side) | ||||||||
Rated Power | 6000W | |||||||
Max.Output Power | 6000VA | |||||||
Nominal Grid Voltage | L/N/PE, 220, 230, 240 | |||||||
Operation phase | Single (L-N-PE) | |||||||
Max. Input/ Output current | 50.0A/27.3A | |||||||
AC voltage range | 180V~276V (According to local standard) | |||||||
Grid Frequency range | 45Hz-55Hz/54Hz-66Hz (According to local standard) | |||||||
THD | <3% | |||||||
Power factor | 1 default (adjustable +/-0.8) | |||||||
Output AC (Emergency Power Supply) | ||||||||
EPS rated power | 5000VA | |||||||
Operation phase | Single (L-N-PE) | |||||||
EPS rated voltage, Frequency | 230V, 50/60Hz | |||||||
EPS rated current | 24.5A | |||||||
Peak Output Apparent Power | 6900VA, 10s | |||||||
THD | 180-276Vac (According to local standard) | |||||||
Switch time | 10ms default | |||||||
Efficiency | ||||||||
MPPT efficiency | 99.9% | |||||||
Max efficiency of solar inverter | 97.6% | |||||||
European efficiency of solar inverter | 97.2% | |||||||
Max. Charging efficiency of battery | 94.6% | |||||||
Max. Discharging efficiency of battery | 94.6% | |||||||
Protection | ||||||||
PV reverse polarity protection | Yes | |||||||
PV insulation detection | Yes | |||||||
Ground fault monitoring | Yes | |||||||
Over current protection | Yes | |||||||
Over voltage protection | Yes | |||||||
Battery soft start protection | Yes | |||||||
SPD protection | III | |||||||
General Data | ||||||||
Ambient temperature range | -30°C~+60°C (Above 45°C Derating) | |||||||
Standby Losses | <10 W | |||||||
Topology | High frequency insolation (for bat) | |||||||
DC-Switch | Yes | |||||||
Degree of Protetion | IP65 | |||||||
Allowable Relative Humidity Range | 0~100% | |||||||
Communication | RS485, WiFi/Ethernet/GPRS, SD, CAN2.0 | |||||||
Protective class | Class I | |||||||
Max. Operating Altitude | 2000m | |||||||
Current Sensor Connection | External | |||||||
Noise | <25 dB | |||||||
Weight | 23.5KG | |||||||
Cooling | Natural | |||||||
Dimension(W*H*D) | 566*394*173mm | |||||||
Display | LCD display | |||||||
Warranty | 5 Years | |||||||
Standard | ||||||||
EMC | EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 61000-3-11, EN 61000-3-12 | |||||||
Safety standards | IEC62109-1/2, IEC62040-1, IEC62116, IEC61727, IEC-61683, IEC60068(1,2,14,30) | |||||||
Grid standards | AS/NZS 4777, VDE V 0124-100, V 0126-1-1, VDE-AR-N 4105, CEI 0-21, EN50549, G83/G59/G98/G99, UTE C15-712-1, UNE 206 007-1 |
Quantity(Pieces) | 1 - 10 | 11 - 100 | 101 - 1000 | >1000 |
Est. Time(days) | 10 | 15 | 20 | To be negotiated |
