Предварительно припаянный микро светодиод 0 1 мм C0603x SMD 0603 медный провод

Сохранить в закладки 1600269257554:


Цена:710,47-947,69 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


Product Features
Condition
Brand New
Size
SMD Led 0603 (1.60x0.80mm), the wire is about 20cm (L).
Forward voltage
2.8V~3.4V, AC or DC Compatible.
Forward current (typ/max)
15mA/20mA
Viewing Angle
About 120 degree
OEM&ODM
Accept
ONE Set Included

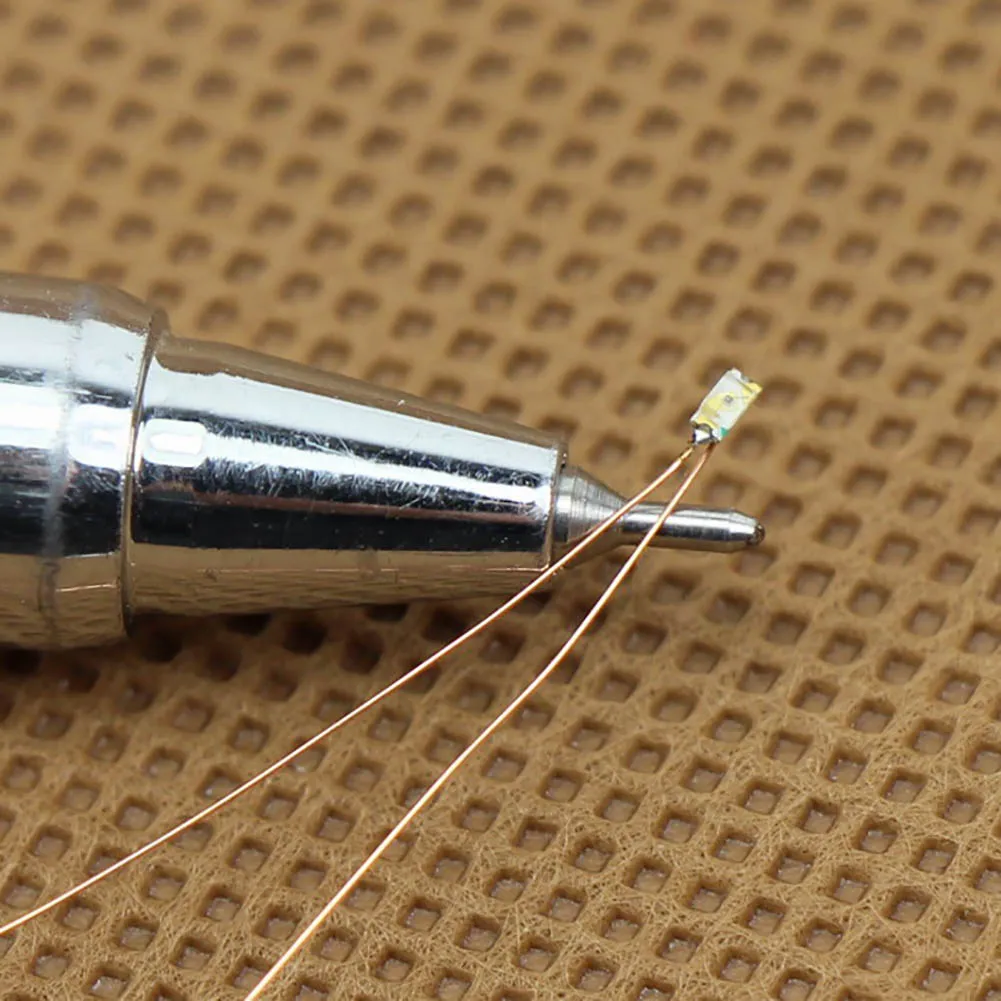

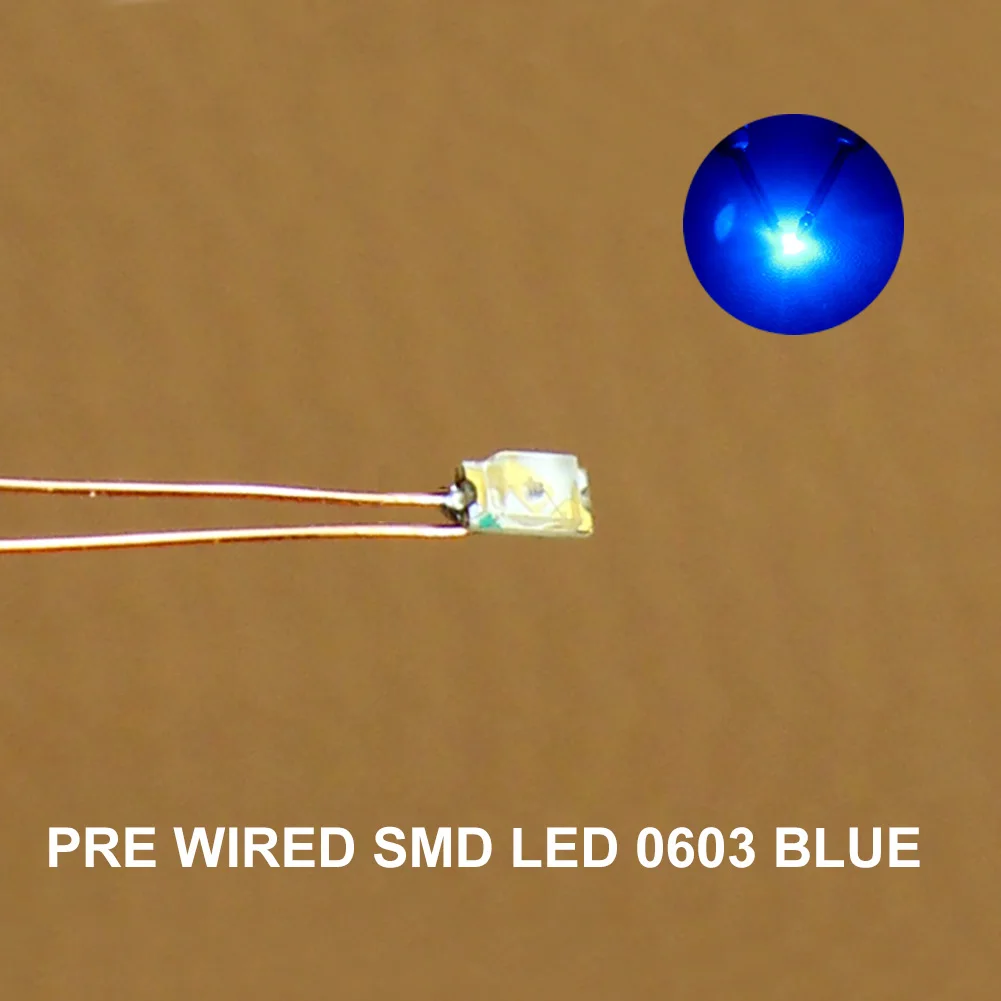

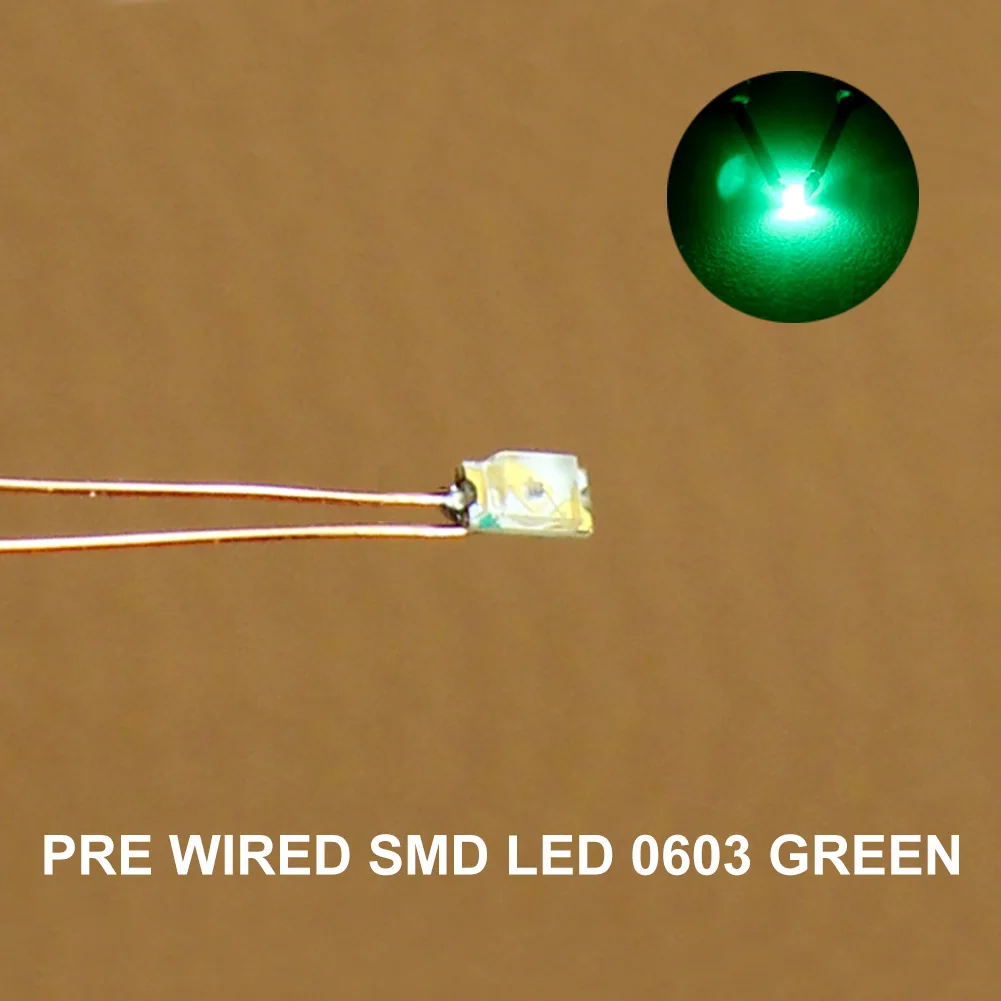

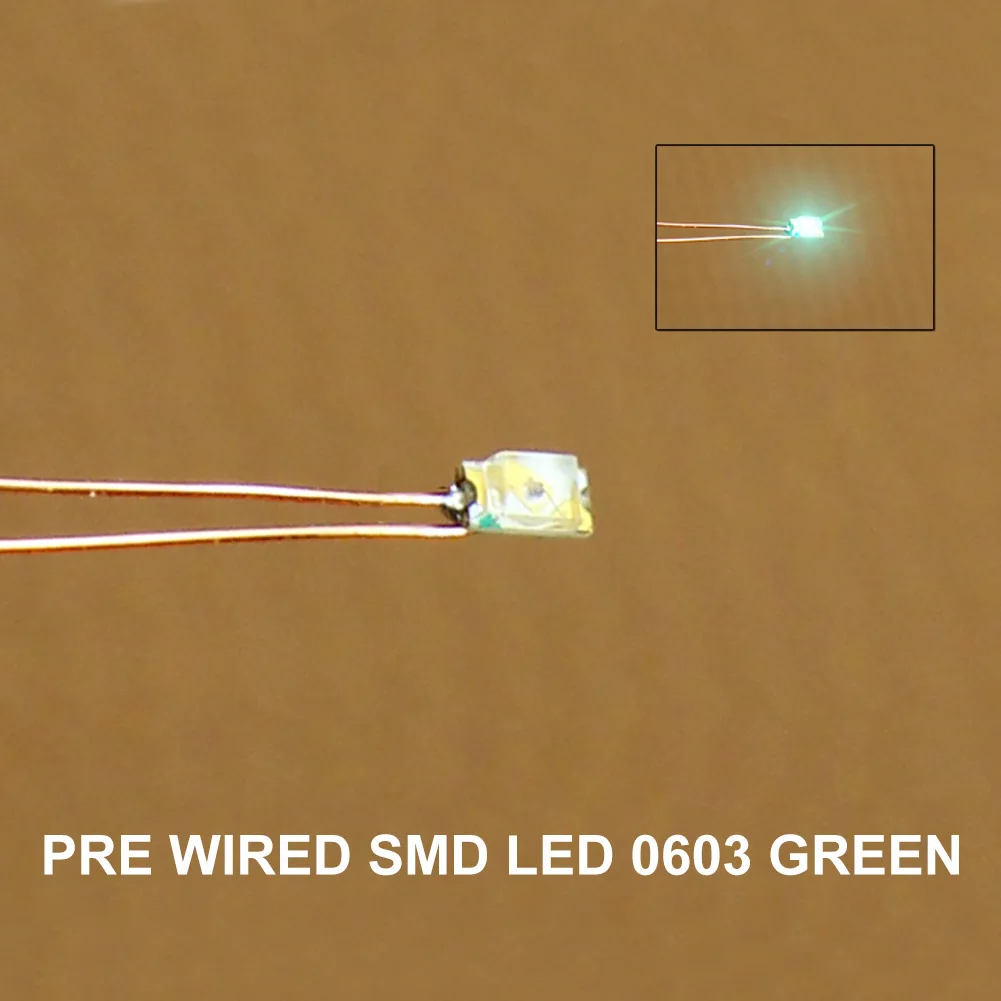

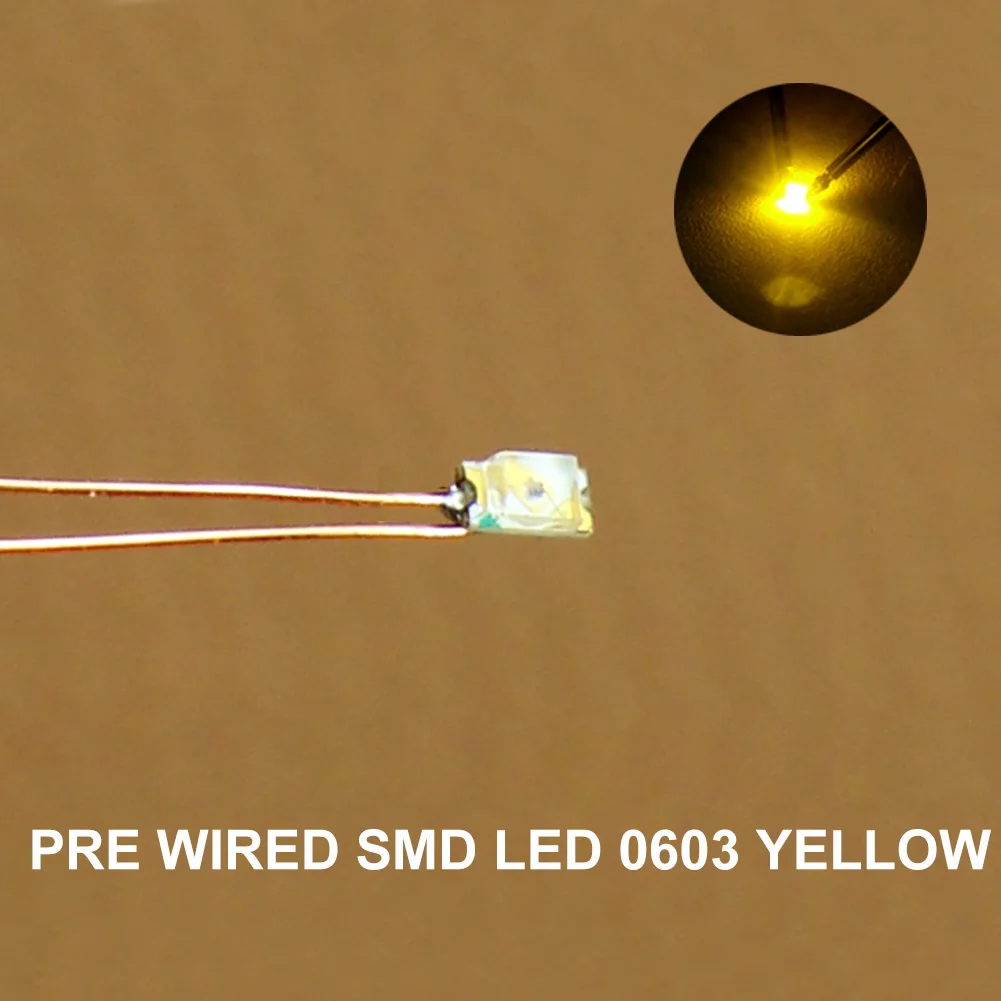

* 20pcs Pre-soldered with micro 0.1mm magnet (copper) wire SMD Led 0603.
* 20pcs resistors (not pre-soldered) for 9~18V operation.
* The color depending on your choice.
Note
* Soldering SMDs is very difficult, but these pre-wired units take all the work out of it for the modeler.
* This kind of soldering is very extensive and difficult to perform, but is offering maximum flexibility when applying the LED and is ensuring place-saving usage.
* For utmost miniaturization, magnet (copper) wire with only 0.1 mm in diameter (cross sectional area 0.008 mm 2) is used, wafer-thin and ultra-flexible, but still covered with an electrical-isolating clear lacquer coating.
* The wire length is about 200 mm. For easy recognizable connecting, the Cathode is about 10 mm shorter than the Anode.
