Полиэфирная георешетка 30kn заводская цена используется для дорожного строительства
- Категория: >>>
- Поставщик: Taian Lin Yuan Engineering Materials Co. Ltd.
Сохранить в закладки 1600270263181:
Описание и отзывы
Характеристики
Products Description
Features
1. High tensile strength low elongation
2. High tear-resistance
3. Strong combination with gravel and soil
4. Anticorrosive, anti-aging and alkali-resistant
Introduction
Polyester geogrid is a new kind of earthwork base material; which is used to strength the road surface and roadbed. Composing of high-strength polyester yarns, coatedd with an inorganic sizing agent.
Biaxial Polyester Geogrid
Unaxial Polyester Geogrid
Spec | JBGS 55-30 | JBGS 60-30 | JBGS 80-30 | JBGS 100-30 | JBGS 120-30 | JBGS 150-30 | JBGS 200-30 | JBGS 300-30 | ||||||||||
Tensile strength ≥（kN/m） | warp | 55 | 60 | 80 | 100 | 120 | 150 | 200 | 300 | |||||||||
weft | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||||||||||
Elongation≤（%） | 13 or 10 | |||||||||||||||||
Grid size(mm) | 25.4x25.4 or 50.8x50.8 or 76.2x76.2 | |||||||||||||||||
Width(m) | 2 or 4 or 5.2 or 6 | |||||||||||||||||
NOTES: Other tensile strength can be made: 400-50, 600-50, 800-100, 1200-200 etc. | ||||||||||||||||||
Spec | JBGS 30-30 | JBGS 50-50 | JBGS 60-60 | JBGS 80-80 | JBGS 100-100 | JBGS 120-120 | JBGS 150-150 | |||||||||
Tensile strength ≥（kN/m） | warp | 30 | 50 | 60 | 80 | 100 | 120 | 150 | ||||||||
weft | 30 | 50 | 60 | 80 | 100 | 120 | 150 | |||||||||
Elongation≤（%） | 13 or 10 | |||||||||||||||
Grid size(mm) | 25.4x25.4 or 50.8x50.8 or 76.2x76.2 | |||||||||||||||
NOTES: Other tensile strength can be made: 260-260, 400-400, 600-600, 800-800, 1200-1200 etc. | ||||||||||||||||

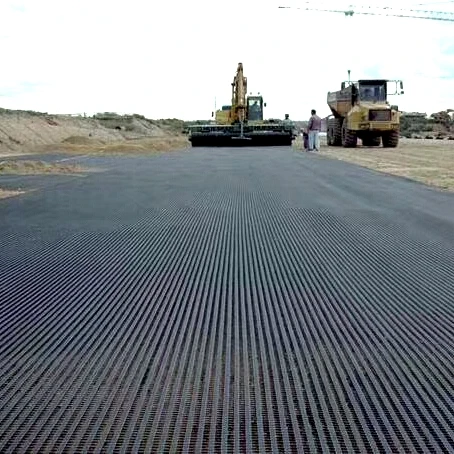

Application
1. Reinforcement of soft soil subgrades of various roads such as highways, railways and municipal roads can effectively improve the strength of subgrades and delay road reflection cracks.
2. Reinforcement and isolation of dams and river channels in water conservancy projects strengthens the soft soil foundation, enhances its protective capacity, and improves the bearing capacity and stability of the foundation.
3. Used for reinforcement of embankment slopes and retaining walls to enhance overall strength.
2. Reinforcement and isolation of dams and river channels in water conservancy projects strengthens the soft soil foundation, enhances its protective capacity, and improves the bearing capacity and stability of the foundation.
3. Used for reinforcement of embankment slopes and retaining walls to enhance overall strength.

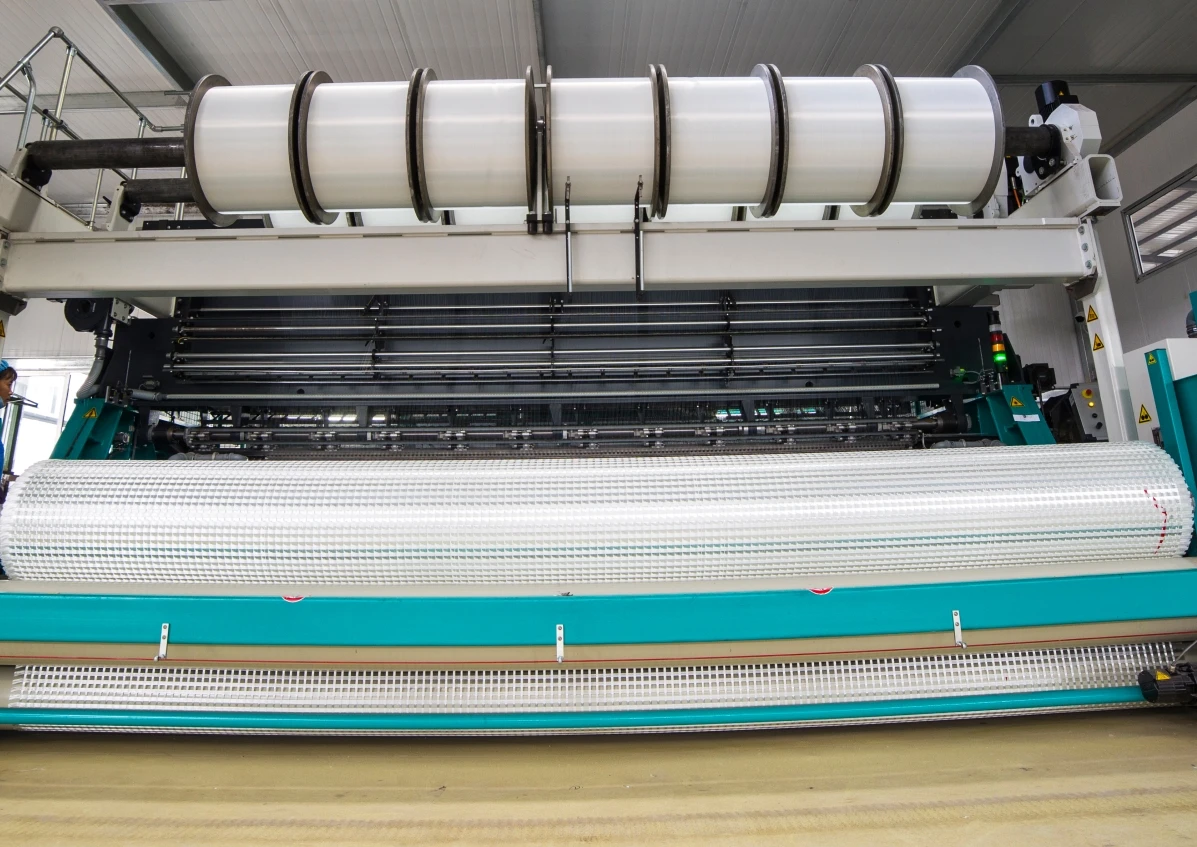

Production Display
Packaging &Shipping
Company Introduction
Company Introduction
Taian Lin Yuan Engineering Materials Co., Ltd., established in 2014. We are focusing on earthwork materials and many relevent products. We always offer customization to every customer for different demands, which means we can offer different width and length. different materials quality, different using fields. Our products include Polyester warp knitting geogrids, glass fiber geogrids, plastic geogrids, geotextiles, geomembrane, composite geomembrane, new three-dimensional geogrids, geogrids etc. Which can be applied to a wide ranges like Railway, highway subgrade reinforcement, water conservancy dam reinforcement, tunnel, subway and other engineering fields. Our annual outputs have exceeded 300 million square meters, exporting to more than 30 countries.
Engineering materials products are mainly used in highway, railway, water conservancy, electric power, water and soil conservation and environmental greening and other infrastructure areas, has been widely applied to tongsan expressway, shanghai-hangzhou inter-city railway, basis of high-speed railways, the qinghai-tibet railway, beijing-shanghai expressway, the beijing-shanghai high-speed railway, mansion deep railway, Shi Wuke designed, shanghai-nanjing intercity railway and hangzhou customer designed, an hundreds of national key projects such as railway; The company has successively won the bidding of various national key projects; Our products are well known by the engineering experts and the majority of users; We are using complete and scientific quality management system. Please trust us!
Beat Selller Products
FAQ
Q: What can you buy from us?
A: Geocell, Geotextile, Geomembrane, Geocomposite, Geonet 3D Geomat etc.
Q: Can I have a sample?
A: Yes. And sample for free.
Q: What's the payment terms?
A: T/T or L/C. Others could be negotiated.
Q: What's the delivery time?
A: 3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
A: Geocell, Geotextile, Geomembrane, Geocomposite, Geonet 3D Geomat etc.
Q: Can I have a sample?
A: Yes. And sample for free.
Q: What's the payment terms?
A: T/T or L/C. Others could be negotiated.
Q: What's the delivery time?
A: 3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
Contact Information
Barack
Taian LinYuan Engineering Materials Co., Ltd(Road GeoCorp)
Add: No.164 Fanrong Str. ShengZhuang Town,Taian City, Shandong Province, ChinaM: +8615615485790
Whats App/We Chat:+8615615485790
E:barack@talude.com.cn barack@geogridroad.com
W:www.geogridroad.com
