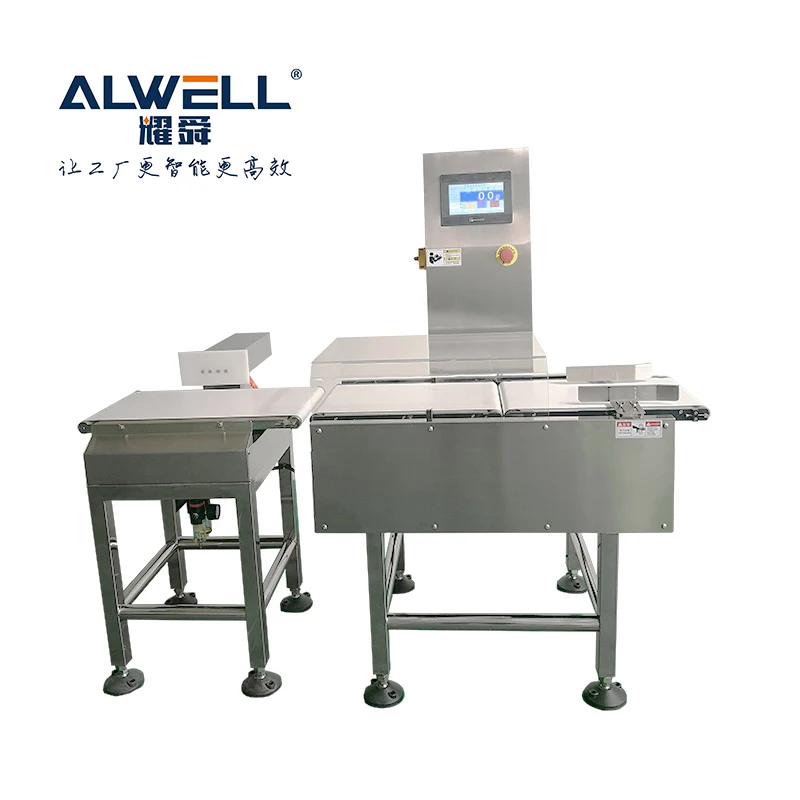

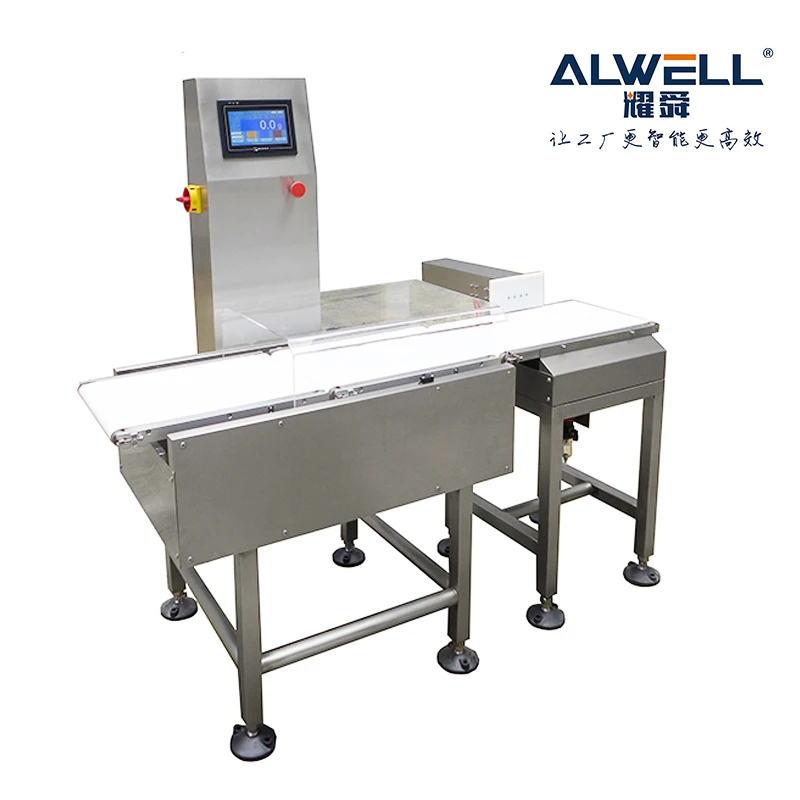

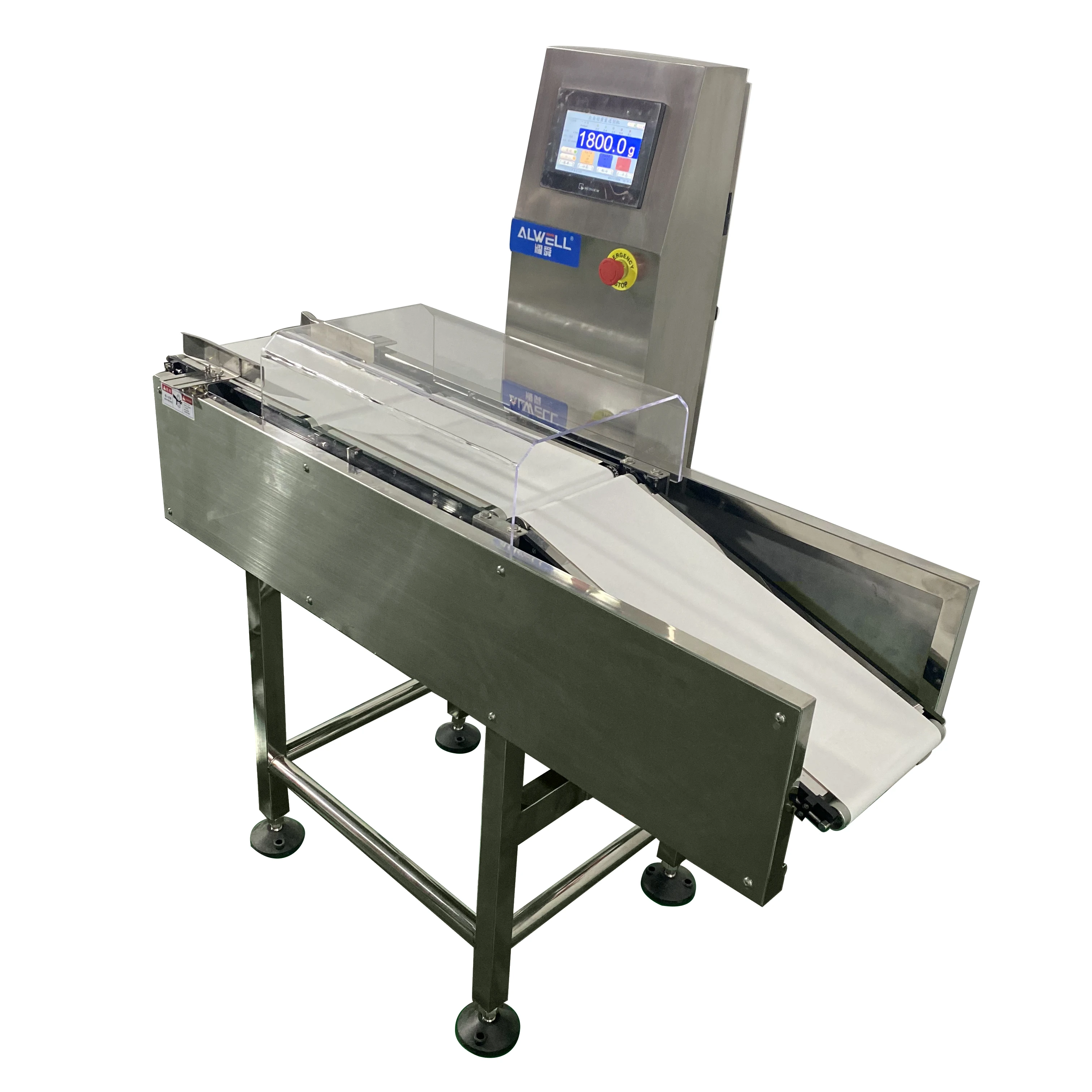

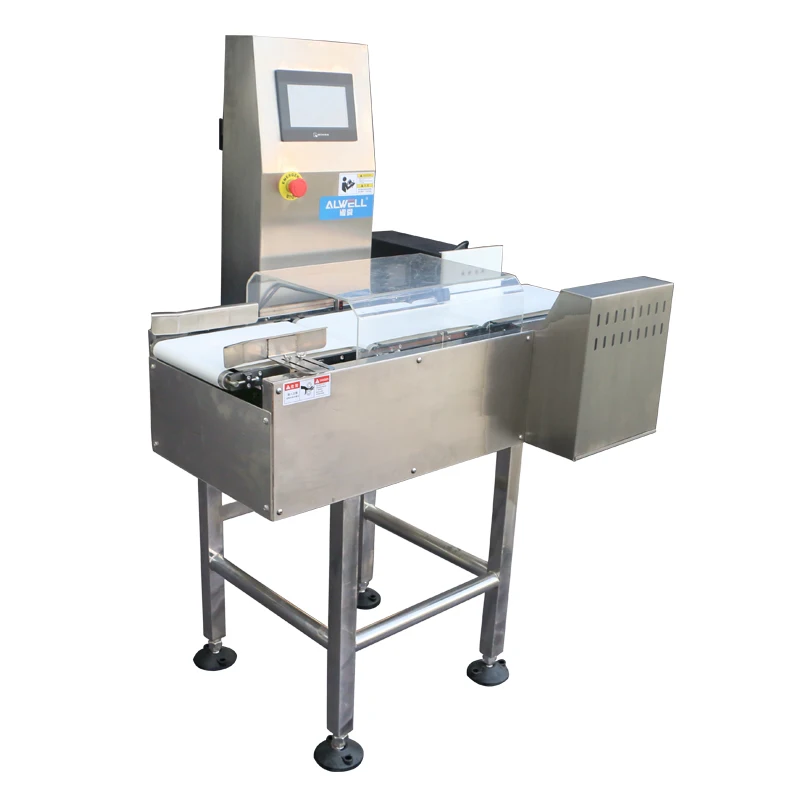

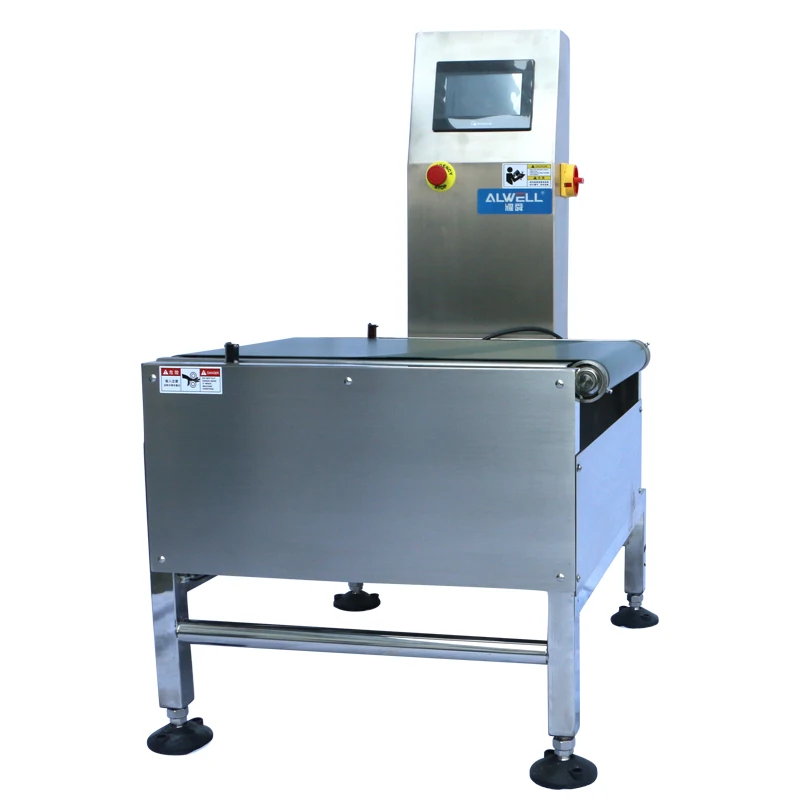

Автоматическая цифровая машина для проверки веса ленты пищевого конвейера с нажимным отверстием контрольно взвешивающие устройства
- Категория: Weighing Scales >>>
- Поставщик: Shanghai ALWELL Machinery Equipment Co. Ltd.
Сохранить в закладки 1600270271595:
Описание и отзывы
Характеристики
Product Paramenters
Specification
item | value |
Product name | Check weigh machine |
Customized support | OEM |
Place of Origin | China |
Shanghai | |
Brand Name | ALWELL |
Model Number | YSWP-150/220/300/450/580 |
Power Supply | 110v,220v,380v Can be customized |
Display Type | touch screem |
Usage | Food,Medicine,Cosmetic,Industrial Manufacturing and others |
Weighing range | 5g-100kg |
Min.scale interval | 0.1g |
Application | Can Store 200 Kinds Of Product Parameters |
Function | Strong Self Diagnosis Function |
Max.speed | 150piece/min |
Material | Stainless Steel |
Color | Silver |
Model | YSWH-150N | YSWH-150H | YSWP-150 | YSWP-220 | YSWP-300 | YSWP-450 | YSWP-500 | ||||||||
Max.capacity | 100g | 100g | 500g | 1500g | 3kg | 30kg | 50kg | ||||||||
Weighing range | 5g-100g | 5g-100g | 5g-500g | 5g-1500g | 5g-3kg | 50g-30kg | 50g-50kg | ||||||||
Min.accuracy | ±0.2g | ±0.2g | ±0.2g | ±0.5g | ±0.5g | ±5g | ±20g | ||||||||
Min.scale interval | 0.1g | 0.1g | 0.1g | 0.1g | 0.1g | 1g | 5g | ||||||||
Max.speed | 300piece/min | 220piece/min | 150piece/min | 120piece/min | 100piece/min | 35piece/min | 25piece/min | ||||||||
Belt Length | 200mm | 200mm | 300mm | 400mm | 450mm | 700mm | 1000mm | ||||||||
Belt width | 150mm | 150mm | 150mm | 220mm | 300mm | 450mm | 500mm | ||||||||
Test Product dimension | Length | ≤100mm | ≤100mm | ≤200mm | ≤300mm | ≤300mm | ≤550mm | ≤800mm | |||||||
Width | ≤150mm | ≤150mm | ≤150mm | ≤220mm | ≤300mm | ≤450mm | ≤500mm | ||||||||
Height | ≥3mm | ≥3mm | ≥3mm | ≥3mm | ≥3mm | ≥3mm | ≥3mm | ||||||||
Operation interface | 7 inches color LCD screen | ||||||||||||||
Operating mode | Touch operation | ||||||||||||||
Transport direction | From left to right（can be custom） | ||||||||||||||
The belt height | 750mm±50mm（can be custom） | ||||||||||||||
Item memory | 200 Products | ||||||||||||||
Zero calibration | Auto Zero Tracking | ||||||||||||||
Alarm mode | Automatically rejected/Buzzer,Alarm lamp,Alarm stop Run | ||||||||||||||
Rejector(optional) | Flip Bar Type,Air Blast Type,Pusher on Roller Type,Pusher on Belt Type,Drop Flap Type, Chute Type,Conveyor Retraction Type(can be custom) | ||||||||||||||
External interface | USB,RS232/485/422，to store data，Voltage signal or Switch signal，TCP/IP(optional) | ||||||||||||||
Accessory(optional) | Printer, printing machine, separator,etc | ||||||||||||||
Power Source | 380/220/110V 50/60Hz | ||||||||||||||
Power Output | About 200W | ||||||||||||||
Structure | 0.6—1Mpa | ||||||||||||||
Measurement | SUS304 | ||||||||||||||
Degree of protection | IP54/IP65（IP66 need to be custom） | ||||||||||||||
Environment | 0℃-40℃ | ||||||||||||||
Remark | 1.Optimum accuracy depends on the product condition,Max.speed depends on the product size and conveyor speed. 2.Above machine specifications for the standard specifications, size and other special requirements, all can be customized. | ||||||||||||||
Details Images
1. Imported food grade conveyor belt
Swiss imported PU food grade conveyor belt, easy to clean. It adopts a quick belt replacement system and a buckle design, which is easy to disassemble and wash.
2. Innovative structure
The machine adopts 304 stainless steel frame (customizable 316), large-size color LCD touch screen interface in line with international GMP and HACCP standards, simple operation and direct display. Built-in computer system can store 200 kinds of product parameters for user convenience
3. Multiple rejection functions
A variety of rejection methods are available (push rod type, flap type, air blowing type, swing rod type, falling type, etc.) suitable for various products and various industries
4. Connect the printer and the computer
It supports RS232 data connection to the computer to provide network access protocols such as ERP; it can also be equipped with a wireless USB interface; the packaging machine and printer can be configured before and after. We provide one-stop service to provide you with reliable and safe technical solutions
5. Exquisite workmanship
Convenient disassembly and assembly, beautiful and practical, easy to clean and easy to maintain; using DC brushless motor, easy to dock, more stable, compact and exquisite structure, suitable for greater speed requirements. There are also a variety of materials to choose from, and different frame materials, carbon steel paint, and stainless steel can be used according to customer needs.
Application
Certifications
Packing & Delivery
Company Profile
SHANGHAI ALWELL MACHINERY EQUIPMENT CO.,LTD.(SHANGHAI ALWELL)is located at songjiang high-tech industrial park in Shangjiang,dedicated to product R&D, manufacturing, sales and service of Check Weigher\\Automatic Weight Sorter\\Metal Detector and Other Automation Equipment.We always focused on automation, relying on high quality, high performance, high flexible products, to meet the needs of the Chinese and foreign customers.
SHANGHAI ALWELL has the abundant technical force, our products performance is in the lead of the industry.Our products all adopt the network plan, fully adapt to the factory automation and information technology trends. Our products are setting the high intelligence, the latest technology in one, using the high reliability of the electrical and mechanical materials. Now our products are widely used in food, medicine, manufacture,printing,logistics and other industries, They are used in production's quality inspection, classification, as well as in the product packaging weigher test.They had helped customers to greatly reduce the labor costs, to improve the production efficiency, and greatly to improve the percent of pass, help customers to improve the industry competitiveness. We have won the general customers's recognition and praise.
SHANGHAI ALWELL has precision CNC processing ,using modern production technology, strict control of each link,and carry on scientific ISO production management, to provide products with high precision and high quality delivery.
SHANGHAI ALWELL as a leader in the field of dynamic test weight, always adhering to the "integrity, innovation, cooperation, win-win" concept, adhere to the customer as the center, take the quality as the fundamental, continuously to provide the high quality products and considerate service for customers.
Shanghai ALWELL is willing to work with customers all the time.
Main products: Check weigher, Multistage sorting machines, Metal detector, and others automation equipment.
SHANGHAI ALWELL has the abundant technical force, our products performance is in the lead of the industry.Our products all adopt the network plan, fully adapt to the factory automation and information technology trends. Our products are setting the high intelligence, the latest technology in one, using the high reliability of the electrical and mechanical materials. Now our products are widely used in food, medicine, manufacture,printing,logistics and other industries, They are used in production's quality inspection, classification, as well as in the product packaging weigher test.They had helped customers to greatly reduce the labor costs, to improve the production efficiency, and greatly to improve the percent of pass, help customers to improve the industry competitiveness. We have won the general customers's recognition and praise.
SHANGHAI ALWELL has precision CNC processing ,using modern production technology, strict control of each link,and carry on scientific ISO production management, to provide products with high precision and high quality delivery.
SHANGHAI ALWELL as a leader in the field of dynamic test weight, always adhering to the "integrity, innovation, cooperation, win-win" concept, adhere to the customer as the center, take the quality as the fundamental, continuously to provide the high quality products and considerate service for customers.
Shanghai ALWELL is willing to work with customers all the time.
Main products: Check weigher, Multistage sorting machines, Metal detector, and others automation equipment.
Customer Photos
Похожие товары

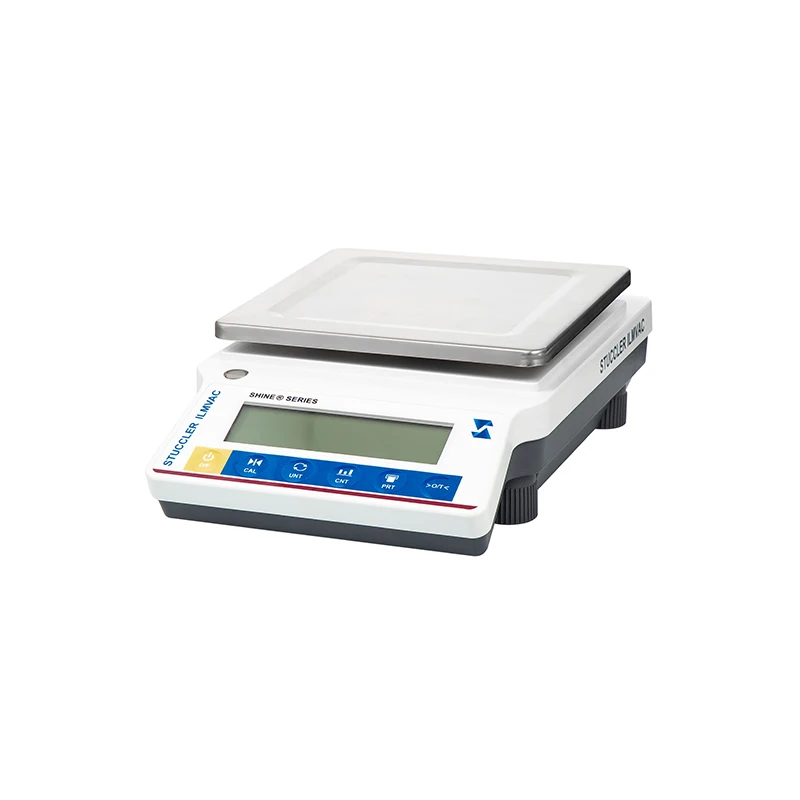

SH-R300B профессиональная Ювелирная точность взвешивания цифровые весы 0 01g/3000g 001 г
155,43 $ - 353,31 $

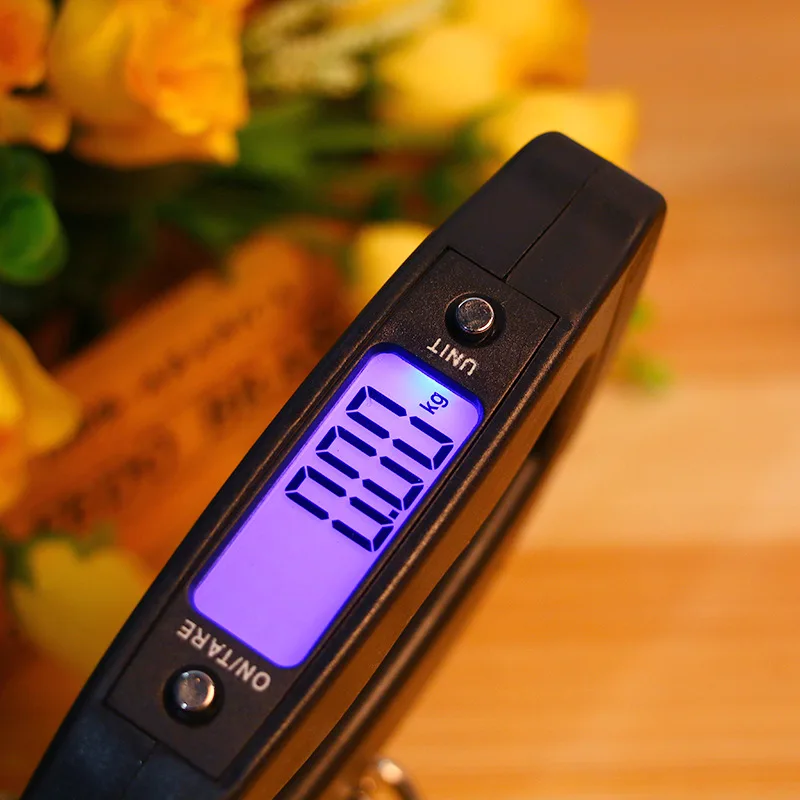

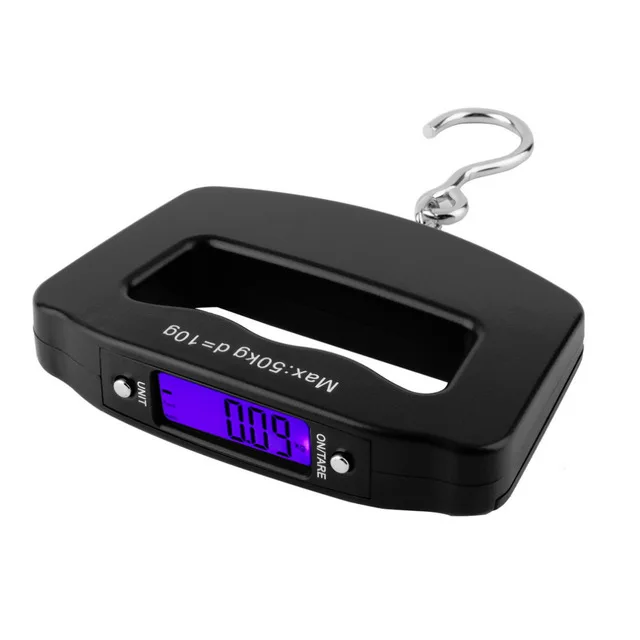

Весы для багажа Fulljion подвесные весы ручные взвешивания 50 кг/10 г цифровые рыболовные с

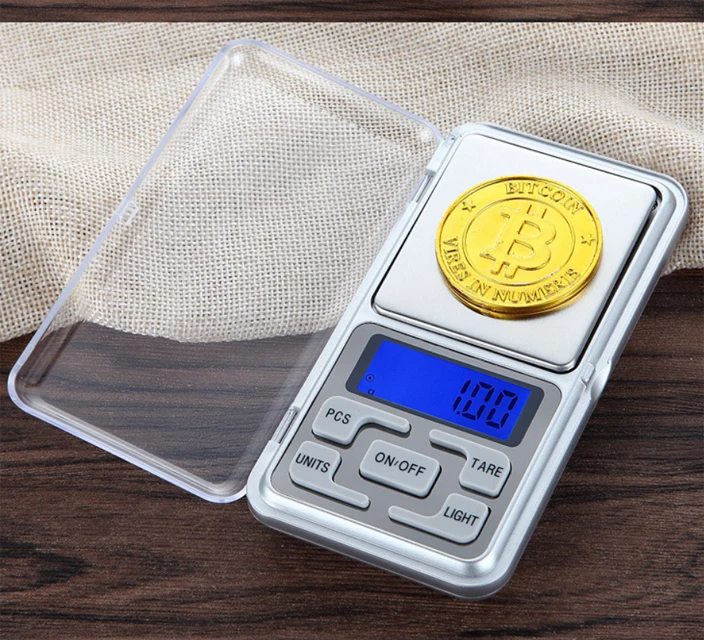

Недорогие портативные карманные весы для ювелирных изделий 500 г 200 0
1,50 $ - 2,00 $

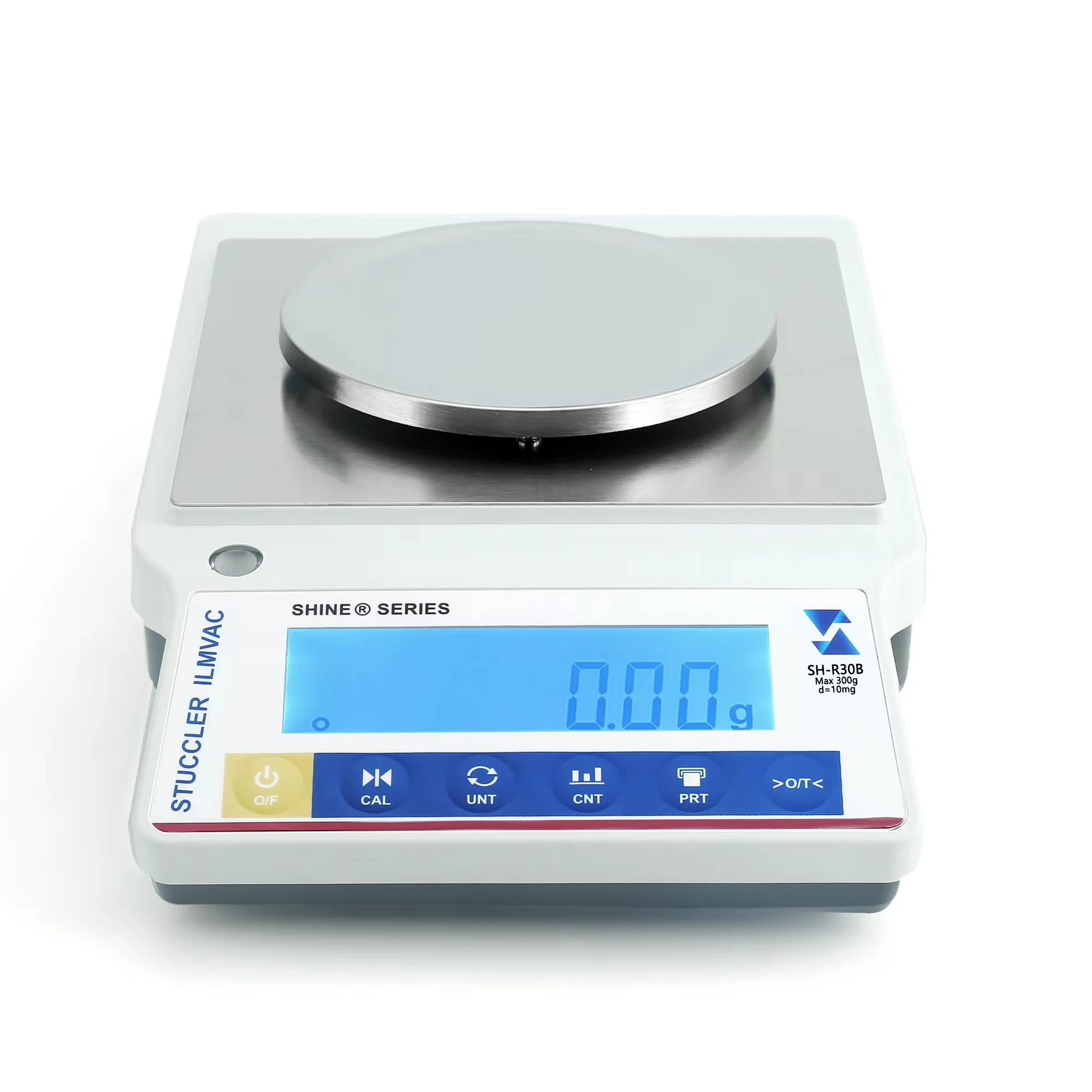

SH-R30B Многофункциональный бриллиантами Весы измерения весы из нержавеющей стали
85,01 $ - 195,52 $
Электронные портативные цифровые весы с ЖК-дисплеем, 50 кг/10 г

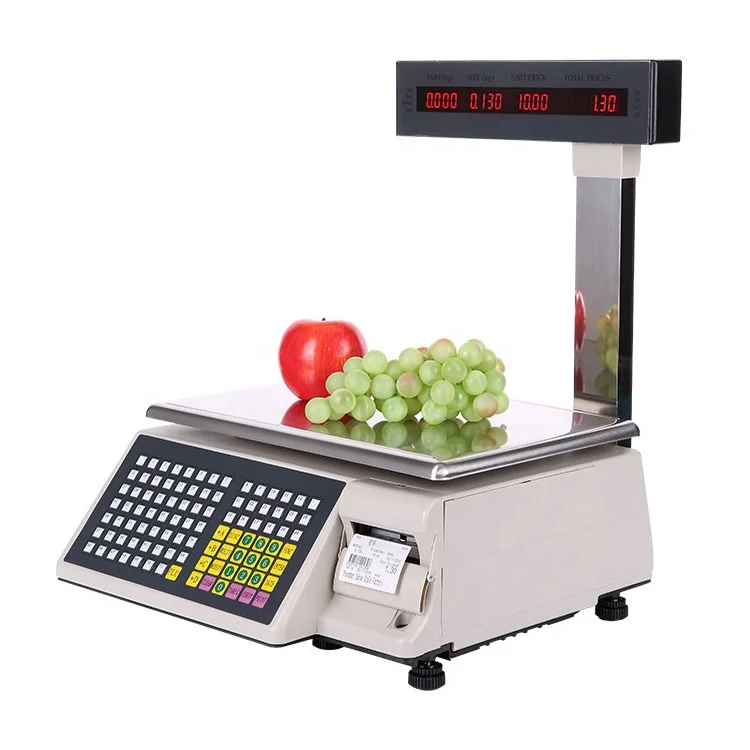

Весы электронные цифровые с принтером для печати штрих-кодов 30

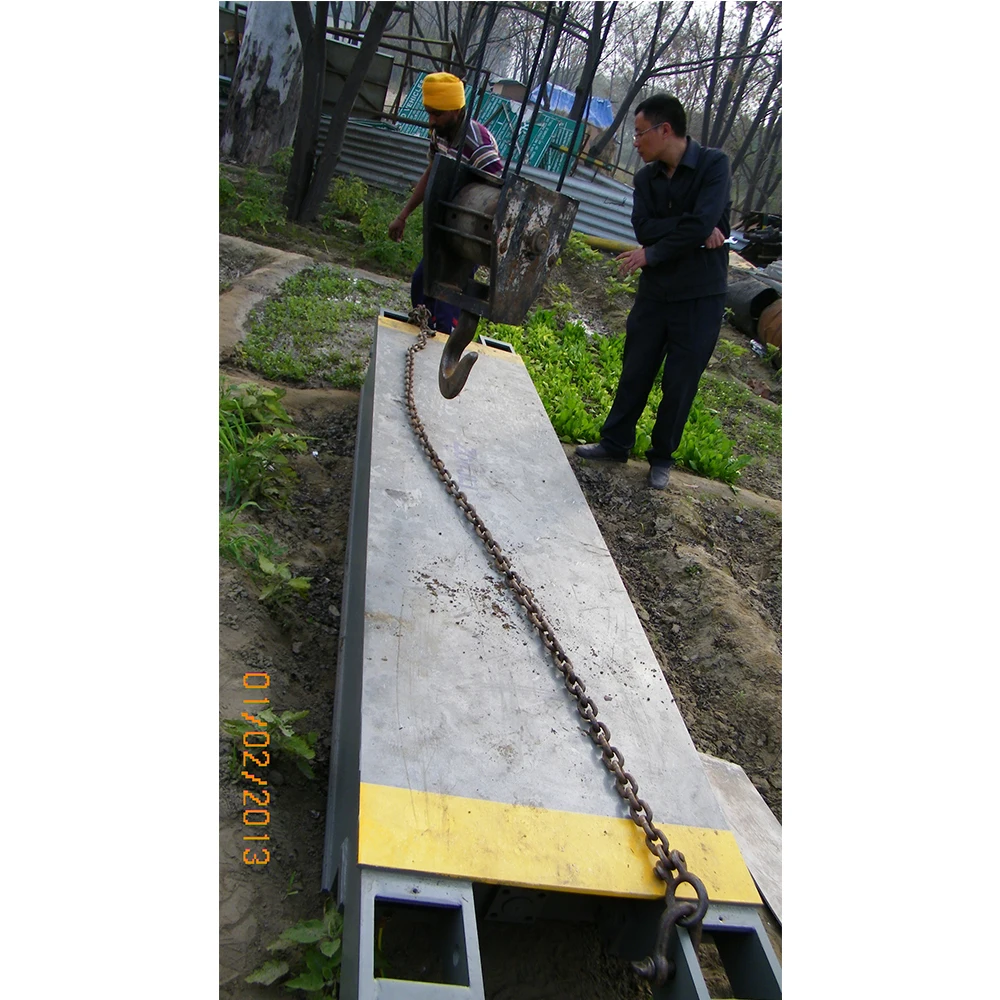

Высокоскоростные весы для грузовых
