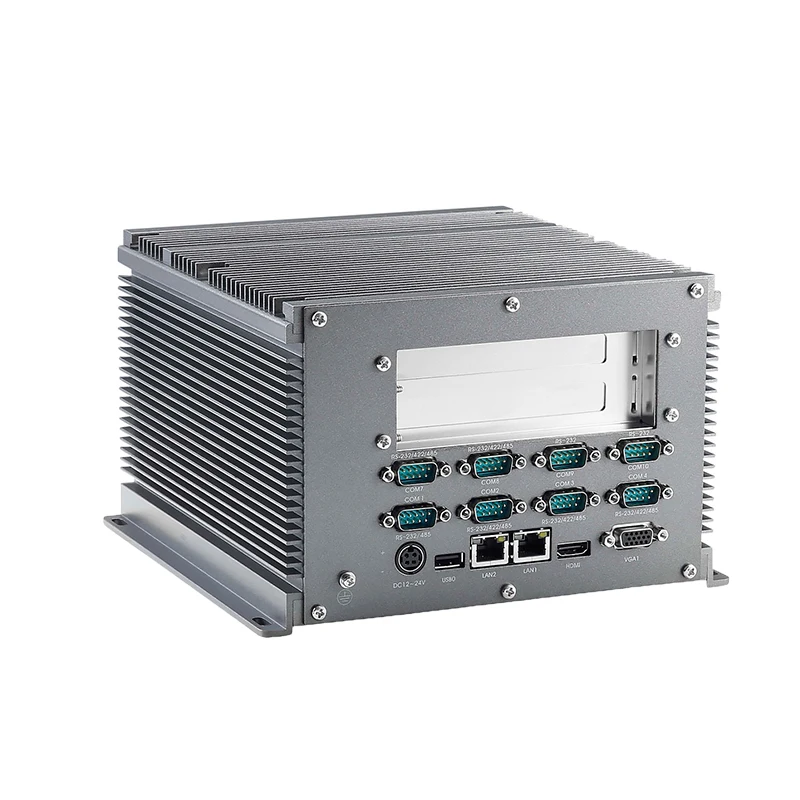

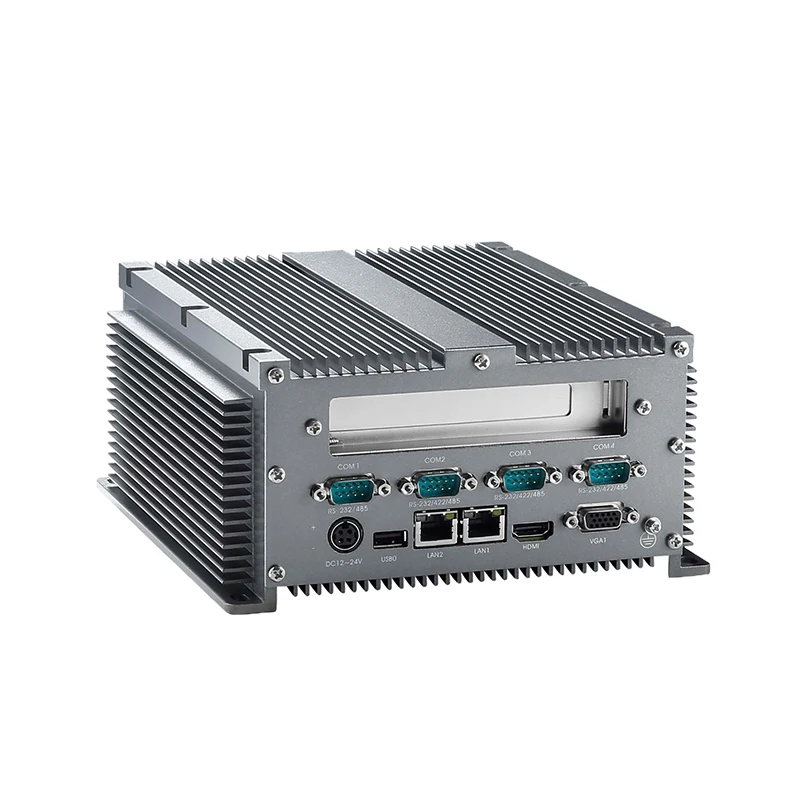

Безвентиляторный промышленный компьютер Intel D525 2LAN 10COM 10 * rs232 или 6 * rs485 или 5 * rs 422 4USB с разъемом расширения 2PCI X1
322,00 $ - 335,00 $

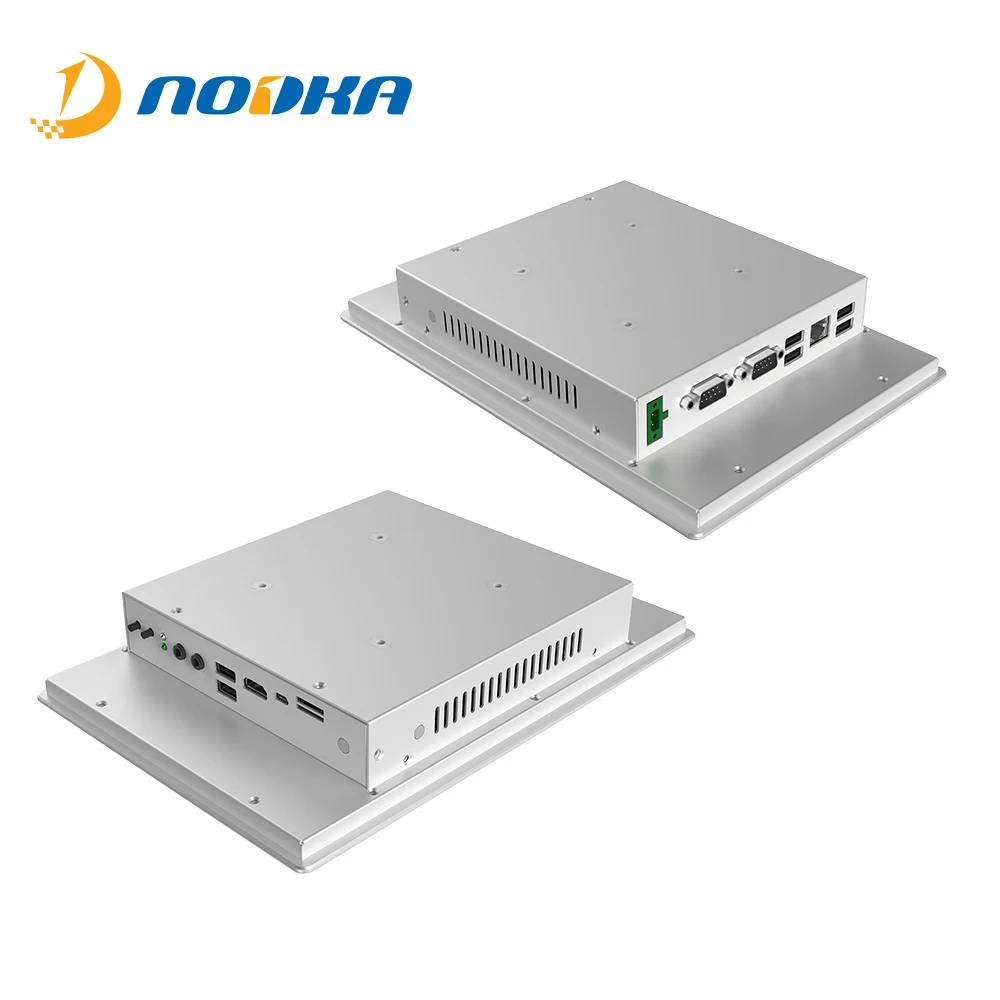

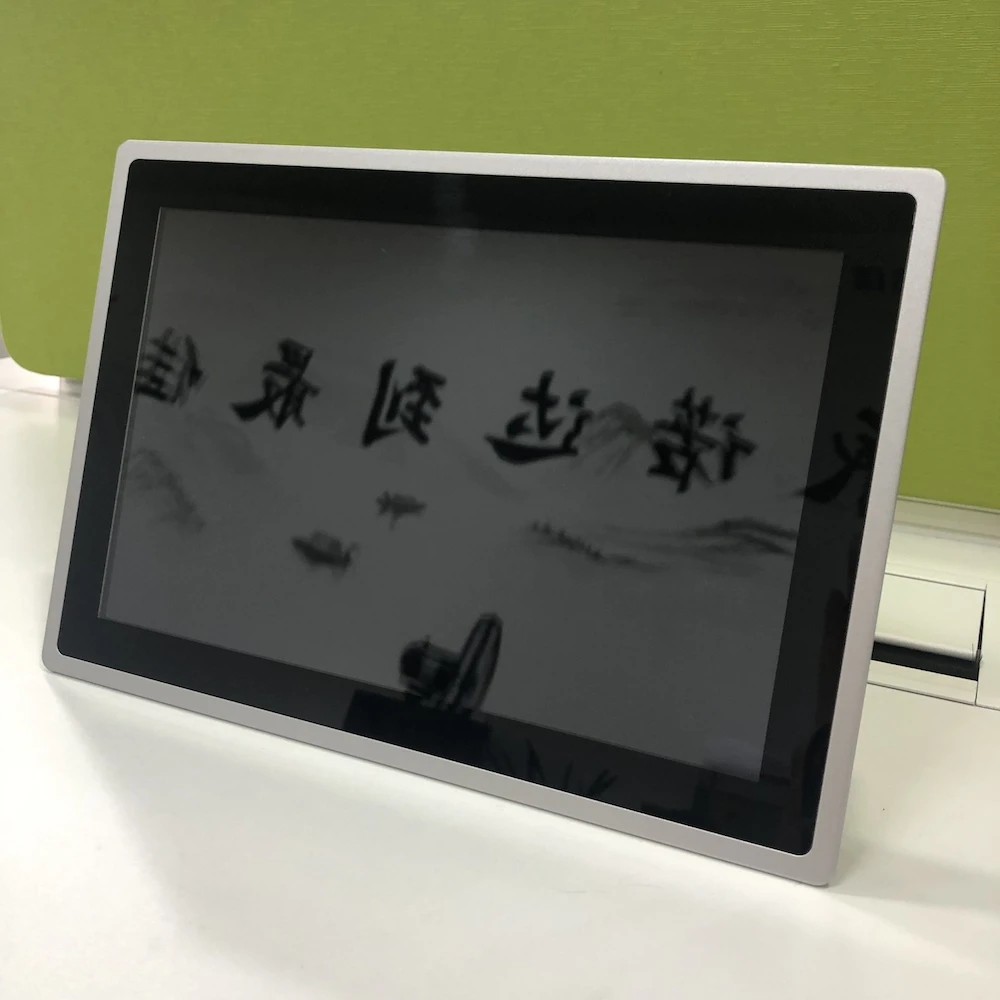

10 дюймов 1 широкоформатный сенсорный экран android все в одном ПК с ФРЕЗОЙ Cortex A9 i.MX6 RK3399
- Категория: >>>
- Поставщик: Shanghai NODKA Automation Technology Co. Ltd.
Сохранить в закладки 1600270732508:
Описание и отзывы
Характеристики
Product Description
CPU | Freescale Cortex-A9 i.MX6D/IMX6D5E/1.0GHz/ Dual-core, option RK3399,3288 | ||||||
RAM | Onboard DDR3 2G | ||||||
Storage | Onboard eMMC 8G 1x TF, up to 32G | ||||||
Ethernet | 1x 10/100/1000Mbps RJ-45 Ethernet Interface | ||||||
Audio | 2x 3.5 phonejack speaker interface(6w,2Ω) | ||||||
USB | 6x USB2.0 | ||||||
Mini PCIe | Support Quectel/EC20CEFAG,ZTE/ME3630 4G module, 7-mode full network communication | ||||||
COM | 2x RS232(DB9),ttymxc1~ttymxc2; COM1 option RS485, default RS485 | ||||||
OTG | 1x Micro USB | ||||||

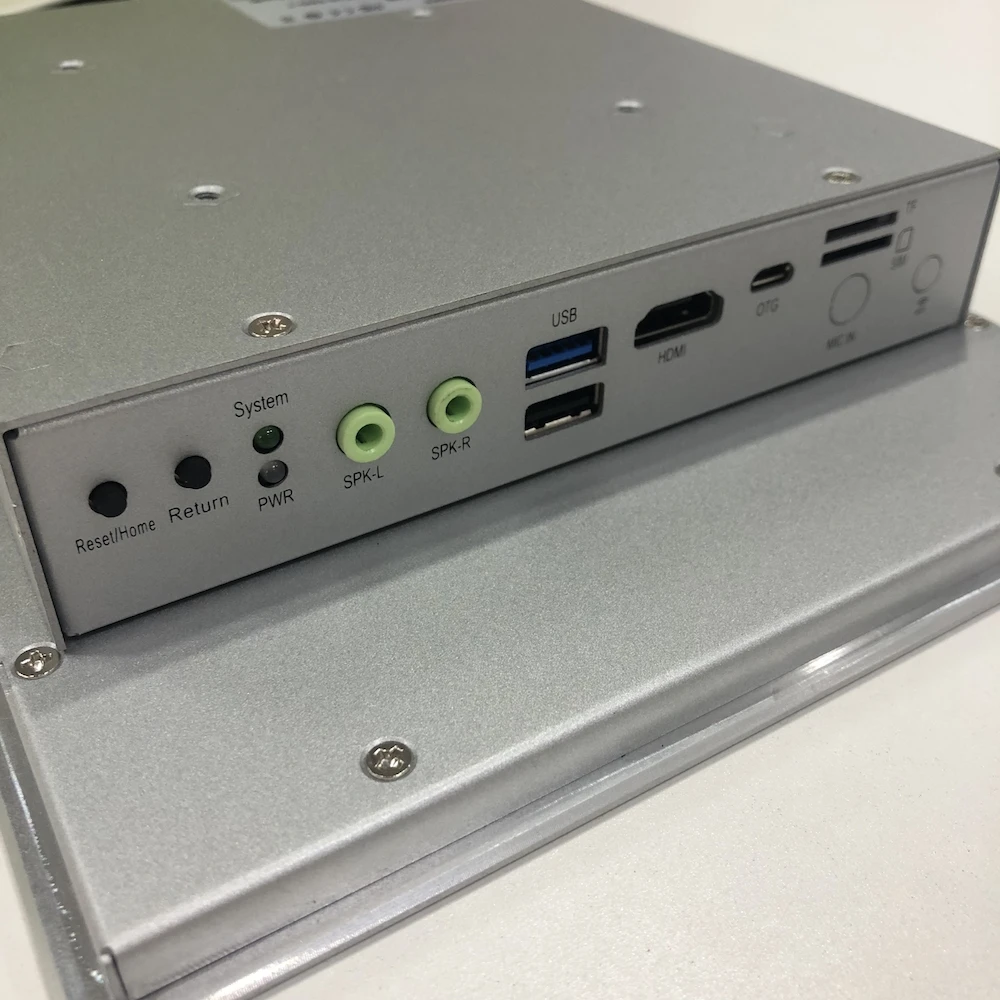

Key | 1x Rerurn, 1x Reset(or Home) | ||||||
Dimensions | 260x 178.64x 42.2 mm (WxHxD) | ||||||
Mounting | Panel and VESA | ||||||
Operation System | Android 4.4.2 | ||||||
Power input | DC12V+-10% | ||||||
Maximum Power | 35watt | ||||||
LCD | 10.1 inch 1280x800 | ||||||
Color | 16.7MB | ||||||
Active Area | 216.96x135.6mm | ||||||
Back light and MTBF | LED, 30000hrs | ||||||
Pixel Pitch | 0.1695x0.1695 | ||||||
Contrast Ratio | 800:1 | ||||||
Viewing Angle | L85/R85/T85/B85 | ||||||
Touch | Multi-point Capacitive touch screen | ||||||
Transmittance | >75% | ||||||
Touch interface | USB | ||||||
Point | 10 points | ||||||
Surface hardness | Mohs' 7 | ||||||
Life circle | 100 million times | ||||||
Operating temperature | -20~60 °C | ||||||
Storage temperature | -30~80°C | ||||||
Humidity | 5~95% (no condensing) | ||||||
Shake | SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | ||||||
Shock | SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration | ||||||
EMC | CE/FCC Class A | ||||||
Water-proof | Front panel IP65 | ||||||
Ordering information
Model Name | Specification | ||||
ARM6000-C102-6D28-T | i.MX6D/1.0GHz Dual-core /2G Memory/8G eMMC/1*TF/1*SIM/1*OTG/1* LAN/6*USB2.0/4*RS232/HDMI /2* speaker | ||||
Our Company
Nodka is specialized in Industrial solutions, including:
Industrial Panel PC
Touch Monitor
Industrial computer (Mini PC)
OEM and ODM service
Factory
Our Factory located in Suzhou city, about 5000 sq.m.
Workshop
5 production lines and 1OEM production line
Team
This is a vibrant team, believe we can do it
Office
NODKA Suzhou office
Packing & Delivery
Exhibition Photo
Embedded World
Embedded world show was hold in March in Nuremberg, it gathered from all over the world in the field of embedded professional manufacturers, agents,and attract visitors.Nodka is a professional manufacturer which has established a good reputation and quality in China market,to enter the overseas market is the inevitable trend of the development of the company.Shower:Panel PC,LCD Monitor,Mini PC,Industrial PC
SPS IPC Drives
We have been joined SPS Germany since 2017.
SIMM in Shenzhen of China
The 18th Shenzhen International Machinery Manufacturing Industry Exhibition (SIMM) held in Shenzhen Convention and Exhibition Center.This is the 1st time that Nodka show on SIMM, and the new product based on Skylake-U platform is the first show in China market.Panel PC,LCD Monitor,Mini PC,Industrial PC
FAQ
Q: Are you trading company or manufacturer ? May I visit your factory?
A: We are manufacturer, welcome to visit us and very pleased to show NODKA abilities for you.
Q: What's the MOQ ?
A: 1 unit.
Q: Can you provide customized design ?
A: Of course, modified and customer design is available, project period is 30~40 days if only mechanical change.
Q: How long is your delivery time?
A: Generally it is 3-7 days for sample order. 30-40 days for OEM order, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not for free charge.
Q: What is your terms of payment ?
A: Payment<=100000USD, 100% T/T in advance.
If you have another question, pls feel free to contact us with email: vikki@nodka.com
A: We are manufacturer, welcome to visit us and very pleased to show NODKA abilities for you.
Q: What's the MOQ ?
A: 1 unit.
Q: Can you provide customized design ?
A: Of course, modified and customer design is available, project period is 30~40 days if only mechanical change.
Q: How long is your delivery time?
A: Generally it is 3-7 days for sample order. 30-40 days for OEM order, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not for free charge.
Q: What is your terms of payment ?
A: Payment<=100000USD, 100% T/T in advance.
If you have another question, pls feel free to contact us with email: vikki@nodka.com
Похожие товары

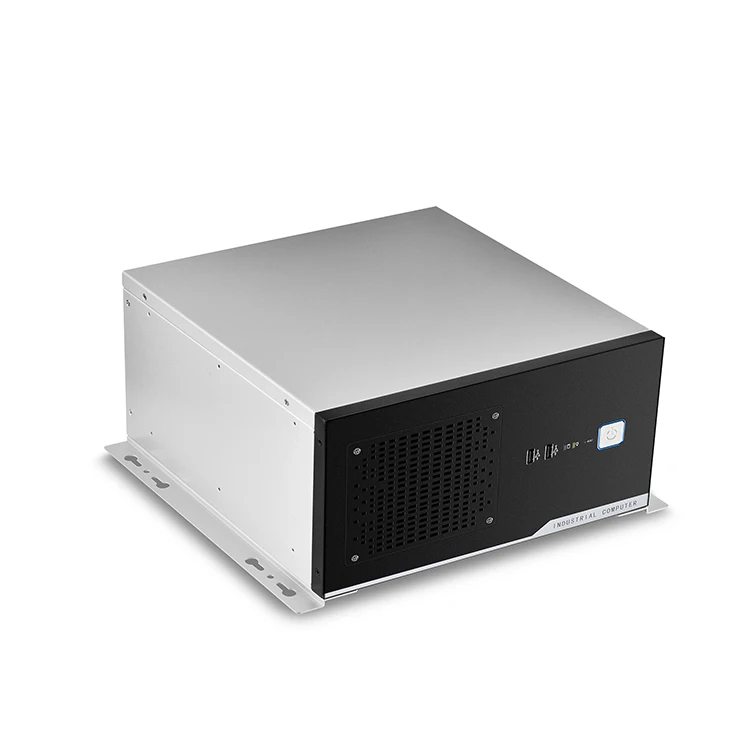

I3/i5/i7 intel 4-й промышленный компьютер 2 * LAN 4x слот расширения 4xPCI win7/win8/win10/linux
215,00 $ - 245,00 $

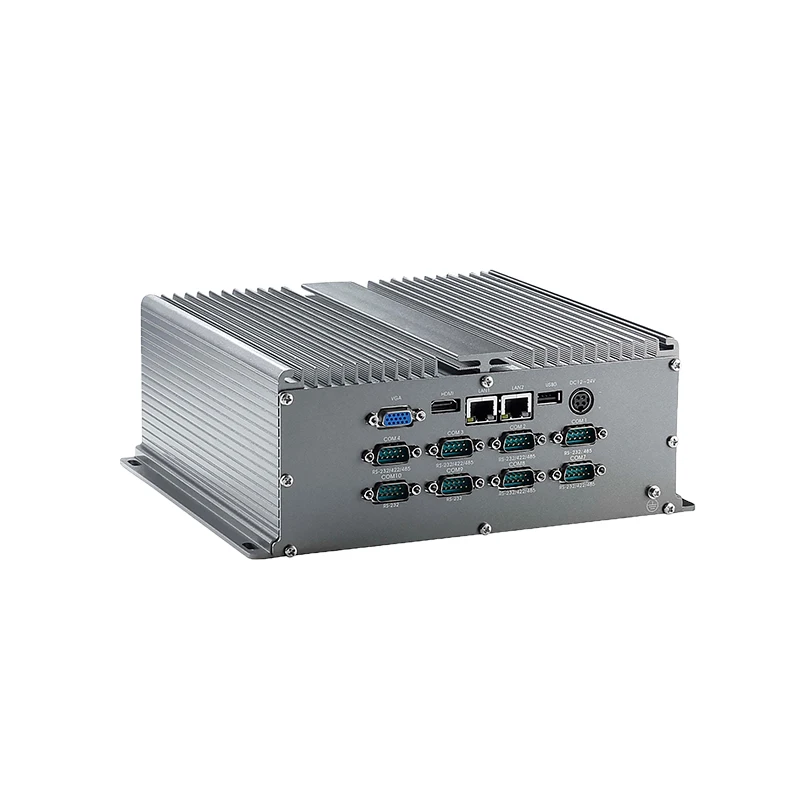

XP PC безвентиляторный C1037 промышленный компьютер 2LAN 10 * COM 6USB с 10 * COM 6 * RS232 или 4 * rs485 или 3 * rs422
306,00 $ - 318,00 $

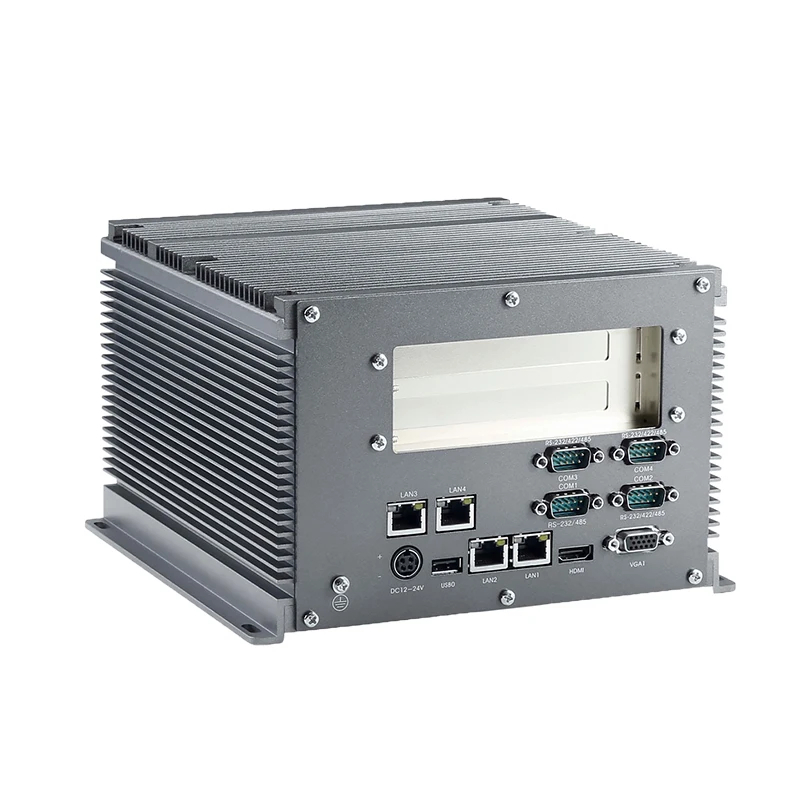

XP PC безвентиляторный промышленный компьютер 4LAN 6COM 4USB с расширительным слотом 2PCI X1
322,00 $ - 335,00 $

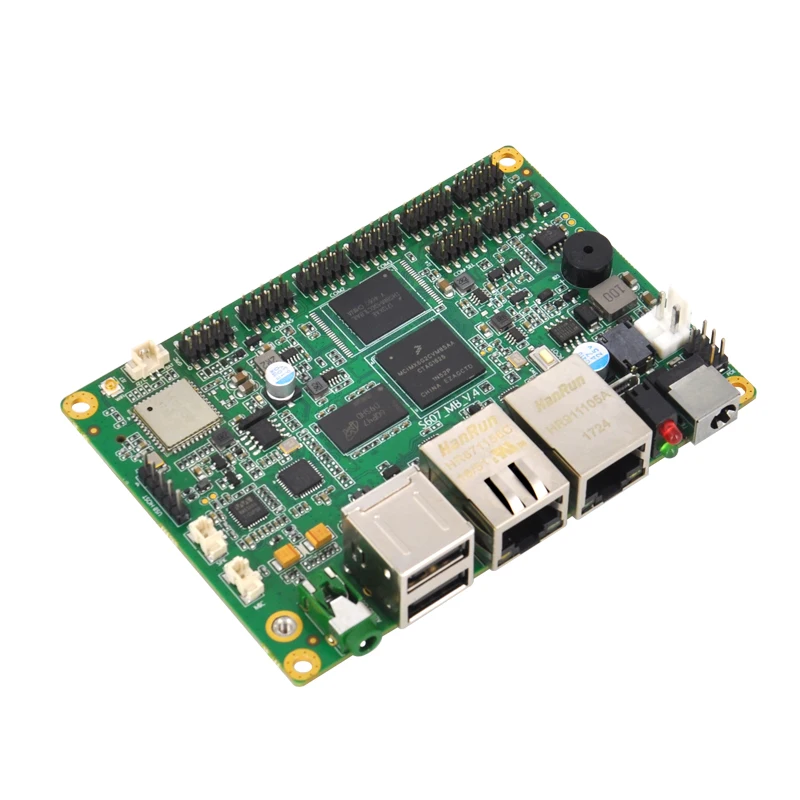

Промышленный Класс i.MX6UL, основная плата iMX6UL, макетная плата для медицинского аппарата для анестезии
250,00 $ - 300,00 $
OEM ODM ручная пресс-форма для 12,1 дюймов multi touch panel rs232 rs485 умные промышленные android планшеты ПК с сенсорным экраном сканер штрих-кодов
226,00 $ - 245,00 $
Безвентиляторный промышленный компьютер XP PC D525 2LAN 6COM 6 * rs232 или 4 * rs485 или 3 * rs422 4USB с 1 * PCIx1 расширительным слотом
305,00 $ - 318,00 $

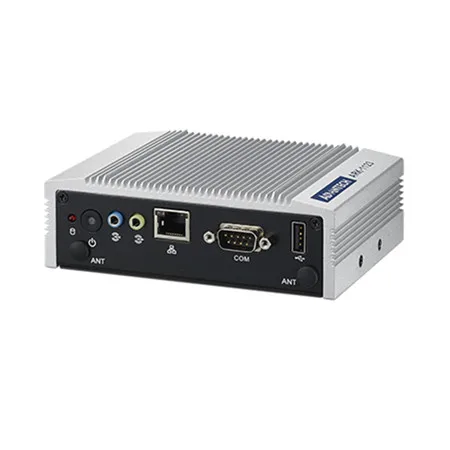

Advantech ARK-1123H-U0A2E из ARK-1123H-U0A1E Quad Core J1900 SoC двойной HD-MI/GbE IoT безвентиляторный ящик
