Медицинский инженерный пластик
- Категория: >>>
- Поставщик: Hebei Juzai Import And Export Co. Ltd.
Сохранить в закладки 1600270916084:
Описание и отзывы
Характеристики
Product Description
Melting temperature: 240 ~ 300C; For materials with ordinary characteristics, it shall not exceed 310c, and for materials with flame retardant characteristics, it shall not exceed 270C.
Mold temperature: 30 ~ 40C for unreinforced materials, 80 ~ 90C for thin-wall or large-area components, and 90 ~ 100C for reinforced materials. Increasing the temperature will increase the crystallinity of the material. Accurate control of mold temperature is very important for PA12.
Injection pressure: up to 1000 bar (low holding pressure and high melting temperature are recommended).
Injection speed: high speed (better for materials with glass additives).
Runner and gate: for materials without additives, the runner diameter should be about 30mm due to the low viscosity of the material. For reinforced materials, a large runner diameter of 5 ~ 8mm is required. The runner shape shall be all circular. The injection port shall be as short as possible. Multiple forms of gates can be used. Do not use small gate for large plastic parts, which is to avoid excessive pressure or excessive shrinkage of plastic parts. The gate thickness should preferably be equal to the thickness of the plastic part. If a submerged gate is used, a minimum diameter of 0.8mm is recommended. Hot runner mold is very effective, but it requires accurate temperature control to prevent material leakage or solidification at the nozzle. If hot runner is used, the gate size should be smaller than that of cold runner. Typical uses water meters and other commercial equipment, cable sleeves, mechanical cams, sliding mechanisms and bearings.
Mold temperature: 30 ~ 40C for unreinforced materials, 80 ~ 90C for thin-wall or large-area components, and 90 ~ 100C for reinforced materials. Increasing the temperature will increase the crystallinity of the material. Accurate control of mold temperature is very important for PA12.
Injection pressure: up to 1000 bar (low holding pressure and high melting temperature are recommended).
Injection speed: high speed (better for materials with glass additives).
Runner and gate: for materials without additives, the runner diameter should be about 30mm due to the low viscosity of the material. For reinforced materials, a large runner diameter of 5 ~ 8mm is required. The runner shape shall be all circular. The injection port shall be as short as possible. Multiple forms of gates can be used. Do not use small gate for large plastic parts, which is to avoid excessive pressure or excessive shrinkage of plastic parts. The gate thickness should preferably be equal to the thickness of the plastic part. If a submerged gate is used, a minimum diameter of 0.8mm is recommended. Hot runner mold is very effective, but it requires accurate temperature control to prevent material leakage or solidification at the nozzle. If hot runner is used, the gate size should be smaller than that of cold runner. Typical uses water meters and other commercial equipment, cable sleeves, mechanical cams, sliding mechanisms and bearings.
Specification
item | value |
Place of Origin | China |
Hebei | |
Application | Packing |
Product Description | Applications | |||||||||||||||||
· Good dimensional stability | · Excellent flowability | |||||||||||||||||
· Excellent heat stability | · Good mechanical properties balance | |||||||||||||||||
Properties | Test Method | Test Condition | Unit | Typical Values | ||||||||||||||
Physical properties | ||||||||||||||||||
Specific Gravity | ISO 1183 | 23ºC | g/cm3 | 0.9 | ||||||||||||||
MI | ISO 1183 | g/10min | 26 | |||||||||||||||
Ash | ISO 3451 | 800ºC,30min | % | 0 | ||||||||||||||
Mechanical properties | ||||||||||||||||||
Tensile Strength | ISO 527 | 50mm/min | MPa | 28 | ||||||||||||||
Flexural Modulus | ISO 178 | 2mm/min | MPa | 1080 | ||||||||||||||
Notched Charpy Impact Strength | ISO 179/1eA | 23ºC | J/m | 3.8 | ||||||||||||||
Thermal properties | ||||||||||||||||||
Heat deflection temperature | ISO 75 | 0.450MPa | °C | 78 | ||||||||||||||
Mold Shrinkage | % | 0.72 | ||||||||||||||||
Other properties | ||||||||||||||||||
Flammability | TL1010 | - | mm/min | 37 | ||||||||||||||
Company Profile
Hebei juzai in the import and export co., LTD., founded in 2021, mainly operating plastic particles as the main business of foreign trade, our company has 3000 square meters of warehouses, a large number of inventory at any time, save the delivery time, product has SGS quality certification, price concessions, the company always pursues the "honesty, credit, mutual benefit, service" business philosophy, to cooperate with global customers,
Packing & Delivery
Package&Storage&Transportation:
1.Packing: 25kg/ carton or 25kg/bag, or per your requirement 5kgs net weight in PP woven or PE plastic bag about 20 tons for 20"
container
container
2.Storage: The resin should be stored in a drafty, dry warehouse and away from fire and direct sunlight. It should not
be piled up in the open air.
be piled up in the open air.
3.Transportation: During transportation, the product should not be exposed to strong sunlight or rain
and should not be transported together with sand, soil, scrap metal, coal or glass. Transportation together with toxic, corrosive and flammable substance is strictly prohibited.
and should not be transported together with sand, soil, scrap metal, coal or glass. Transportation together with toxic, corrosive and flammable substance is strictly prohibited.
FAQ
1. who are we?
We are based in Hebei, China, start from 2021,sell to North America(15.00%),South America(12.00%),Southeast Asia(10.00%),Africa(10.00%),Eastern Asia(10.00%),Northern Europe(10.00%),Central America(9.00%),Eastern Europe(8.00%),Mid East(8.00%),South Asia(5.00%),Western Europe(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ABS,PP,PE,PET,PPT
4. why should you buy from us not from other suppliers?
Our company has a warehouse of 3000 square meters, with a large amount of inventory at any time to save delivery time, products have SGS quality certification, and the price is favorable
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Hebei, China, start from 2021,sell to North America(15.00%),South America(12.00%),Southeast Asia(10.00%),Africa(10.00%),Eastern Asia(10.00%),Northern Europe(10.00%),Central America(9.00%),Eastern Europe(8.00%),Mid East(8.00%),South Asia(5.00%),Western Europe(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ABS,PP,PE,PET,PPT
4. why should you buy from us not from other suppliers?
Our company has a warehouse of 3000 square meters, with a large amount of inventory at any time to save delivery time, products have SGS quality certification, and the price is favorable
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
Похожие товары

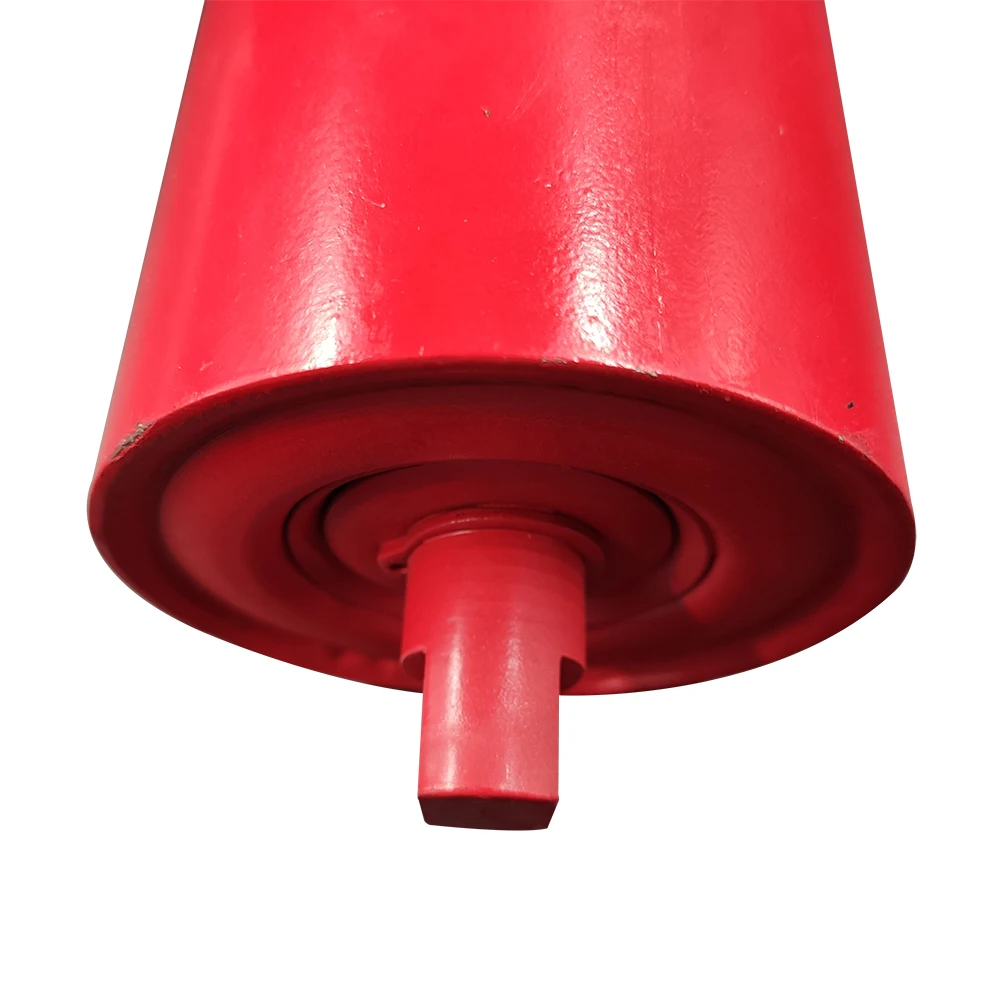

Промышленный наружный ленточный конвейер из углеродистой стали
6,00 $ - 8,50 $

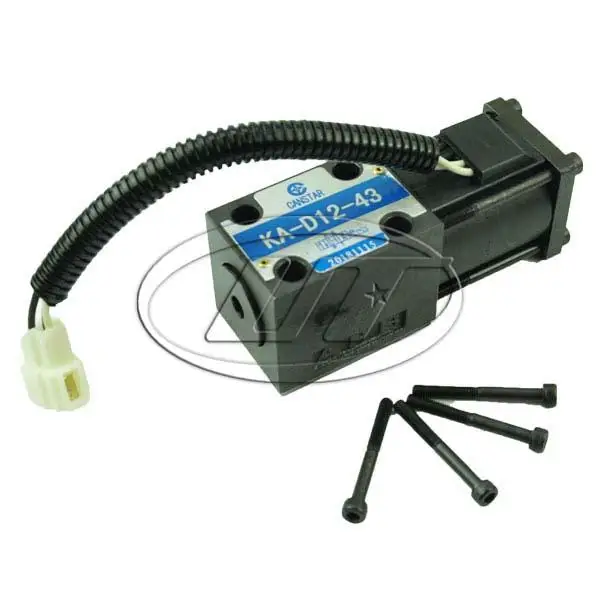

Позиция электромагнитный клапан передачи Запчасти для вилочного позрузчика аксессуары повесить YQX30D-4200 34E-10BY-12 810110001274
31,48 $
Рафинированное Кукурузное Масло, 100% чистое кукурузное масло, лучшее качество

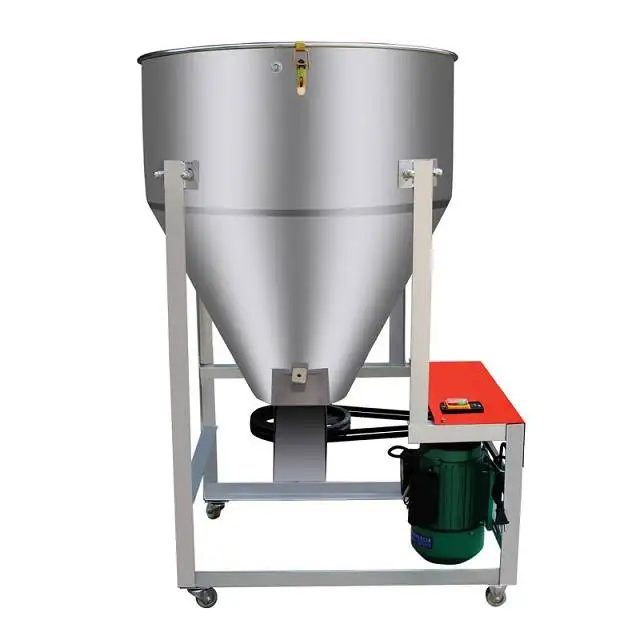

Шанхай, высокоскоростной стационарный миксер Hs20, производитель спиральных тестомесителей

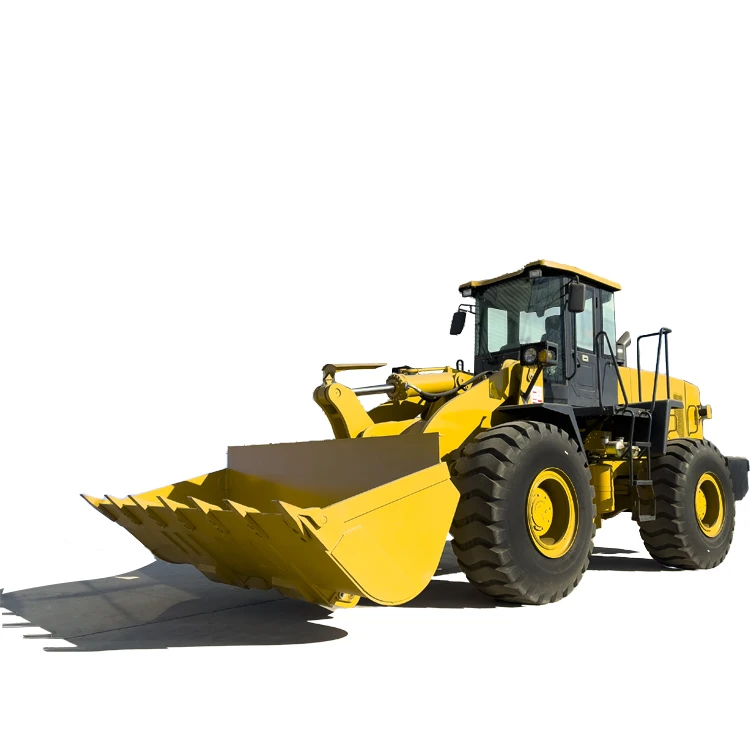

5 тонн ковш погрузчика машина новые шарнирные соединения до 6 ти лет Прямая продажа с фабрики, поднимающая груз весом до 5 тонн с джойстиком колесный погрузчик
38 000,00 $

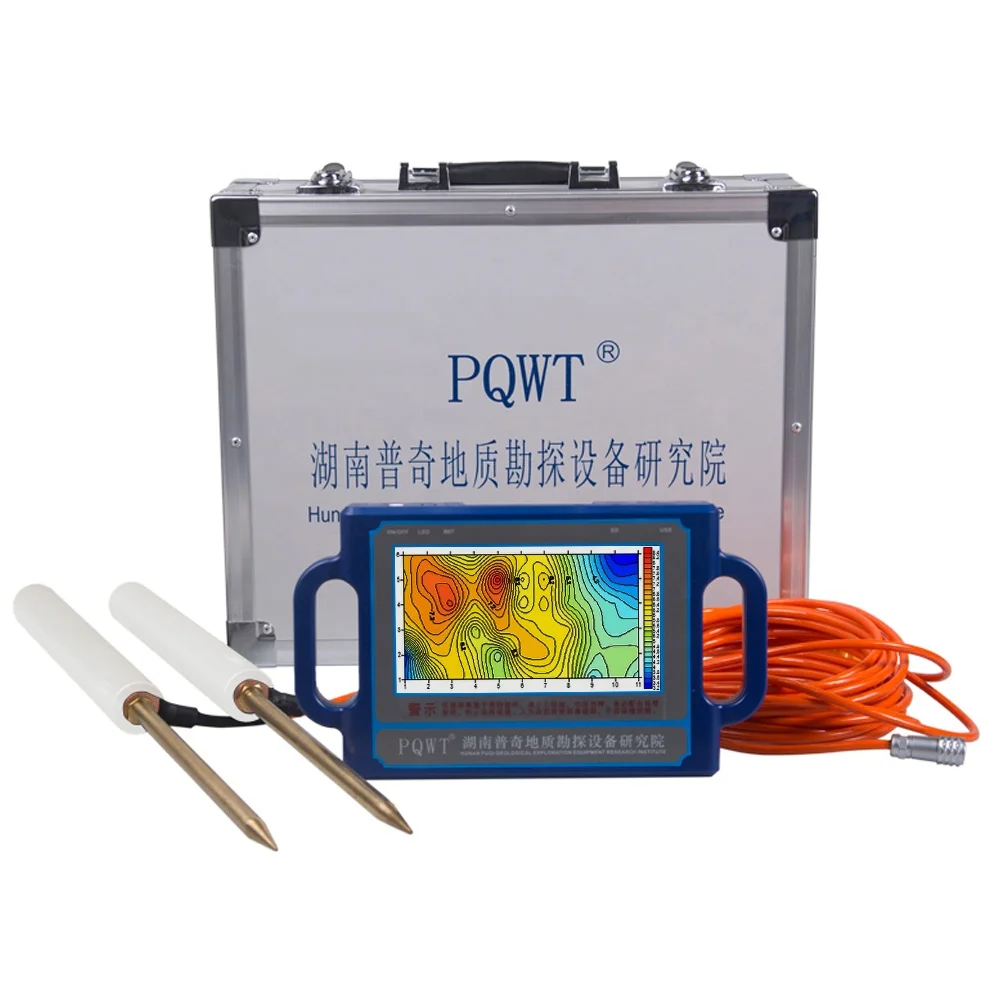

Оборудование для геофизного обнаружения, детектор Подземной Воды, сканер для подземной воды pqwt s500
