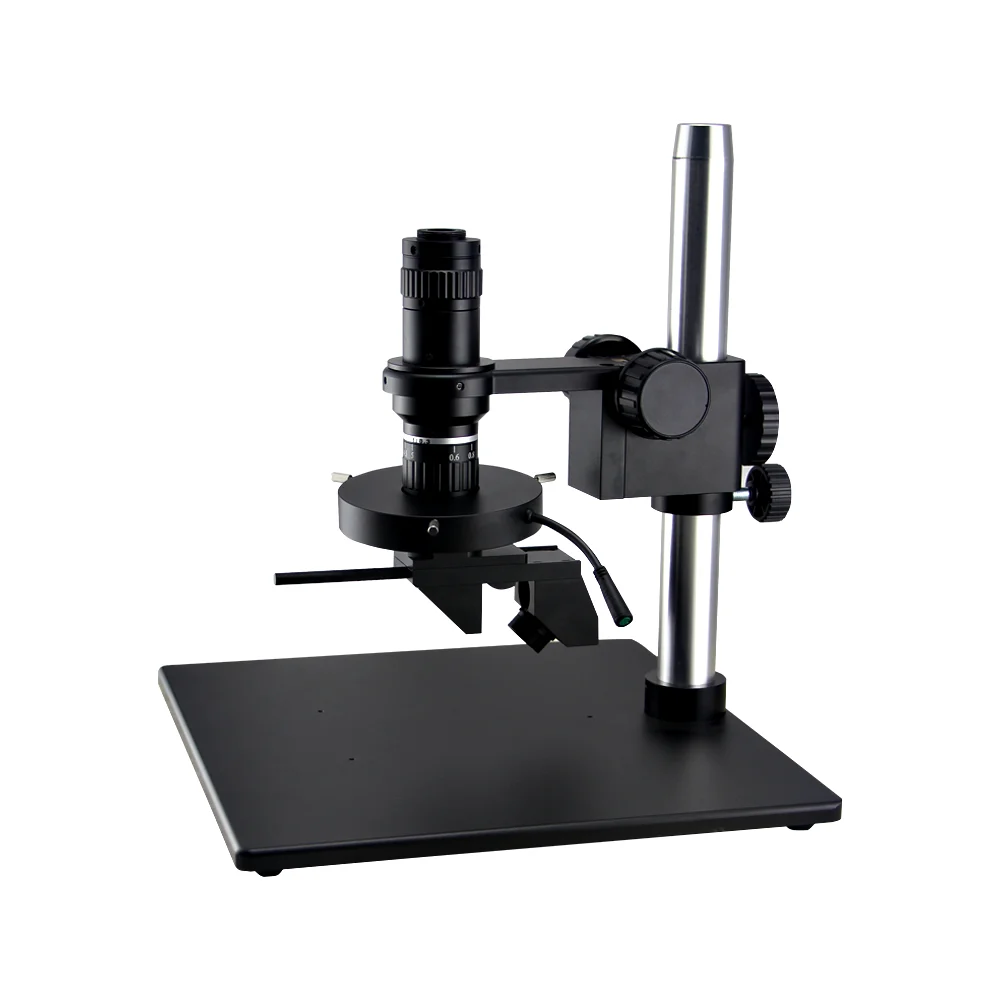

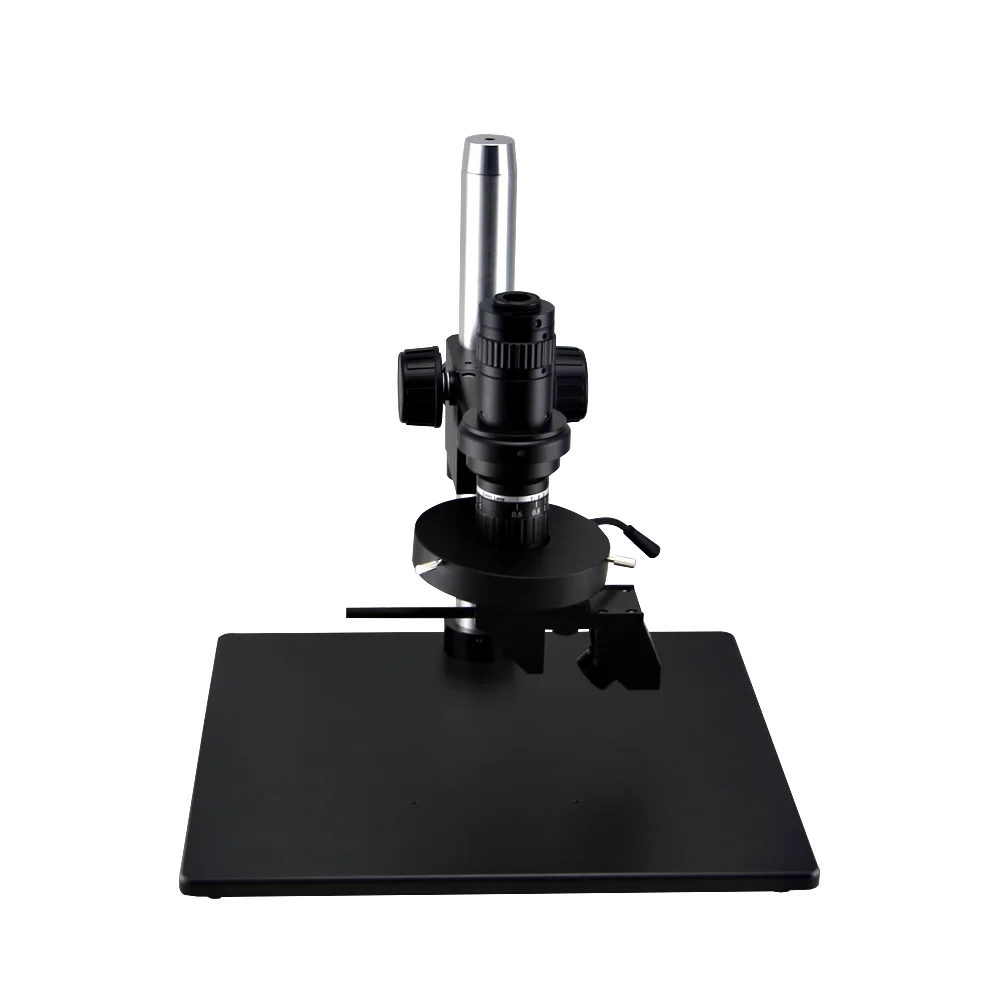

FA3D0325 Monocular 3D Video Microscope.
Main features
◆3D video microscope body based on infinity optical system.0.6-5.0X optical zoom magnification.

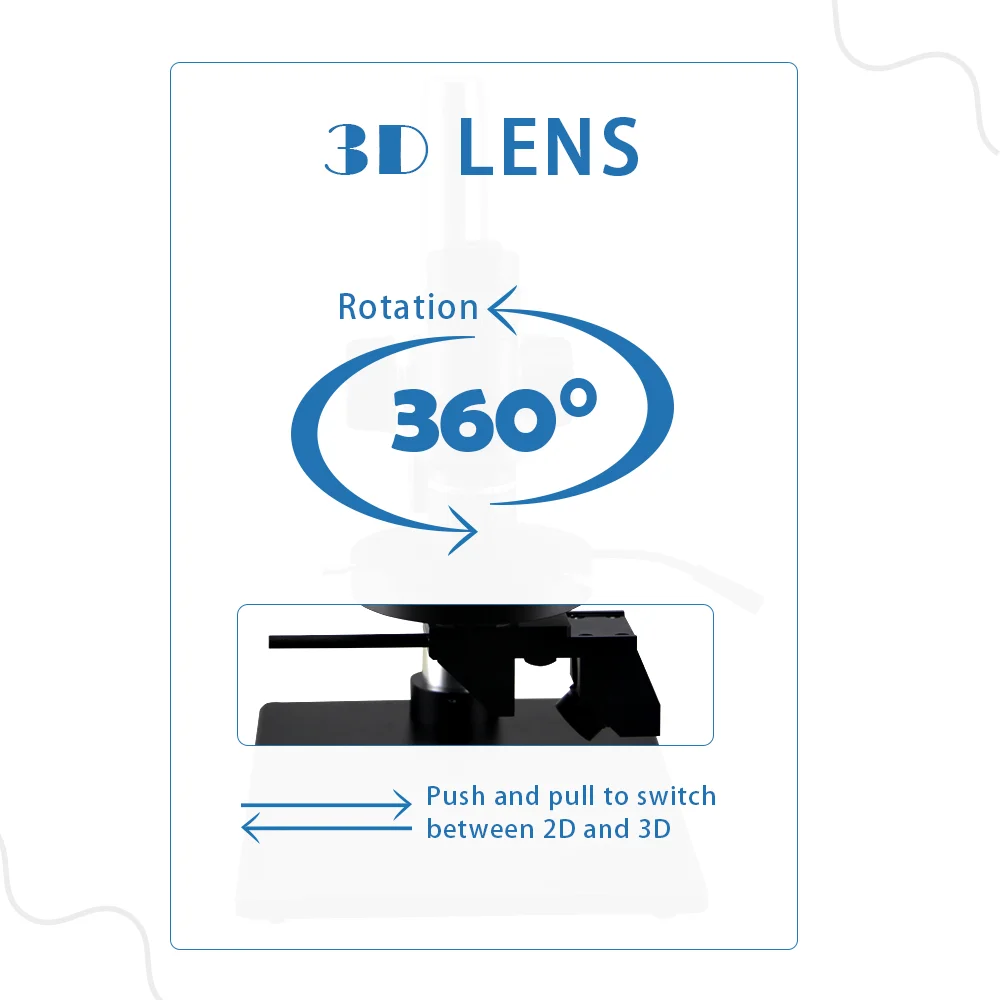

◆Support 2D or 3D observation. 2D push pull switch 3D .360 °rotation 3D observation. The operation is simple and convenient to improve the detection efficiency.
◆45 °objective viewing angle. Working distance and center position always maintain same when you switch 2D to 3D observation, No need to adjust the focus again. Adjust to any magnification have a best image without adjustable.
◆Standard C mount. It can be used with different kinds of camera.◆Large FOV. Large depth of view. At Minimum magnification, the field of view is full image without dark edge image
◆Widely used in circuit board, microelectronics, precision electronics, precision hardware, deep hole wall, life science, animal and plant morphology and other industries.
◆Support 2D or 3D observation. 2D push pull switch 3D .360 °rotation 3D observation. The operation is simple and convenient to improve the detection efficiency.
◆45 °objective viewing angle. Working distance and center position always maintain same when you switch 2D to 3D observation, No need to adjust the focus again. Adjust to any magnification have a best image without adjustable.
◆Standard C mount. It can be used with different kinds of camera.◆Large FOV. Large depth of view. At Minimum magnification, the field of view is full image without dark edge image
◆Widely used in circuit board, microelectronics, precision electronics, precision hardware, deep hole wall, life science, animal and plant morphology and other industries.
Optical Parameter

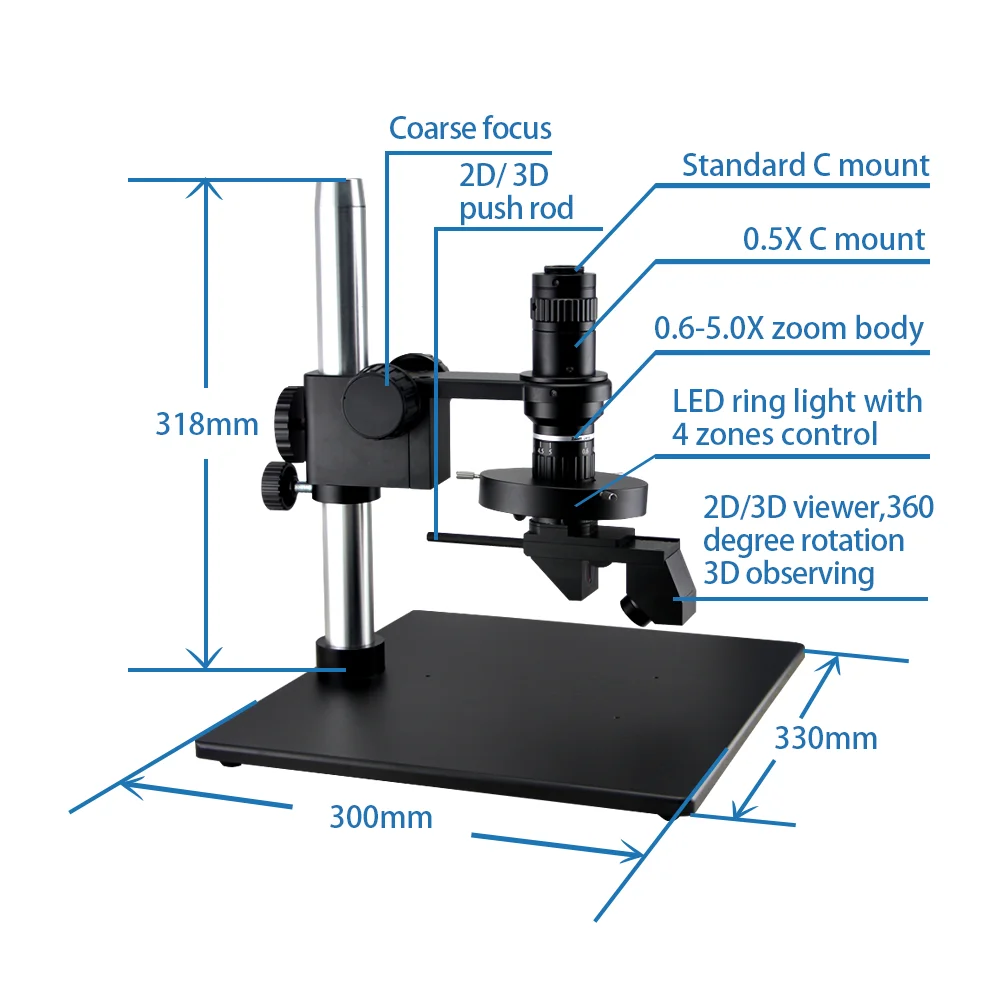

Model | FA3D0325 |
Optical Parameter | 0.3-2.5X(0.6-5.0X zoom body with 0.5X C mount) |
Working distance | 86mm |
FOV | 24*13.5-2.88*1.62mm |
Mount | Standard C mount |
Observation mode | 2D or 3D observation. 2D push pull switch 3D. |
3D viewer angle | 45° |
Base size | L*W 330*300mm |
Height of stand | 318mm |
Focus | Coarse |

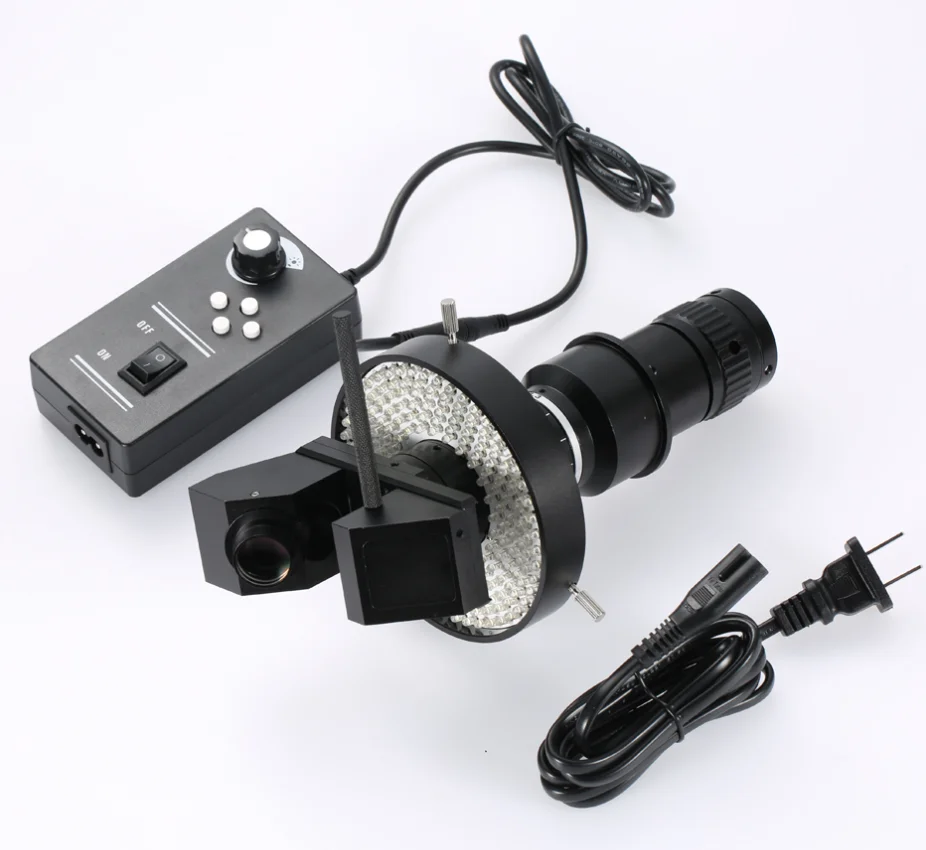

Light source | 8-10W，12V LED ring light with 4 zones control， 0-100% brightness adjustable |
Optional Accessory
Model | Name | Specification |
FB3D01815 | Zoom Body | 0.18-1.5X(0.6-5.0X zoom body+0.3X C mount) |
FB3D0650 | Zoom body | 0.6-5X (0.6-5.0X zoom body+1.0X C mount) |
Product details
Our Company
Guilin FT-OPTO Co.,Ltd established in 2009, with more than 12 years of optical experience ,with good reputation in optical industrial.Which is technical enterprise specializing in precision optical instrument,optical-mechanical integration industry, integrating product technical management, development and scale manufacturing.
We are professional factory of high resolution zoom lens, video microscope, measuring microscope, smart
We are professional factory of high resolution zoom lens, video microscope, measuring microscope, smart
microscope,auto inspection system microscope and microscope accessory.
At present, company equipped with mechanical processing center, turning center, CNC lathe, CNC milling machine and other equipment. our cooperation company strictly control the quality of products, before shipment to 100% full inspection to ensure customers receive all qualified products. Sound after-sales service to ensure the response to customer questions within 24 hours.
At present, company equipped with mechanical processing center, turning center, CNC lathe, CNC milling machine and other equipment. our cooperation company strictly control the quality of products, before shipment to 100% full inspection to ensure customers receive all qualified products. Sound after-sales service to ensure the response to customer questions within 24 hours.
Exhibition
FAQ
Q: Can I get the sample order?
A: Yes.We welcome sample order to test and check quality.Mix sample are acceptable.
A: Yes.We welcome sample order to test and check quality.Mix sample are acceptable.
Q: How long is the delivery date?
A: It usually 7-10 working days.
Q: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL,Fedex,Tnt ,SF ,EMS, By sea or By air.It usually takes 3-5 working days to arrive.
Q: How to proceed the order if I have logo to print?
A: First,artwork for visual confirmation,and next is sample picture or sending sample to you.
Q: How is your quality control?
A: We have strict QC process and all the products will be 100% testing before shipping.
Q: What is your payment way?
A: T/T,Paypal
Q: Do you offer guarantee for products
A: Yes,we offer one year warranty for the product.
A: It usually 7-10 working days.
Q: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL,Fedex,Tnt ,SF ,EMS, By sea or By air.It usually takes 3-5 working days to arrive.
Q: How to proceed the order if I have logo to print?
A: First,artwork for visual confirmation,and next is sample picture or sending sample to you.
Q: How is your quality control?
A: We have strict QC process and all the products will be 100% testing before shipping.
Q: What is your payment way?
A: T/T,Paypal
Q: Do you offer guarantee for products
A: Yes,we offer one year warranty for the product.
Our Strengths
*Our company is specialized in microscope more than 12 years,Products cover many kinds of microscope .
*Our professionals enforce strictly to ensure the lead time and quality.
*Our professionals enforce strictly to ensure the lead time and quality.
*We are industry and trade integration company,we have technical R&D engineer,Quality control and sales.
*According to customers different requirements recommend most suitable model.
*We would be able to offer you a price quote based different purchase quantity.
*Add your logo whatever you need, we can make your product perfectly.
Похожие товары

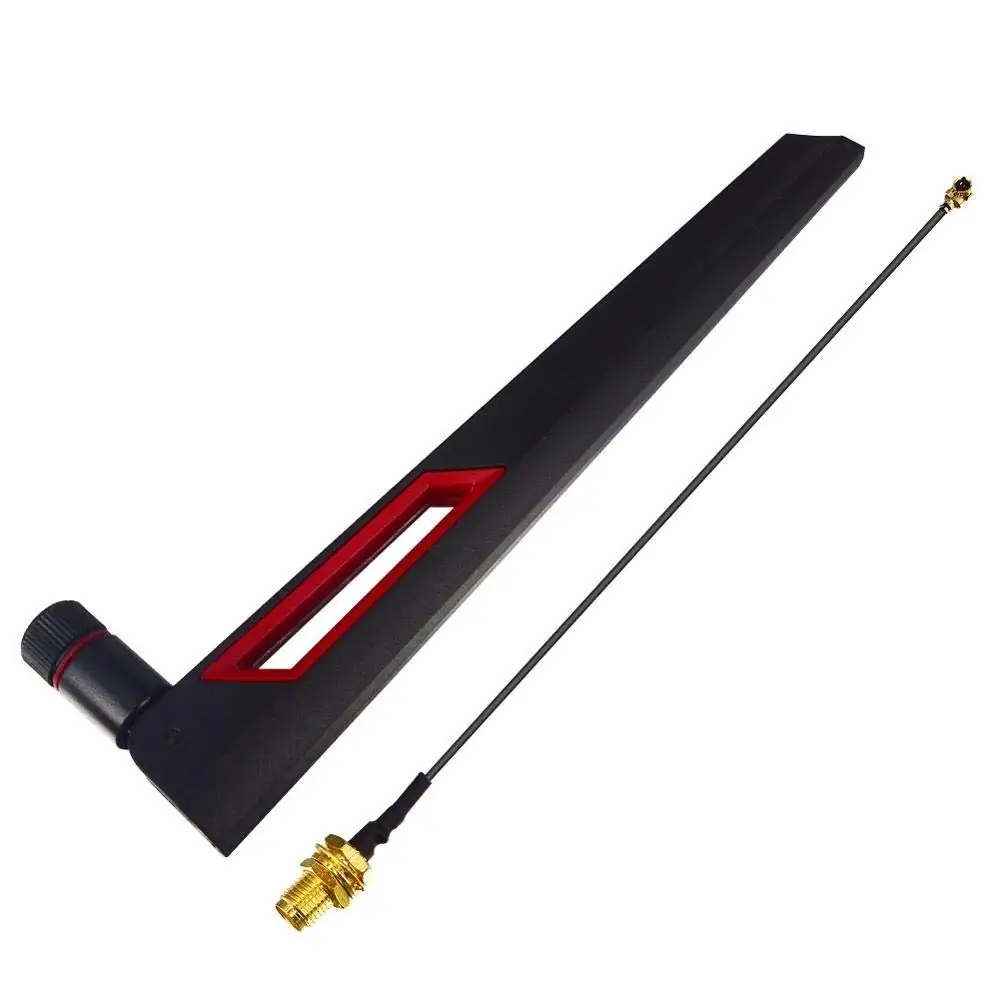

Двухдиапазонная Wi-Fi антенна 12 Dbi 2,4G 5G 5.8Gh SMA, универсальные антенны с UFL IPX на SMA, гнездовой кабель с отрезом
1,32 $ - 2,15 $

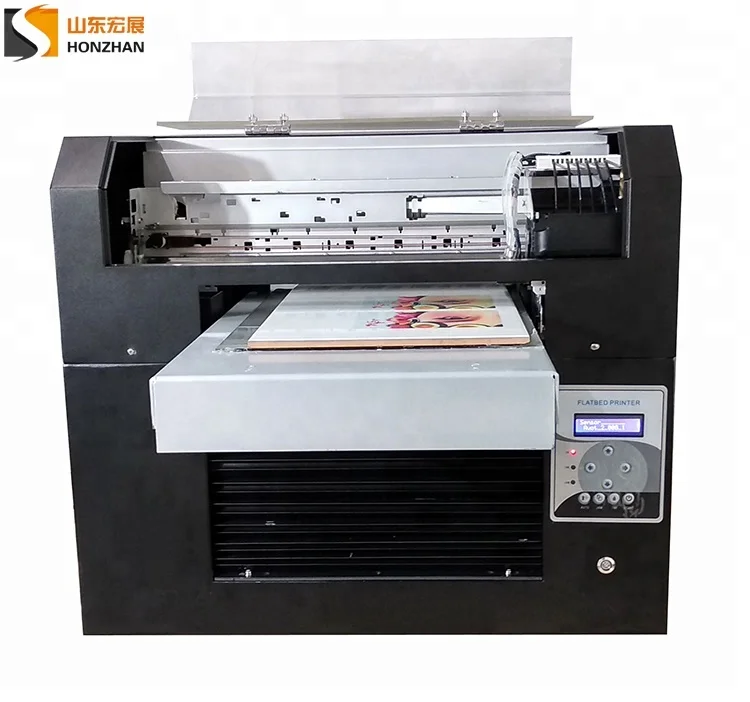

Новая цифровая автоматическая планшетная струйная печатная машина HONZHAN A3 для пластиковой ПВХ панели УФ-печати
Бутиловый шнур, Бутилкаучуковая герметичная лента для RV, автомобильные фары, окна, двери, лобового стекла
1,30 $ - 5,00 $

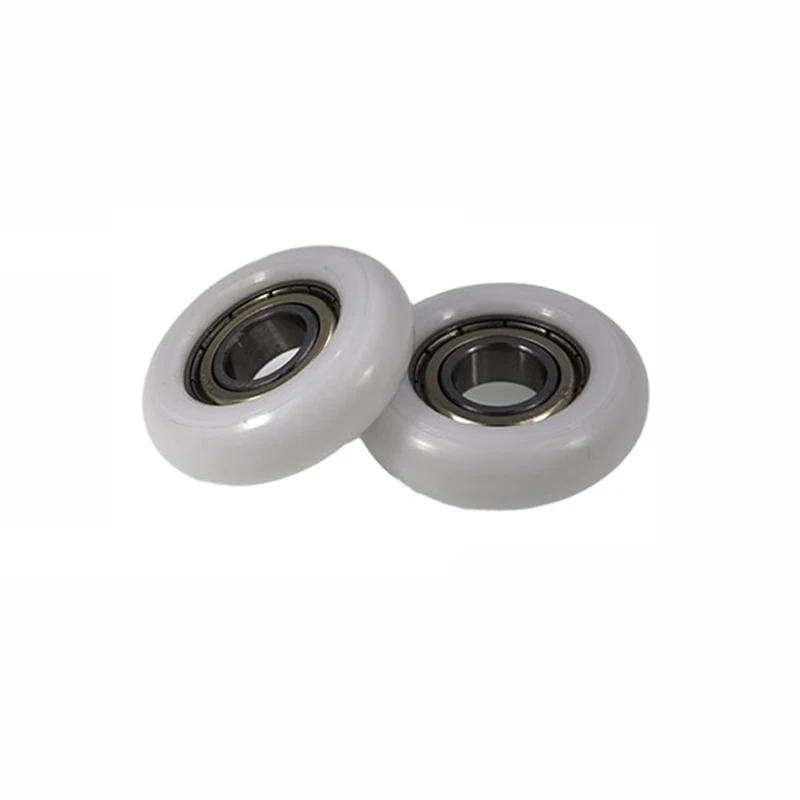

Фабричный ролик 6200RS, пластиковый ролик 10x42x20 мм
Рюкзак для бега на заказ, спортивное оборудование, жилет для фитнеса, велосипедная сумка, гидратационная сумка
6,20 $ - 8,80 $

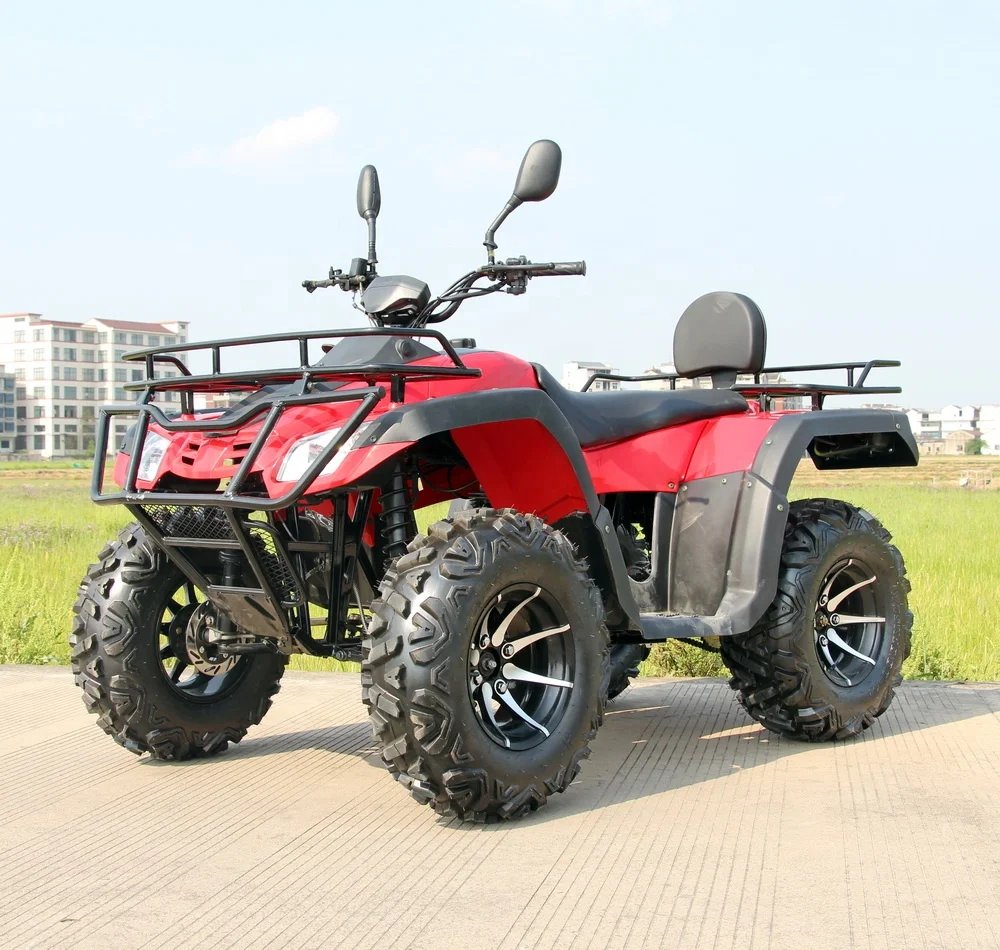

Китайский мотовездеход новый дизайн рама дешевый четырехъядерный 4x4 250 куб.
