AWPS cherry picker boom lift car XGA26 truck mounted boom lift


Product Description





 Advantages and highlights:
Maximum working range 9m to reach operation area at different directions
* This vehicle is equipped with No. 1, No. 2 booms and a full section of articulated boom, available to implement all-directional aerial work through the elevating, telescopic and slewing control, and thus making the machine more flexible.
* Flexible 4WD multi-mode steering system and the leading grade
* The customized valve control system and all accurately controlled motions effectively improve the motion smoothness
* The flow anti-saturation design is applied to provide efficient and stable composite motion experiences.
* Initial power self-matching system could save the energy, dropping the comprehensive fuel consumption under each work condition by 30% or higher.




MAIN PARAMETER




























































































































Item


Unit


Parameter


a. Overall length of complete machine


mm


11280


b. Overall width of complete machine


mm


2490


c. Overall height


mm


3000


d. Wheelbase


mm


3000


Max. working height


m


26.38


Max. platform height


m


24.38


Max. working range


m


18.9


Max. carrying weight


kg


230


Scope of luffing of No. 1 arm


°


-1 ~ +70


Scope of luffing of No. 2 arm


°


-35 ~ +68


Slewing angle of turntable


°


360°


Max. Tail swing


mm


1330 (boom lifting)


Dimension of platform


mm


2400×900


Slewing angle of platform


°


160


Overall weight


kg


17800


Max. traveling speed


km/h


5


Min. turning radius


m


4.2m(Four-wheel steering) / 6.7m(Two-wheel steering)


Min. ground clearance


mm


260


Max. gradeability


%


45


Specification of tire


-


18-625


Engine model


-


Cumm-ins QSF2.8 71BHP


Engine rated power


kW/(r/min)


53/(2200)

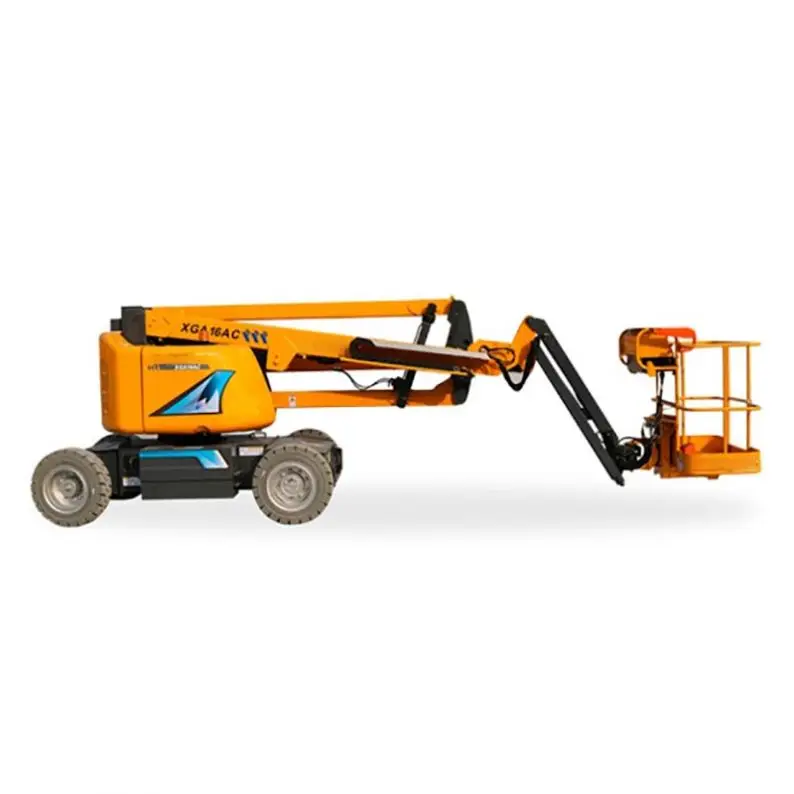

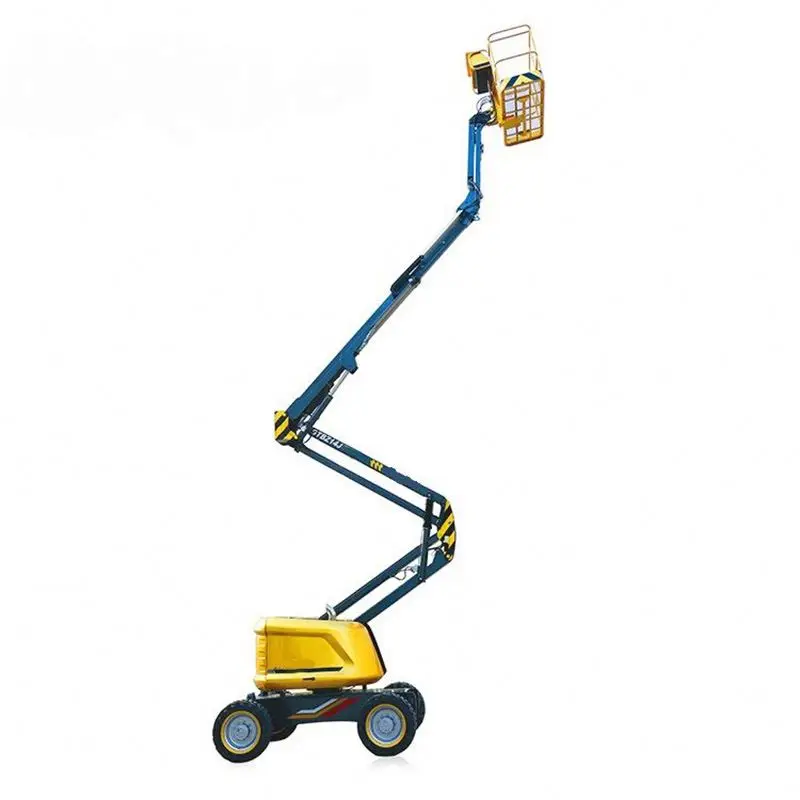

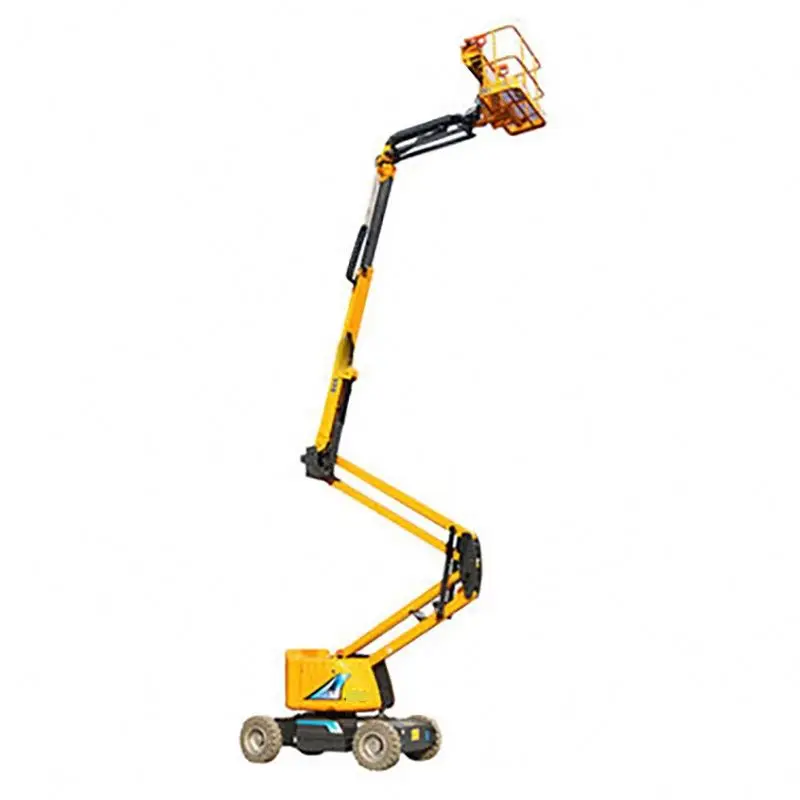

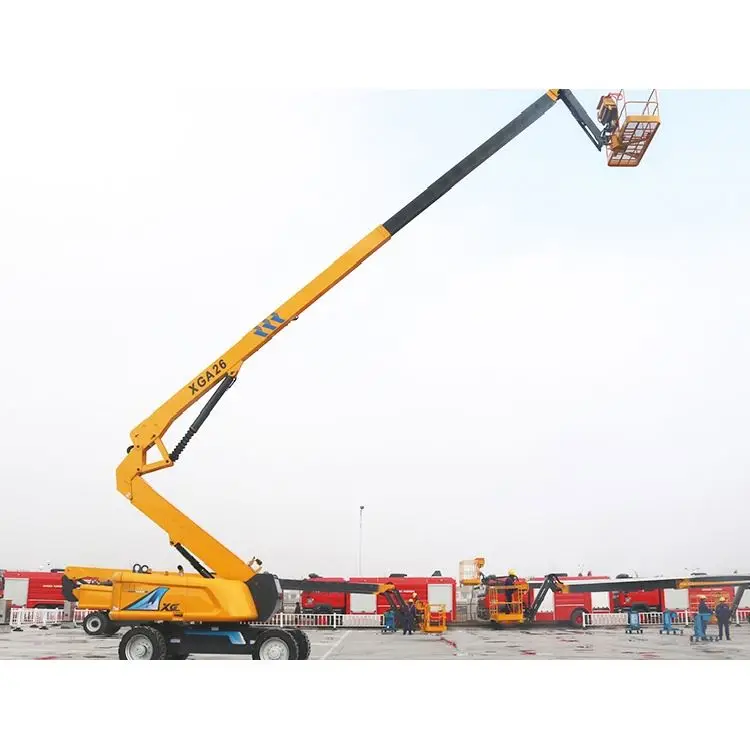

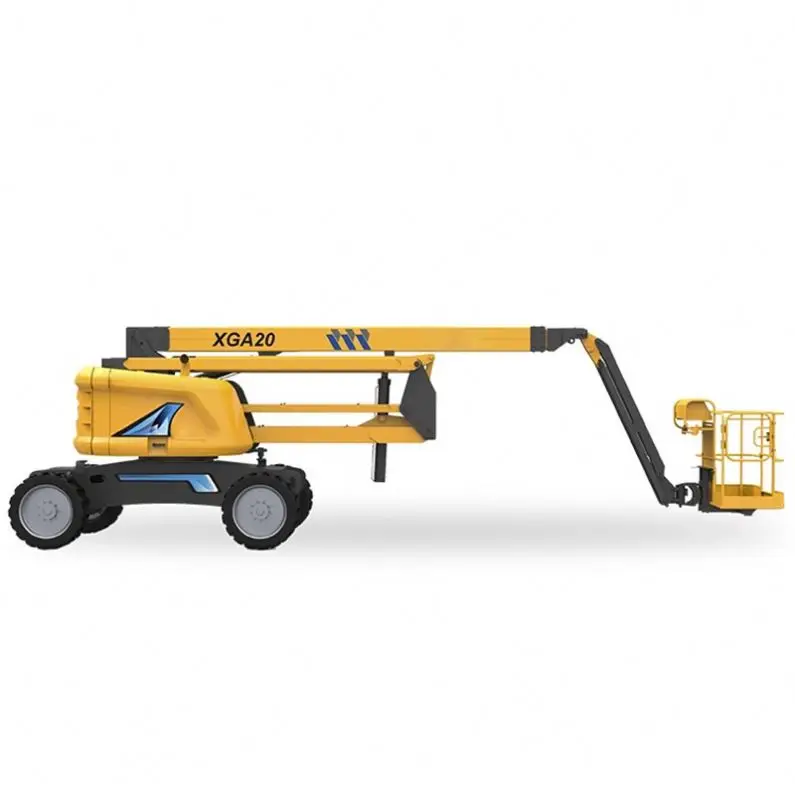

PRODUCTS PICTURES:
