Буровое долото для проволочной линии NQ, пропитанное алмазное ядро для геологоразведки
8 100,47 ₽ - 12 420,72 ₽

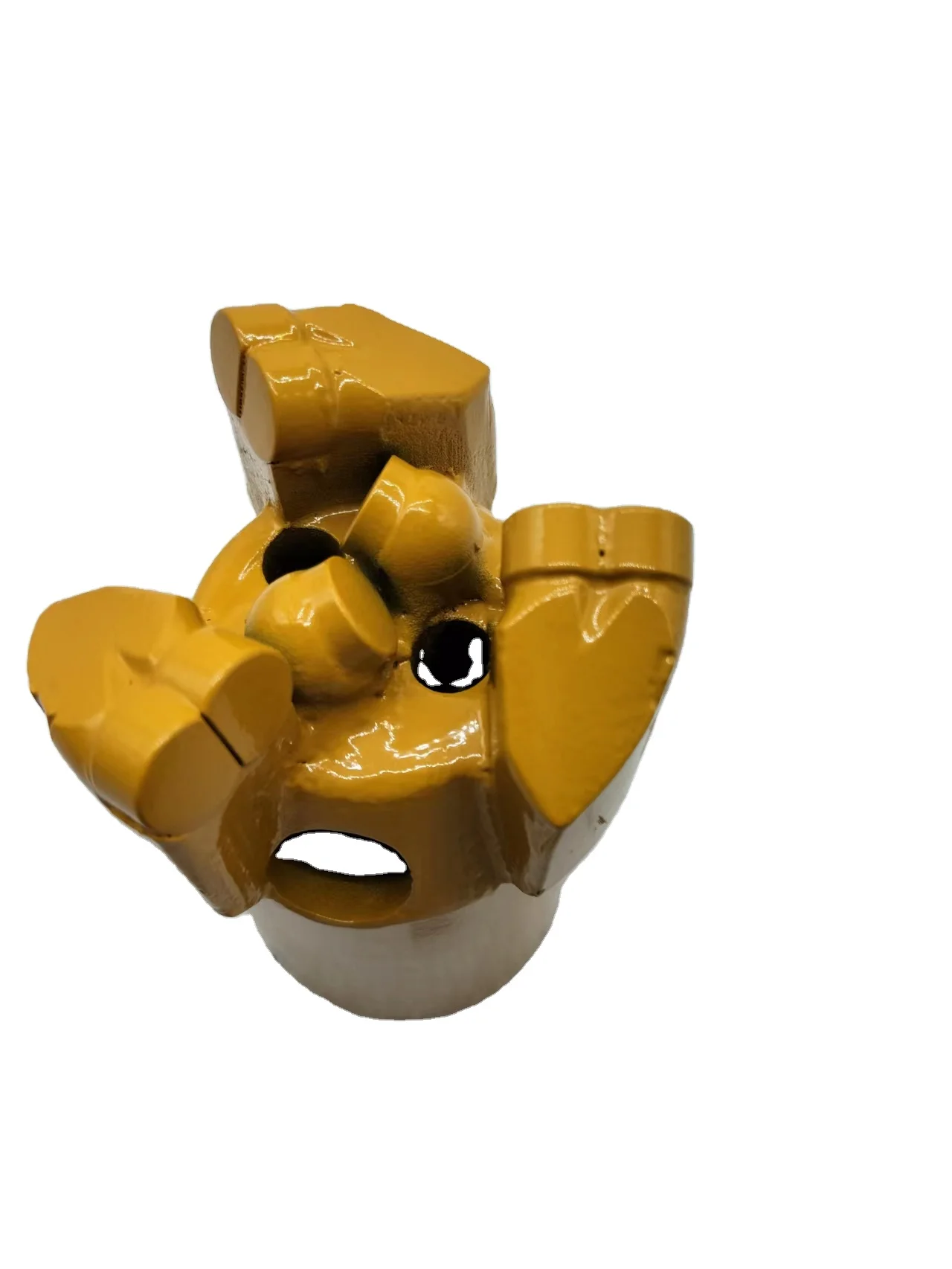

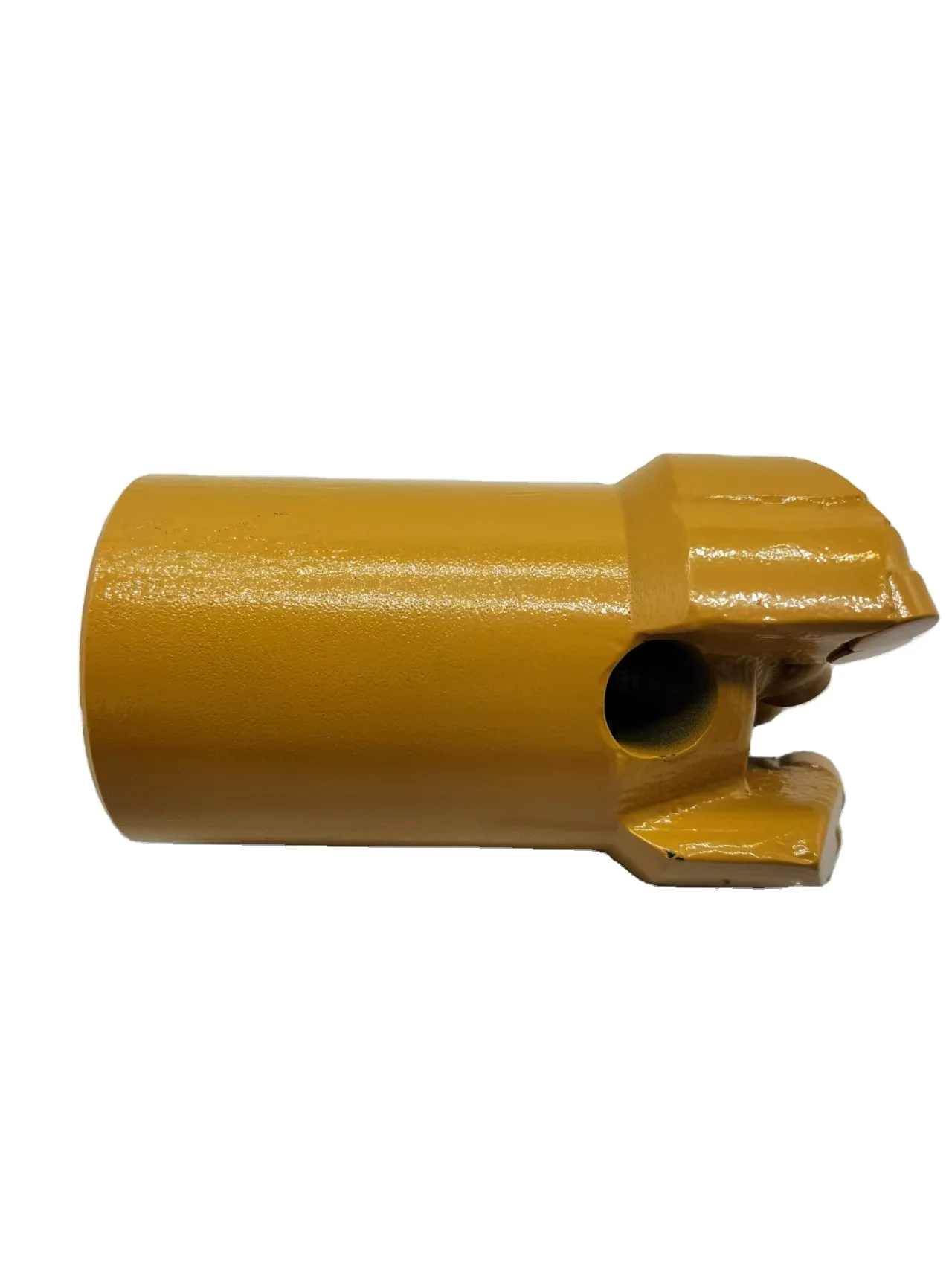

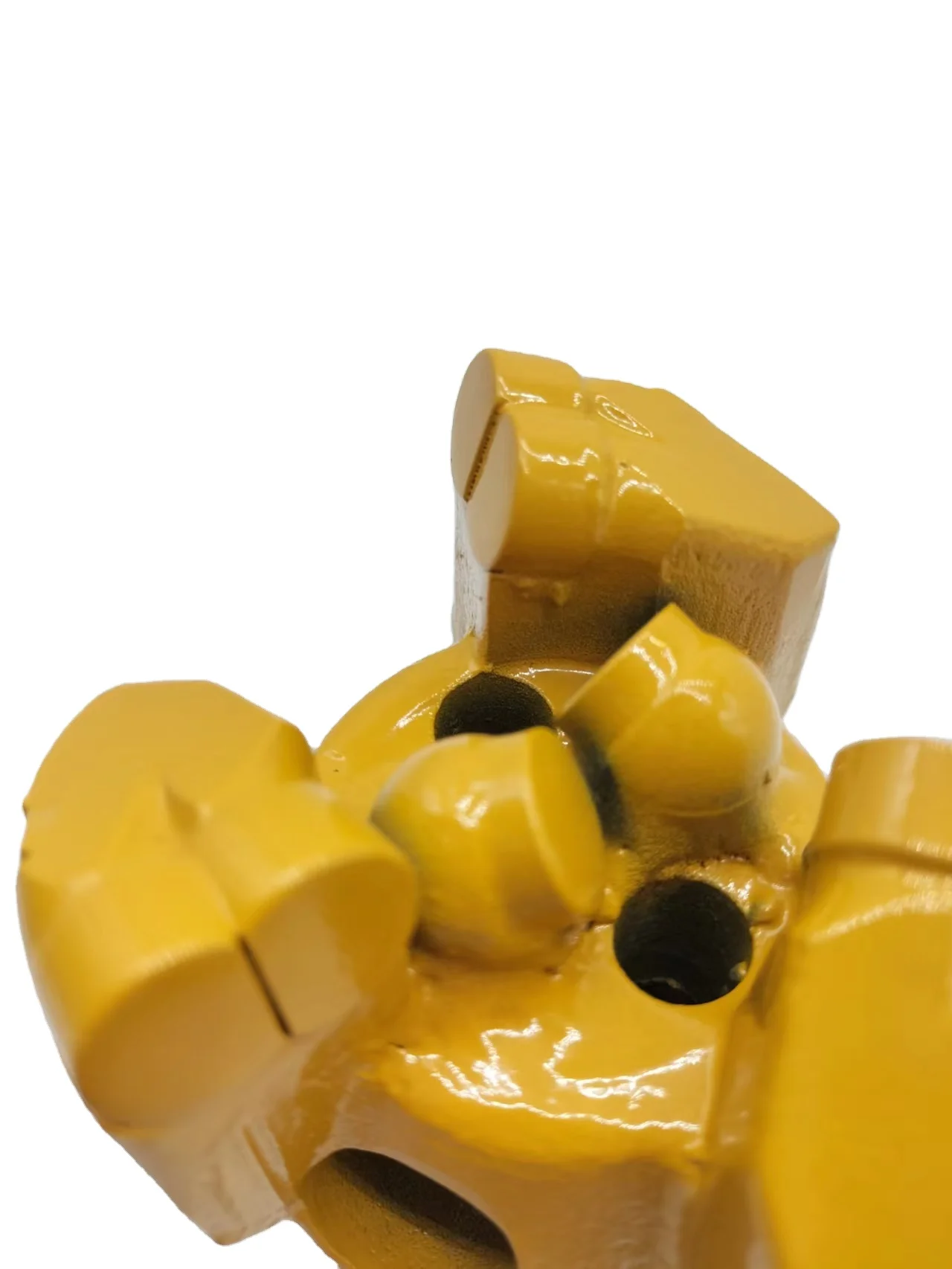

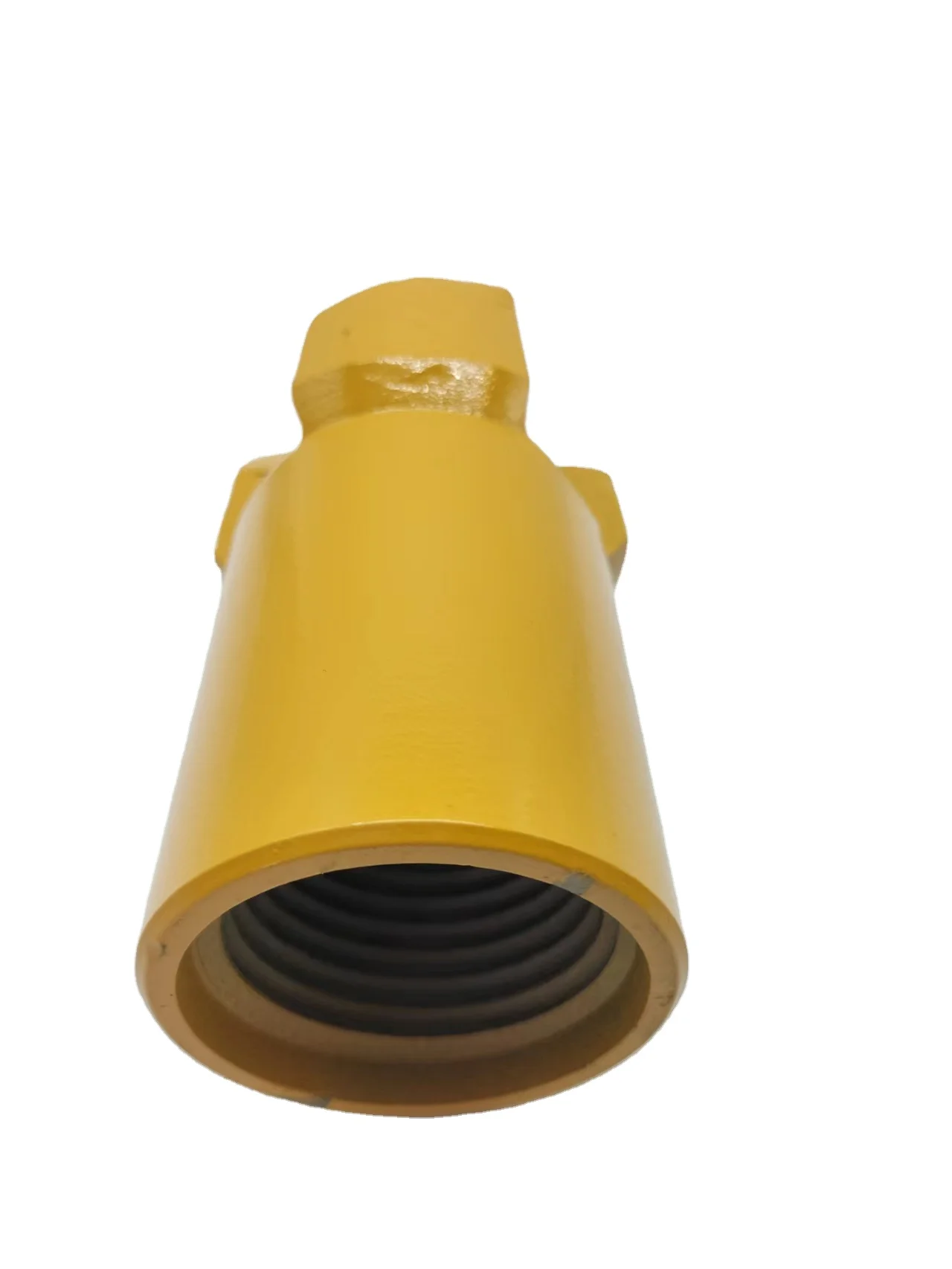

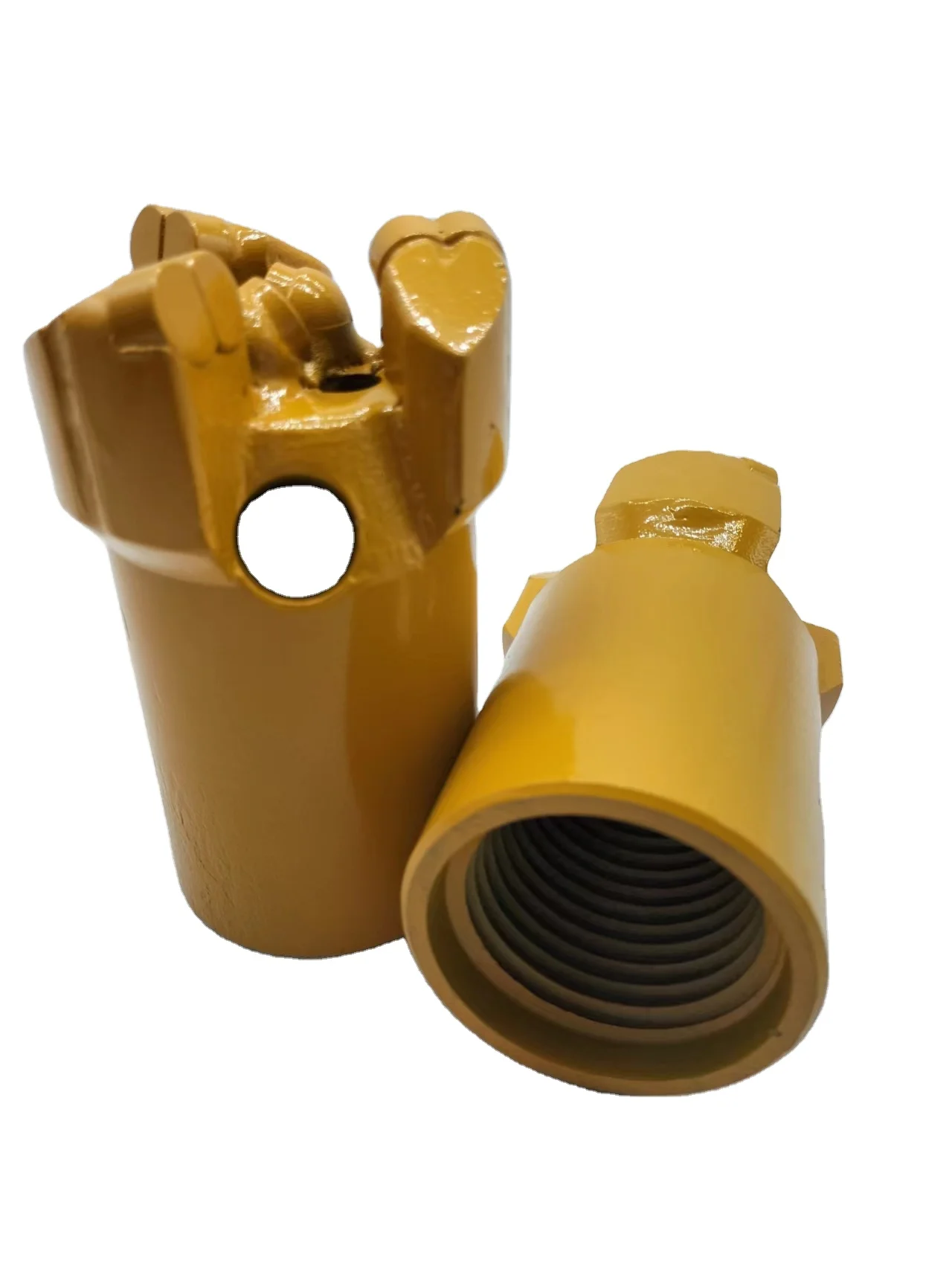

75 миллиметровый Высококачественный и недорогой трехкрыловой обычный вогнутый долот PDC подходит для средних жестких трещиноватых пластов.
- Категория: >>>
- Поставщик: Speedmade Industries Co. Ltd.
Сохранить в закладки 1600272141880:
Описание и отзывы
Характеристики
Product Description
PDC Step Drilling Drag Bit Affordable Water Well Drill Bit Step V-shaped Drill Bit
PDC Step Drilling Drag Bit applies to geological exploration, coal mine, water conservancy, hydropower, road, railway, tunnel, and bridge construction.The general size specifications of this drill bit are:
1. The diameter range is between 76~130mm, and the number of blades is generally 3;
2. The diameter range is between 130~150mm, and the number of blades is generally 3~4;
3. The diameter range is between 150~590mm, and the number of blades is generally 4~6;
4. They are all API thread connections;
5. According to the geological conditions, the cutter wing should be designed to be spherical, ballistic, and parabolic. Side blades can also be set.
PDC Step Drilling Drag Bit performance:
Rock and Soil Types | Degree of Weathering | fa0 | qik |
clay, silty clay | Hard plastic | 200 | 60 |
Soft plastic | 100 | 30 | |
gravelly soil | Soft-slightly less density | 350 | 120 |
cobbly soil | Slightly-middle density | 450 | 140 |
silty mudstone, sandy mudstone, mudstone, marl | Strong weathering | 350 | 120 |
Moderately weathering | 800 | ||
siltstone, sandstone | Strong weathering | 450 | 140 |
Moderately weathering | 1000 | ||
basalt | Strong weathering | 500 | 150 |
Moderately weathering | 1200 | ||
limestone, dolomite | Strong weathering | 600 | 160 |
Moderately weathering | 1200 |
Custom Process
If you need to customize the product, please specify the requirements for customization before placing an order.
Please let me know the following informations.
Customized products
The main parts that can be customized are: PDC piece, hard alloy piece, thread type, bit gauge protection, size, type, coating, drawing.
1. Custom PDC
PDC comprise diamond surface, hard alloy as the base
D: Diameter, H: Height (The total height of the PDC), t: The Height Of Diamond Layer
The main sizes are: 1005,1304, 1305, 1308,1613,etc.
2. Custom Thread
If you need to customize the thread, please measure the data of each part according to the following diagram.
There are straight and conical threads. We can also send the thread drawings as shown below directly
3. Custom bit gauge protection
About drill bit steel body gauge protection teeth insets material and position.
(1) Material
Hard Alloy
Hard alloy is a powder of one or several refractory carbides (tungsten carbide, titanium carbide, etc.) as the main component, and a metal powder (cobalt, nickel, etc.) added as a agglomerant. The main models are YG, YW, YT. According to the features of the metal, according to the features of the formation, select the corresponding corrosion resistance, heat resistance, compressive strength of good materials. It has wide range of application, flexible choice according to the actual situation.
PDC
PDC is the abbreviation of polycrystalline diamond compact. A cutters to shear rock with a continuous scraping motion. The cemented carbide substrate and diamond surface, have good compressive strength, heat-resistant capacity, performance of cemented carbide and the hardness of diamond. It has good rock cutting performance.
(2) Position
Wing Side
Prevent excessive wear of the side of steel body in the drill work, and balance drilling process through the rock and soil fomation (choose more)
Under Wing
Bear part of the pressure brought by the side of drill bit during the bit rotation to increase the cutting speed and reduce blade wear
Top
Based on the same model increases the effective cutting area, thereby increasing the drilling speed
4. Customized product display pictures
Show time
Speedmade Industries custom products
Custom all kinds of sizes, models, threads
Design drawings/ graphics can be customized
Custom Products
Custom Blades/ Cutting Board
Customer Feedback
Three-wing Drag bit.
Construction Site Product Test
Drilling Rig | Xitan 150 |
Type of Drill Bit | 75# 3" Three-wing conventional scraper bread slices 42 thread connection, one PDC piece gauge under each wing |
Stratum | Pavement concrete |
Use condition | At present, a drill bit (as shown at left side) has drilled more than 400 holes |
a hole has 3 meters, a total of about 1200 meters, the composite sheet | |
has no wear, and the steel body has a little wear on the side of each wing |
Three-wing Concave Drag bit.
Tuff Formation Product Test
Drilling Rig | Changtan 200 |
Type of Drill Bit | 133# 5-1/4" Three wing reinforced concave |
Stratum | Tuff |
Penetration Speed | 2-3m/ h |
Use condition | Fast penetration speed |
Good wear resistance | |
Smooth use | |
Unplugging | |
Drilling without blocking |
Company Profile
Speedmade Industries Co., Ltd. is referred to as FS.
The following is workshop and production equipment pictures of FS factory.
Company brief introduction
Hunan Speedmade Industries Co., Ltd. was established in 2009.
It covers an area of over 2000㎡.
We have more than 50 machines and equipments, 5 production lines.
We have independent R&D team, won more than 100 R&D patents.
Our product widely used, mainly used in Wells,ground heat sources, coal mines, geotechnical engineering, geological exploration, slope support, oil fields and other aspects.
It covers an area of over 2000㎡.
We have more than 50 machines and equipments, 5 production lines.
We have independent R&D team, won more than 100 R&D patents.
Our product widely used, mainly used in Wells,ground heat sources, coal mines, geotechnical engineering, geological exploration, slope support, oil fields and other aspects.
workshop of plant
We have cutting machine, grinding machine, polishing machine, thread cutting machine, slot milling machine, welding machine, flushing machine, heat preservation machine, laser engraving machine, wrapping machine, etc. We use these machine to process and produce customers' products.
Certifications
Our certificate of honor
All kinds of patent technical certification issued by Hunan Provincial Department of Industry and Information Technology.
Packing & Transportation
Express delivery service provided by our shop
Packaging
We mainly use carton and wooden box two packaging methods, if there are other packaging materials requirements, support customization.
Carton
Samples and lighter goods
Wooden Case
Large cargo
Four shipping options are available
Sea Freight
Air Freight
Land Transportation
Express Delivery
If there is a designated carrier, please let us know.
