Product Description


Real-time Liquid Baume Degree Tester for Calcium Chloride Solution


Warranty For 2 Years

Original Manufacturer

Special reminder:

Our factory produces and sells online tuning fork densitometer, online refractometer, online density meter (differential pressure method), online density meter (buoyancy method), handheld density meter, handheld brix meter, handheld density meter, etc. Comes with 4-20MA/485 and other signal output, explosion-proof, corrosion-resistant, high-temperature, and supports remote data transmission. Professional engineers can free installation drawings based on the customer's on-site environment. Please consult the sales staff for details. (E-mail: qlyiqi@126.com Mob/Whatsapp: 86-13928470327)



Introduction

Intelligent Online Density Specific Gravity Concentration Meter has been widely used in industrial field, it is not afraid of hanging, not afraid of the impact, high sensitivity. It using tuning fork "resonance" principle, piezoelectric element is electrically driven by vibration, only probe rod surrounded by material surrounded by the amplitude of vibration is sharply reduced, resulting in switching action.

Intelligent Online Density Specific Gravity Concentration Meter adopts pipeline installation method and is installed at the outlet of extraction tower and distillation tower. It detects the concentration of H2O2 aqueous solution online, and transmits the concentration value to DCS remotely to help improve the extraction efficiency and control the concentration of the finished product.




Operational principle

Intelligent Online Density Specific Gravity Concentration Meter is designed according to the theory of resonance. The vibration components is similar to two teeth of the tuning fork, the fork body vibration because of a piezoelectric crystal was located in the root of tooth, vibration frequency is detected by a piezoelectric crystal , through shifting the phase and amplifying circuit, the fork body is stable in the natural resonant frequency.

When the liquid flows through the fork body, vibration changes, caused the change of resonant frequency, thus through electronic processing unit to calculate accurate density value.



Technical characteristics

Intelligent Online Density Specific Gravity Concentration Meter with based on microprocessor electronic switching device, signal processing, calculation and diagnosis function in a body. Besides with convincing accuracy of measurement and reliability. It can direct communicate with PC through RS485 or Hart interface, under the software environment for professional users, the user can direct set the online node configuration, fault diagnosis and data records. When measuring density and temperature, it also can calculate the basic density.°API, brix and concentration ratio, mass ratio, volume fraction and so on.

Intelligent Online Density Specific Gravity Concentration Meter can be installed directly on the tank and pipeline. Measuring the fluid viscosity of this density can be as high as 20000 cP which is one of the most striking aspects of its superior to other similar products, and it also has a very high cost performance.




Product features

1. Strong adaptability: the different electrical parameters, turbulence, a small amount of air bubbles, vibration, solids content, coating, liquid properties of the test material are not affect the measurement.

2. Avoid maintenance: due to fork density (concentration) transmitter detection process is completed by the electronic circuit and no moving parts. Therefore, once the installation of commissioning will not need maintenance.

3. No adjustment: Because the detection of tuning fork limit switch is not affected by electric parameters and the density of measured medium, so no matter what kind of liquid measurement field calibration is not required.

4. Using the four wire transmitter integrated structure, no moving parts, simple maintenance.

5. Continuous online measurement of liquid density and temperature, without interruption of the process can be directly used in the production process control.

6. Five inches digit LCD display. Hd backlight,easy to observe data at the scene.

7.Temperature and density parameters can be displayed at the same time, for industry standard density conversion.

8.There are several different kinds of density of the touch liquid material, according to the site to select the material to meet the needs of different.

9. Excellent overvoltage protection structure, superior temperature stability,high polishing make medium away from fork body.

10. Fixed sensor fork header design, factory calibration, convenient site configuration.

11. Easy to install and use,fork body of density meter contact the liquid to display the reading.

12. Simplified maintenance, no regular cleaning (viscosity of the medium to be cleaned regularly or down time).

13. Tuning fork type density meter calibration without standard reference source, no laboratory calibration, no process interrupt.

14. Special Functions of display header : One click to restore function is aim to use easily at the scene. One click adjust medium density function which is convenient for calibrate density value.

15. Intrinsically safe type and explosion proof type can be used for dangerous scene.



Application fields

1. Sugar manufacturing and wine-making industry:Squeeze juice, syrup, grape juice, etc. alcohol GL degree, ethane alcohol interface, etc.

2. Dairy industry: Condensed milk, lactose, cheese, dry cheese, lactic acid, etc.

3. Architecture&mining: concrete slurry slurry mixing, coal (washed coal), potash, brine, phosphate, compound, limestone, copper, etc.

4. Petroleum refining:Lubricating oil, aromatic agent, fuel oil, vegetable oil, etc.

5. Food-processing:Tomato juice, fruit juice, vegetable oil, starch milk, jam, etc.

6. Pulp and paper industry:

7. Black paste, green pulp, pulp washing, evaporator, white pulp, caustic, etc.

8. Chemical industry:Urea, cleaning agent, polymer, ethylene glycol, sodium chloride, sodium hydroxide, etc.

9. Petrochemical industry:Liquefied natural gas, oil and gas washing, kerosene, lubricating oil, oil / water interface, etc.

10. Beverage processing:Beer, soft drinks, wine, instant coffee, malt, etc.

11. Pharmacy:Concentrate, fermentation, evaporation, mixing ratio, etc.

12. Environmental protection:Desulphurization, denitration , etc.



Technical Parameters
Real-time Liquid Baume Degree Tester for Calcium Chloride Solution



Model
MAY-2001


Measurement range
Concentration %: 0.0-100.0%
Density (Specific gravity) concentration:0-2.0g/cm³
Baume: 0-100 °Bé
Temperature: -10.0-110.0 ºC


Measurement accuracy
Concentration %: 0.1%
Density (Specific gravity) concentration:0.0001g/cm³
Baume: 0.01 °Bé
Temperature:0.1℃
Reading frequency
2 times/s
Medium viscosity
Low than 1000CPS (Customizable high-viscosity liquid tester)
Medium temperature
-10.0 ~ 110.0ºC (higher temperature can be customized)
Sensor material
316L/ Hastelloy C276/ titanium/ Tetrafluoro / Zirconia
Installation method
DN50 flange or 1.5 inch clamp
Sensor explosion-proof level
Ex d IIC T6Gb
Protection level
Sensor liquid measurement part IP67
Power supply
DC 24V,2A
Sensor length
130mm (other lengths can be customized)
Output signal
RS232 or 485 ModbusRTU teaching word quantity, switch quantity, 4-20mA analog quantity
Standard accessories
Central display controller, tuning fork sensor
Other functions
Can be customized according to user needs

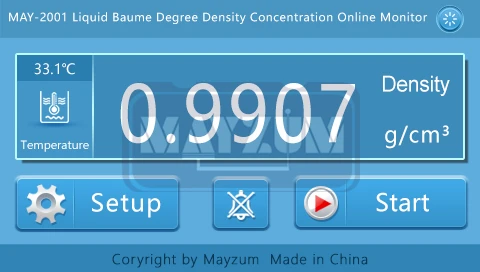

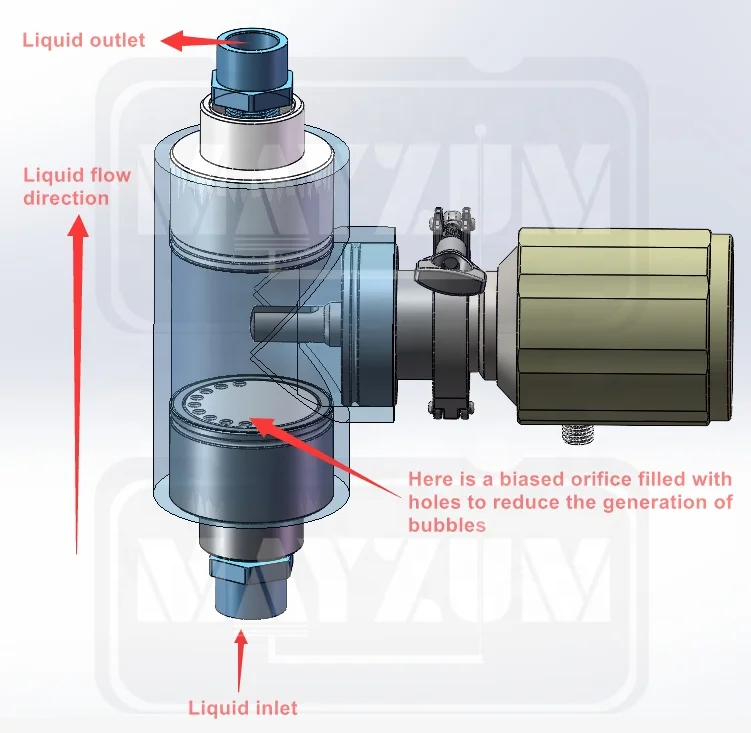

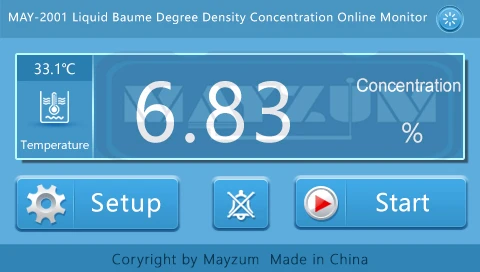

Detailed Images



Real-time Liquid Baume Degree Tester for Calcium Chloride Solution








Recommend Products





MAY-G150
High accuracy liquid density tester with a data processor.
Sampling measurement


Our Company


Mayzum (Our brand) specialized in producing and selling professional densitometer for 11 years and we can provide professional density test instrument solution for you

1. Different program functions can be customized according to customer requirements;

2. We can provide OEM service.

3. Looking for brand agent wholesales all over the world.







Certifications




FAQ


1.How about quality and warranty of our products?

When you receive a product from Qun Long, it must be11 years experience. We can guarantee the warranty for three years from the date of receipt. If our machine fails to perform properly because of defects in materials or workmanship during three years warranty, We will be responsible for fixing or replacing new machine .

2.How about after-sales service

(1)If errors occur, please refer to the troubleshooting tips of the instruction manual

(2)Please contact with our after-sales service department or distribution in time if can't clear fault

(3)When you contact us with a service problem, we will act within 12 hours and provide solution within 24 hours.

(4)After-sales line : 0755-82596242

(5)If the product have some big troubles and it must be sent back to our factory to repair during its warranty period, you just need to shipping the product to us and we will sent you a new one.The service is excluding if the machine is breakdown caused by following reasons:

a:Wrong operation

b:Fixed or refitted personally

c:The machine itself is not the reason caused breakdown

d:Applying the machine under the serious condition. Such as high temperature, moist, corrosive gas, or vibration.

e:Move or transportation as soon as installed

f:Consumables and easy-loss components

g:Natural disaster


3.How many days can you receive the products?

Product in stock will be sent within 48 hours. Delivery time is about 5-7 days.



4.How to shipping the product?

Product will be sent by International Express by air. Such as DHL, UPS, FEDEX, TNT, SF.


5.What is our return policy?

You are allowed to return goods within 7 days from the date of receipt. To return products,please contact our customer service with your invoice number, the item to be returned and the reason for the return. Goods must be returned freight prepaid. Returns will be subject to a restocking charge. Products can not be returned back when the products have been used or modified.


6.Are we manufacturer made copy product or original product?

We are the original manufacturer for densimerter, Mayzun is our own brand. The model starts with MZ and MAY are belong to us generally.


7.Why choose us?

Qun Long have been specialized in density field since 2009. Qun Long as a professional density meter supplier , has maintained a constant belief:First - class quality , professional technology team and services team,ample supply and prompt delivery.
