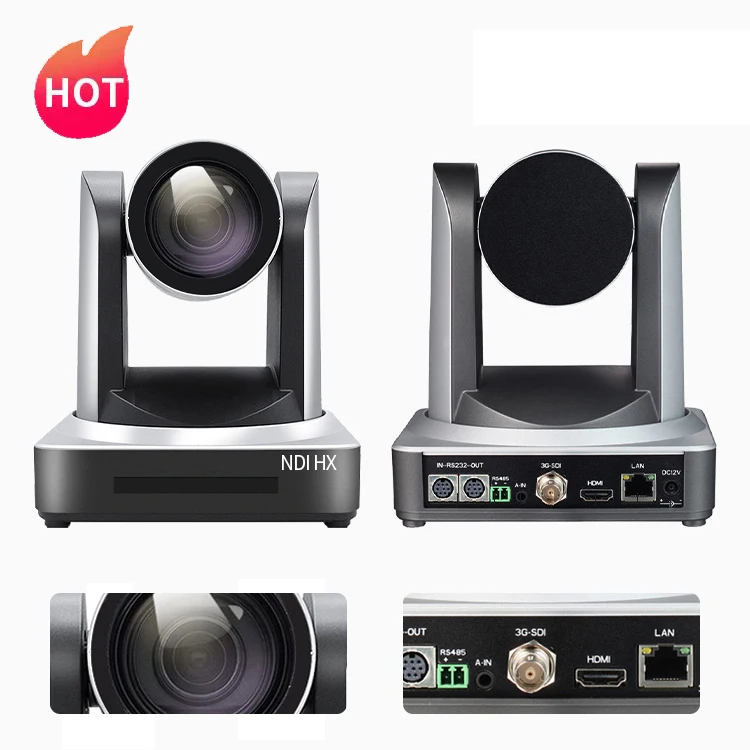

Y20B Горячая vMix OBS onvif церковная трансляция NDI POE SDI IP 20X оптический зум PTZ камера H DM I LAN RJ45 2K Конференц зал

Y20B Горячая vMix OBS onvif церковная трансляция NDI POE SDI IP 20X оптический зум PTZ камера H DM I LAN RJ45 2K Конференц зал

Категория: >>>
Поставщик: Beijing Runpu Shitong Technology Co. Ltd.

Цена:450,00 $ - 500,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Specification

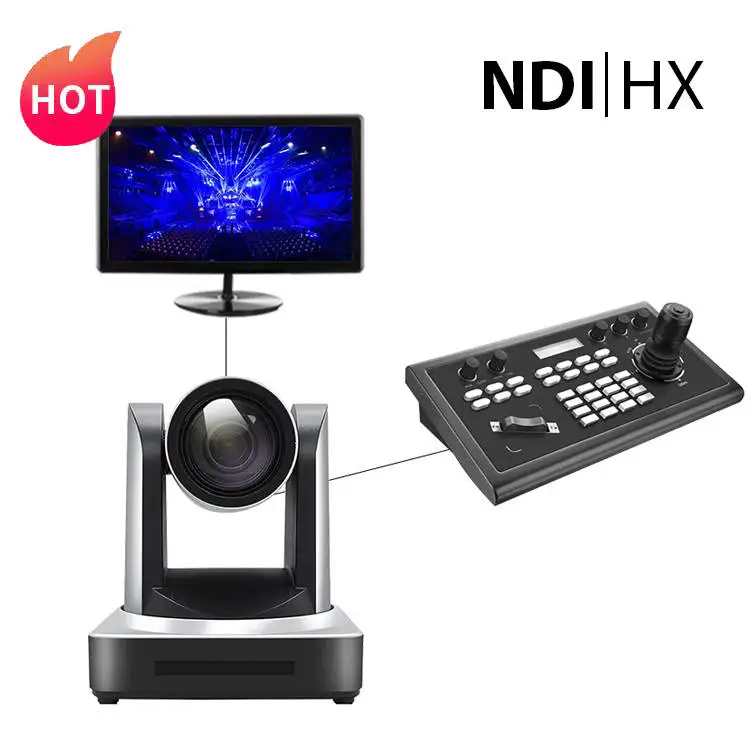

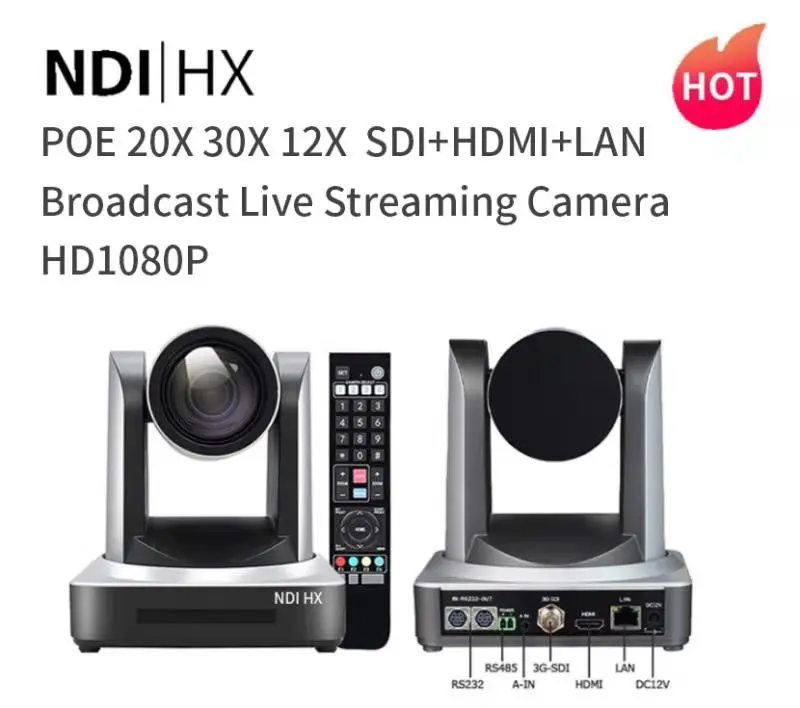

Y20B Best Broadcast Bundle=vMix OBS Onvif IP Controller+ NDI POE 20X SDI IP Stream Camera HD1080P HDMI+LAN(RJ45)+LAN for Church TV Radio Show Telemedicine Specification
Image sensor	1 / 2.8 inch high quality CMOS sensor
Effective pixel	2 million, 16:9
Video Output	Two Different Port 1) NDI POE SDI+LAN(RJ45)+HDMI 2)HDMI+USB3.0+USB2.0
Lens optical zoom	20x optical zoom
Viewing angle	3.3 ° (narrow angle)- 57. 4° (wide angle)
The aperture coefficient	f1.6 – F3.5
Minimum illumination	0.5Lux (f1.8, AGC on)
Digital noise reduction	2D & 3D digital noise reduction
Image stream	double stream output
Video compression format	h.265, H.264
Audio compression format	AAC, MP3, g.711a
Network interface	100m network port (10 / 100base-tx) 5gwifi (optional)
Network protocols	RTSP, RTMP, onvif, Vmix GB / t28181
Support remote upgrade, remote restart and remote reset	RS232 and RS485 interface
Control protocol:	visca / PELCO-D / pelco-p; baud rate: 115200 / 9600 / 4800 / 2400
Power interface	hec3800 power socket (DC12V)
Power adapter	input ac110v-ac220v, output DC12V / 1.5A
Input voltage	DC12V ± 10%
Power consumption	12W (maximum)
Horizontal rotation	- 170 degrees to + 170 degrees
Pitch rotation	- 30 degrees to + 90 degrees
The horizontal control speed	0.1 ～ 60 ° / s
Pitch control speed	0.1 ~ 30 ° / S

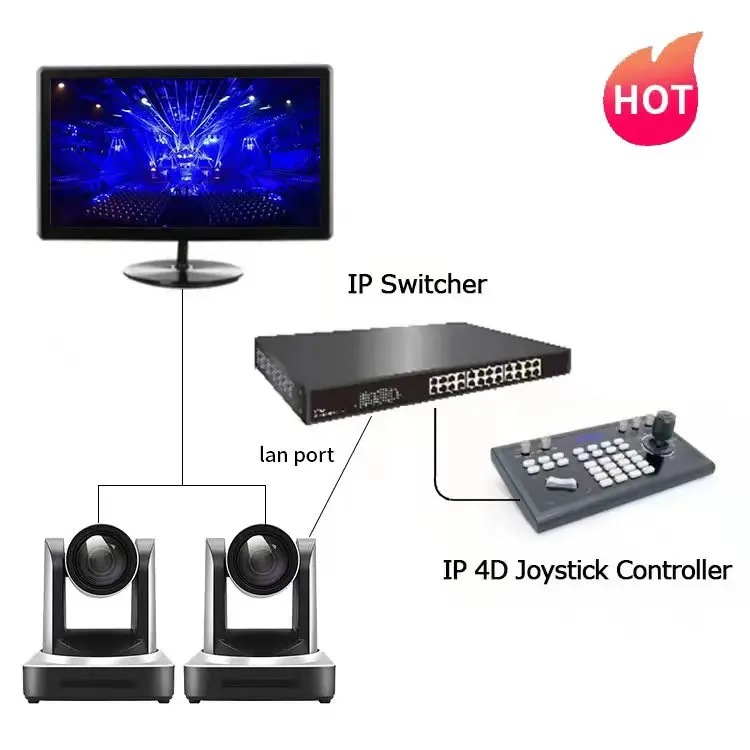

Key Features of IP 4D Joystick Controller with RJ45

1. Supporting ONVIF, RTSP, RTMP, VISCA, Serial port VISCA, PELCO-D/P protocols and etc.
2. RJ45, RS422, RS232 control interfaces; Control up to 255 Cameras.
3. Unique control code learning function allows customers to modify the control code instructions
4. Any device on the RS485 bus can be individually configured with different protocols and baud rates.
5. All camera parameters can be set through the button operation.
6. Metal shell, silicone key design.
7. LCD display, keypad sound prompt, real-time display decoder and matrix working status.
8. 4D joystick allows variable speed control to cameras
9. Maximum communication distance: 1200M(0.5MM Twisted-Pair Cable)

Specification of IP 4D Joystick Controller
LCD display: Simplified/Traditional Chinese
Monitor control: 1-99
Camera control: 1-1024
Joystick: three-dimensional (left/right, up/down, zoom)
Connection: 7 sets of D70 cascade control function
Lens function: Aperture: On/Off Focus: Near/Far Zoom: Wide/Telephoto
Camera peripherals: Defrost: on/off, wiper: on/off, auxiliary switch 1: on/off, auxiliary switch
PTZ control: up/down left/right, scan limit setting, automatic scan, pattern scan, automatic cruise
Preset point control: save/adjust preset position, preset position parameter setting, guard
Alarm operation: arm/disarm position, status query display, alarm record
DVR control: Control number: 99 sets; Control protocol: can be written according to customer requirements
Control protocol: SONY VISCA
Communication interface: Type: RS-422 and RS-485 rate 9600bps, 19200bps
Environmental conditions: Temperature: -10℃～+50℃, humidity: ≤90% (no condensation)
Power source: DC12V
Work rate: 5W
Pre-size: 380mm(W)×48mm(H)×60mm(D)

Products Features

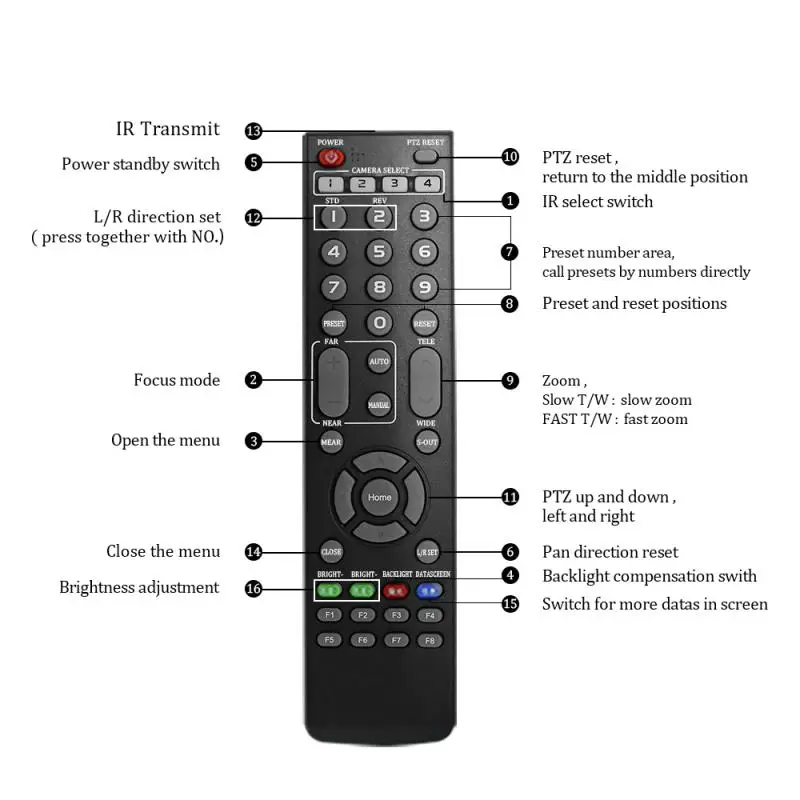

Detailed User Manual for Infrared Remote Controller

12 Certificates for Cam and Mic

Company Profile

FAQ

Q: How to intall PTZ camera?
A: No need to install any drivers. just plug and play. very easy and convenient.

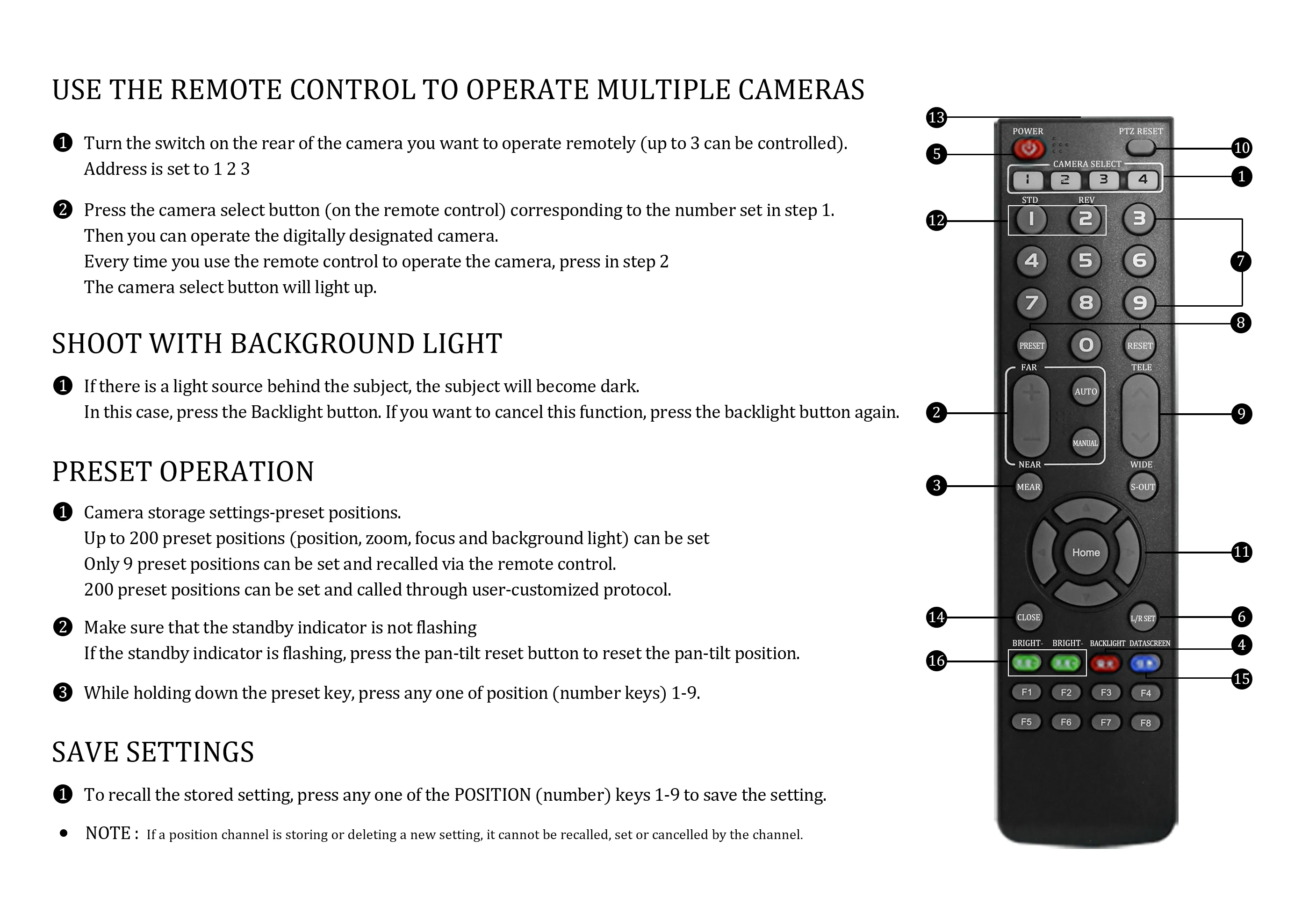

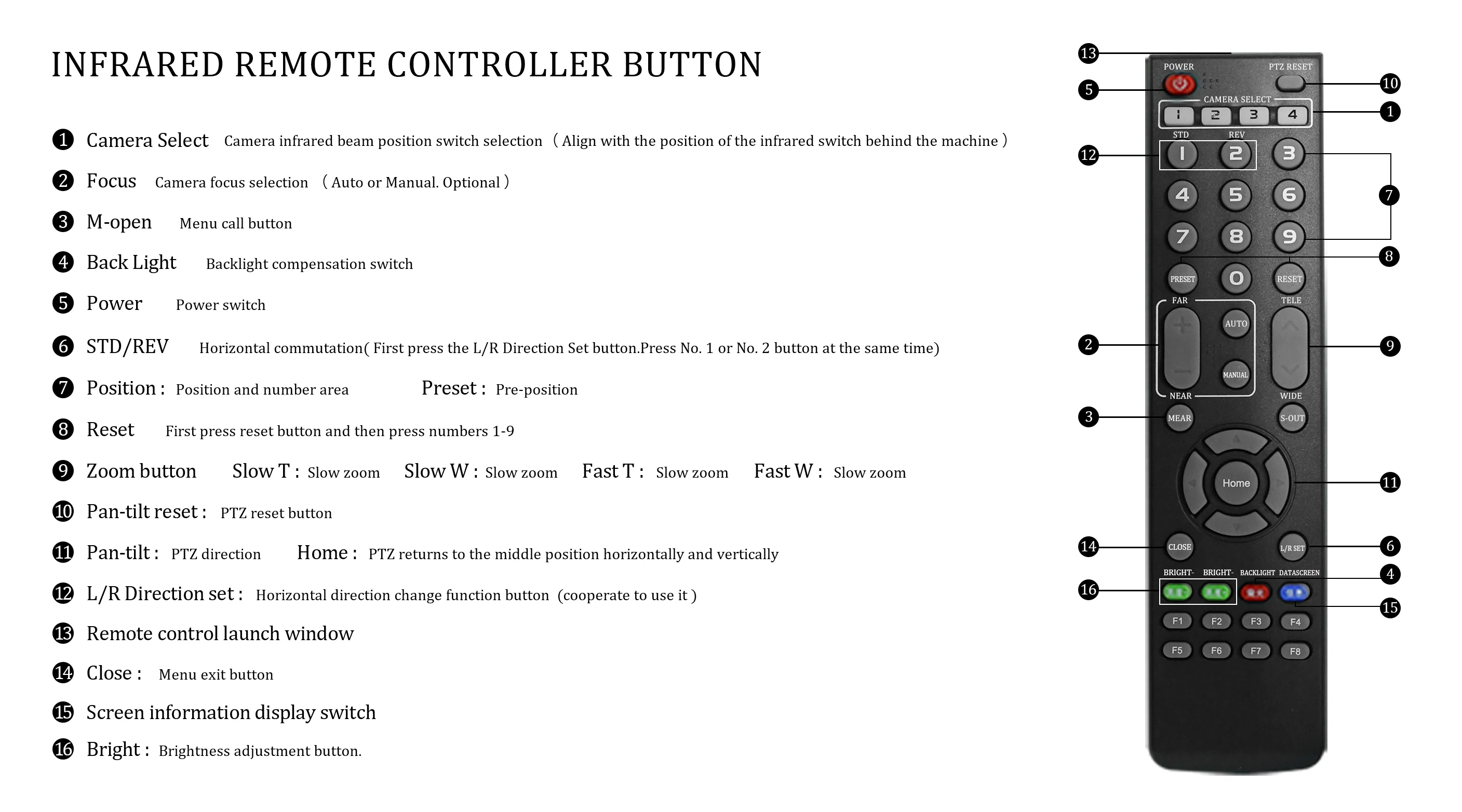

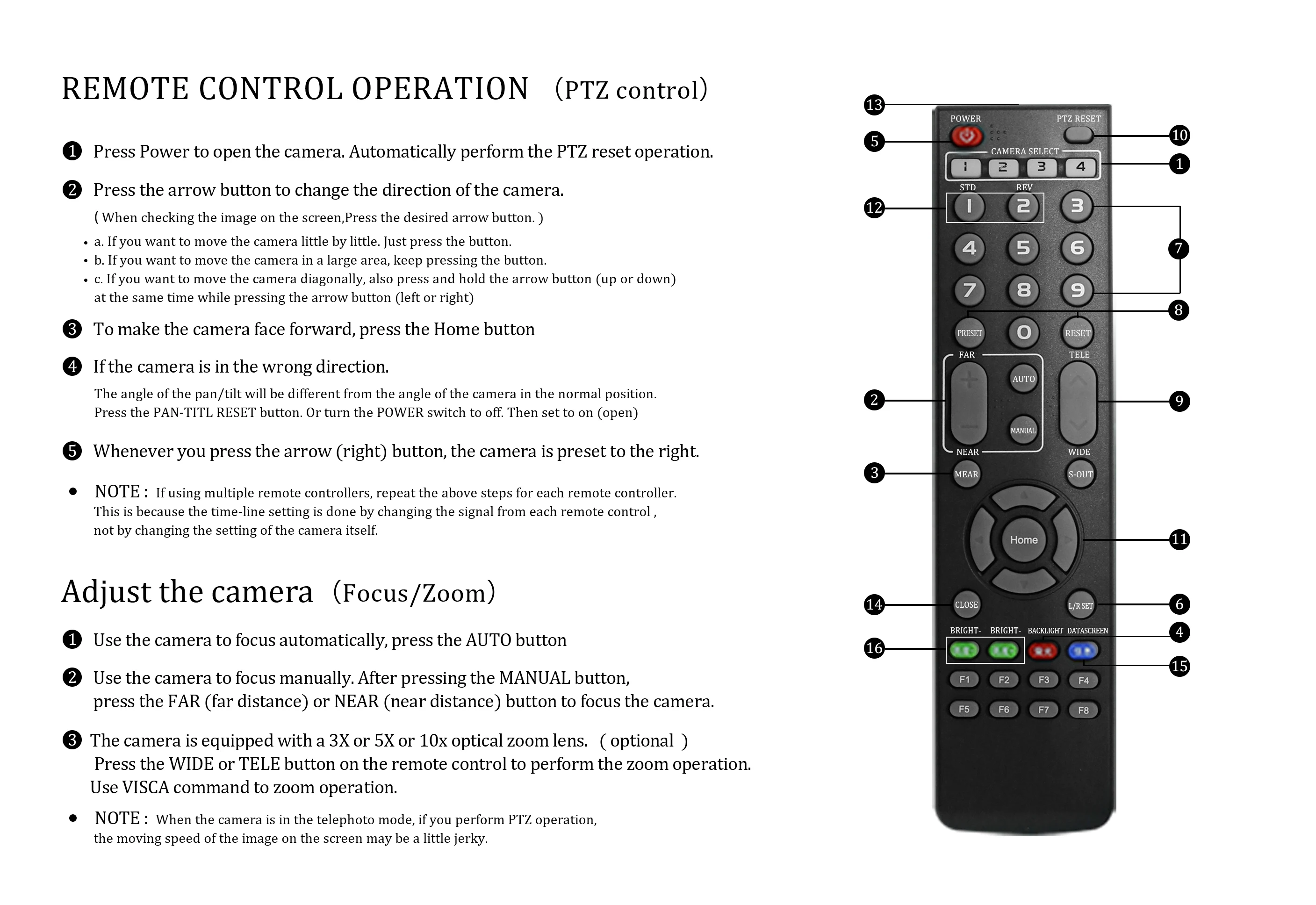

Q: How to use this infrared remote controller?
A: 6 User Manual pictures of IR remote controller is attached. kindly refer to it.

Q: What is your MOQ?
A: One Set

Q: Can you sell OEM/ODM?
A: Yes, many clients are wholesalers. We could provide OEM/ODM camera and mic speaker.

Q: Can you laser our client's logo?
A: Yes, we could laser your client logo in camera or mic speaker.

Q: What is delivery time?
A: We have sufficient cameras, mic speaker and bundle in stock and could immediately ship it to you for your urgent use (if less than 100 pcs).

Q: Do you test before delivery？
A: Our conference camera and mic speaker are 100% test before delivery.

Q: What certificates do you have?
A: We have 6 different certificate of confer camera and mic speaker including CE ROHS FCC.

Q: What payment method can you accept?
A: T/T, West Union, Credit Card, etc.

Q: What is your shipment terms?
A: By sea, by air or by express. (Depends on order quantity and requirements.)

Tip：
1.OEM/ODM Contact us；
2.Top quality and Best Price for you
3.Contact us can get more discount
