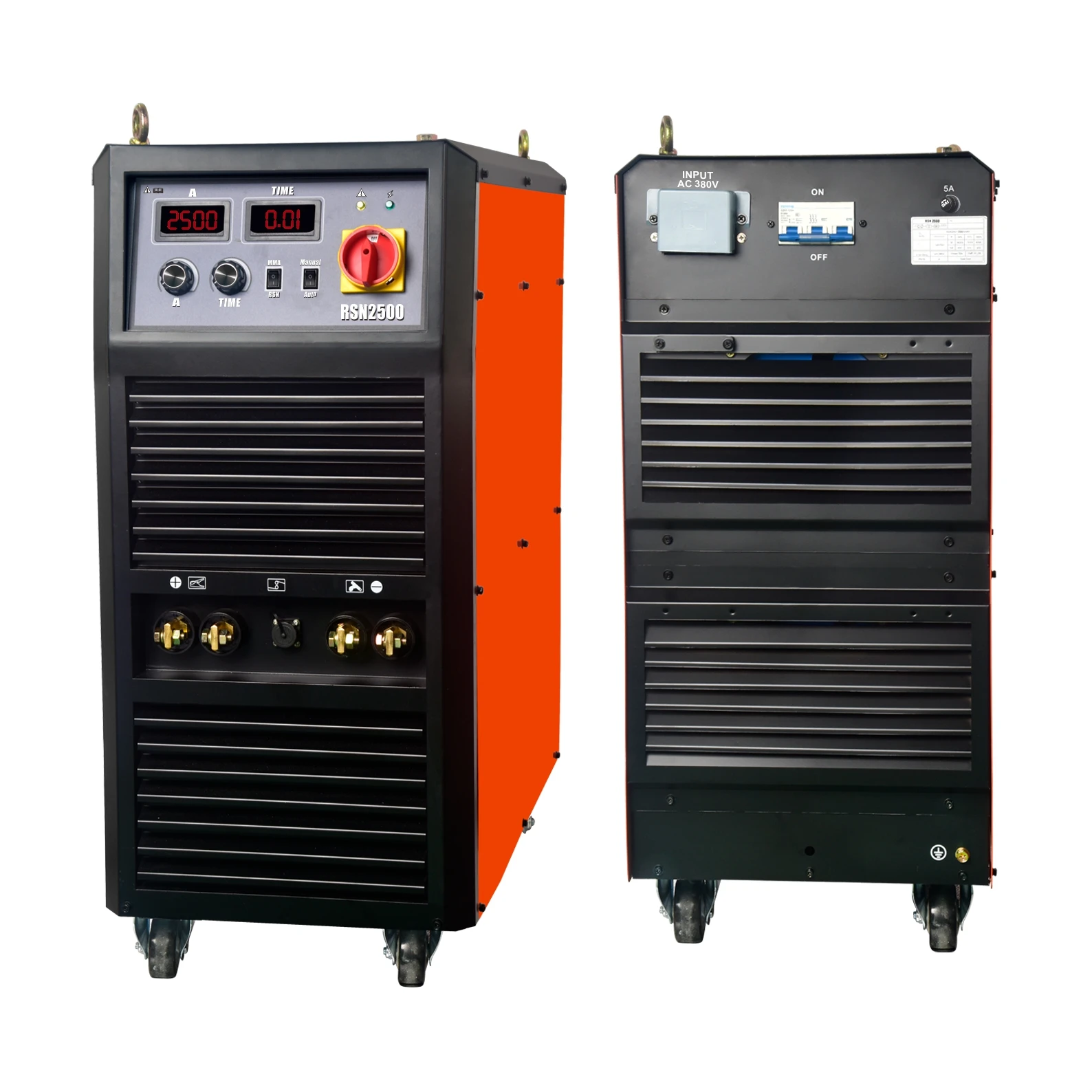

Competitive Price Electric Shear Stud Welding Machine RSN 2500 Stud Welder for Sale
Product Description
1. ELEFAN WELD shear arc stud welding machine are mainly applied to the installation of stud fusion welding in construction of steel structure, bridge and railway etc. It's heavy duty cycle & very acurate & reliability with MCU program controls (the precision preset time can reach to 0.01S, and welding preset current can reach to 0. 1A), and its easy to operate the welding current and welding time controls with a big knob and acurately showing on big digital displayer.
2. It IGBT inverter technology designed main power source with compact size and light weight, energy saving up to 60%, none stop 24hrs working compared with the tranditional big drawn arc stud welding machine. Up to now we successfully satisfied more or less 500 clients in domestic CHINA market and 28 clients in 10 countries abroad.
3. High efficiency by fast stud welding in a very good surface and beautiful finished appearance.It can weld 25pcs studs per minute by normal workder, if for experienced workers it can weld more than 30pcs stud per minute.
4. Good service team stand by online & off line both domestic and abroad.
Parameters | Model Name | ||
RSN1600 | RSN2500 | ||
Input Power Voltage(V) | 3 Phase 380V-450V± 50/60Hz(other voltage available 220V 440V) | ||
No-load Voltage(V) | DC 75V | DC 86V | |
Stud Output Current (A) | 100-1600A | 100-2500A | |
MMA Output Current (A) | 100-1600A | 100-2500A | |
Welding Timing Control(ms) | (Short)0-300ms; (Long)0-3000ms | 0-3000ms | |
Duty Cycle(Stud Dia./Stud Qty./Per Minute) | 6mm, 10mm/25pcs/min | 6mm, 10mm, 13mm/25pcs/min | |
13mm/25pcs/min | 16mm/16pcs/min | ||
16mm/16pcs/min | 19mm/12pcs/min | ||
19mm/12pcs/min | 22mm/8pcs/min | ||
/ | 25mm/7pcs/min | ||
Diameter of Stud(mm) | (Short)4-12mm (Long)8-19mm ∅ 4-∅ 19 4-19mm | ∅ 8-∅ 25 8-25mm | |
Length of Stud(mm) | =400mm | =400mm | |
Stud Gun Voltage(V) | DC 110V | DC 110V | |
Rated Load Duration(%) | 20% | 20% | |
Load Voltage(V) | ≤ 600A hr U2=44V | ≤ 600A hr U2=44V | |
Parameter Display | Current & welding time control display | Current & welding time control display | |
Protection Class | IP21S | IP21S | |
Insulation Class | F | F | |
Max. Length of Extention Earth Cable(m) | 50m | 50m | |
Max. Length of Extention Gun Cable(m) | 100m | 100m | |
Machine Size(mm) | 660*350*755mm | 780*405*940mm | |
Carton Size(mm) | 760*430*950mm | 880*480*1090mm | |
Packaging | Wooden & Pallets | ||
Machine Gross Weight(KG) | 65KG | 95KG | |

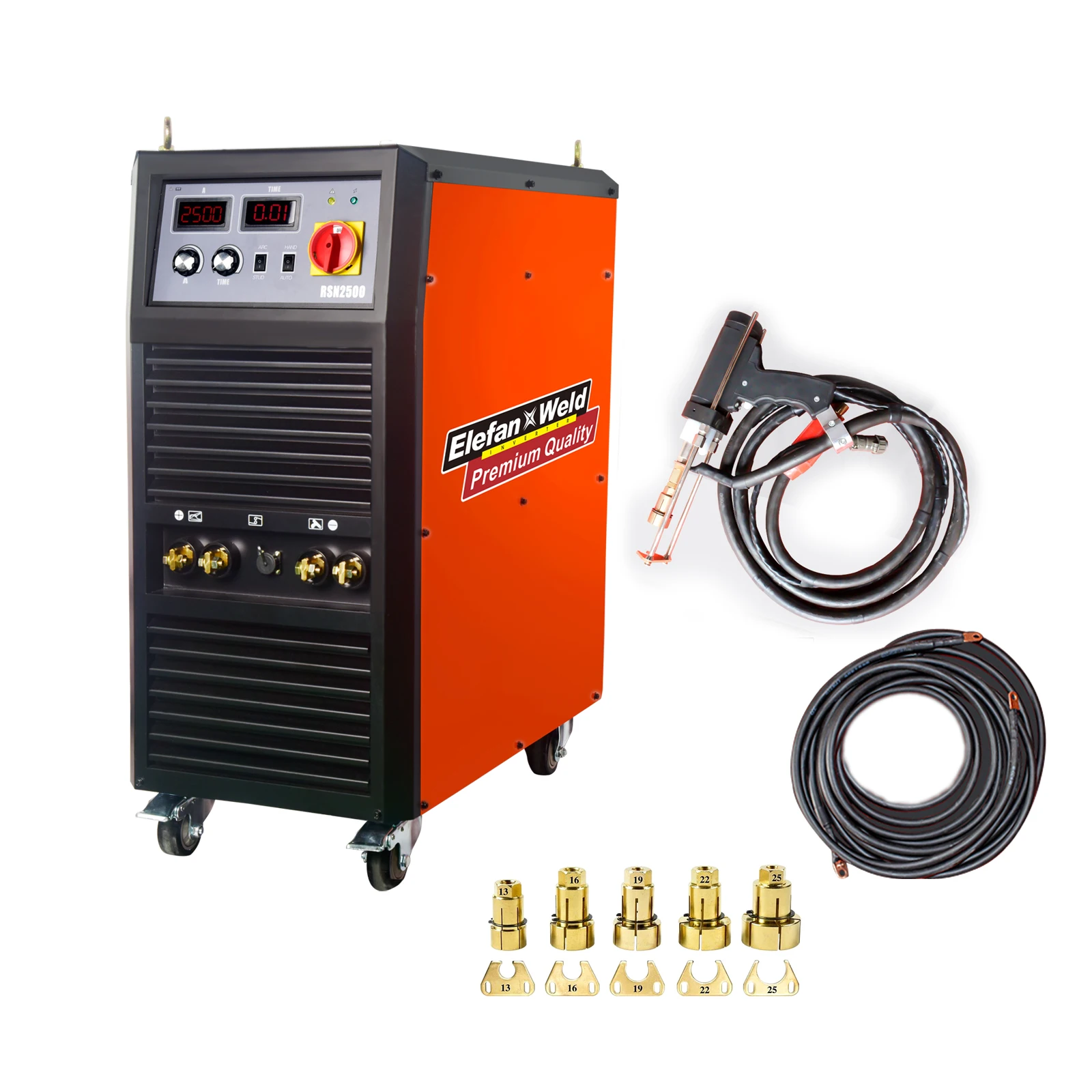

Standards | ① Machine 1 pc; ② Stud gun with cable 10m 95mm2 pure copper wire; ③ Earth clamp with cable 5m; ④ Chuck & ceramic ring claw 2 sets (16mm & 19mm) | ||
Special Requests | Extention cable, input voltage 220V or 440V are all available but out of standard price | ||
Recommend Products
Shenzhen Zendaa Technology Co., Ltd established in 2012 & we fully hold two factories who are in this filed more than 25 years, our products(CE standards) are inverter welding machine ARC, TIG, MIG, PLASMA cutting machines, Spot and Stud welding machines and welding accessories. Products are widely applied in shipbuilding, container construction, petroleum, chemical engineering, railway, bridge building industry, electricity industry, steel structure, metallurgy, automobile, etc... We corporate with Japan and German companies in aspect of R&D and design ensure quality. Our turnover is around $50 millions and we service clients from 60 countries OEM or under our brands(ZENDAA, STARWELD, ELEFAN WELD, KOBEL), up to now we have U.K. & China teams for your services.
Our slogan is "Reliable Quality, Good Brand, and Loyalty Customer", and our service target is to be an "Integrated WeldingSolution
Provider".
In a word, Zendaa strives to sustainable development route into its products and services with premium standards, consistently focuses on meeting the needs of its customers. Finally, warm welcome for visiting our website and send your further inquiries. Thank you very much for your attention.
Our slogan is "Reliable Quality, Good Brand, and Loyalty Customer", and our service target is to be an "Integrated WeldingSolution
Provider".
In a word, Zendaa strives to sustainable development route into its products and services with premium standards, consistently focuses on meeting the needs of its customers. Finally, warm welcome for visiting our website and send your further inquiries. Thank you very much for your attention.
Our Workshop
Packing & Delivery
1. All appearance of our products are exclusively developed by ourself. Its unique for our customers in their regions therefore it can over come many local competitors.
2. We have high quality control system processing your orders and stricly followed up by our sales representatives. So high accurately.
3. Professional R&D center where we corporated with Japan and German companies, so our products identify as Japan technology & German technology. So high reliability.
4. We located in Shenzhen the high-tech innovation center, we can ganrantee our supply chains are well sourcing and quality controlled under our management system. We have teams in China, UK, USA can reply inquiries in different times without jet lag. So excellent services.
2. We have high quality control system processing your orders and stricly followed up by our sales representatives. So high accurately.
3. Professional R&D center where we corporated with Japan and German companies, so our products identify as Japan technology & German technology. So high reliability.
4. We located in Shenzhen the high-tech innovation center, we can ganrantee our supply chains are well sourcing and quality controlled under our management system. We have teams in China, UK, USA can reply inquiries in different times without jet lag. So excellent services.
1. Q: Are you a factory or trading company?
A: We're a group company including 2 factories and 1 trading company. To avoide competition and factories’ private and confidential purpose, we used ZENDAA a vertify trading company to present our products and services.
2.Q: What certificates do you have ?
A: We have gained the certificate of CE, EMC, ROHS, CSA, SAA and ISO9001.we can satisfy your regional requsted if necessary.
3.Q: Can you do OEM ?
A: Yes. We offer OEM/ODM service apart from our standards.
4. Q. Can I have a sample?
A: Yes, we welcome samples or small trial orders for your testing purpose. Standrad samples usually few days ready, but special requested samples might need 2 weeks. It depends and can be discussed.
5. Q: Why choose us?
A：Firstly, we located in Shenzhen the high-tech innovation center, we can guarantee our supply chains are well sourcing and quality controled under our management system. Secondly, we have teams in China, UK, USA, can reply inquiries in different times without jet lag.
A: We're a group company including 2 factories and 1 trading company. To avoide competition and factories’ private and confidential purpose, we used ZENDAA a vertify trading company to present our products and services.
2.Q: What certificates do you have ?
A: We have gained the certificate of CE, EMC, ROHS, CSA, SAA and ISO9001.we can satisfy your regional requsted if necessary.
3.Q: Can you do OEM ?
A: Yes. We offer OEM/ODM service apart from our standards.
4. Q. Can I have a sample?
A: Yes, we welcome samples or small trial orders for your testing purpose. Standrad samples usually few days ready, but special requested samples might need 2 weeks. It depends and can be discussed.
5. Q: Why choose us?
A：Firstly, we located in Shenzhen the high-tech innovation center, we can guarantee our supply chains are well sourcing and quality controled under our management system. Secondly, we have teams in China, UK, USA, can reply inquiries in different times without jet lag.
Похожие товары
Hs-ads13 аппараты для приварки болтов сварочный аппарат
96 013,56 ₽ - 106 924,19 ₽
Высокоэффективный сварочный станок для кабинета постоянного тока сварочной машины
121 229,24 ₽ - 132 250,08 ₽
110 В или 220 STC-1600 конденсатор разрядный емкостный накопитель энергии CD шпилька сварочный аппарат комплект M3-M8 цангона
Лазерные сварочные аппараты 2000 Вт металлический лазер сварочный аппарат волоконно-лазерный 3 в 1 лазерные
429 812,76 ₽ - 462 875,28 ₽
Производитель емкостный штырь корпус переносные изоляционные сварщики Nelson сварочные аппараты для пистолетов Diy Best Soyer Welders

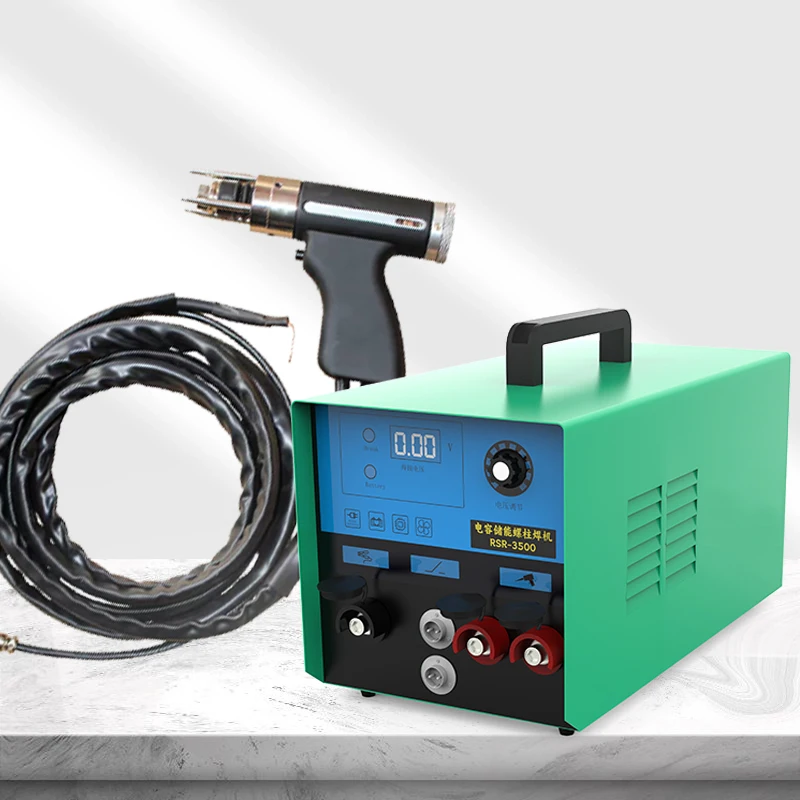

RSR-3500 шпилька сварочный аппарат высокого качества
77 145,88 ₽ - 78 799,01 ₽

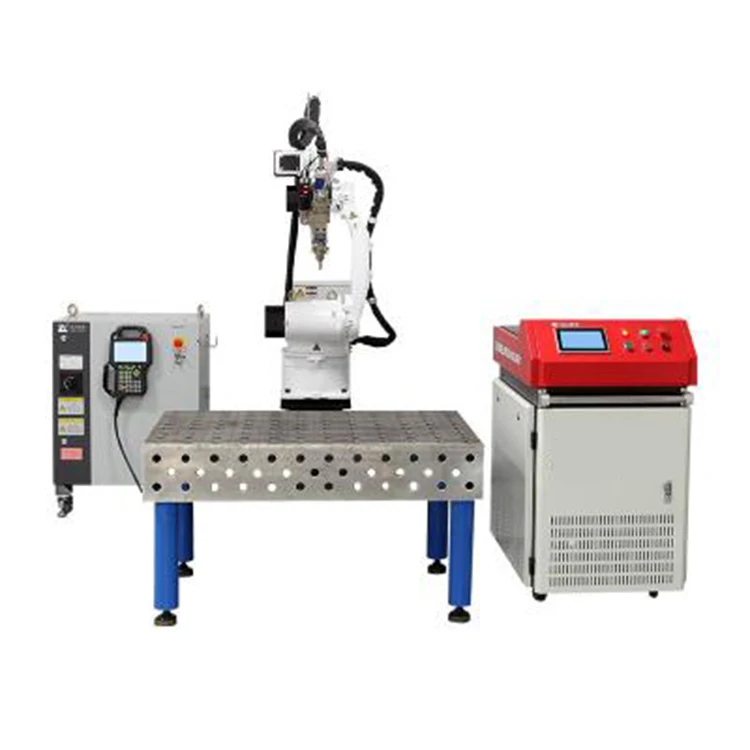

Настольная лазерная сварка 3D Robot подходит для заводской сварки
