Super fast freezing stainless steel blast freezer Safety System Ultra Low Temperature Vaccine storage Laboratory Medical
Condensing Unit Features
Introduction
It can improve the performance of various materials and is applied to industrial cold processing, mainly embodied in cold work die steel and high-speed steel, bearing steel, cold work die and die accessories.
Application in biological cold processing, mainly embodied in freezing blood, plasma, can be quickly refrigerated, quick-freezing plasma and blood.
It is used in the cold treatment of medicines, mainly in reagents, raw liquids, and medicines, which can be quickly refrigerated and stored.
The products have a wide range of application markets and prospects in the industrial and biochemical fields, and the wide temperature control range is suitable for diversified use environments and needs.
Features
1. Independent over-temperature protection.
2. Automatic frost function.
3. It can run continuously for a long time.
4. The door has a key lock.
5. The door has a rectangular observation window with a large viewing angle.
6. Imported refrigeration compressor unit is adopted.
7. The studio material uses mirror SUS304A stainless steel plate, which has the characteristics of acid resistance, corrosion resistance and easy cleaning.
8. With temperature verification hole.
9. The equipment installation has no special ater and electricity requirements on the user site, low noise, and convenient operation
2. Automatic frost function.
3. It can run continuously for a long time.
4. The door has a key lock.
5. The door has a rectangular observation window with a large viewing angle.
6. Imported refrigeration compressor unit is adopted.
7. The studio material uses mirror SUS304A stainless steel plate, which has the characteristics of acid resistance, corrosion resistance and easy cleaning.
8. With temperature verification hole.
9. The equipment installation has no special ater and electricity requirements on the user site, low noise, and convenient operation
Main components
1. Imported French scroll compressor.
2. Imported refrigeration valves.
3. It is filled with environmentally-friendly imported brand refrigerants.
4. PLC control system.
5. Imported Electric components.
6. Smart touch screen.
7. Binary cascade system.
2. Imported refrigeration valves.
3. It is filled with environmentally-friendly imported brand refrigerants.
4. PLC control system.
5. Imported Electric components.
6. Smart touch screen.
7. Binary cascade system.
Name | Medicine refrigerator/low temperature storage box | ||||||
Model | XR-500DP | XR -750DP | XR -1000DP | XR -1250DP | |||
Capacity | 500L | 750L | 1000L | 1250L | |||
Overall size | 1500*1000*2035 | 1500*1250*2035 | 1700*1250*2250 | 2050*1250*2250 | |||
Application | Biology, medicine, chemical, food and other industries | ||||||
Temperature range | -20℃～-75℃ | ||||||
Temperature fluctuation | ≤±0.5℃ | ||||||
Temperature tolerance | ≤2℃ | ||||||
Power supply | 220V/380V，50HZ | ||||||
Installed power | 2500W | 3500W | 4500W | 5500W | |||
Condensing unit | Imported scroll refrigeration compressor | ||||||
Thermometers | Intelligent computer instrument, PID control, temperature online error correction, etc. | ||||||
Shell material | Plastic sprayed galvanized steel plate without flower | ||||||
Liner material | SUS304 stainless steel plate | ||||||
Shelf (layer) | 3 | 3 | 3 | 4 | |||
Safety devices | Equipment overload, refrigeration compressor overload, independent adjustable over-temperature protection | ||||||
Optional accessories | Stainless steel inner door, stainless steel drawer | ||||||
Fulfill the standard | Low temperature and freeze-thaw tests, etc. | ||||||
Suitable Temperature for Various Products
Temperature | Condensing Unit Type | Suitable Products |
-5°C ~ +5°C | Single stage piston//scroll/screw condensing unit | Vegetables, Fruit, Drink, Beer, Medicines, Vaccine... |
-15°C ~ -25°C | Single stage piston/scroll/screw condensing unit | Meat, Fish, Medicines, Seafoods, Ice Cream... |
-30°C ~ -40°C | 2-stage compressor condensing unit | Meat, Fish, Blood... |
-45°C ~ -70°C | Cascade condensing unit | Tuna, Vaccine... |
Available Condensing Unit Types
Piston condensing unit
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: +5~-5℃, -15~-20℃, -25~-40℃
Scroll condensing unit
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: +5~-10℃, -10~-23℃, -10~-30℃
Temperature range: +5~-10℃, -10~-23℃, -10~-30℃
Screw condensing unit
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: +5~-5℃, -15~-20℃, -25~-40℃
Temperature range: +5~-5℃, -15~-20℃, -25~-40℃
Cascade condensing unit
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: -40~-70℃
Temperature range: -40~-70℃
Monoblock condensing unit
Type: box top blow type and box side blow type
Condenser: air cooled
Temperature range: +10~-5℃, -15~-20℃
Temperature range: +10~-5℃, -15~-20℃
Water chiller
Type: box type, open type
Condenser: air cooled, water cooled, evaporative cooled
Temperature range: ≥0℃, -10~-15℃, -35℃
Temperature range: ≥0℃, -10~-15℃, -35℃
Condensing Unit Application
Cold Storage
Ice Cream Production Line
Quick-freezing Tunnel
Ice Maker
Industrial Cold Water
Cryogenic Aquaculture
Application
Successful Cases
Company Profile
About us
Shanghai Xurui is located in Shanghai with 15 years' experience in producing condensing unit, evaporator, condenser, water chiller for cold room, ice cream production line, quick-freezing tunnel...
All units adopt world famous brand compressors. It has been certified by ISO9001, CE, got import-export license and the license of National Industrial Product Manufacture of China.
Export to more than 30 countries in Europe, the Middle East, Southeast Asia, Africa, South America and areas etc.
Supply high quality & safety refrigeration equipment. Consecutive sales increase of 15 years.
Our factory
Complete Production Equipment + Professional Production Team + Superb Production Technology = Xu Rui
Not only we have our own brand “XU RUI” , but also we supply the OEM service to our customers. To satisfy with your need,we can print your company Logo or design on the units or the other parts
Our Advantages
At China Wholesale, we can handle your large drive-in refrigerated warehouse projects from start to finish. We have a vast inventory of refrigerant equipment to meet your needs and our nationwide installation teams are ready and waiting to do the job. We offer:
• Top quality new equipment for any size refrigerated building.
• Experienced crews to build your box from walls to ceiling.
• Experience in special needs such as insulated floors, refrigeration parts.
• Turnkey projects available.
• Custom sizes and design services.
• We will go anywhere to do the job.
Whether you are a food distributor, farmer, pharmaceutical company, or cold storage company, we can handle your project from start to finish.
• Top quality new equipment for any size refrigerated building.
• Experienced crews to build your box from walls to ceiling.
• Experience in special needs such as insulated floors, refrigeration parts.
• Turnkey projects available.
• Custom sizes and design services.
• We will go anywhere to do the job.
Whether you are a food distributor, farmer, pharmaceutical company, or cold storage company, we can handle your project from start to finish.
Transportation & Installation
We provide the best packing service to our customers! Arrival safely.
Похожие товары

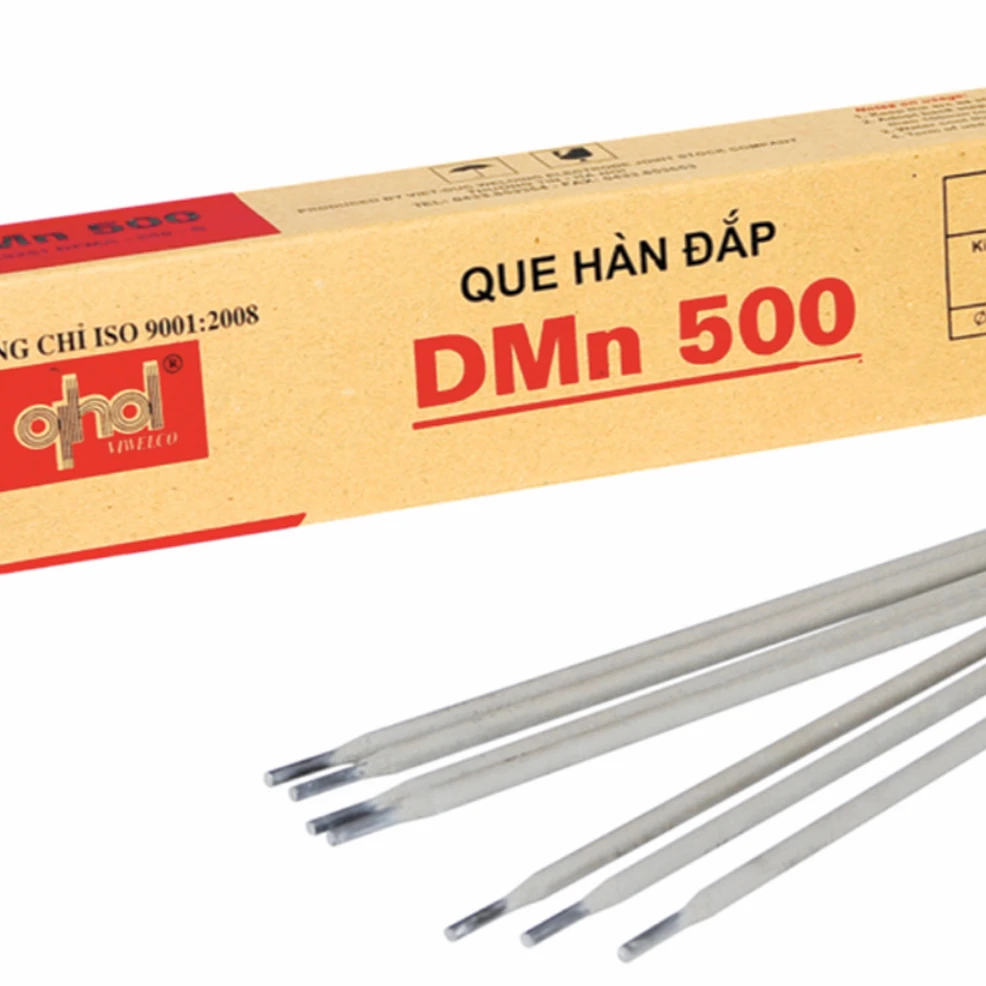

Отличный сварочный стержень от производителя vietnam DMn-500 - VD Z3251 DFMA-B с высоким содержанием марганца

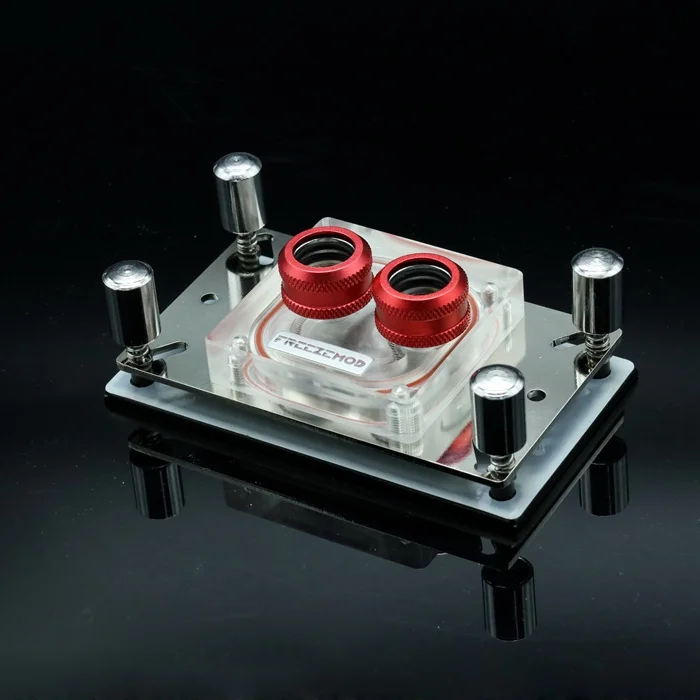

Для замораживания AMD-PM3D литья под давлением для компьютерного процессора воды блок 0,3 микро канал AMD поддержка платформы для AM4
32,00 $

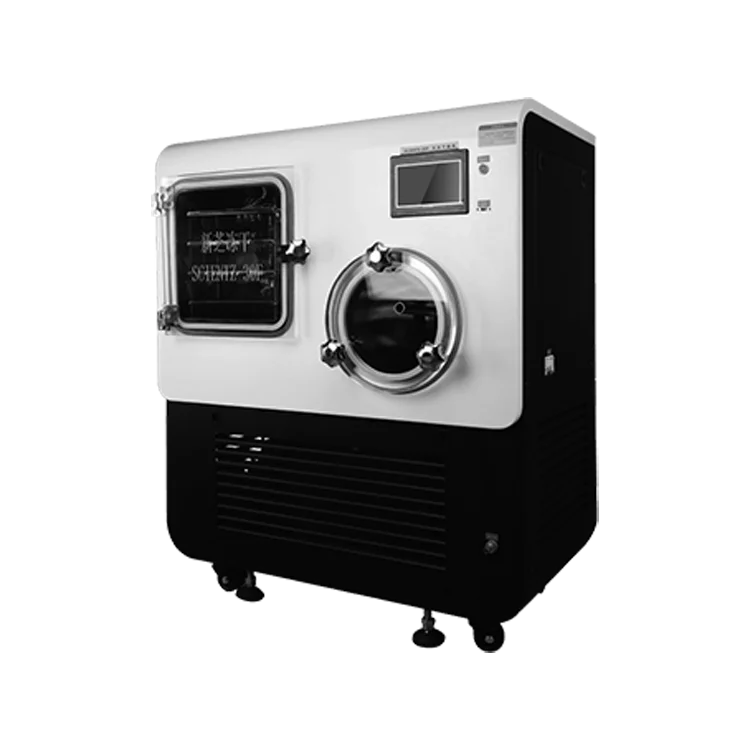

Пищевая/лабораторная/фармацевтическая сушилка для замораживания/лиофилизирующая машина
12 500,00 $ - 13 500,00 $

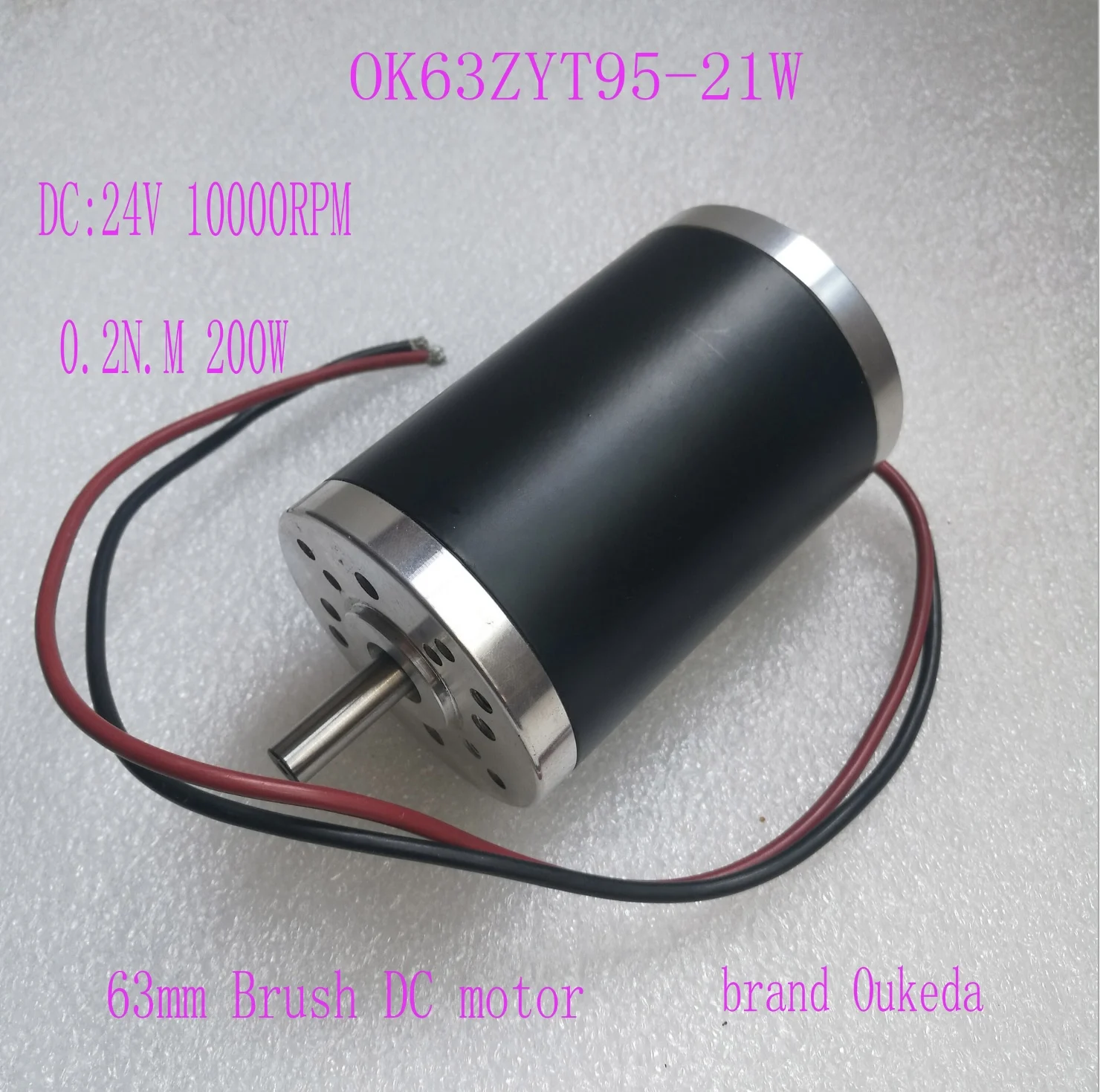

63 мм 0.2N.m 24V dc щеточный двигатель
25,00 $ - 28,00 $

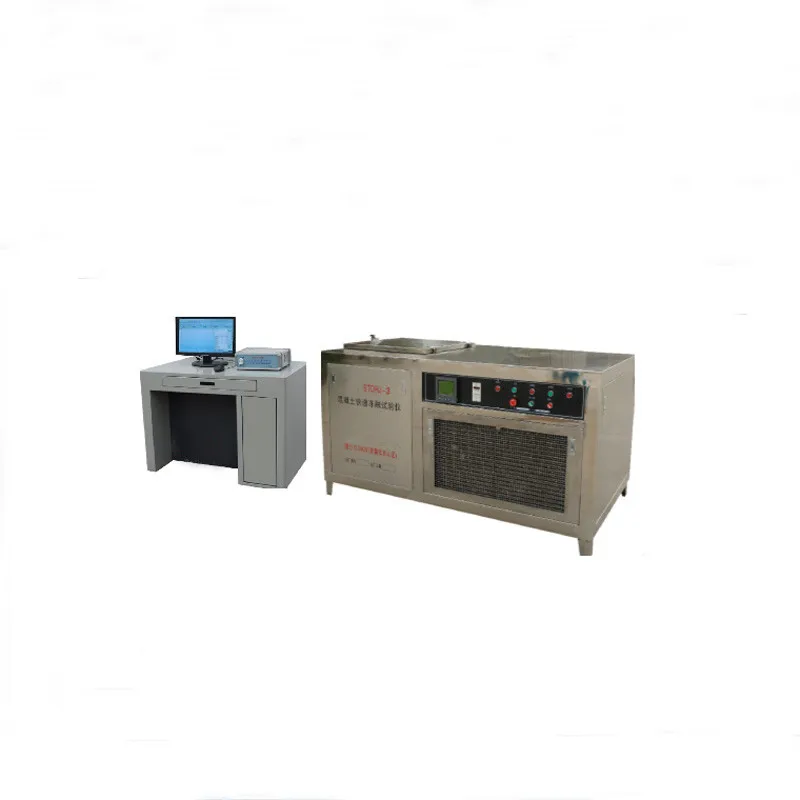

STDRJ-3 компьютер управления замораживания и оттаивания тестирование машина

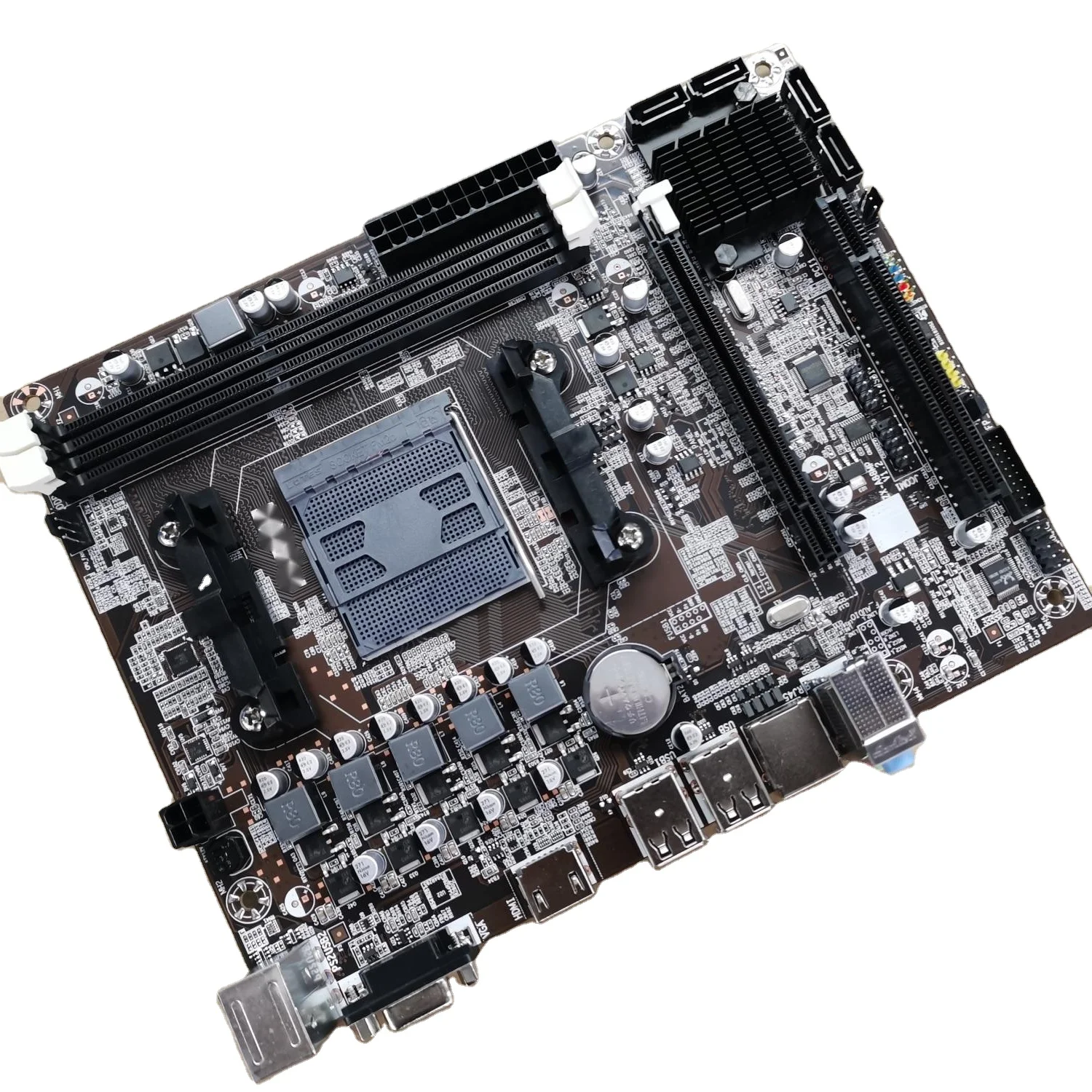

Материнская плата fm2 a88 fm2 + разъем для ЦП a6 7480 и a8 7680
20,00 $ - 22,00 $

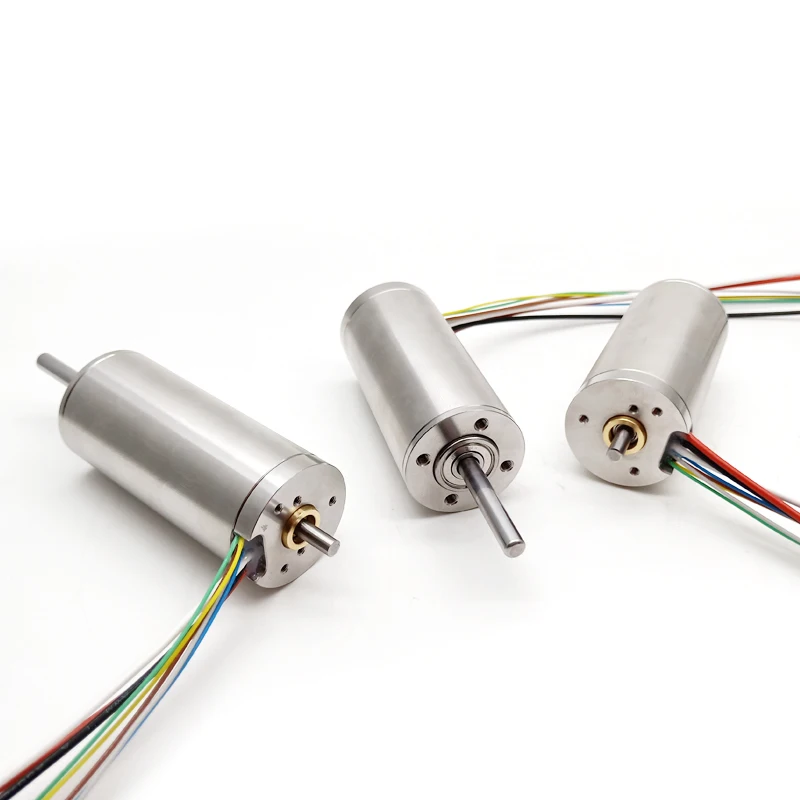

30 мм 200 Вт 10000 об/мин 20000 ОБ/мин 3067 бесщеточный двигатель постоянного тока для машины
