Солнечная система от сети 5 кВт 10 20 25 30 энергосистема коммерческий промышленный дом для продажи
- Категория: Renewable Energy >>>
- Поставщик: Shenzhen Jinsdon Lighting Technology Co. LtdShenzhen Ltd
Сохранить в закладки 1600277165801:
Описание и отзывы
Характеристики
Advantages of Jsdsolar
Product Description
Title goes here.
JSDSOLAR is a vibrant and fast-growing international company and as a leader in the solar system& solar lighting
industrial.Established in 2005 and located in Shenzhen city, JSDSOLAR is one of the earliest new-energy manufacturers, specialize in design&develop solar products and provide professional solar power system solutions.
JSDSOLAR has finished research and development of solar power home system, All In One solar power system, wall mounting, stackable and standing LiFePO4 battery, WIFI solar inverter, Pay As You Go system, IOT LoRa control solar street light and master the core innovative technology of whole solar products.
industrial.Established in 2005 and located in Shenzhen city, JSDSOLAR is one of the earliest new-energy manufacturers, specialize in design&develop solar products and provide professional solar power system solutions.
JSDSOLAR has finished research and development of solar power home system, All In One solar power system, wall mounting, stackable and standing LiFePO4 battery, WIFI solar inverter, Pay As You Go system, IOT LoRa control solar street light and master the core innovative technology of whole solar products.
Specification

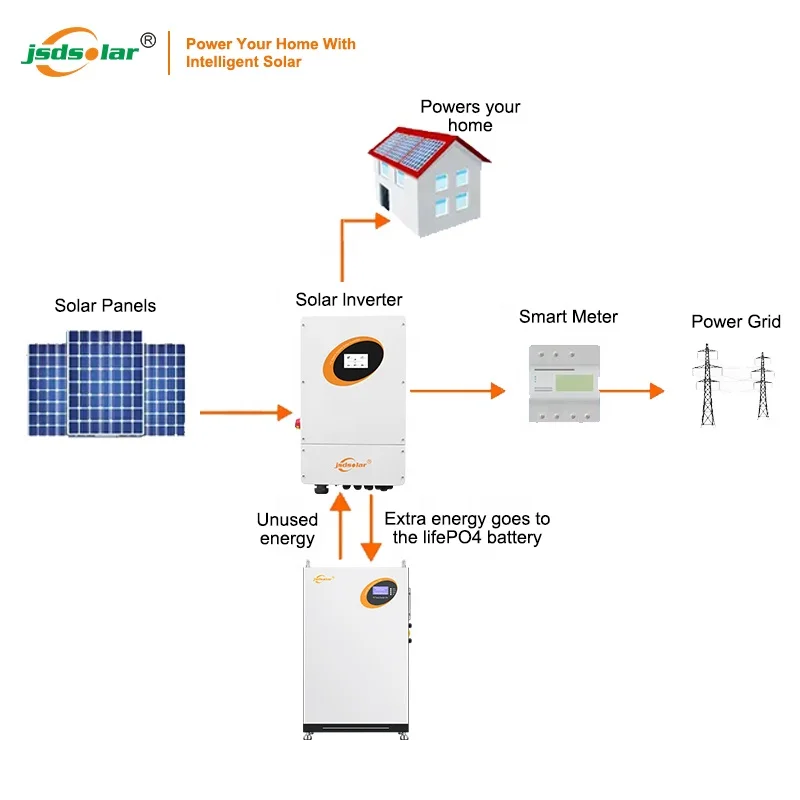

Solar system for home | ||||||
Parts | Description | Quantity | ||||
8kw | 16kw | |||||
mppt Controller Inverter | Model:JSD8KLNA Input：48VDC AC Output：120V/240V 50-60Hz,8000W Max Charge Current：80AWaterproof Level: IP65 | 1 PCS | 1PCS | |||
Lifepo4 battery pack | Model:48V 200AH Rated Voltage：51.2V Rated Capacity：200AH Net Weight：86kg DOD depth：100% | 1PCS | 2PCS | |||

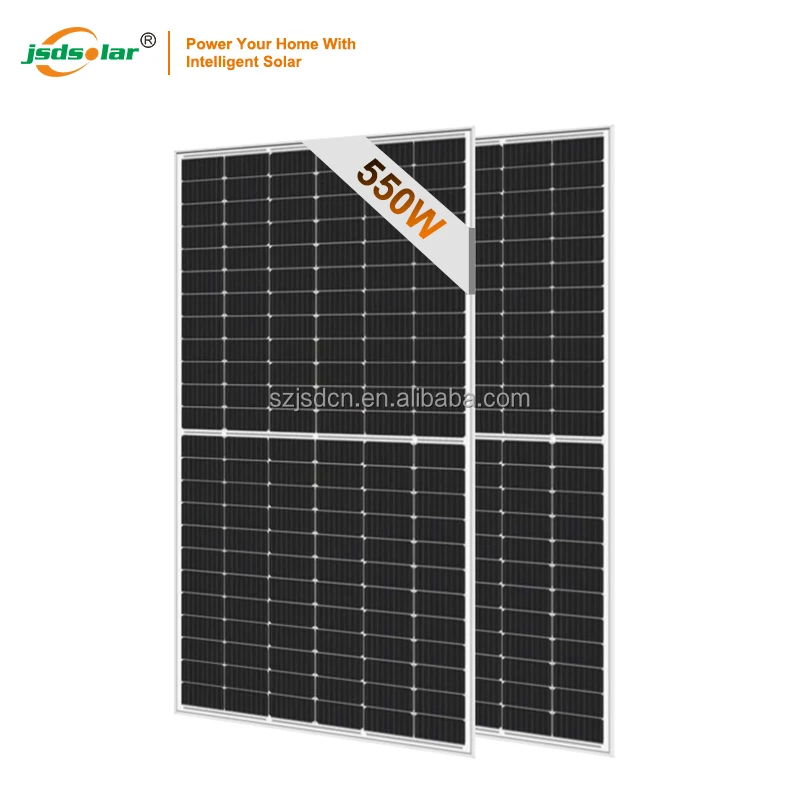

PV Panel | Model:VSMH550-36V -MH Peak Power(Pmax):550V ; Maximum Power Current(Imp):42.1V； Open Circuit Voltage(Voc)：50.10±3%； Rate Power：550W； Size：2279*1134*3mm Weight：28.40kg | 14PCS | 28PCS | |||
PV Panel Mounting Bracket | Customized,Anti-erosion Aluminum Alloy for rooftop or ground mounting | 1 Set | 1 Set | |||
Power Distribution Box | Customized,Including leakage circuit breaker, air-switch, by-pass switch etc | 1 Set | 1 Set | |||
Cable | Model:PV-1*6mm2 Special high Anti-UV and Wear-Resistant PV cable WorkingTemperature：-40℃-90℃ | 40 M | 80 M | |||
PV Waterproof Connector | Model:MC4 Rated Voltage: 1000V DC Rated Current: 30A IP Rate: IP67 | 10 Pairs | 20 Pairs | |||

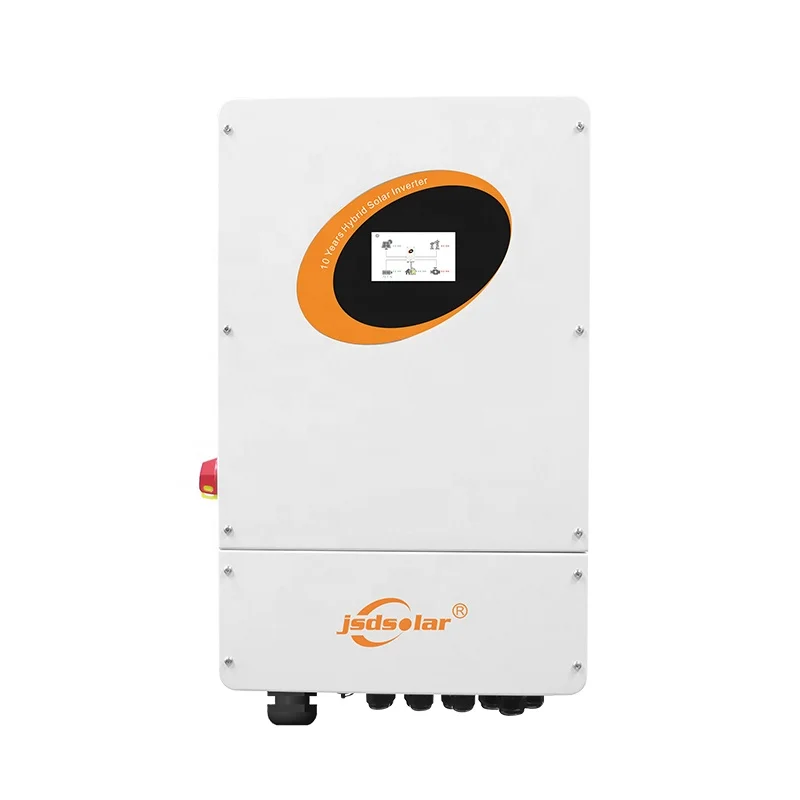

MPPT Controller Inverter
1. Pure sine wave inverter;
2. Built-in MPPT solar controller;
3. Configurable AC/Solar Charger priority via LCD setting;
4. Compatible to mains voltage or generator power
5. Auto restart while AC is recovering;
6. Overload/ Over temperature/ short circuit protection
7. Cold start function.
2. Built-in MPPT solar controller;
3. Configurable AC/Solar Charger priority via LCD setting;
4. Compatible to mains voltage or generator power
5. Auto restart while AC is recovering;
6. Overload/ Over temperature/ short circuit protection
7. Cold start function.

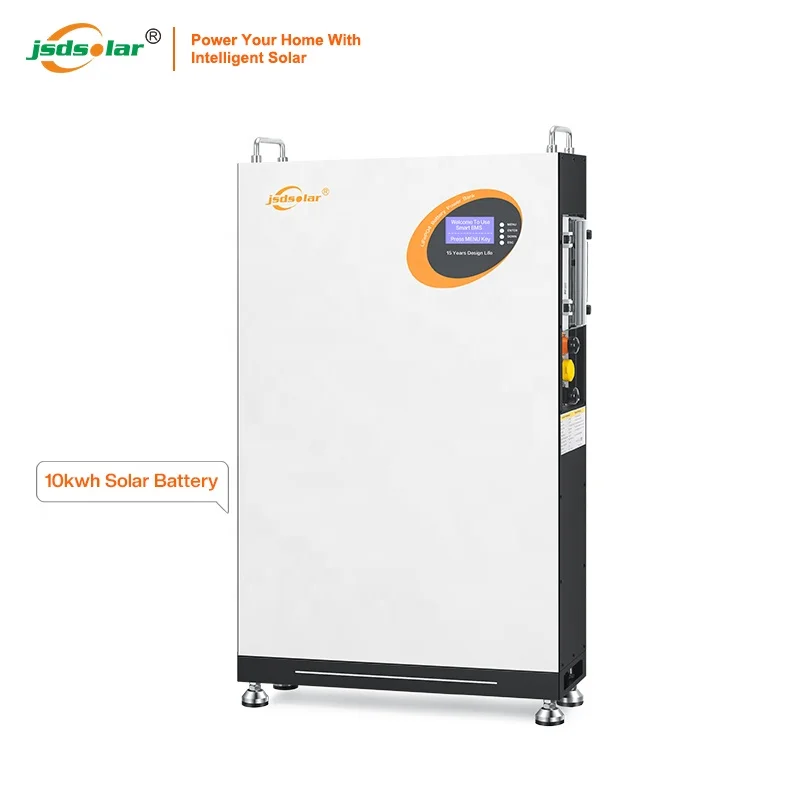

Lithium Ion Battery
1. Safety and Reliable
1) High safety level of lifepo4 battery cell;
2) Popular battery energy: 10kwh,
3) Long life cycle time >6000cycles;
4) Advanced BMS protection functionality;
2. Flexibility and Compatible
1) Store energy from thr grid or solar;
2) Total energy extends to 90kwh by parallel battery packs :
3) Installation: Floor/Wall mounted;
4) Monitor and optimize by smartphone app.
1) High safety level of lifepo4 battery cell;
2) Popular battery energy: 10kwh,
3) Long life cycle time >6000cycles;
4) Advanced BMS protection functionality;
2. Flexibility and Compatible
1) Store energy from thr grid or solar;
2) Total energy extends to 90kwh by parallel battery packs :
3) Installation: Floor/Wall mounted;
4) Monitor and optimize by smartphone app.
2. Highest conversion efficiency of 21%
3. Anti-reflective and anti-soiling surface power loss from dirt and dust
2. Commercial Roof(Flat roof&workshop roof)
3. Ground Solar Mounting system
4. Vertical wall solar mounting system
5. All aluminum structure solar mounting system
6. Car parking solar mounting system

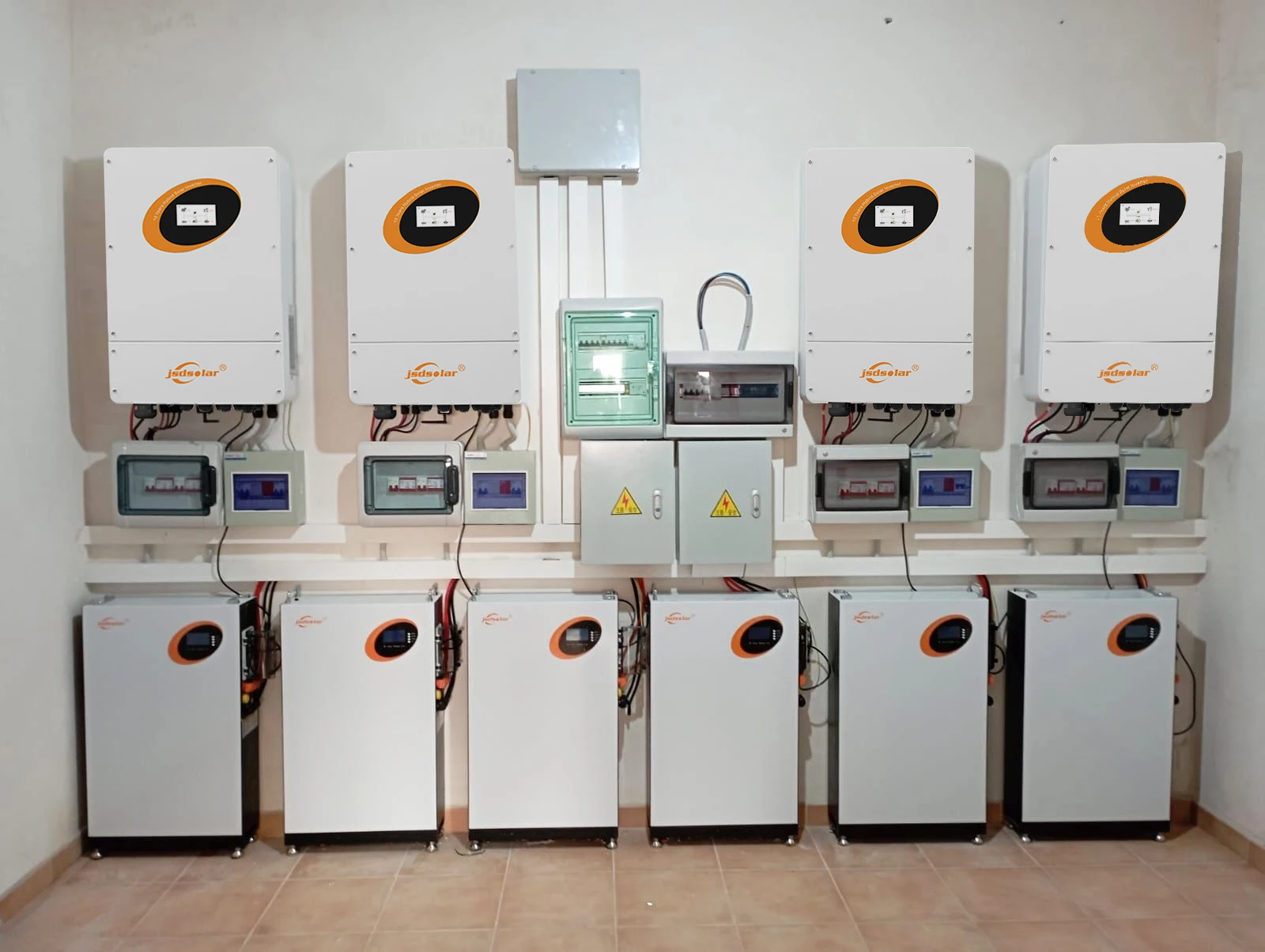

Project
Packing & Delivery
Exhibition
Company Profile
Shenzhen Jinsdon Lighting Technology Co., Ltd. was Established in 2010, located in Shenzhen China.We achieved ISO9001: 2008 quality management system certification in 2013 Our solar products have passed
CE, FCC, RoHS and National Inspection Certification also have several national patents.We exported to over 50 countries, such as
Germany, Japan, UK, USA, South Africa and so on. Jinsdon adheres to the "integrity, professional, and win-win" business
philosophy, strive for lean, do a good job in every detail, and make strict product inspection system, to ensure the highest
quality and create greater value for customers.Our Mainly Products as below:Integrated solar street light. All in one solar LED
street light, Integrated solar garden light with Bluetooth speaker, Integrated solar garden light, Solar Power Wall, Solar Energy
Power Supply, Li-ion Battery Pack for solar power, IOT smart solar street light system.
CE, FCC, RoHS and National Inspection Certification also have several national patents.We exported to over 50 countries, such as
Germany, Japan, UK, USA, South Africa and so on. Jinsdon adheres to the "integrity, professional, and win-win" business
philosophy, strive for lean, do a good job in every detail, and make strict product inspection system, to ensure the highest
quality and create greater value for customers.Our Mainly Products as below:Integrated solar street light. All in one solar LED
street light, Integrated solar garden light with Bluetooth speaker, Integrated solar garden light, Solar Power Wall, Solar Energy
Power Supply, Li-ion Battery Pack for solar power, IOT smart solar street light system.
Related Products
Похожие товары

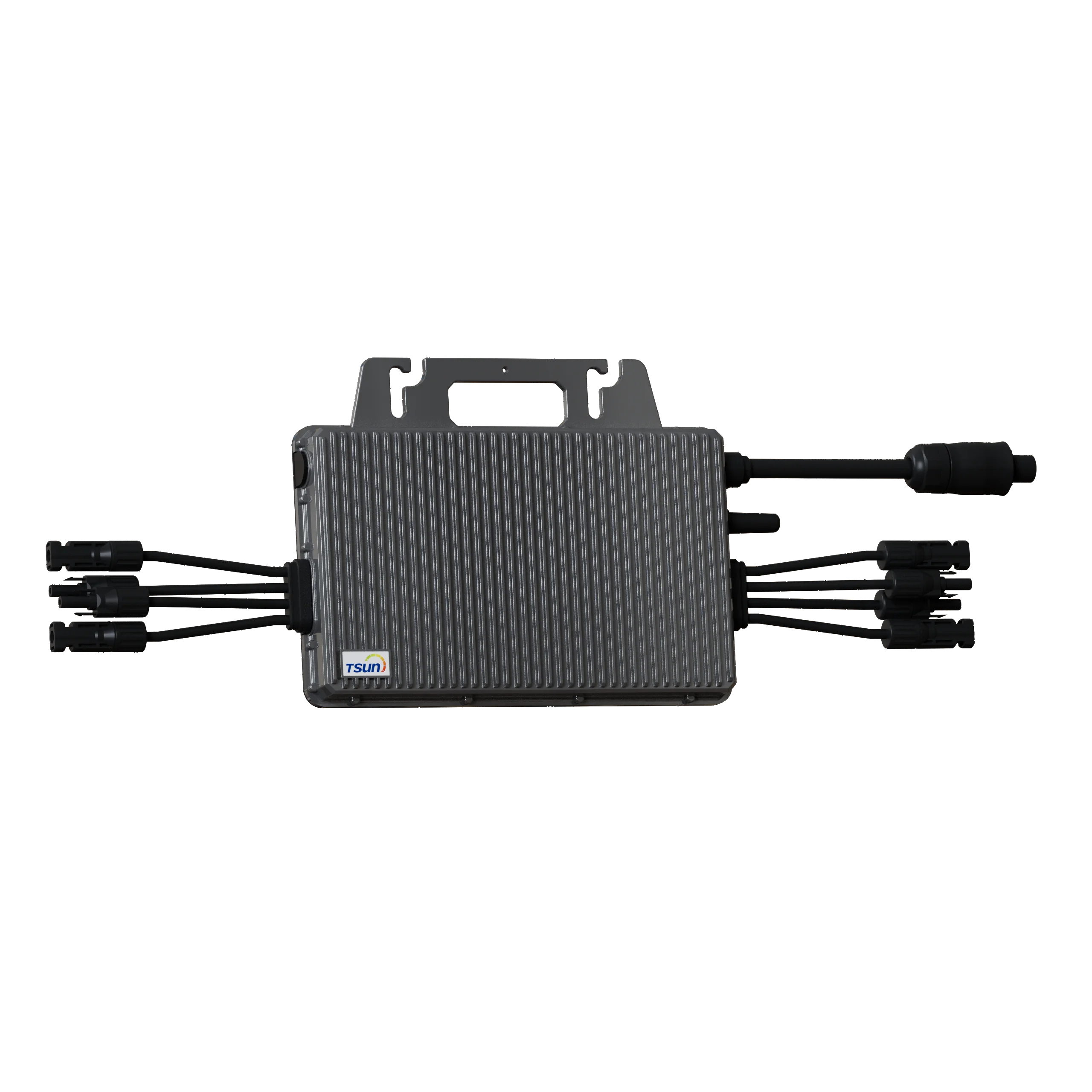

Цун 800 Вт солнечный инвертор инвертора балкона TSOL-MS800-D Микро инвертора
