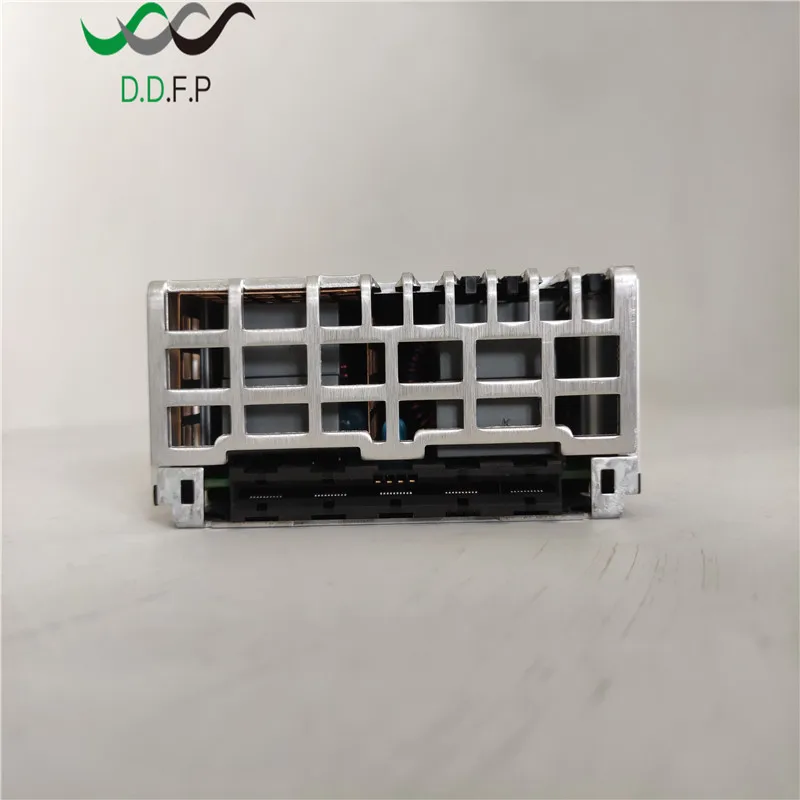

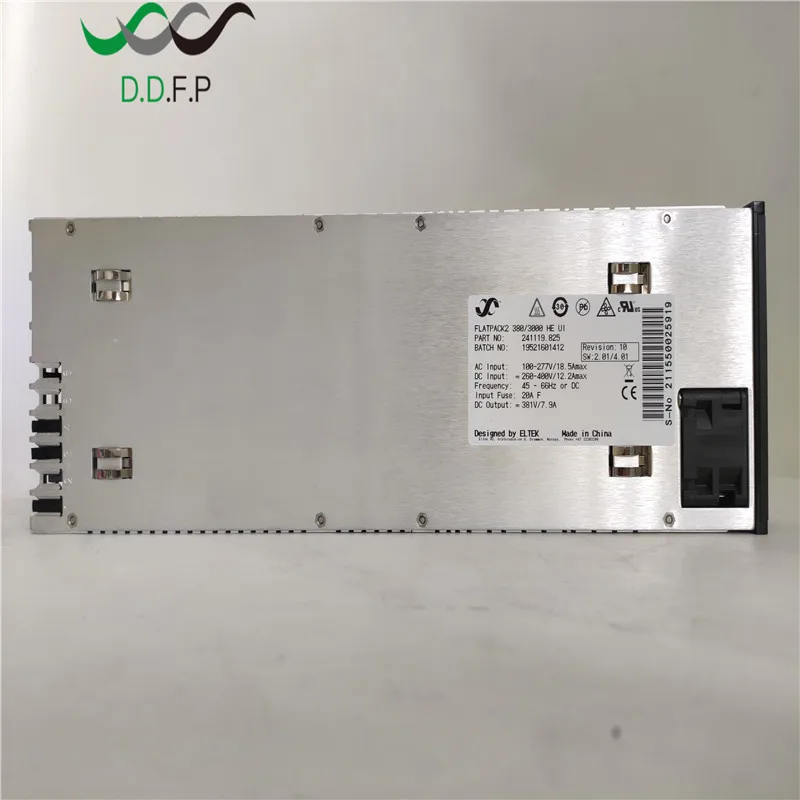

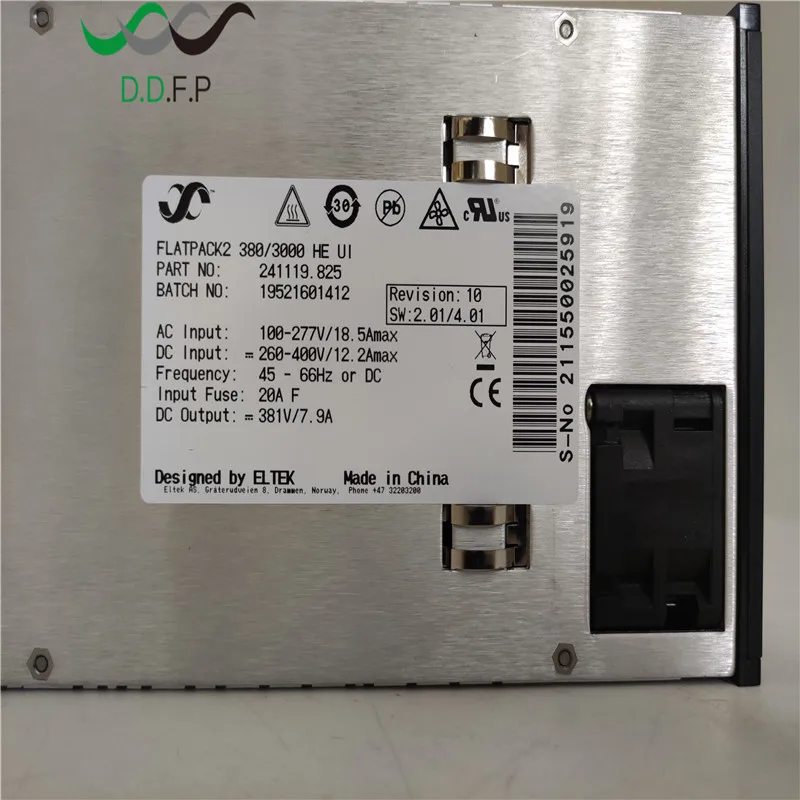

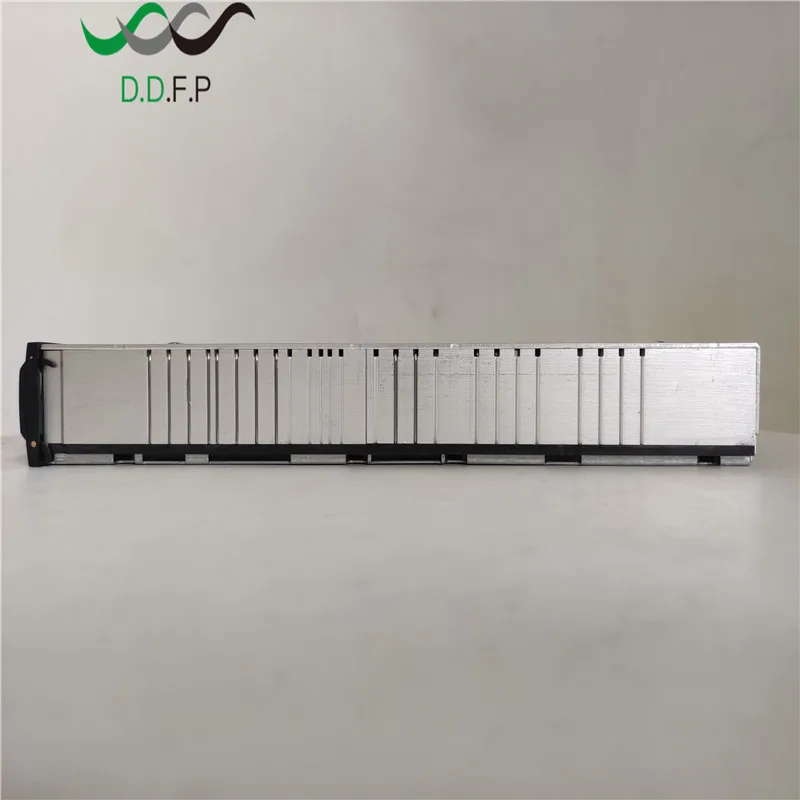

Flatpack2 380/3000 HE for HVDC in data centers 241119.825 380Vdc 3000W high efficiency module
- Категория: >>>
- Поставщик: Beijing Dingding Future Technology Co. Ltd.
Сохранить в закладки 1600277194711:
Описание и отзывы
Характеристики
Specification
Model | Flatpack2 380/3000 HE | |
Part number | 241119.825 | |
INPUT DATA | ||
Voltage (nominal) | 176 - 277 VAC | |
Voltage (range) | 85 - 305 VAC | |
Frequency | 45 - 66 Hz | |
Current (maximum) @ nominal input, full load | 18.2 ARMS | |
Power Factor | > 0.99 at 50% load or more | |
Protection | Fuse in L & N Varistor Disconnect when VIN is out of range | |
OUTPUT DATA | ||
Voltage (default) | 381 VDC | |
Voltage (adjustable range) | 300 - 400 VDC | |
# Pb cell supported | 156 - 168 1) | |
Power (maximum) | 3000 W | |
Power @ 85 VAC | 1200 W | |
Current (maximum) @ nominal input, full load | 9 A (@VOUT < 336 VDC) / 7.9 A (@ VOUT = 381 VDC) | |
Current sharing (10 - 100% load) | ±5% of maximum current from 10 to 100% load | |
Static Voltage regulation (10 - 100% load) | ±0.5% | |
Dynamic Voltage regulation | ±5.0% for 10-50% or 50-10% load variation, regulation time < 25 ms | |
Hold up time | > 20 ms; output voltage > 300 VDC at 1500 W load | |
Ripple | < 1000 mVP-P , 30 MHz bandwidth | |
Protection | Over voltgae shutdown Hot plug-in - Inrush current limiting Short circuit proof High temperature protection | |
OTHER SPECIFICATIONS | |||
Efficiency @ 230 VAC input | > 96.2% | ||
Isolation | 3.0 kVAC – input to output, 1.5 kVAC – input to earth, 1.5 kVDC – output to earth, 3.0 kVAC – CAN to primary, 3.0 kVAC – CAN to secondary | ||
Alarms (Red LED) | Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure | ||
Warnings (Yellow LED) | Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage | ||
Normal (Green LED) | Input and output ok | ||
Acoustic noise, at nominal input and full load | < 40dBA @Tambient< 25°C / <58dBA @ Tambient> 40°C | ||
MTBF (Telcordia SR-332 Issue I method III (a)) | >400 000 (@ Tambient : 25 °C) | ||
Operating temperature | -40 to +75°C (-40 to +167°F), humidity 5 - 95% RH non-condensing Output power de-rates linear from 3000W @ 50°C (122°F) to 980W @ 75°C(167°F) | ||
Storage temperature | -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing | ||
Dimensions[WxHxD] / Weight | 109 x 41.5 x 327 mm (4.25 x 1.69 x 13”) / < 1.95 kg (4.3 lbs) | ||
DESIGN STANDARDS | |||
Electrical safety | EN 60950-1:2006+A11:2009+A1:2010+A12:2011, IEC 60950-1:2005+A1:2009, UL 60950-1:2011, CSA C22.2 No. 60950-1-07 | ||
EMC | EN 61000-6-1:2007, -6-2:2005, -6-3:2007 + A1:2011, -6-4:2007 + A1:2011, EN 300 386:v1.6.1, FCC CFR 47 Part 15:2013 | ||
Environment | ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) 2011/65/EU (RoHS) & 2008/98/EC (WEEE) | ||
Product Description
Cooperated Supplier and Clinets
Packing & Delivery
1 Several kinds of delivery be provided to save most for clients
2 We respect clients to use their forwarders
3 All package based on international delivery. don't worry about the package. We will make sure it is strong enough.
FAQ
Q1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers.
We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.
Q4.When can I get a price？
We usually quote within 24 hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a trading company cooperated with several brands .
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers.
We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.
Q4.When can I get a price？
We usually quote within 24 hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a trading company cooperated with several brands .
Q6 The materials are brand new or used one, Original ?
We sell brand new items and assured them original from manufacturer.
Contact Us
Похожие товары
Methyl tin chloride(CAS NO.57583-35-4)
Высокопроизводительный стартер MYL 36100-27510 для Hyundai ACCENT II AERO TOWN AZERA Elantra GT TS
9,40 $ - 31,80 $

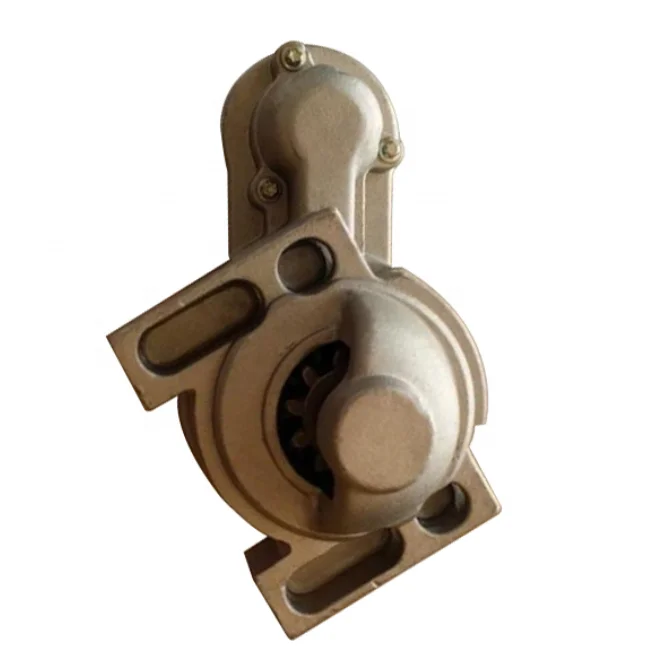

10465013 10465053 10465296 113269 1113295 1113266 19136220 грузовой 112341 Lester 6468 12 в мотор arranque для Delco 28MT
31,00 $ - 56,00 $

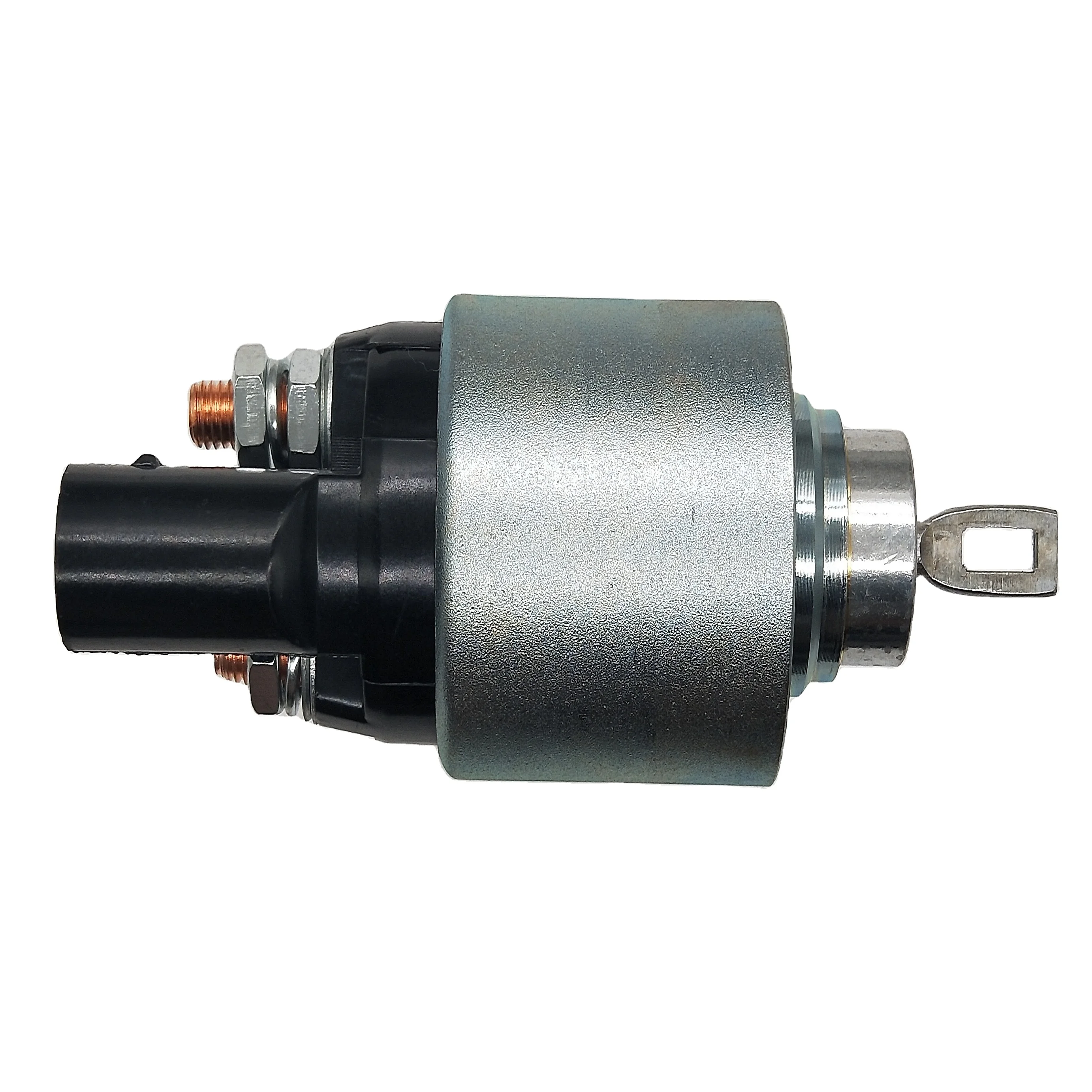

2339305040 2339305055 2339305077 стандартное качество автомобильный стартер соленоидный переключатель WAI 66-91103 ZM 8381 грузовой 235060
5,10 $ - 5,60 $

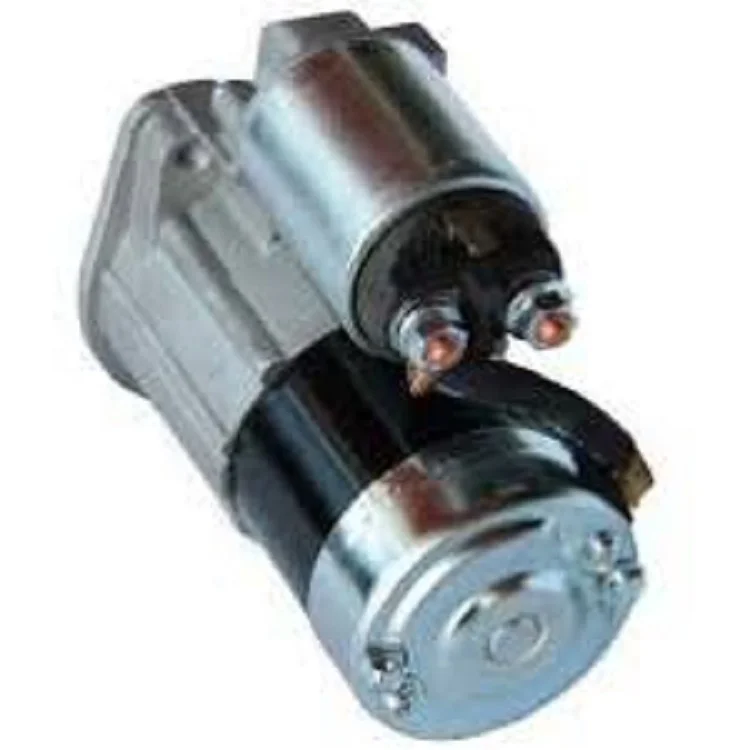

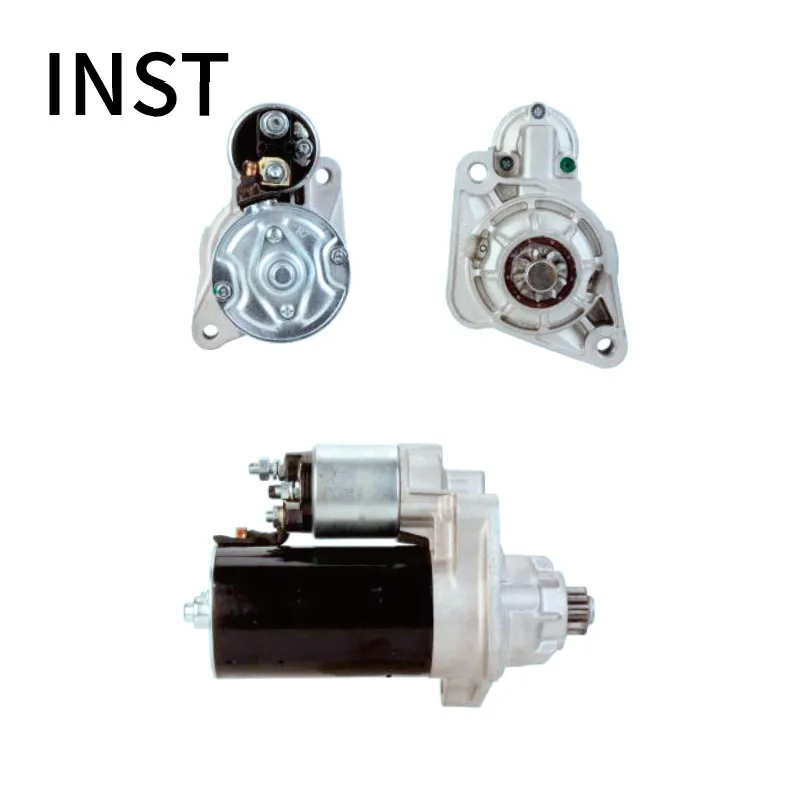

STARTER MOTOR FOR 12V 2.2kw 9T 0001125600 0001125601 0986022460 114723 STB1378BA STB1378RN STB1378YN RE110361STB1378RB CS1378
100,00 $ - 200,00 $
Хлорид аммония 99.5% технический класс

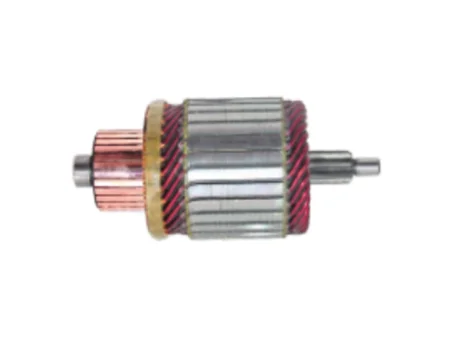

330156 Высококачественная арматура стартера 12 В для груза
