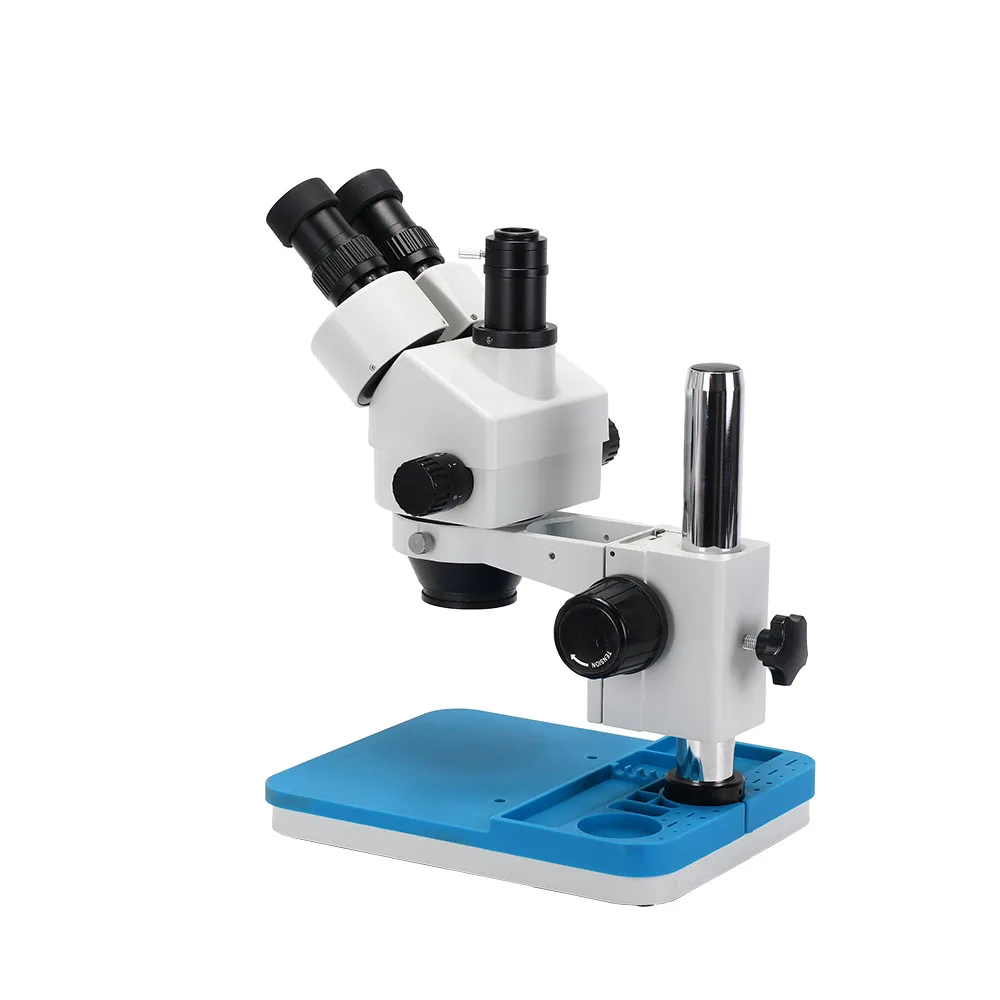

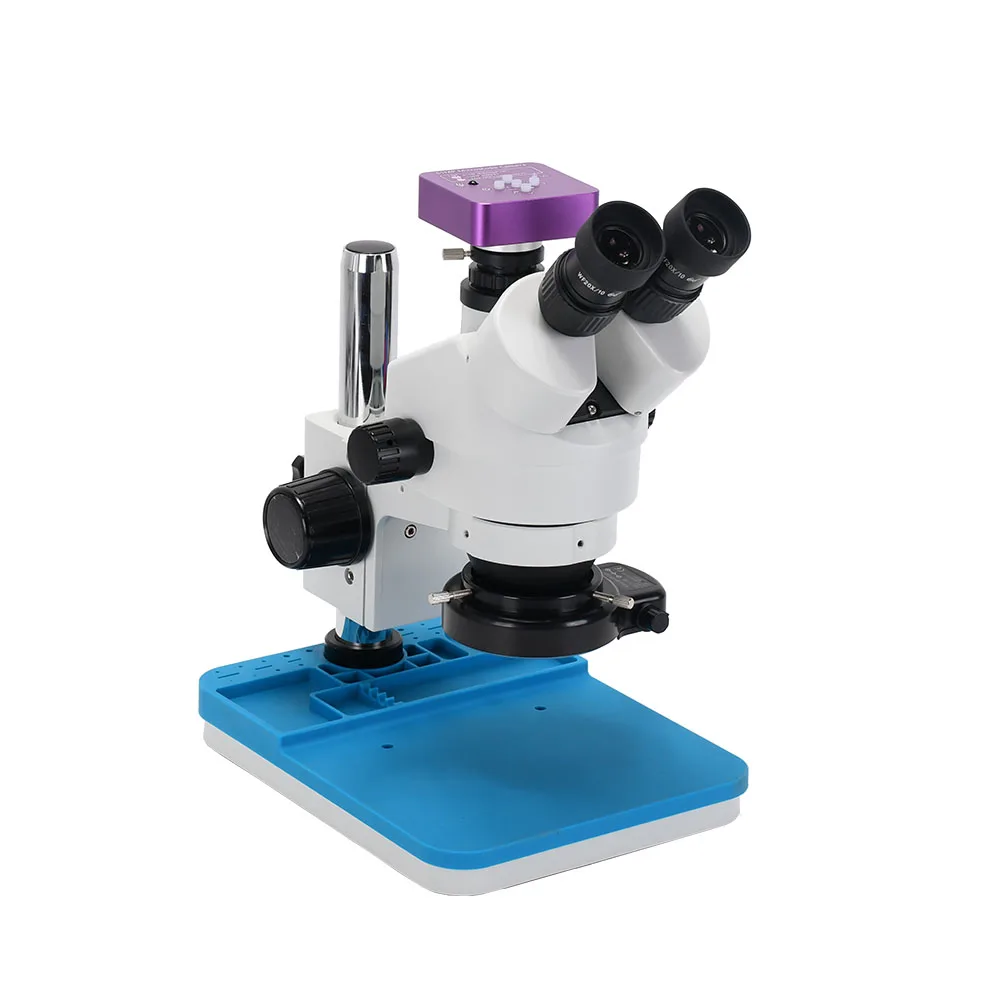

Цифровой USB микроскоп HAYEAR 51MP HDMI 7X 90X многофокусный Тринокулярный стереомикроскоп комплект для пайки печатных плат ювелирных изделий и ремонта

 Feature:

7X-90X zoom magnification power with crisp sharp images

Sturdy all-metal pillar stand

Powerful144-LED ring light with dimmer

This stereo microscope has a 144-LED ring light that offers super widefield optics and 7X-90X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists , manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.

An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light

3.5x-90x super wide zoom magnification power

Bright cool light 144-LED illumination system

High resolution with great flatness and contrast, giving sharp and clear images

Binocular head with 45 degree inclined 360 degree swiveling eye tubes

Sharp stereo erect images with a wide field of view

Crystal clear original true color microscope images

Dual eye tubes with adjustable diopters

Large working distance

Sturdy all-metal table stand

Accurate alignment reduces eye strain for longer periods of viewing

Full optical glass elements

Precise ground glass lenses

Full metal chrome-plated mechanical components

Adjustable interpupillary distance

Rubber eye-guards included

Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
Working Distance: 4" (100mm)
Diopter Adjustment: +/- 5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Round Plate: 3-3/4" (95mm) in diameter
Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
Illumination: 56-LED Ring Light
Power Input: 110-240V, 50-60HZ, Automatic Switching
Accessories: Paired eye-caps
Weight: 5.5kg

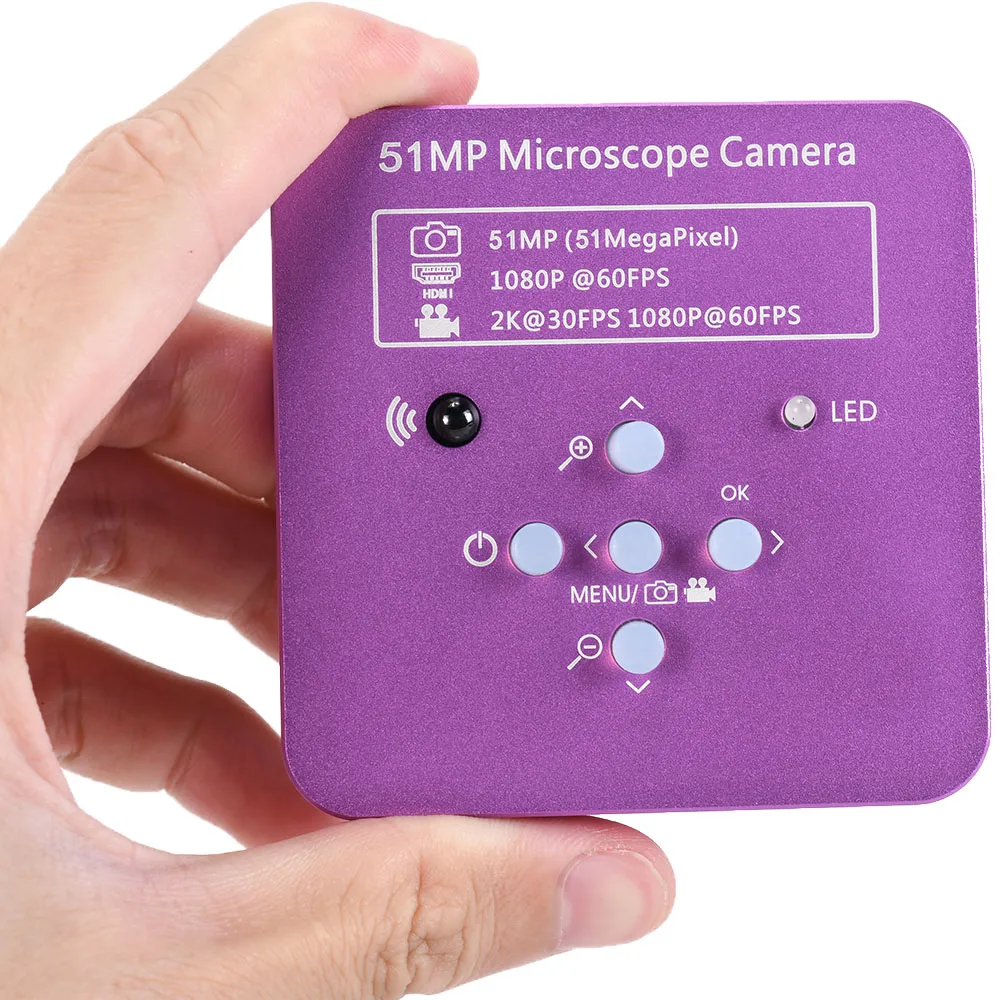

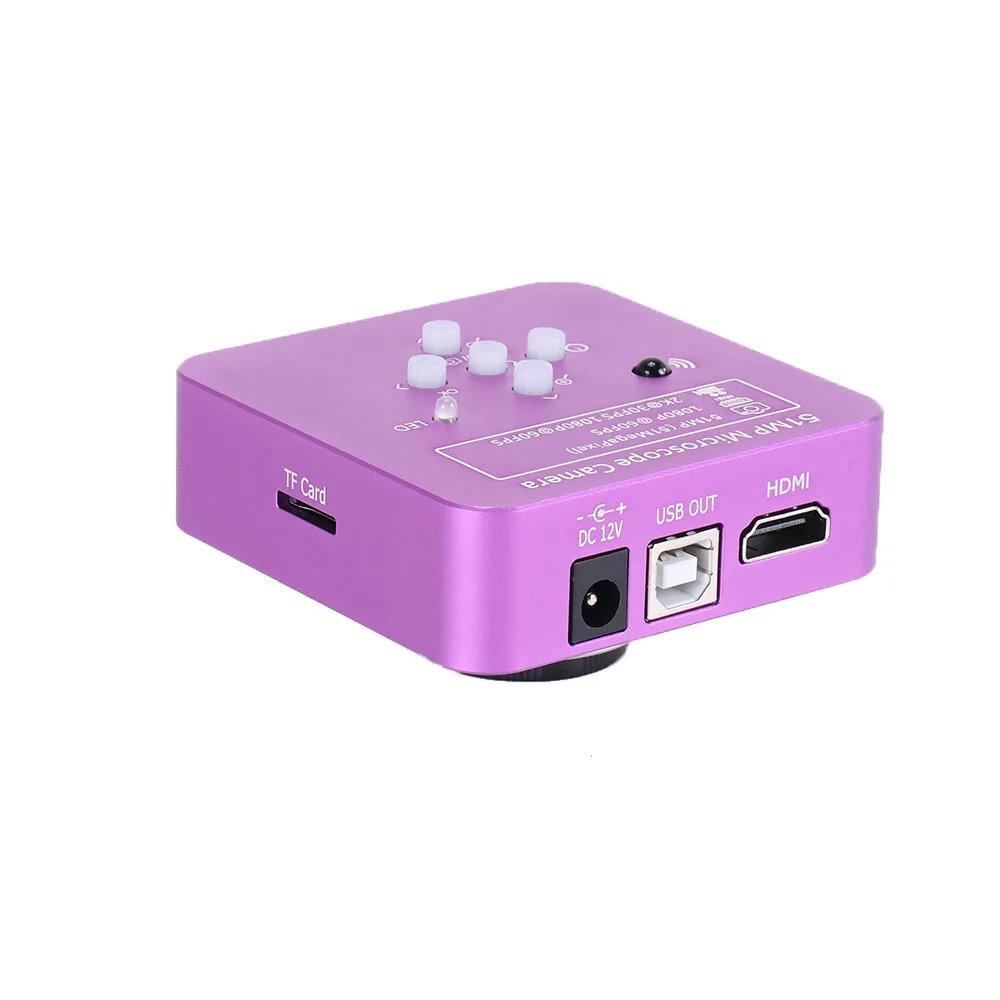

Camera's Features:

Sensor Panasonic:51 ,51 million pixels CMOS

Optical format:1/2.3 inch

pixel size:1.335μm x1.335μm

Interface:HDMI(Type A).USB(Type B).TF Card

HDMI Image resolution:51 MegaPixel

Video record resolution:2K@30FPS 1080p@60FPS

HDMI resoltion:1920*1080p 60FPS

Can output with USB at the same time

HDMI scale:Support 4:3,16:9,16:10 screen

USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS

TF card:MAX 128GB

AWB:WB color correction/Auto/Manual

R.G.B value setting independent

Exposure:Auto/Manual.AE value can set

Cross lines:8lines.Can set color& width& position

Scale mark lines:2lines.

Dotted lines:2lines.Can set color& width& position

Sharpness Contrast Color gain:Support

Mono Negative:Support

Mirror:Horizontal vertical mirror

Language:English/simplified Chinese

Digital Zoom:Support

IR remoter:Support

Voltage in:DC 12V 55-21mm size

Power consumption:MAX 0.15W  12V,0.12A

Lens interface:C/CS

Net weight:180g

Gross weight:400g

Camera size:70*70*35mm

Packaging size:160*100*80mm

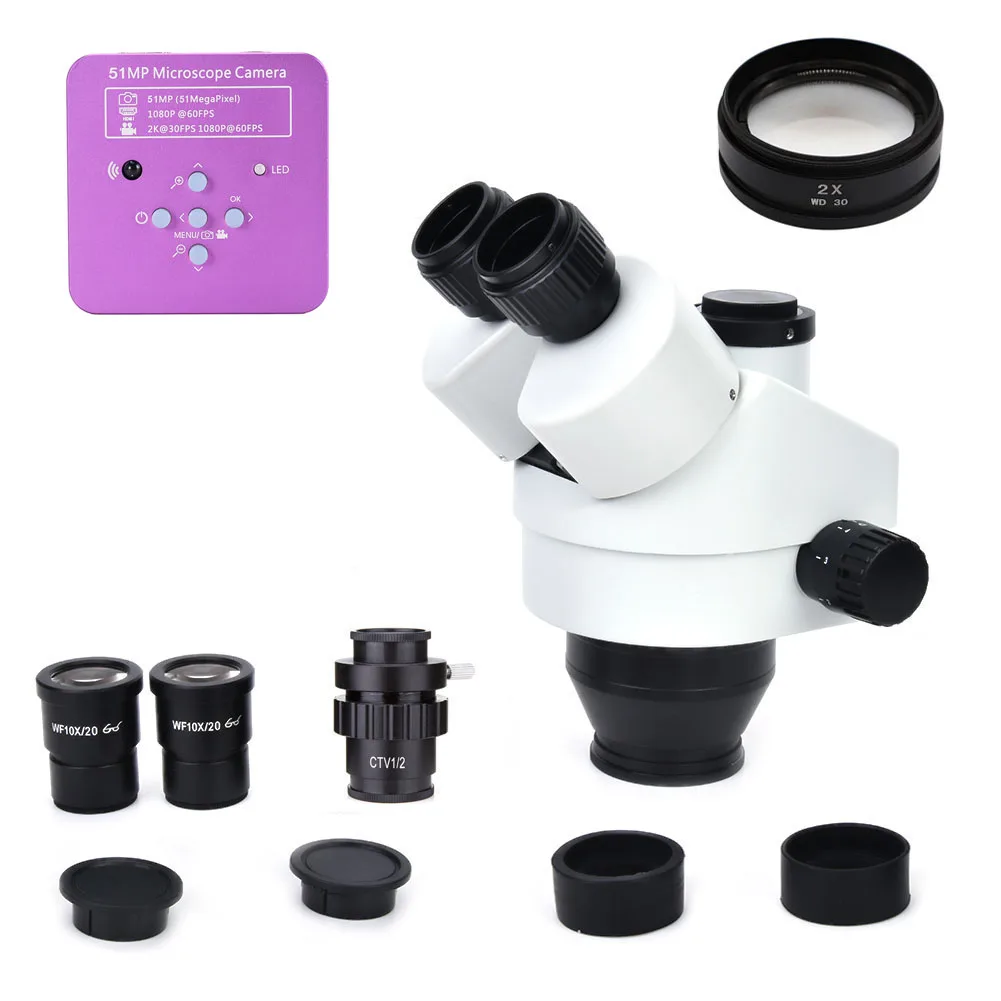

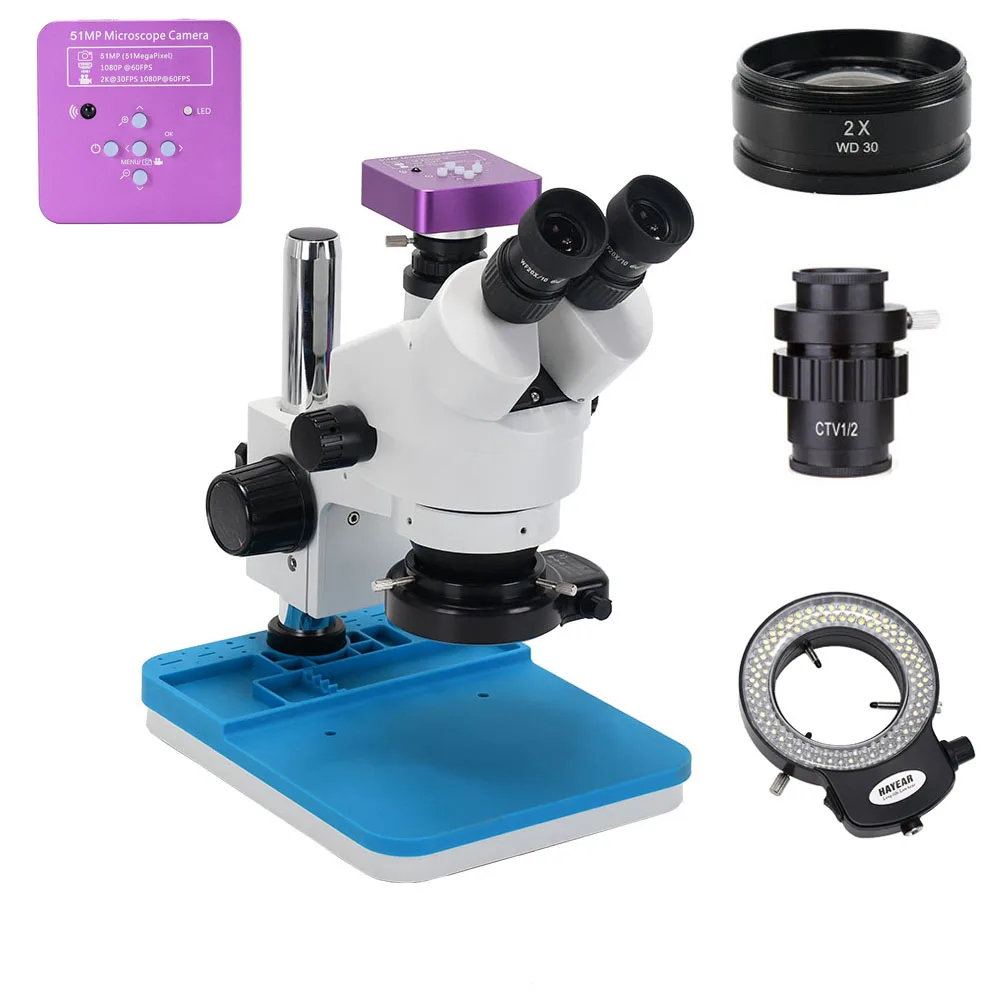

Package incluede:

1 x Trinocular Stereo Zoom Head

1 x 51MP camera

1 x Pair of Super WF 10X20mm Eyepieces

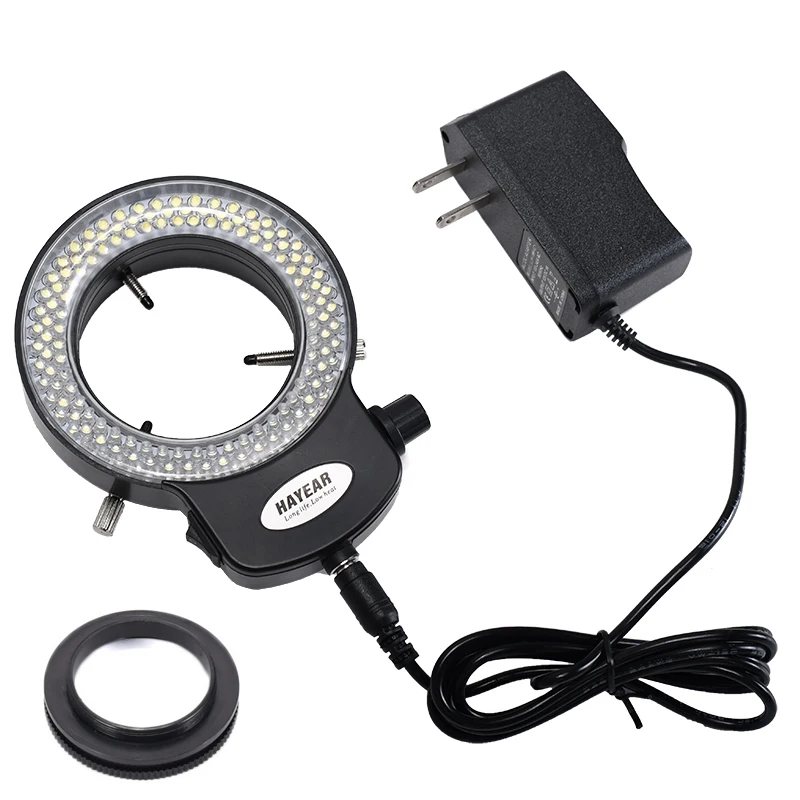

1 x 144-LED Ring Light with Adapter

1 x Pillar Table Stand

1 x Focusing Rack

1 x Pair of Eye-Guards

1 x Pair of Clips

1 x Dust Cover

1 x 1/2 C-mount Adapter

1 x 2X objective Lens

Questions Solutions:

LCD no video or flicker

1.Check power supply. Check red LED be onlight. Press PowerKey to Up it.

2.Check lens cover. Increase the lighting.

LCD have black bar Image warp

1.change resolution of LCD

2.change resolution of camera

Have dirty spot

1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser
