LPG atomization spray dryer for dry powder of instant coffee milk banana honey
- Категория: >>>
- Поставщик: Liaoyang Xianglong Pharmaceutical Machinery Co. Ltd.
Сохранить в закладки 1600277869544:
Описание и отзывы
Характеристики
Product Description

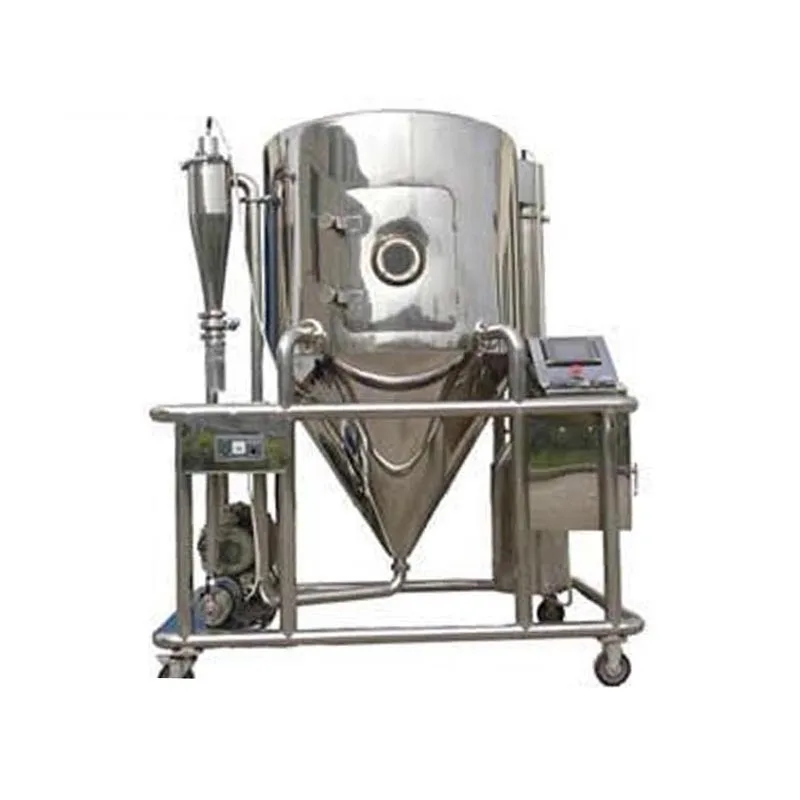

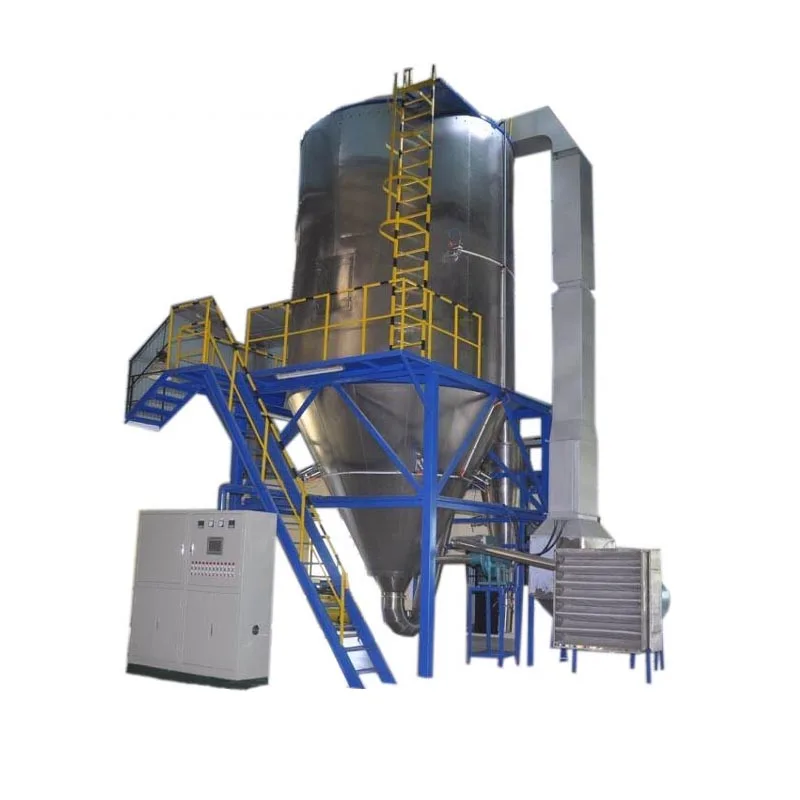

LPG Series High Speed Centrifugal Spray Drier
The spray drying is the technology widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing the powder, particle or block solid products from the materials, such as: solution, emulsion, soliquoid and pumpable paste states. For this reason, when the particle size and distribution of the final products, their residual water contents, the stacking density and the particle shape must meet the precision standard, the spray drying is one of the most desired technologies.
Principles
Spiral-shaped hot air evenly into the drying chamber. By passing through the high-speed centrifugal spray at the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Through the very short time of contacting the heat air,the materials can be dried into the finished products. The finished products will separator. The waste gas will be discharged from blower.

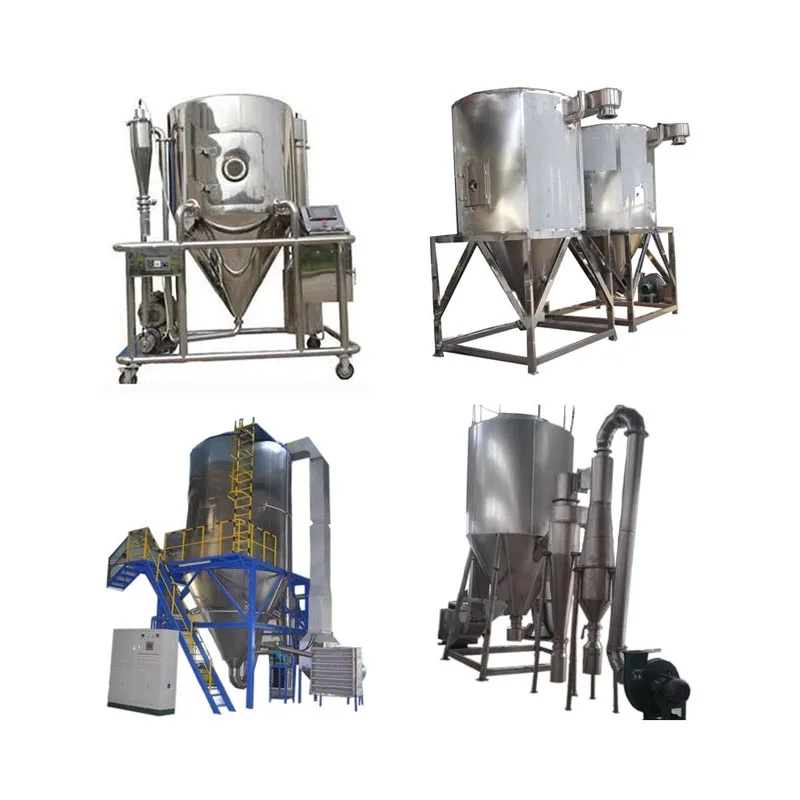

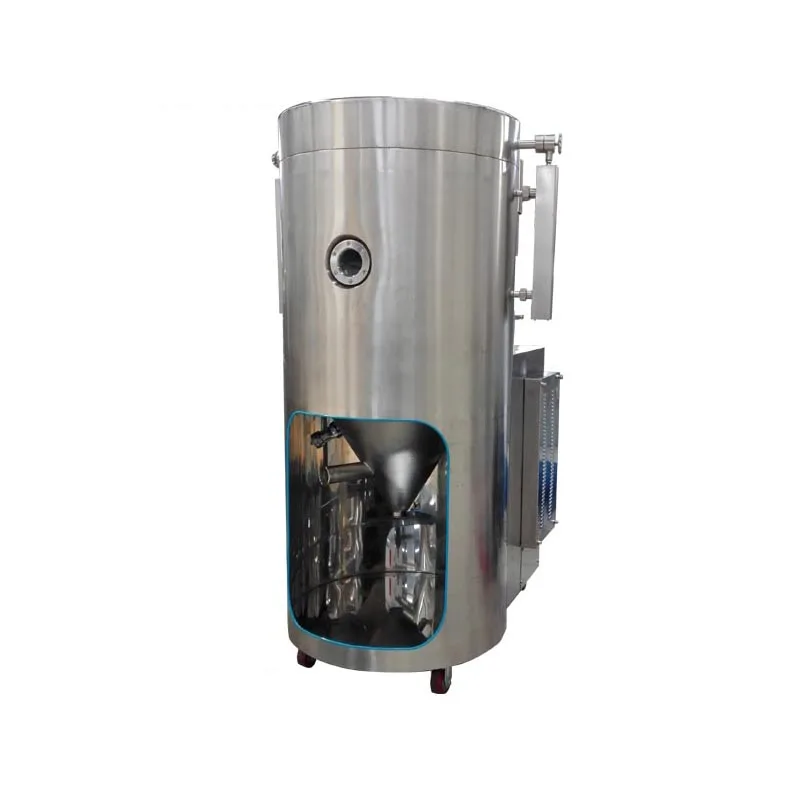

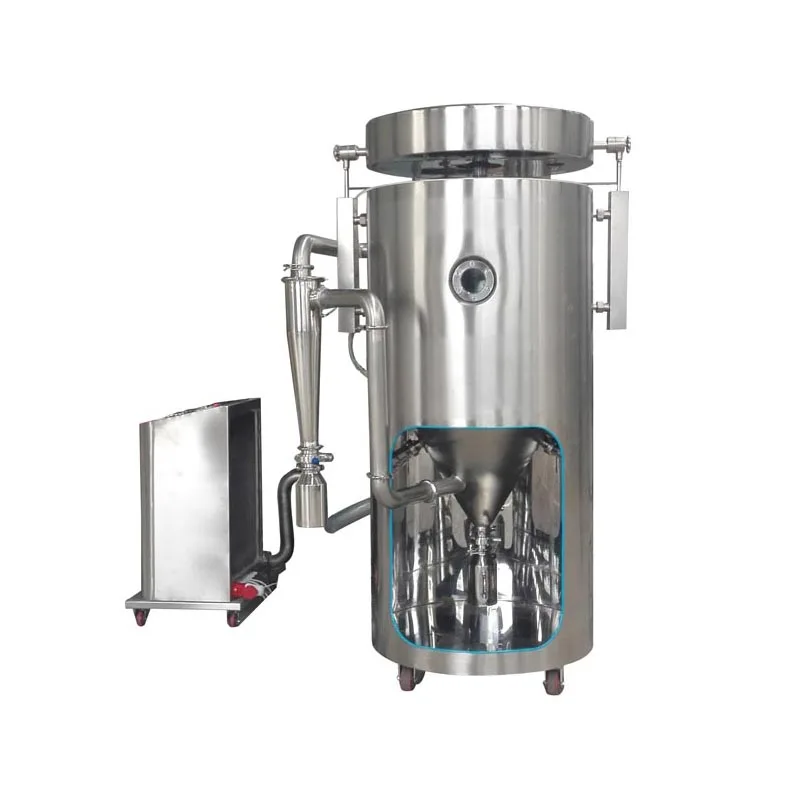

Details Images
Features：
At a high speed of drying, after the spraying of the liquid material , the surface area of the material will be increased greatly. In the hot-air flow, 95%-98%of water can be evaporated at a moment. The time of completing the drying needs only several seconds.
Products with good uniformity, mobility and solubility, high purity, good quality.
The production procedures are simple and the operation and control are easy. The liquid with the moisture contents 40-60%(for special materials, The contents may reach 90%).can be dried into the powder or particle products once a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity.
The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out the control and management.
Technical parameters
Type Parameter Item | LPG | ||||||||||
5 | 25 | 50 | 100 | 150 | 200-2000 | ||||||
Inlet temperature(°C) | 140-350 automatically controlled | ||||||||||
Outlet temperature(°C) | 80-90 | ||||||||||
Max.water evaporation capacity(kg/h) | 5 | 25 | 50 | 100 | 150 | 200-2000 | |||||
Way of atomizing | Compressed air transmission | Mechanical transmission | |||||||||
Rotation speed(rpm) | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 | |||||
Diameter of atomizing tray(mm) | 50 | 100 | 120 | 140 | 150 | 180-340 | |||||
Heat supply | Electricity | Electricity+ steam | Electricity+steam, fuel oil and gas | Settled by users themselves | |||||||
Max Electric heating power(kw) | 9 | 36 | 63 | 81 | 99 | ||||||
L*W*H(m) | 1.8*0.93*2.2 | 3*2.7*4.26 | 3.7*3.2*5.1 | 4.6*4.2*6 | 5.5*4.5*7 | Decided according to be concrete conditions | |||||
Dried powder restoring rate(%) | ≥95 | ||||||||||
Related products
Our Company
FAQ
Q1: Are you a manufacturer or a trader?
A: As a professional manufacturer, we have our own factory, and if a customer has reasonable demand, out machine can be customized.
Q2: How do you ensure the machine quality?
A: As a professional manufacturer of pharmaceutical devices for more than 15years, with strict management, advanced
processing technologies and professional workers, we are confident for our machines quality. And before any
machine is delivered, will be carefully tested.
Q3: How can I trust you for the first cooperation?
A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS &
ISO certification, and we are a senior member in Alibaba international platform (more than 12years). For the first deal between us, the Alibaba's Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.
Q4: How do I place an order, and how is it completed?
A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:
1. Both of parties sign on a contract, and then the seller prepare the PI.
2. The buyer arranges the down payment.
3. The seller prepares the machines.
4. After the machine is completed, have the test & trial run.
5. Before the delivery, if the buyer requires, have the necessary inspecting.
6. As per the contract/ PI amount, the buyer balances the payment.
7. The machine is going to be shipped.
8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
