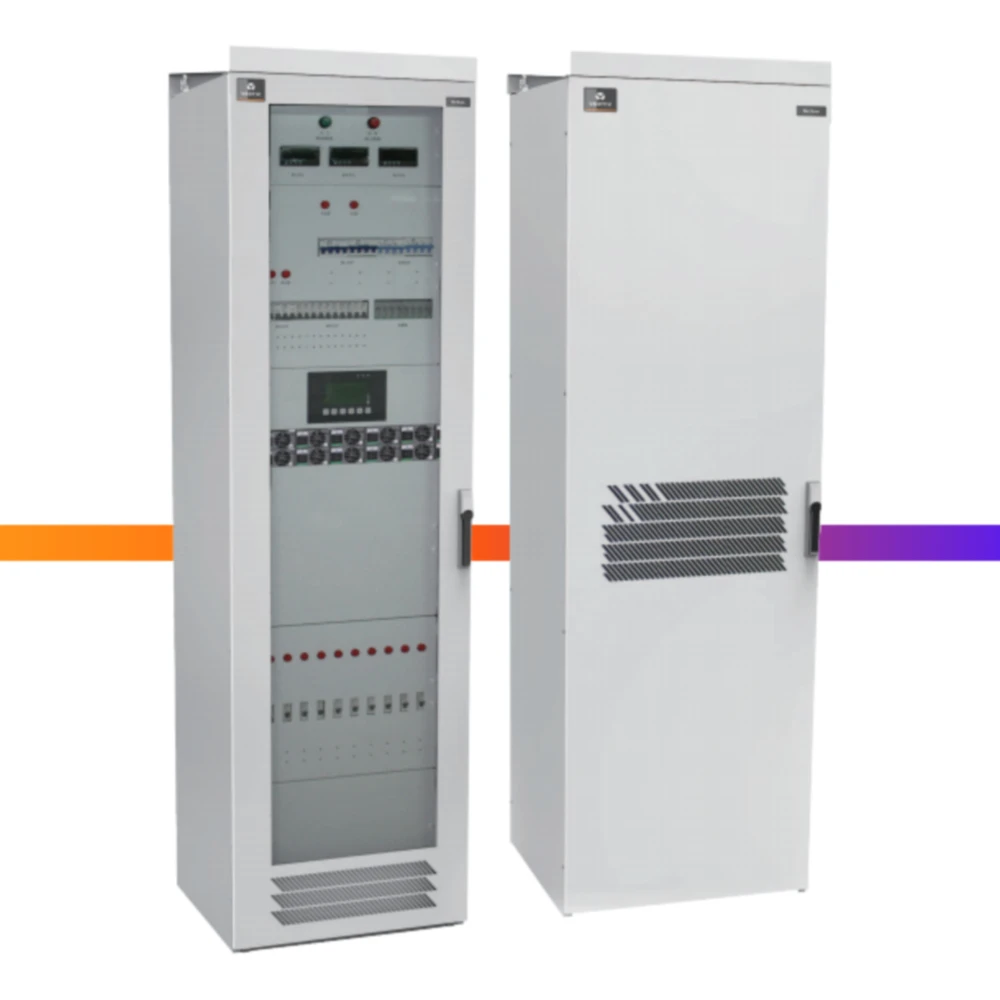

Netsure 531 CAA series combined communication power supply system
- Категория: >>>
- Поставщик: Beijing Dingding Future Technology Co. Ltd.
Сохранить в закладки 1600278187374:
Описание и отзывы
Характеристики
Specification

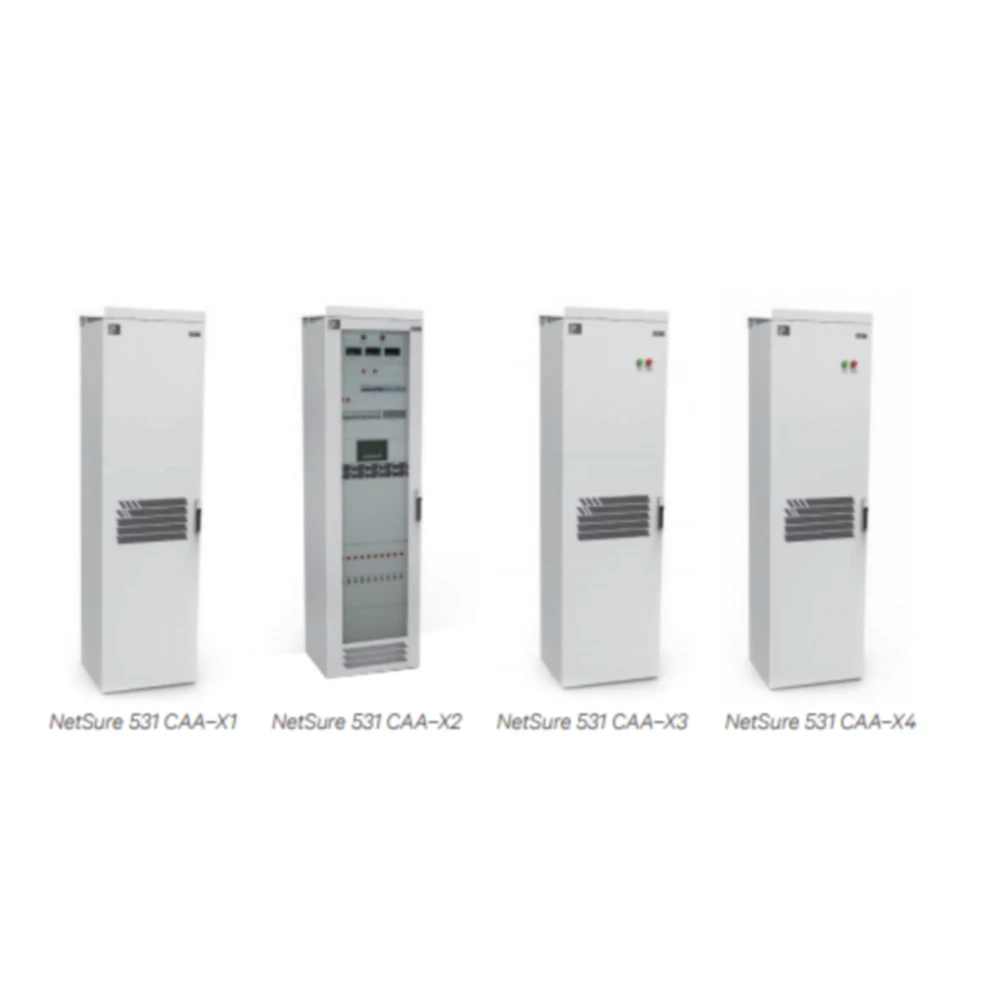

Product configuration model
Configuration type | NetSure531 CAA-X1/X2 | NetSure 531 CAA-X3 | NetSure 531 CAA-X4 |
system capacity | 300A | 300A | 120A |
Monitoring module | M520S（RS232 Interface） | M520S（RS232 Interface） | M520S（RS232 Interface） |
Rectifier module | 30A(R48-2000A3、R48-2000e3 | 30A(R48-2000A3、R48-2000e3 | 30A(R48-2000A3、R48-2000e3 |
AC power distribution | Input: 2 × 63A / 4P (circuit breaker), automatic switching | Input: 2 × 100A / 4P (circuit breaker), automatic switching | Input: 2 × 63A / 2p (circuit breaker), automatic switching |
Outlet: 1 × 16A / 3P, 2 ×16A / 1p (circuit breaker) | Output: 1 × 63A / 3P, 1 × 50A / 1P 1 × 16A / 3P, 2 × 16A / 1p (circuit breaker) | Output: 1 × 50A / 1p, 1 × 32A / 1p 2 × 16A / 1p (circuit breaker) | |
AC lightning protection | Level C | Level C | Level C |
DC distribution | Battery shunt: 2 × 250A (fuse)Battery power down: 2 × 250A (fuse), 4 × 63A / 1p 3 × 32A / 1p | Battery shunt: 2 × 250A (fuse) Battery power down: 2 × 100A (fuse), 2 × 63A / 1p 2×50A/1P、10×32A/1P、4×16A/1P、 3 × 10A / 1p, 3 × 6A / 1p (circuit breaker) | Battery shunt: 2 × 100A (fuse) Battery power down: 2 × 63A / 1p, 6 × 32A / 1p, 4 × 16A / 1p 4 × 10A / 1p, 2 × 6A / 1p (circuit breaker) |
DC lightning protection | ≥10kA | ≥10kA | ≥10kA |
Protection level | IP20 | IP20 | IP20 |
Mechanical parameters | 600mm（wide）×600mm（deep）×2200mm（high， Excluding 60mm high lintel） ，≤200kg（Module free） ， EG110（RAL7035） | 600mm（wide）×600mm（deep）×2200mm（high， Excluding 60mm high lintel） ，≤200kg（Module free） ， EG115（Pantone 428C） | 600mm（wide）×600mm（deep）×2200mm（high， Excluding 60mm high lintel） ，≤200kg（Module free） ， EG115（Pantone 428C） |
Reserved space | nothing | nothing | Three layer battery compartment,498mm (W) × 548mm (d) × 298mm (H) for each layer |

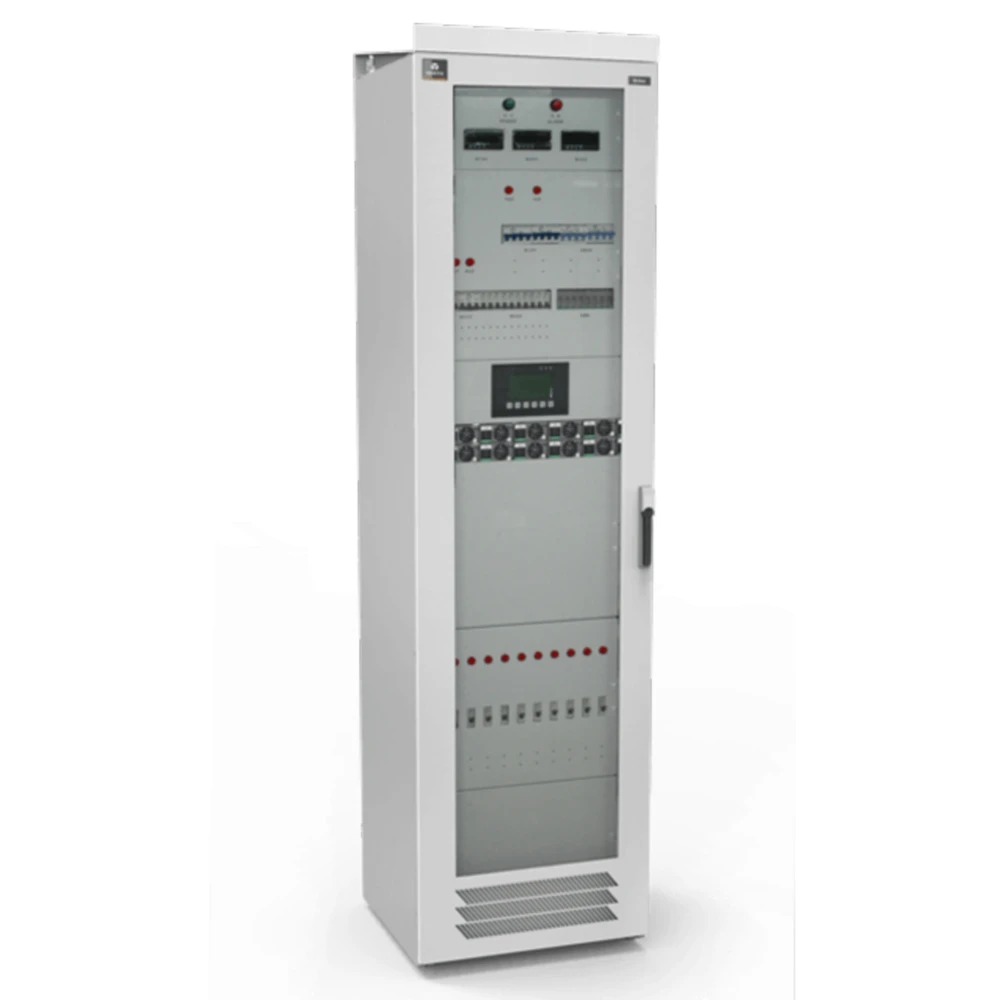

Remarks | Special for power industry X1 front door is iron door, X2 front door is glass door | Special for railway industry front door is iron door | Special for railway industry Type X4 front door is iron door |
Electrical parameters
Power supply system
Power supply system
performance parameter | describe |
working temperature | -40 ℃ ~ + 75 ℃ (derating above 50 ℃) |
-40℃～ +75℃ | |
Storage temperature | 5％ RH ～ 95％ RH（No condensation） |
High altitude storage temperature | No more than 4000m (derating is required for more than 2000m) |
Input voltage range | 80Vac ～ 300Vac |
Input frequency | 45Hz ～ 65Hz |
power factor | ≥0.99 |
Output voltage range | -42Vdc ～ -58Vdc |
system efficiency | Universal system > 92%, efficient system > 95% |
Rectifier module
performance parameter | R48-2000A3 | R48-2000e3 | |
input voltage | 80Vac ～ 300Vac | ||
power factor | ≥0.99 | ||
output voltage | 42 ～ 58Vdc | ||
Rated current | 30A | ||
Output current | 0 ～ 36A | 0 ～ 42A | |
Module efficiency | >93% | >96% | |
Product Description
Introduction
Veriv netsure 531 CAA system combined communication power supply system is a high reliability, high power density, high performance, full digital DC power supply system designed by veriv technology to meet the needs of the transportation and power industry. The system is equipped with iron door or glass door as standard, and AC and DC distribution cabinets can be selected.
use
Power, natural gas transmission and distribution, transportation
Product features and advantages
High reliability
Ultra wide working temperature range-40 ~ + 75 ℃ (derating above 50 ℃), strong environmental adaptability, suitable for various areas.
Wide voltage input range 80-300vac, super power grid and oil engine adaptability.
AC side, DC side, signal side all-round lightning protection design, improve the system lightning protection capacity.
It has the function of walk in to avoid the impact on the former transformer and oil engine during startup.
The special communication power supply system for power industry adopts the design of special fixed terminal wiring and shunt status indication, which is easy to operate and maintain.
The railway special communication power supply system is designed according to the railway industry standard.
High efficiency and energy saving
The efficiency of general efficiency module is more than 93%, and the efficiency of high efficiency module is more than 96%, saving the user's electricity expense.
The utility model has the patent technology of dormancy and high-efficiency universal module mixed insertion energy-saving, which improves the operation efficiency.
It has intelligent speed regulation function of fan, reduces system loss and prolongs service life of fan.
Intellectualization
With RS232 interface, network port (optional) and intelligent dry contact, networking
Flexible.
5-inch large LCD display, friendly human-machine interface, convenient operation and maintenance.
Perfect battery management function, effectively extend the service life of battery.
Easy to use
Full front maintenance design.
The rectifier module is lossless and hot swappable, which can be maintained online and convenient.
The rectifier module has an independent ID identification function, which is convenient for user's asset management.
The power density of the rectifier module is as high as 38 w / inch 3, and more wiring and operation space are reserved.
Veriv netsure 531 CAA system combined communication power supply system is a high reliability, high power density, high performance, full digital DC power supply system designed by veriv technology to meet the needs of the transportation and power industry. The system is equipped with iron door or glass door as standard, and AC and DC distribution cabinets can be selected.
use
Power, natural gas transmission and distribution, transportation
Product features and advantages
High reliability
Ultra wide working temperature range-40 ~ + 75 ℃ (derating above 50 ℃), strong environmental adaptability, suitable for various areas.
Wide voltage input range 80-300vac, super power grid and oil engine adaptability.
AC side, DC side, signal side all-round lightning protection design, improve the system lightning protection capacity.
It has the function of walk in to avoid the impact on the former transformer and oil engine during startup.
The special communication power supply system for power industry adopts the design of special fixed terminal wiring and shunt status indication, which is easy to operate and maintain.
The railway special communication power supply system is designed according to the railway industry standard.
High efficiency and energy saving
The efficiency of general efficiency module is more than 93%, and the efficiency of high efficiency module is more than 96%, saving the user's electricity expense.
The utility model has the patent technology of dormancy and high-efficiency universal module mixed insertion energy-saving, which improves the operation efficiency.
It has intelligent speed regulation function of fan, reduces system loss and prolongs service life of fan.
Intellectualization
With RS232 interface, network port (optional) and intelligent dry contact, networking
Flexible.
5-inch large LCD display, friendly human-machine interface, convenient operation and maintenance.
Perfect battery management function, effectively extend the service life of battery.
Easy to use
Full front maintenance design.
The rectifier module is lossless and hot swappable, which can be maintained online and convenient.
The rectifier module has an independent ID identification function, which is convenient for user's asset management.
The power density of the rectifier module is as high as 38 w / inch 3, and more wiring and operation space are reserved.
Cooperated Supplier and Clinets
Packing & Delivery
1 Several kinds of delivery be provided to save most for clients
2 We respect clients to use their forwarders
3 All package based on international delivery. don't worry about the package. We will make sure it is strong enough.
FAQ
Q1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers.
We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.
Q4.When can I get a price？
We usually quote within 24 hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a trading company cooperated with several brands .
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers.
We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.
Q4.When can I get a price？
We usually quote within 24 hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a trading company cooperated with several brands .
Q6 The materials are brand new or used one, Original ?
We sell brand new items and assured them original from manufacturer.
Contact Us
Похожие товары

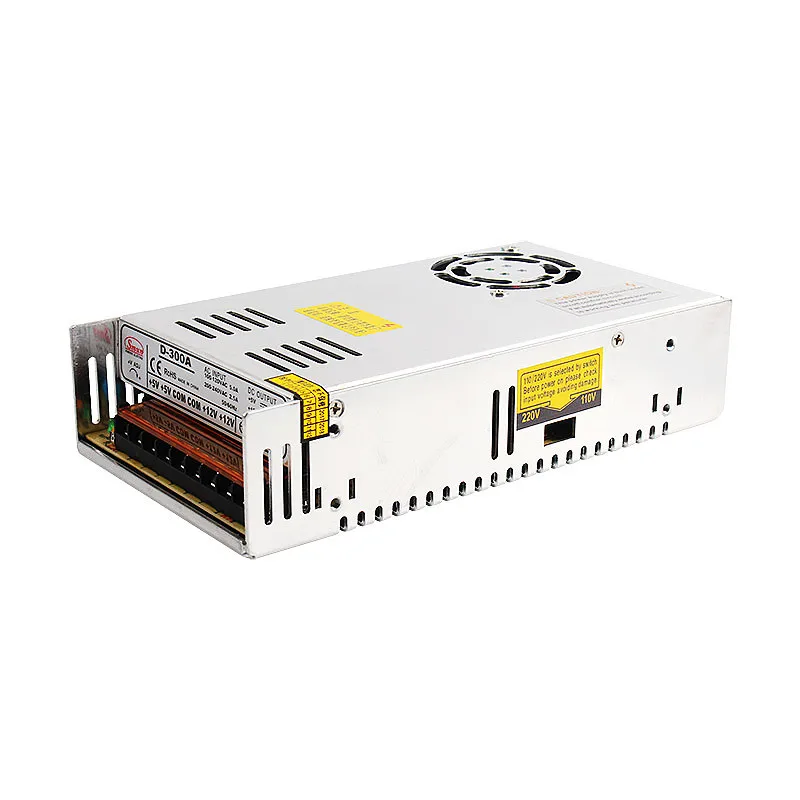

D-300A 300W 5V 25A/12V 15A двойной выход 300W импульсный источник питания светодиодного табло
18,50 $ - 20,00 $
HWS15005 IND 5V 300A 1500W AC/DC converter power supply

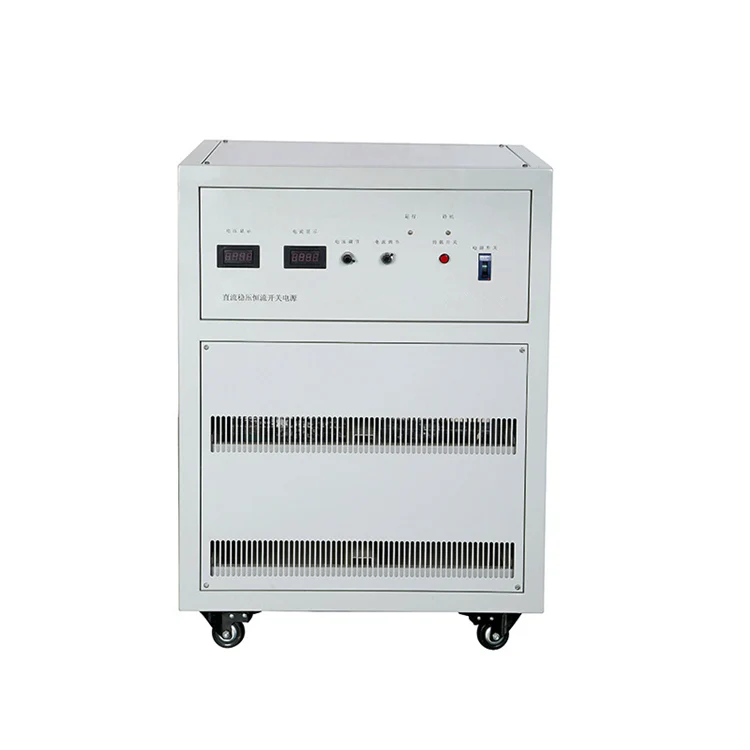

Источник питания постоянного тока 300V300A 90 кВт, стабилизированный переменный импульсный источник питания постоянного тока для нестандартного индивидуального заказа

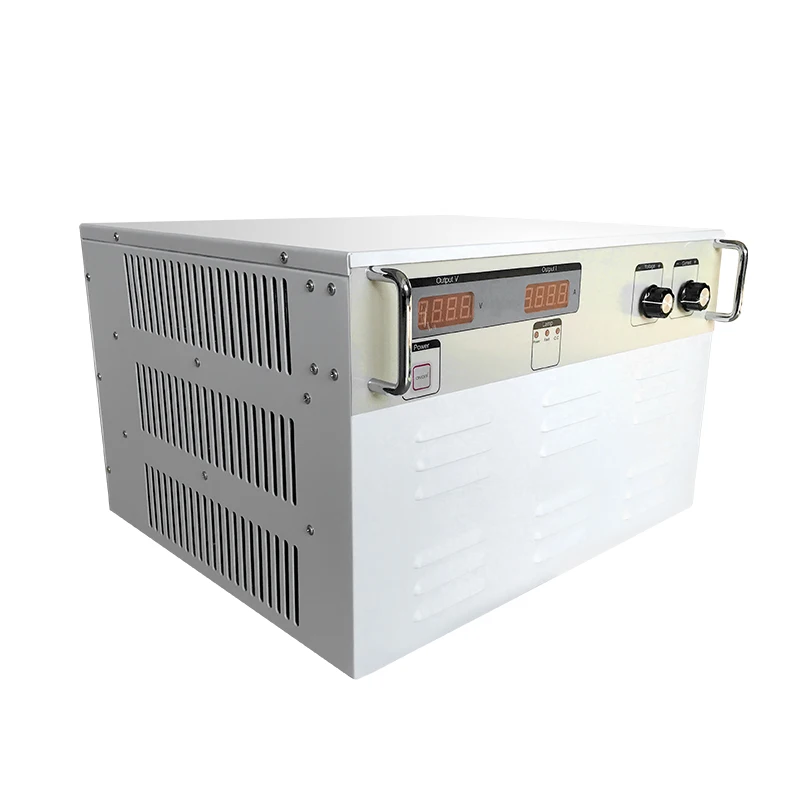

30V300A Регулируемый высокомощный источник постоянного тока с регулируемым источником питания 6000 Вт
1 400,00 $ - 1 480,00 $

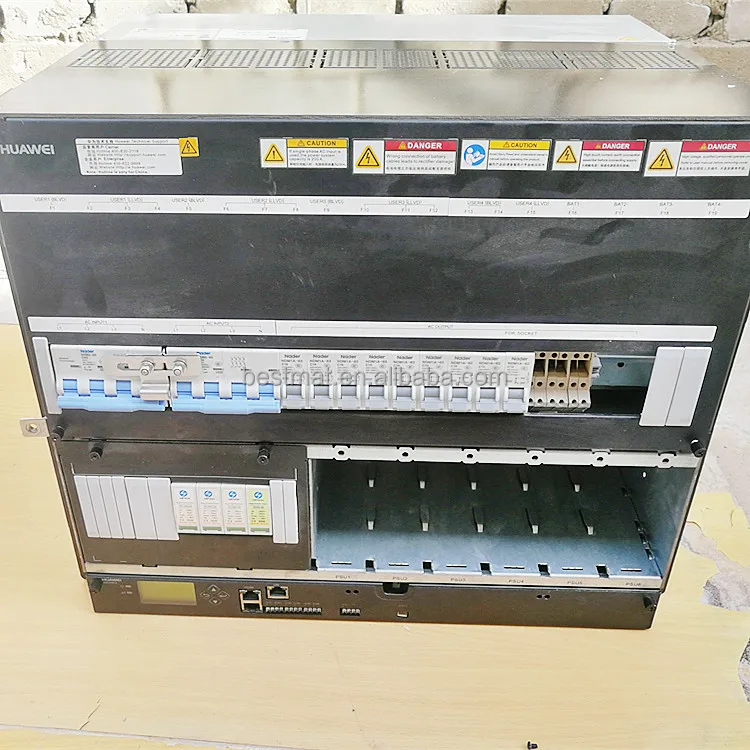

Оптом и продажи, оригинальные питание от сети переменного тока/постоянного тока 48V Встроенный Power System ETP48300-C9A3 питания
522,00 $ - 660,00 $
В наличии на складе AC-DC переключение 100A 200A 300A 400A 600A импульсивный источник питания 12 В источник питания для светодиодных экранов
3,50 $ - 4,90 $

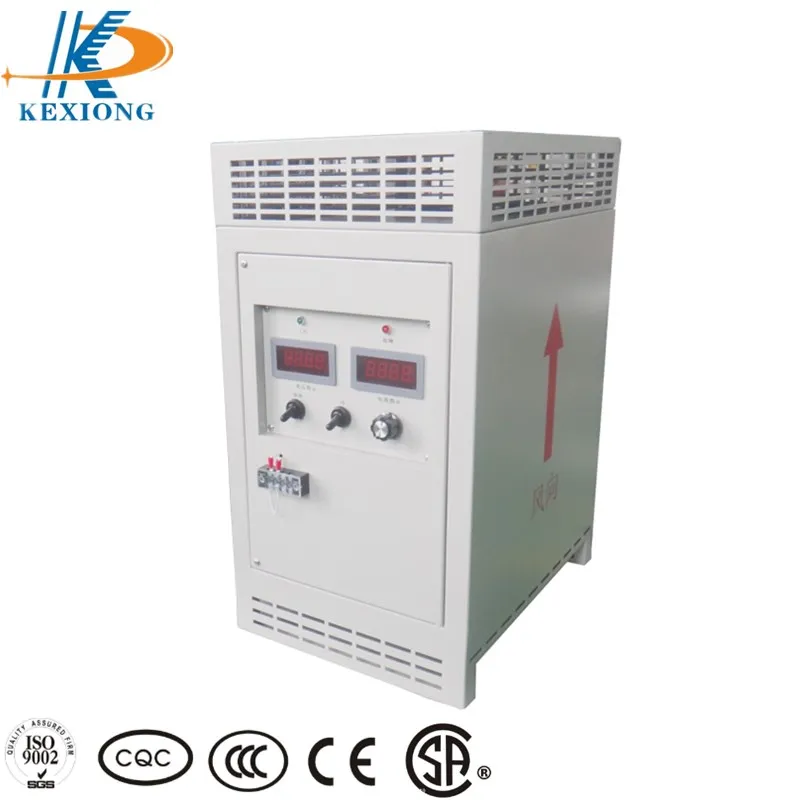

Выпрямители с воздушным охлаждением 12 в 300 А, источник питания постоянного тока
