Songhu многоцветные ABS PLA нити Экструзионная линия 3d печати экструдер машина

1.Produce process
1)Before production,we will dry ABS or PLA raw material granule for about 40minutes-1hour;
2)Mixed with colors masterbatch or colors powder;
3)Adjust temperature and dragging rate,make filament diameter range at 1.6-1.8mm/2.8-3.0mm,roundness +/-0.05mm,each spool net weight 1kg +/-0.02kg.

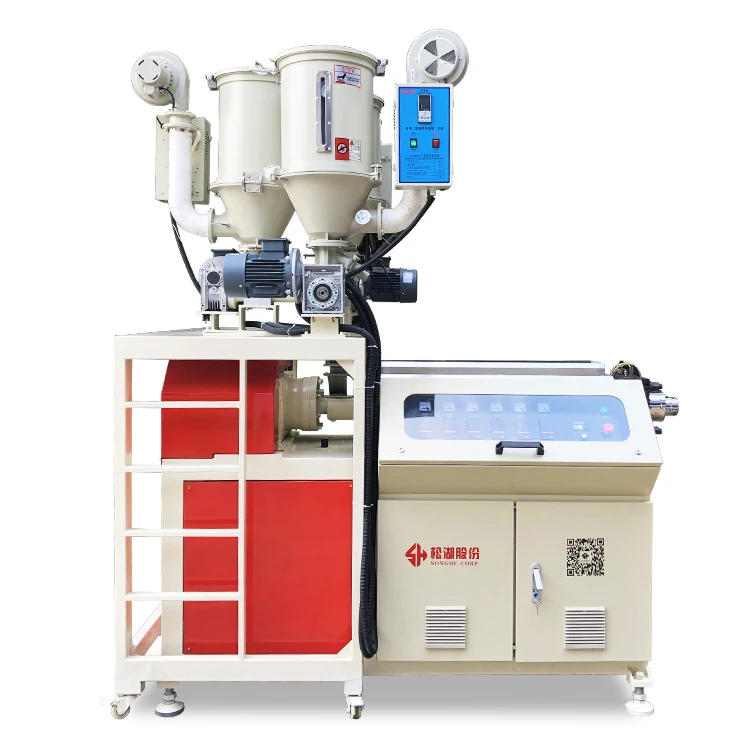

 1. Machine Part: Single screw extruder
-----Screw
------Diameter:Φ45mm
------L/D=28:1
------Material of screw: 38CrMoALA
-----Barrel
------Material:38CrMoALA
------Barrel inner-surface treatment
-----Heating zone and power: 3 zones, 2.2kw/zone
-----Driving motor: AC variable,delta inverter

2. Machine Part: Die head
------Material 38CrMoALA,inner surface with precision polishing after hard chrome plating
------Diameter:1.75mm and 3.0mm
------Mold heater:Stainless steel heater

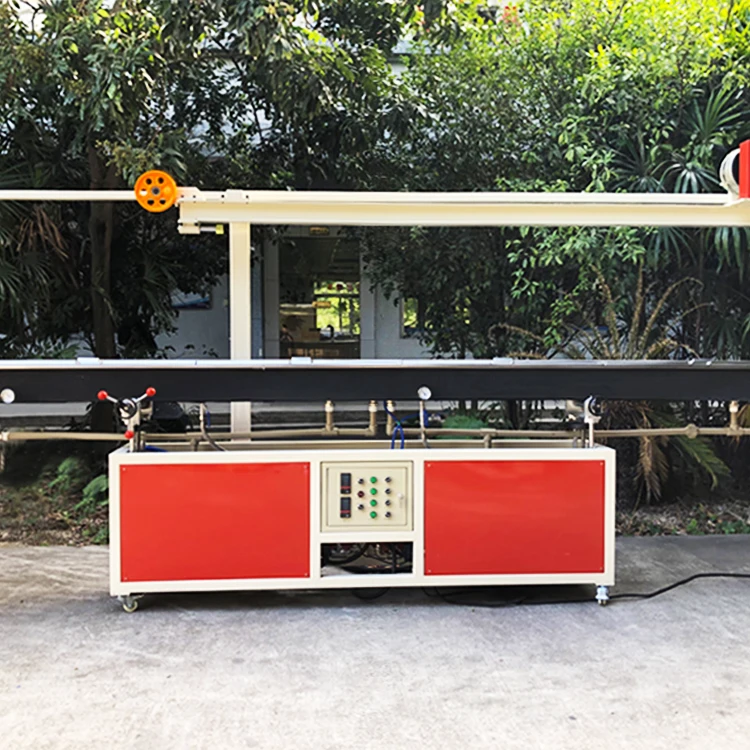

3. Machine Part: Water tanks
-----Hot water tank:
------4m.Material:S/S.
------Circulation water tank.
-----Cold water tank:
------2m.Material:S/S.
------Circulation water tank.
------Water inlet;1 1/2'',stainless steel stop valve
------Water outlet:1 1/2",stainless steel stop valve

4. Drying Devices

Drying the water after being through the water tank

5. Laser controller system: (measure range:0.1mm-10mm)

It's available for testing the round shape wire,and the accuracy is controlled within +/-0.02mm.

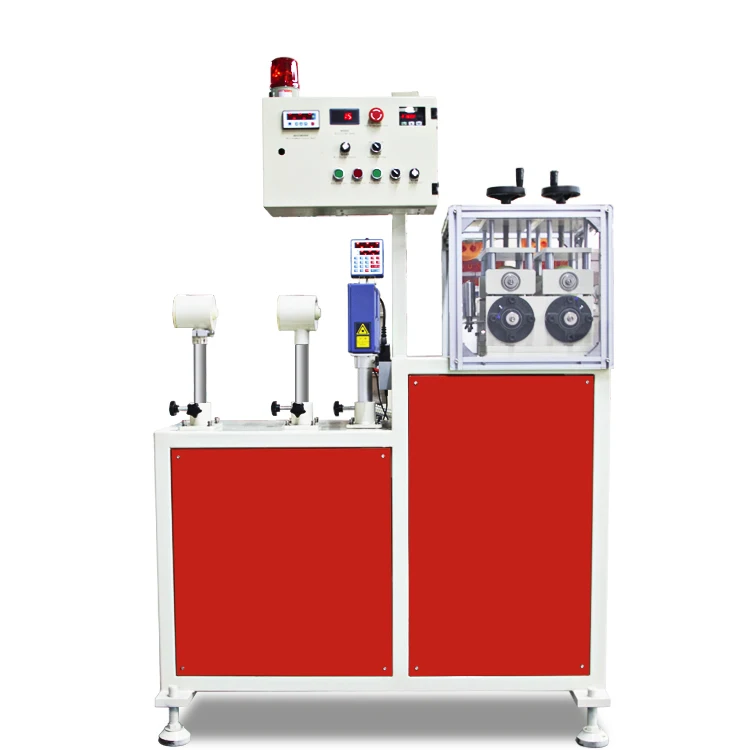

6. Machine part:4 wheels tractor machine
-----Four wheels
-----Rubber raw material
-----Driving Motor and Delta inverter

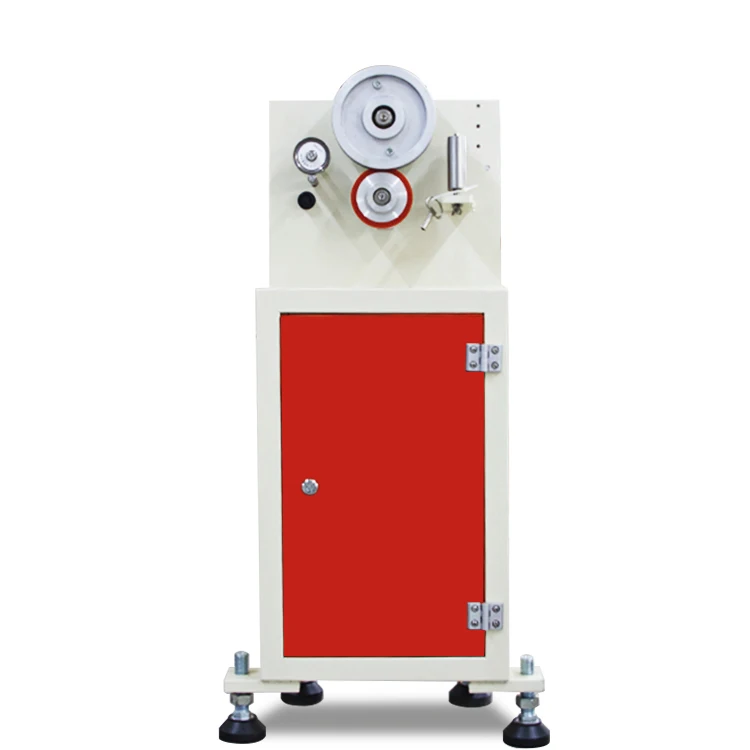

7.Storage Device(Motor control:0.75KW)
A special magnetic partice clutch to control tension,storing 100meters filament at least.It wins more time to change the spool,and effectively prevent the wire falling into the ground.

8. Automatic Metering Device

It calculates the length of finished filament before winding.

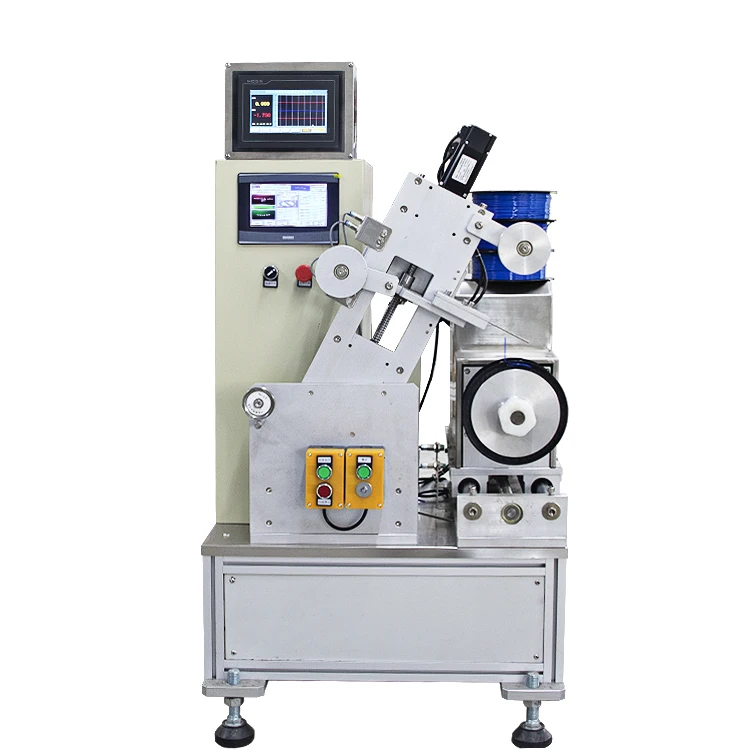

9. Auto winding machine(motor power:0.75kw)

Tension control device and automatic cable winding,to make sure all of our filament will be neatly winding.

Finished product display

    Dongguan Songhu Plastic Machinery Company is specialized in research , development and manufacture of plastic extrusion line. With more than ten years of experience, the plastic Tube Machinery made by our company has good production stability and dimensional decision and stability.
   Perfect technical training and after-sales service is provided for every client .

1.Pre-sale :we would make deep communication to learn about sample requirement and actual production in workshops so we can guarantee the specialty of our products

2.Producing:Clients and his relevant technicians are welcome to our factory to monitor and give guidance, we also send periodic reports to your company each week.

3.Before delivery:clients should come and confirm whether the our machine is qualified and give approval to delivery

4.After delivery:after the machine reach the destination,our assembly engineers will reach your company to install the machine and do relevant training and guidance.
