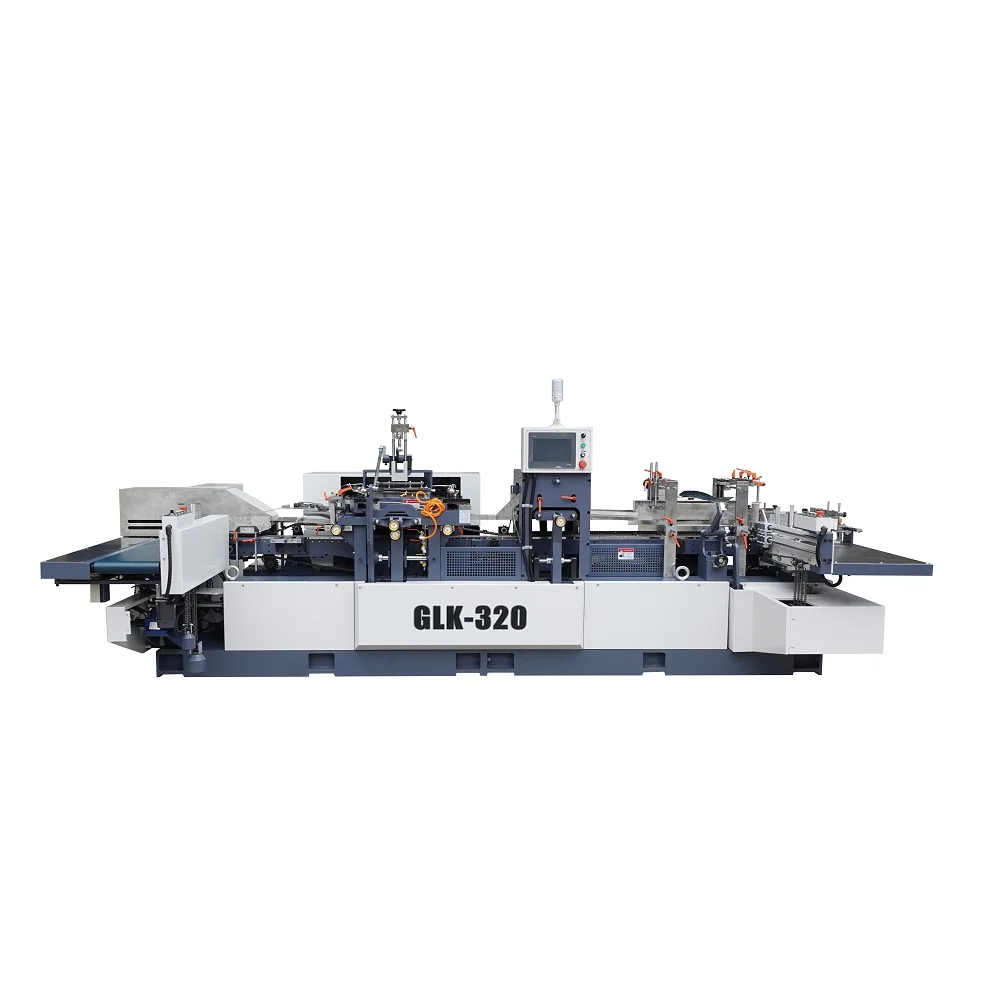

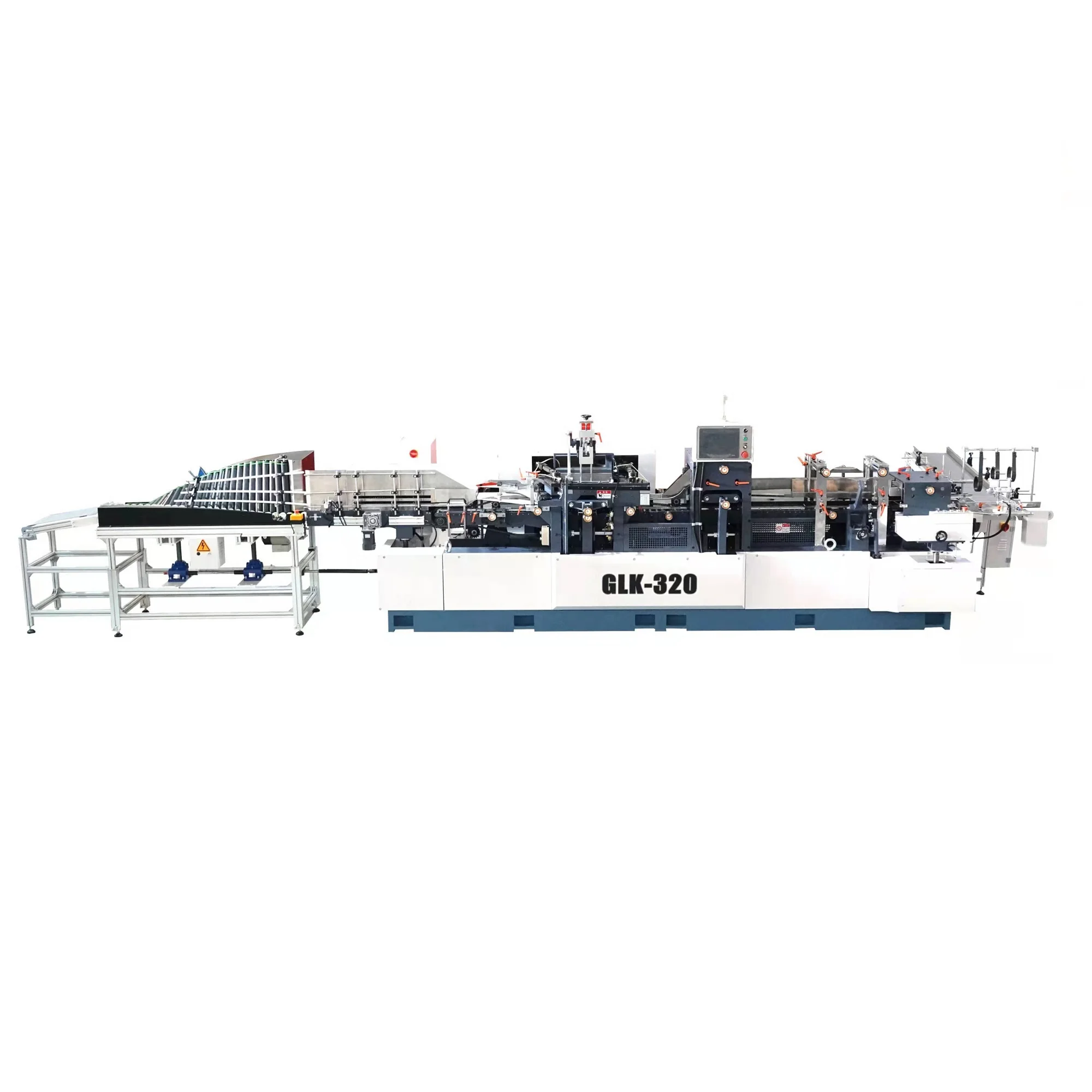

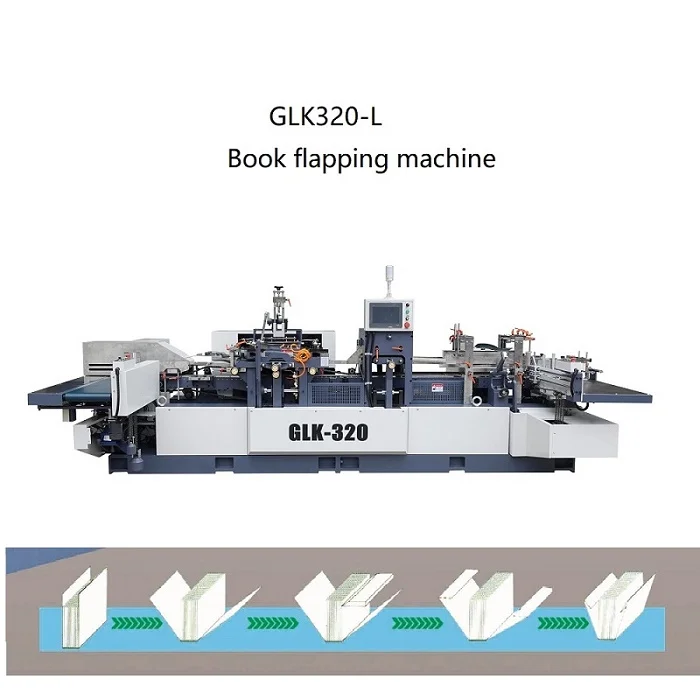

GLK320-L high speed book flap machine for book cover folding and front cutting

Application

GLK320  Book flap machine for designed mainly for boook cover folding, for soft book / softcover/paper bound/paperback book making.

GLK320 It is suit for print shop ,binding factory,the functions as following:

1.book front cutting /trimming,to trim the book block edge according to the book size,

2.book cover folding: book cover folding (book cover scoring&gate-folding)

so as to complete the book cover edge folding process,connect with book binding line and 3 knife trimmer.





Feature

1.GLK320 High Speed Book Cover Gate-Folding machine,use of Schneider Control System ,with more steady,reliable function.

2.it can reach the speed of 70times/min ,and easily combination with binding line.

3.complete the book trimming & book cover scoring ,folding work.

WORK:

Technical parameters

Max. Book size(mm)	320*240
Min.book size(mm)	130*94
Max.book thickness	50
Min.book thickness	6
Max.cover folding width	160
Min.cover folding width	40
Max.mechanical speed	70books/min
Power	5KW
Overall size(mm)	4600*1920*1600
Weight(KG)	3800



Electrical parts

Code name	Name	Type	Brand
QF1	breaker	OSMC32N3D32	Schneider
QF2	breaker	OSMC32N3D4	Schneider
QF3	breaker	OSMC32N1C6	Schneider
KM1	contactor	LC1D38M7C AC220V	Schneider
FR1	thermal relay	LRD06C 1-1.6A	Schneider
KA3-12	intermediate relay	RXM2LB2BD/RXZE1M2C	Schneider
KA1-KA2	power relay	RPM42BD/RPZF4	Schneider
EB1-EB3	Press button head	ZB2BS54C/ZB2BZ101C	Schneider
SA1-SA3	optional switch	ZB2BD2C/ZB2BZ101C	Schneider
SB1-SB3	Positive transfer button	ZB2BA3C/ZB2BZ101C	Schneider
SB4-SB5	Reverse point move button	ZB2BA1C /ZB2BZ101C	Schneider
TC	Switching Mode Power Supply	ABL2REM24020H	Schneider
PLC	programmable controller	TM218LDA40RN	Schneider
HMI	Programmable man-machine interface	HMIGX05502	Schneider
INV1	frequency transformer	ATV312HU55N4	Schneider
HL1	alarm light	XVGB2SM	Schneider
SB6-SB7	reset button	ZB2BA5C /ZB2BZ101C	Schneider
SQ1	Photoelectric switch	E3Z-T61 2M BY OMC	OMRON
DT	power switch	TDS40	TEND
SQ2	photoelectric switch	E3JK-DS30M1 2 BY OMC	OMRON

CE

Factory





ISO

Exhibition

 PACKAGE AND DELIVERY

  FAQ

  Q:when you delivery the machine?

  A: we have storck.we will delivery the machine once we get prepayment

  Q: What is the quality of your products?

  A: Our machine assembly by high quality accessory of well-known brand and with our perfect control system,to insure the machine  permanent stability .

  Q:How about the after sale service?

  A: You can send email or call us when have problem,also we will arrange our engineer make door-to-door service.
