Products Description

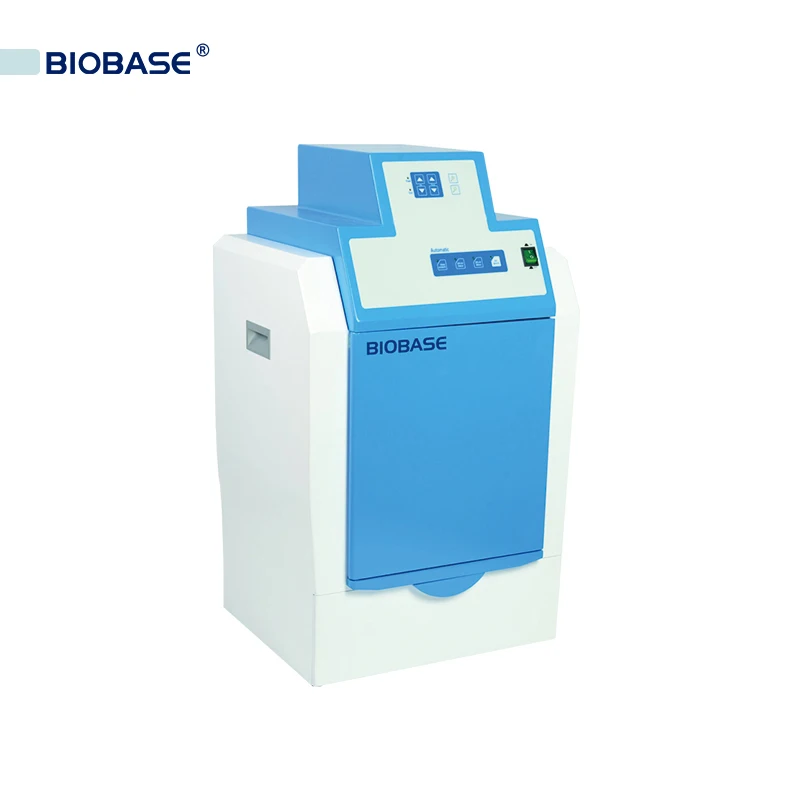

BIOBASE Gel Document Imaging System BK04S-3C/E
Gel Document Imaging System is used for gel band observation and analysis after electrophoresis run by using software technology and the band picture can be zoomed in or zoomed out according to user's requirements.
Features:
* Six time zoom lens and simple to enlarge and shrink gel photos
* A multi-layer gel-filter effectively filters background noise
* The gel can be placed in the center position by the indicator.

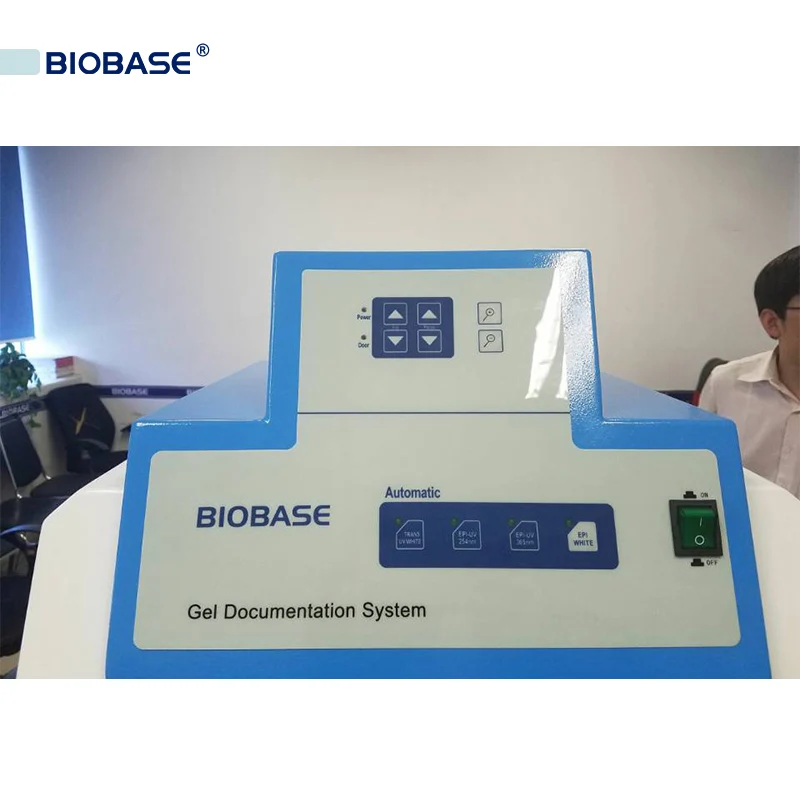

* Intelligent control box:
a. The zoon, focus, aperture, UV light and white light can be controlled through panel key and computer.
b. The UV light can shut down when the door is opened and reactivate when the door is shut
c. The UV light protection system can shut down the lights with 15 minute delay automatically.

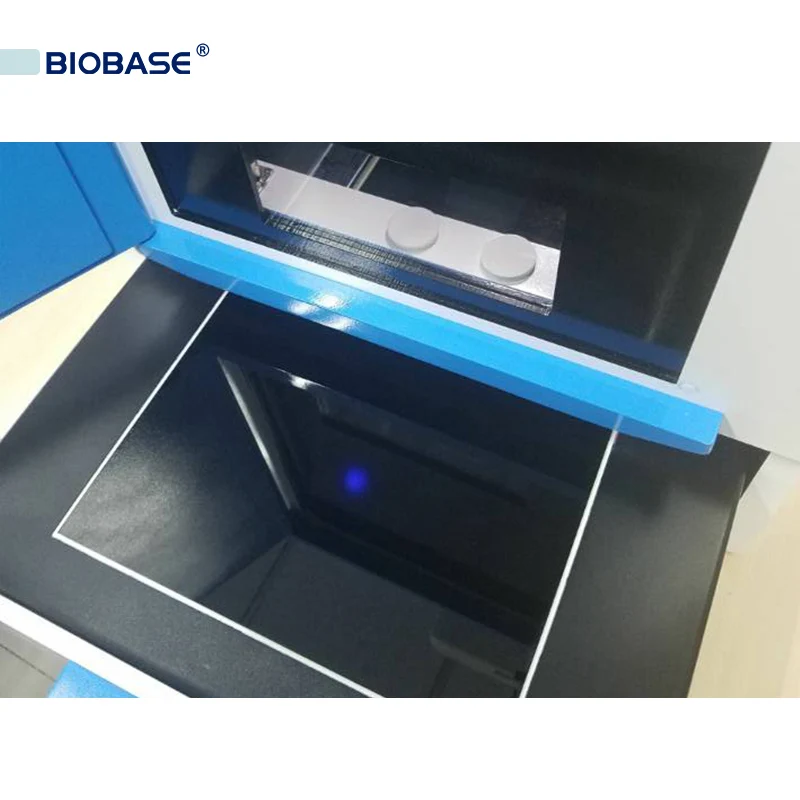

d. Drawer-style gel platform.
a. The zoon, focus, aperture, UV light and white light can be controlled through panel key and computer.
b. The UV light can shut down when the door is opened and reactivate when the door is shut
c. The UV light protection system can shut down the lights with 15 minute delay automatically.
d. Drawer-style gel platform.
Technical Specification
Product name | Gel Document Imaging System | ||
Model Number | BK04S-3C | BK04S-3E | |
Effective Pixels | 1280*1024 | 2560 *1920 | |
Pixel Density | 10 bit | ||
Pixel Size | 5.4*5.4μm | ||
Resolution | 1.4 megapixels | 5.0 megapixels | |
Signal To Noise Ratio | ≥56db | ||
Sensitivity | Can detect the double chain DNA of EB staining below 20pg | ||
Camera | Low illumination and high resolution digital CCD | ||
Zoom Lens | F=1:1.2,2/3 inch 6 times zoom lens | ||
Filter | 590nm | ||

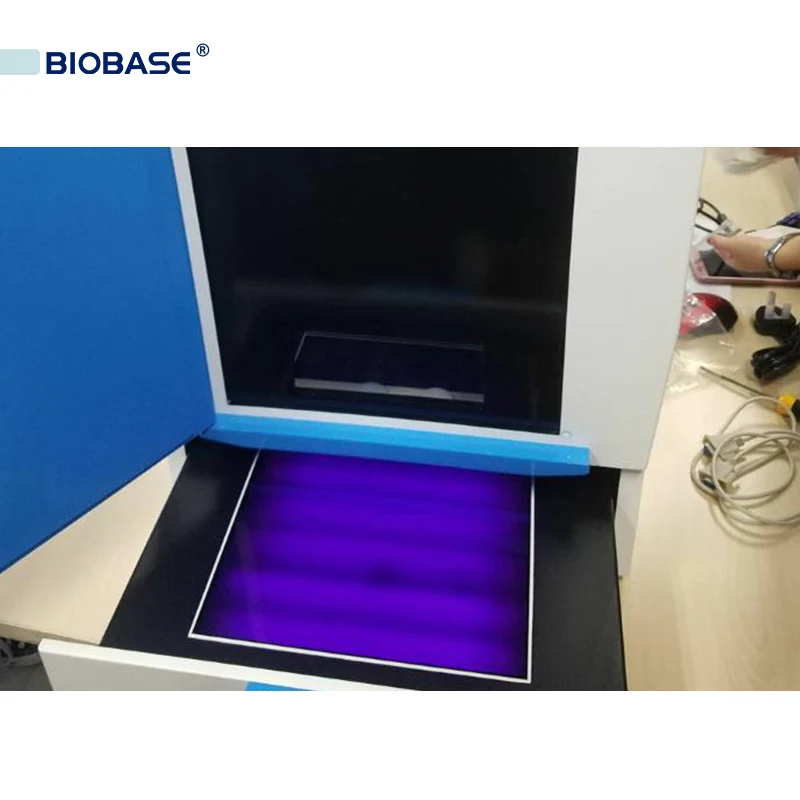

UV Light Transmission Area(W*L) | 250*200mm | ||
Visible Light Transmittance Area(W*L) | 250*210mm | ||
Transmission UV Wavelength | 302nm | ||
Reflectance UV Wavelength | 254, 365mm | ||
Transmission UV Lamp Power | 8W | ||
Reflectance UV lamp Power | 11W | ||
External Size(L*W*H) | 470*405*820mm | ||
Package Size(L*W*H) | Main machine:710*760*1390mm,Accessory:420*320*330mm | ||
Gross Weight | Main machine:61kg,Accessory:2.5kg | ||
Related Product
Laboratory equipment one-stop purchase service supplier.
Hot selling products recommended: biosafety cabinet, laminar flow cabinet, fume hood, autoclave, incubator, centrifuge, laboratory refrigerator and freezer, chemical safety storage cabinet, water purifier, chemistry analyzer and reagents, samples collection tubes, Nucleic Acid extraction system and extraction kits.
Company Profile
Catalog Of BIOBASE China！！
Incubator and Oven: co2 constant-temperature Climate shaking medicine-stabilityCold Chain Products:laboratory freezer and refrigerator, freeze dryer, flake ice maker etc.
Centrifuge:Mini/High speed/Low Speed/PCR/Blood/Hematocrit/Automatic Uncovering/Dairy Centrifuge etc
Autoclave &Sterilizer: Table-Top /Vertical/Horizontal Autoclave Hot Air /Glass bead/Infrared/UV Air/Gas Sterilizer Washer Disinfector etc
Air Protection:biological safety cabinet, laminar flow cabinet and fume hoods etc.
Clinical and Analytical Equipments:Auto-Chemistry Analyzer &Reagents Elisa Processor& Reader &wsher coagulation Analyzer Hematology Analyzer Urine Analyzer Water Purifier etc
PCR related,electrophoresis tank and power supply, gel documentation, IVD Products-Chemical Analyzer .....and all other laboratory equipments etc.
BIOBASE is a high-quality supplier of high-tech medical equipment and scientific instruments and other system solutions, It is a group company with life and health industry as its core, and its business covers biomedicine, e-commerce, intelligent manufacturing, incubation services and other industries.
The main business products of the group is medical and laboratory equipments. Adopting the development model of "health + Internet+ e-commerce + intelligent manufacturing + intelligence + data", BIOBASE provide global customers with best products and one-stop health and medical solutions.
BIOBASE has established offices in North America, Europe, Southeast Asia and other regions, established R&D centers in North Carolina, Kobe, Japan, Stuttgart, Germany and other places, and established strategic partnerships with well-known companies in Europe, America, Japan, South Korea, Germany, and Brazil. Cooperative factories and overseas warehouses have been established in Ethiopia, Brazil, India, Spain and other places, forming a systematic global R&D, marketing and service network.
The main business products of the group is medical and laboratory equipments. Adopting the development model of "health + Internet+ e-commerce + intelligent manufacturing + intelligence + data", BIOBASE provide global customers with best products and one-stop health and medical solutions.
BIOBASE has established offices in North America, Europe, Southeast Asia and other regions, established R&D centers in North Carolina, Kobe, Japan, Stuttgart, Germany and other places, and established strategic partnerships with well-known companies in Europe, America, Japan, South Korea, Germany, and Brazil. Cooperative factories and overseas warehouses have been established in Ethiopia, Brazil, India, Spain and other places, forming a systematic global R&D, marketing and service network.
Company Type: Manufacture-BIOBASE
Profile: Founded in 1999 and been through high and stable development for 20 years.Over Sea Office: US, India, UAE
International Market: North America South America Europe, Africa Southeast Asia Middle East
Factory & Staff : 6000+ employees, 22.4 acres land and 20000+ square meters production base
Profile: Founded in 1999 and been through high and stable development for 20 years.Over Sea Office: US, India, UAE
International Market: North America South America Europe, Africa Southeast Asia Middle East
Factory & Staff : 6000+ employees, 22.4 acres land and 20000+ square meters production base
Production Flow:
Decoiling
Laser Cutting
Bending
Packing&Shipping&Payment
Exhibition&Service
Global Exhibition:
We attend more than 10 international exhibitions every year, such as FIME, Pittcon and AACC exhibitions in USA, Medica &Analytica in Germany, Arab health & Lab in Dubai, CMEF in Shanghai, Medic East Africa in Kenya, BIO International Convention in USA, Medlab Asia Pacific......
Service :
Free:
♥ Free offer trial video for your sample
♥ Free training video with machine
Pre-sales service:
♥ 24 hours online to ensure quick response to customers' inquiry or online message.
♥ Guide customers to choose the best suitable machine model.
♥ Offer detailed specification and competitive prices.
♥ Customization available for special specification products.
♥ Sample testing support. View our Factory.
After-sales service:
♥ Training how to install and use the machine.
♥ Available to service machinery overseas.
♥ In response to customers technical problems.
♥ 12-month warranty for most of products
♥ Your technicians can be trained by our company.
♥ Replacement parts are available in our overseas office in USA, Dubai and India.
FAQ
1.Why choose BIOBASE?
We are the leading manufactuer in lab furniture and lab equipment, OEM & ODM service are offered. And we have our own overseas techinican and installation team.
2.When can I get the price?
We usually quote as soon as we get your inquiry. If you need urgent reply, please tell us your email or Skype account, we will contact you ASAP.
3.How about Biobase payment term?
T/T & L/C &Western Union(40% deposit, the balance before shipment).
4.How long does the whole procedure being worked out?
After you place a order,the production handling time is about 15-30 days.
5.What about the transportation and delivery date?
Normally we use shipment to transprot the goods. The delivery time usually denpends on which coutry and port you are.
6.How about BIOBASE validity of quotation ?
Usually 30 days as the shipping freight and exchange rate can be fluctuant.
We are the leading manufactuer in lab furniture and lab equipment, OEM & ODM service are offered. And we have our own overseas techinican and installation team.
2.When can I get the price?
We usually quote as soon as we get your inquiry. If you need urgent reply, please tell us your email or Skype account, we will contact you ASAP.
3.How about Biobase payment term?
T/T & L/C &Western Union(40% deposit, the balance before shipment).
4.How long does the whole procedure being worked out?
After you place a order,the production handling time is about 15-30 days.
5.What about the transportation and delivery date?
Normally we use shipment to transprot the goods. The delivery time usually denpends on which coutry and port you are.
6.How about BIOBASE validity of quotation ?
Usually 30 days as the shipping freight and exchange rate can be fluctuant.
Contact US
Похожие товары

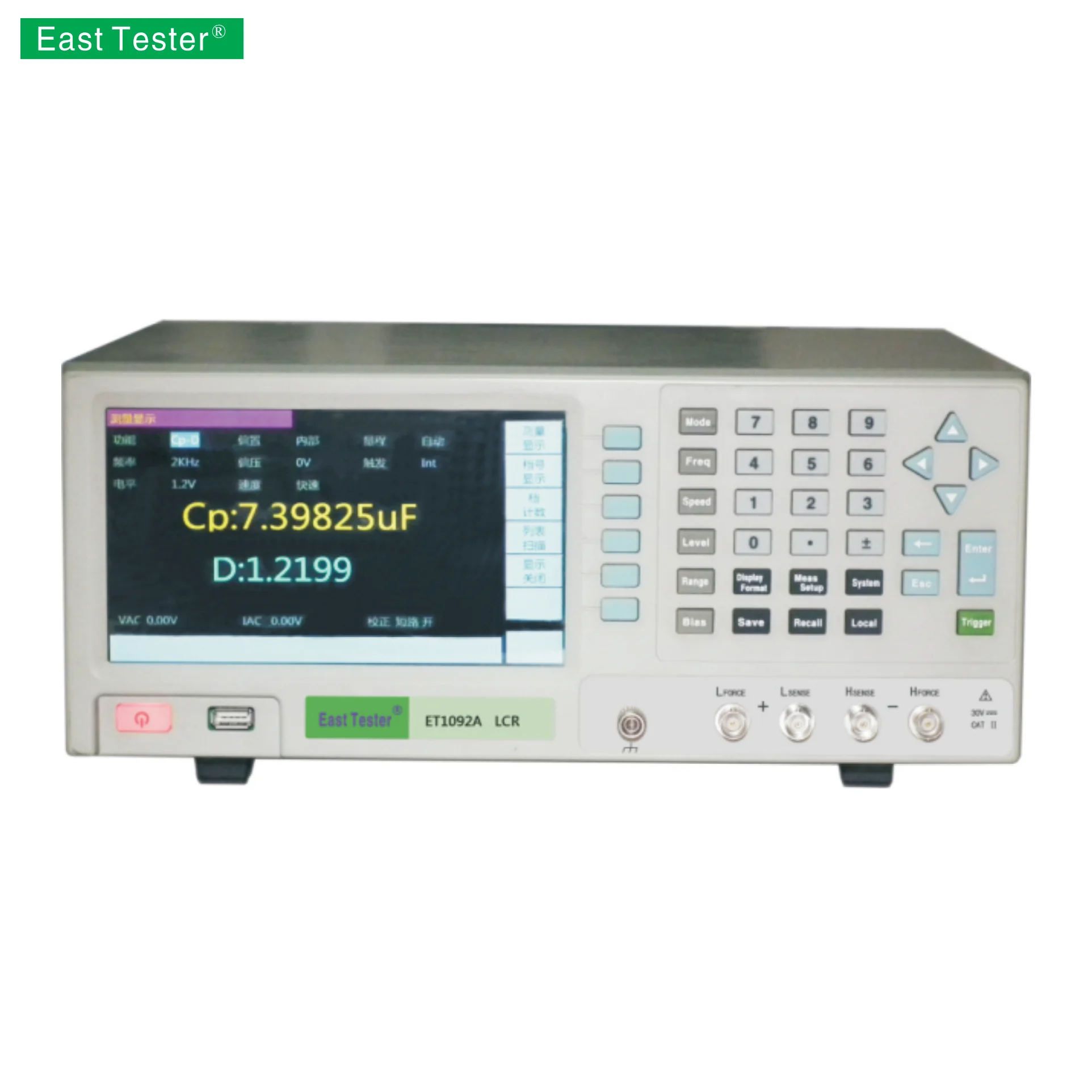

ET1092 серия LCR Цифровой мост автоматическая балансировка мост Высокая точность оригинальный анализатор параметров измерительные инструменты

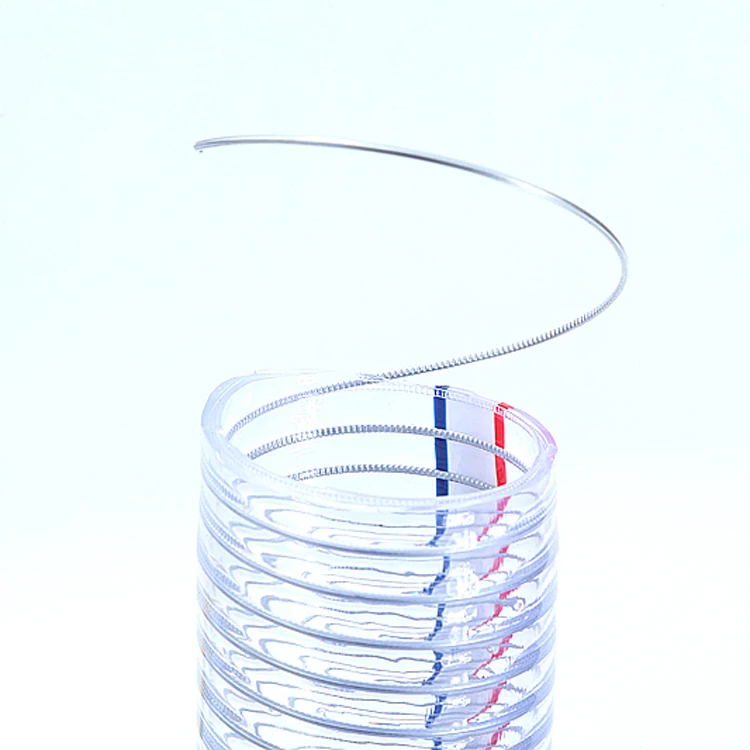

Китайский завод, прозрачный ПВХ спиральный стальной проволочный усиленный шланг
0,16 $

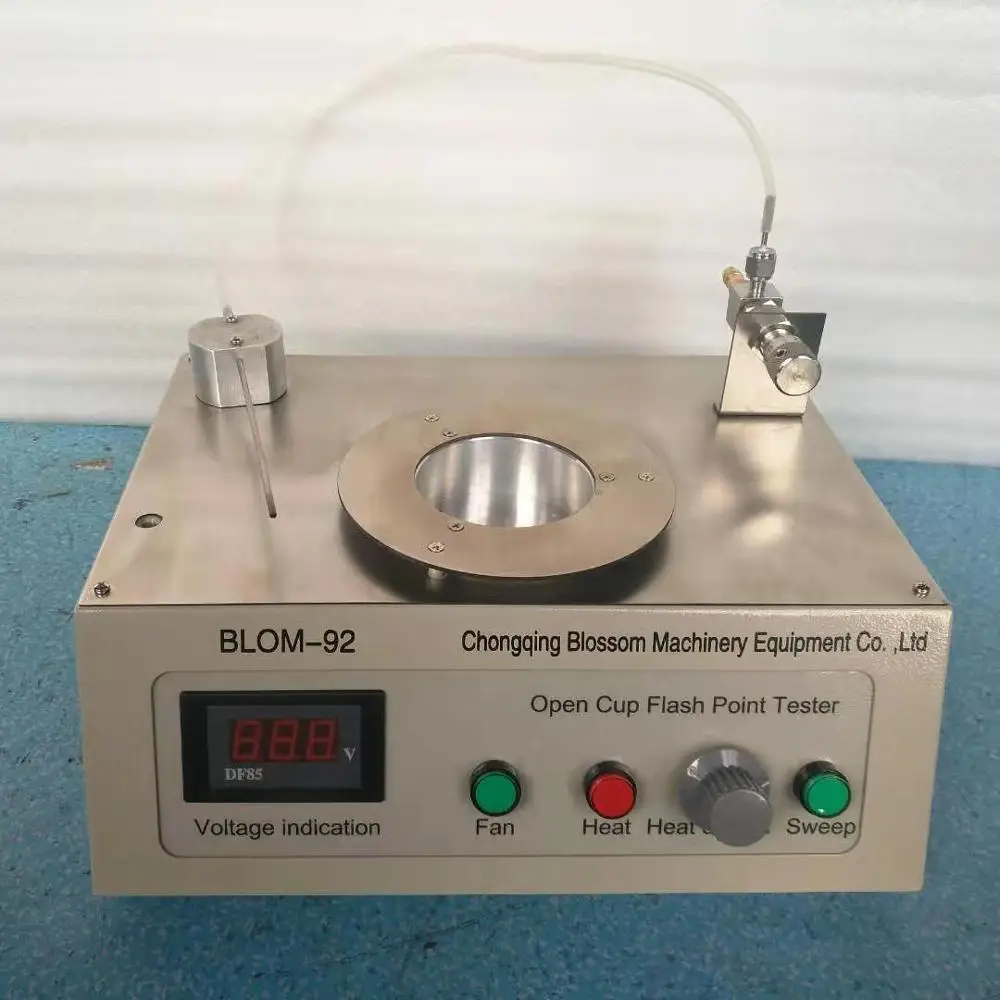

Ручной типа Астм д 92 стандартной открытые чашки анализатор точка воспламенения
100,00 $ - 700,00 $

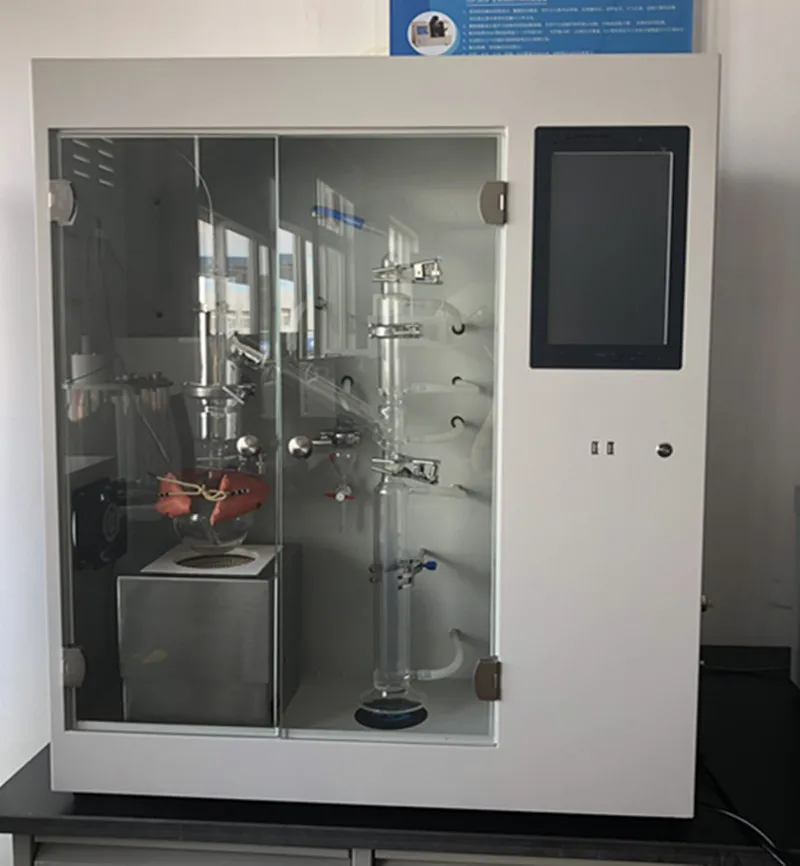

Вакуумный дистилляционный анализатор/лабораторные дистилляционные характеристики испытательный аппарат под уменьшенным давлением
1 000,00 $ - 13 000,00 $

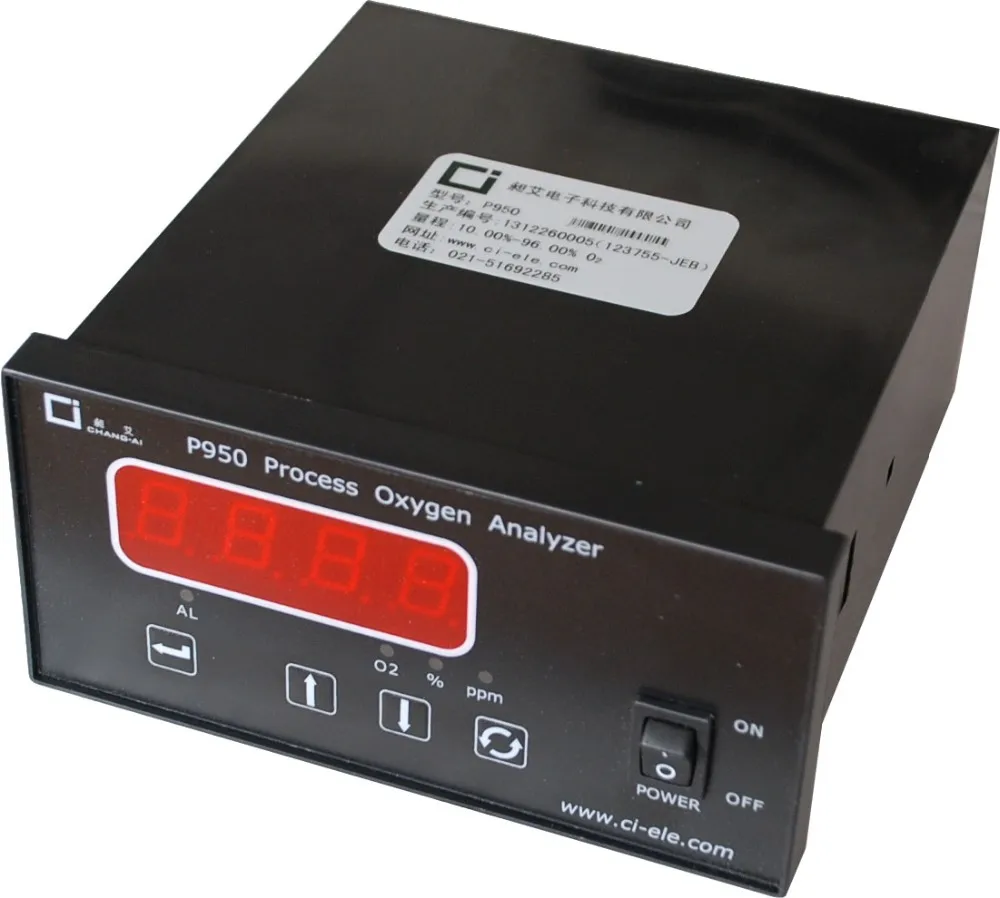

Фабрика OEM продукт лучшее качество madeinChina P860 онлайн циркония газоанализатор кислорода промышленного кислорода цена
410,00 $ - 480,00 $

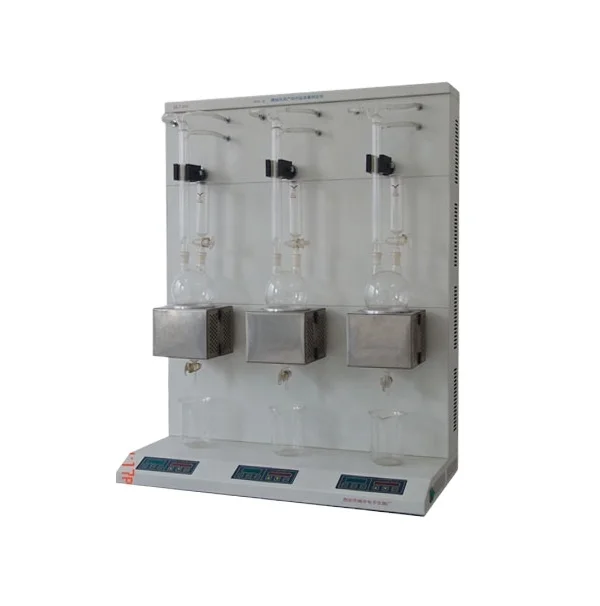

China supplier Crude oil and its products salt content analysis instrument

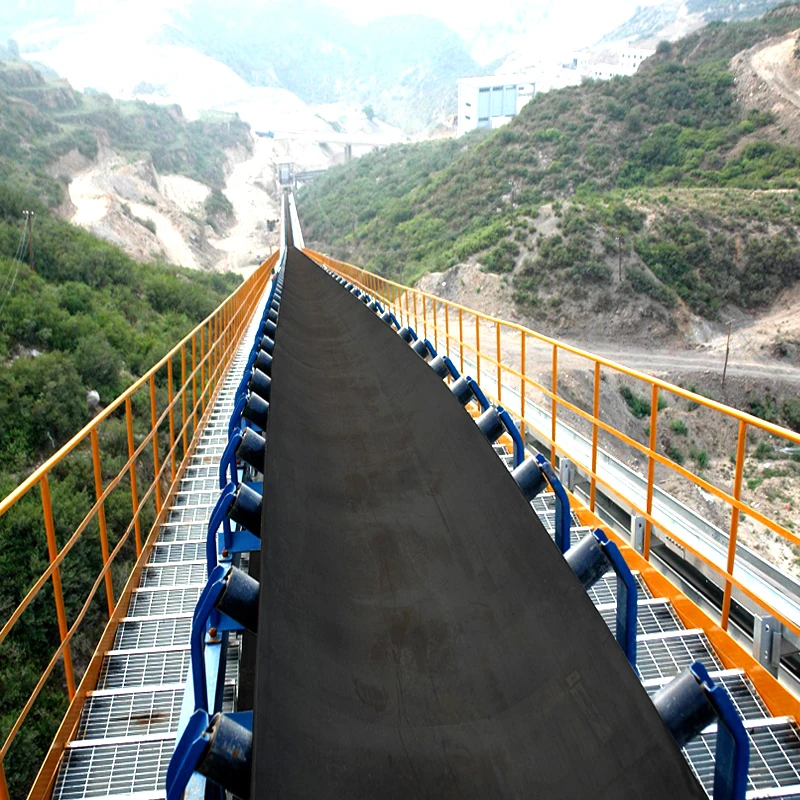

Глиняный Конвейерный ленточный транспортер, китайский поставщик, фильтрующий пресс, цена
