Factory Price Adhesive Tape Production Line / Tapes Making Machine / Gum Tape Making Machine
Product Description

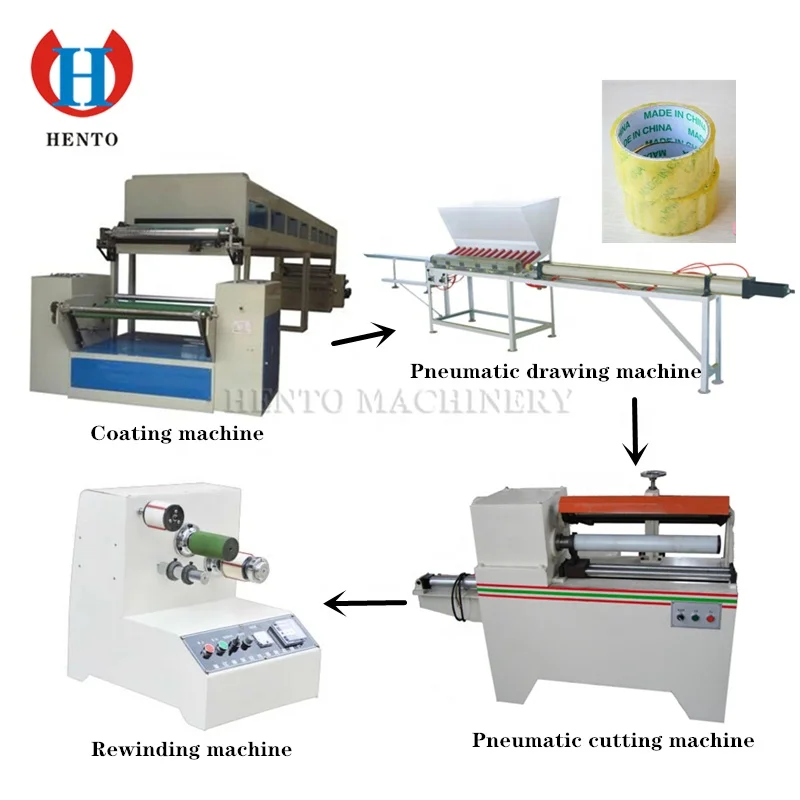

Gum Tape Making Machine
This machine is suitable for BOPP film printing, glue, heating, drying, cutting a variety of tape, the use of roller coating, high-precision rubber roller, can strictly control the glue thickness, cost savings. Heating box using electric heating, heating sub-control, according to different requirements, different adjustments, saving
resources.
The machine is highly automated, can be a multi-purpose machine, the use of dual-inverter control and new electronic correction device to ensure that the coating edge neat, beautiful appearance. The machine can produce any transparent tape and a single color tape, customers a wide range of sources. The machine is simple to operate, high degree of automation, saving manpower and material resources, is the ideal choice for small investors
Details Images
Product Parameter

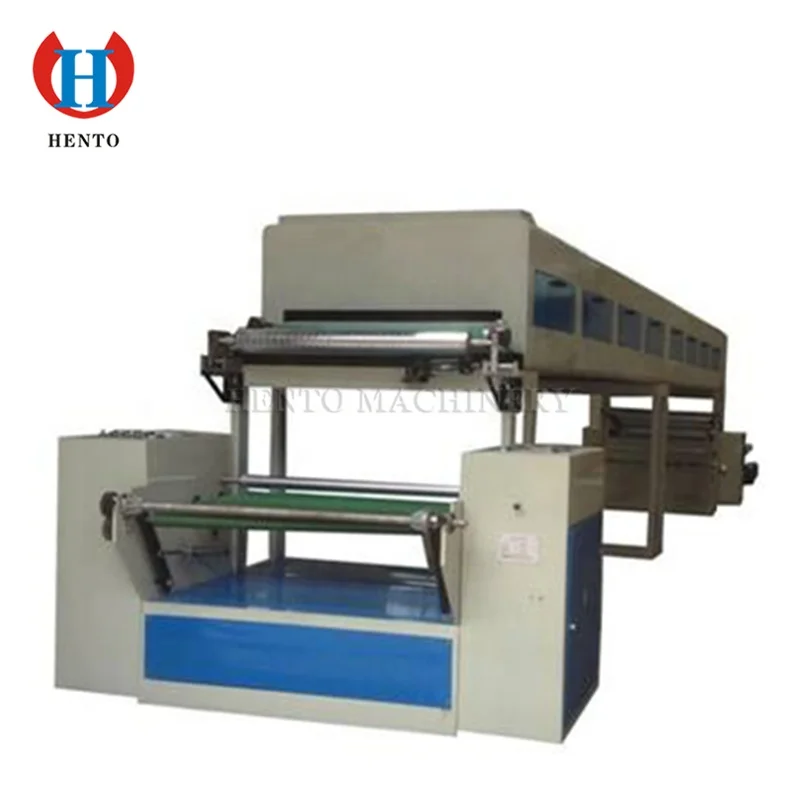

Coating machine | ||
Name | Coating Machine | |
Effective coating width | 1000mm | |
Roll width | 1050mm | |
Mechanical maximum speed | 45m/min | |
Production speed | 0m/min~50m/min(Depends on the amount of glue applied) | |
Maximum unwinding diameter | Φ600mm | |
Maximum winding diameter | Φ600mm | |
Retractable spindle shaft size | ￠3” (inside diameter ) | |
Maximum amount of glue | 30g/m2(Dry glue) | |
Uniformity of coating | Dry glue≤±0.002mm | |
Heating and drying method | Electric heating (optional steam outside heating) | |
Temperature control | Highest100℃±5℃ | |
Coiling edge neatly | End face neat error≤±3mm | |
Total mechanical power | Electric type 30KW/Steam type10kw | |
Voltage | 380V/50Hz or customer specified | |
Gas source | Compressed air 4~6kg/cm2 | |
Heat source | Steam / electric heating | |

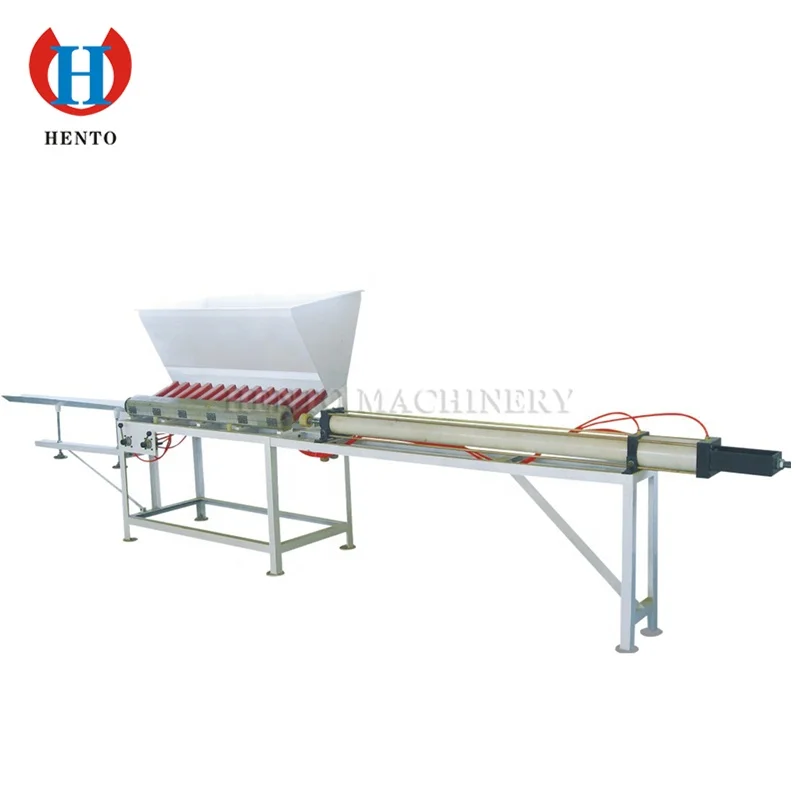

Pneumatic drawing machine | ||
Name | Pneumatic Drawing Machine | |
Specifications | 1000mm/1300mm/1600mm | |
Working width | 1000mm/1300mm/1600mm | |
Paper tube diameter | Φ76.2mm | |
The use of air pressure | 5kg/cm2 | |

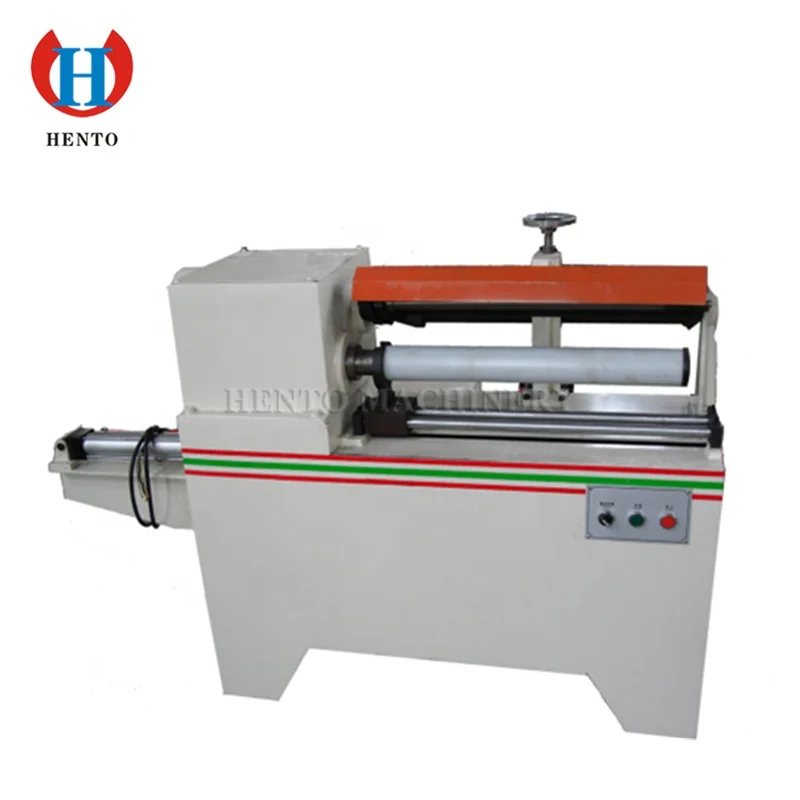

Pneumatic cutting machine | ||
Name | Eumatic Cutting Machine | |
Maximum cutting pipe length | 600mm | |
Paper tube diameter | 76.2mm | |
Mechanical speed | 0-1200 rev / min | |
Voltage | 380V 50HZ | |
Motor Power | 1.5KW | |

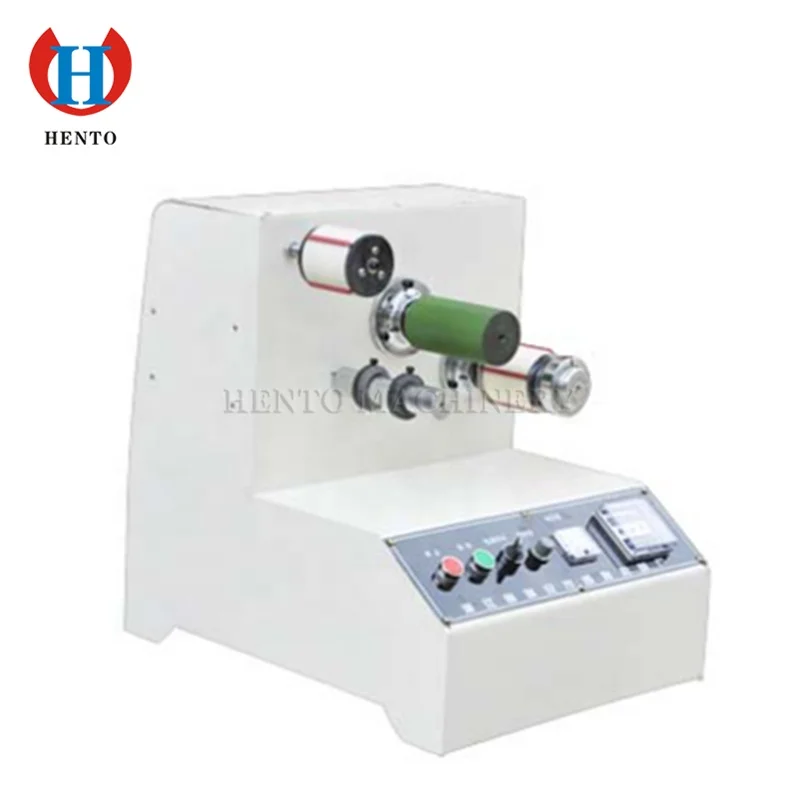

Rewinding machine | ||
Name | Rewinding Machine | |
Maximum winding diameter | Φ300mm | |
Maximum take-width | 100mm | |
Paper tube diameter | 76.2mm | |
Rewinding Speed | 100m/min | |
Input Power | 1P, 220VAC, 1KVA | |
Product Packaging
Packaging Details: Wooden Crate Packing. To avoid machine damage from transportation, ANKO's wood crate is double layered with inner supporting girders and nailed by staggering technique to increase its loading strength.
Port: Qingdao port or as customer's requirements
Port: Qingdao port or as customer's requirements
Company Profile
Henan Hento Co., Ltd. Zhengzhou Hento Machinery Company, Zhengzhou Honest Machinery Company, Shandong Beiqi Company, Hebei Yifeng company, Guangzhou Wancheng Company. Among them, Henan Hento Technology Co., Ltd is specialized in international trade business.
We are engaged in food machines,nut processing machine,packing machines,microwave equipment,drying machines,home products making machines,woodworking machines,construction machinery,etc. We began our UV Light Sterilizer 2015, there days have customers in Georgia, Azerbaijan,Mexico,Malaysia, etc Our company have strict quality-control system.We have passed the supplier assessment of German TUV,Swiss SGS and France BV. Part of our machines are CE certified. And we can provide customers technical supports,pre-sale and after-sale services at any time, which make us become popular supplier in domestic and abroad. Now our sales network has covered Europe,America,Southeast Asia,Middle East,Africa,etc.We are the gold member of Alibaba and Made-In-China. Henan
We are engaged in food machines,nut processing machine,packing machines,microwave equipment,drying machines,home products making machines,woodworking machines,construction machinery,etc. We began our UV Light Sterilizer 2015, there days have customers in Georgia, Azerbaijan,Mexico,Malaysia, etc Our company have strict quality-control system.We have passed the supplier assessment of German TUV,Swiss SGS and France BV. Part of our machines are CE certified. And we can provide customers technical supports,pre-sale and after-sale services at any time, which make us become popular supplier in domestic and abroad. Now our sales network has covered Europe,America,Southeast Asia,Middle East,Africa,etc.We are the gold member of Alibaba and Made-In-China. Henan
Hento Group,always adhere to the guideline “Quality is fundamental, service is the key.” Always with the principle of "Root on honesty, down-to-earth” ,we will keep optimizing after-sale service system and quality control system. We sincerely welcome domestic and foreign customers to join us and seek mutual development and win-win cooperation.
