Китайское промышленное производство DZL 1 тонна 2 тонны 3 4 6 древесные дрова дров сливок из сахарного тростника паровой бойлер с твердым нагревом
- Категория: >>>
- Поставщик: Henan Yuji Boiler Vessel Co. Ltd.
Сохранить в закладки 1600282819648:
Описание и отзывы
Характеристики
Product Description

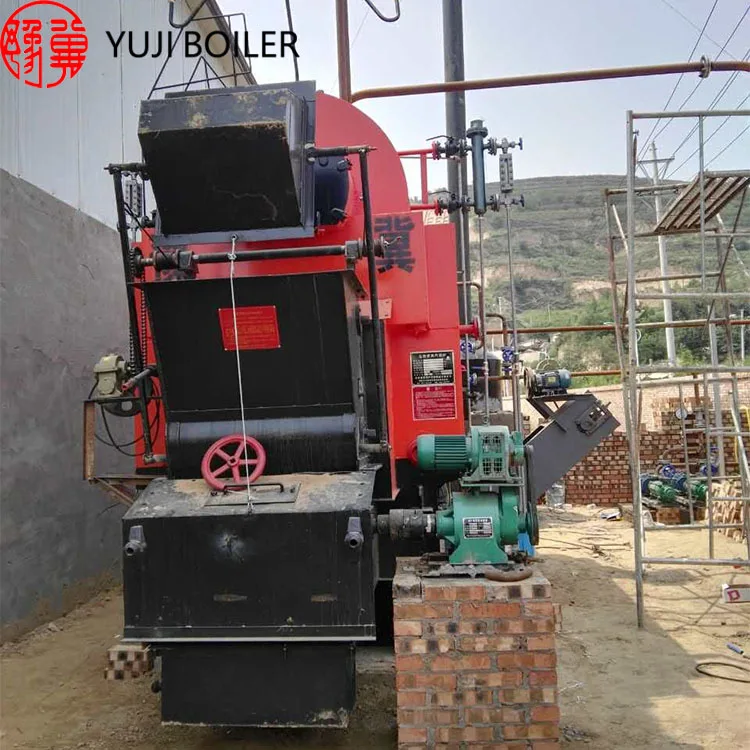

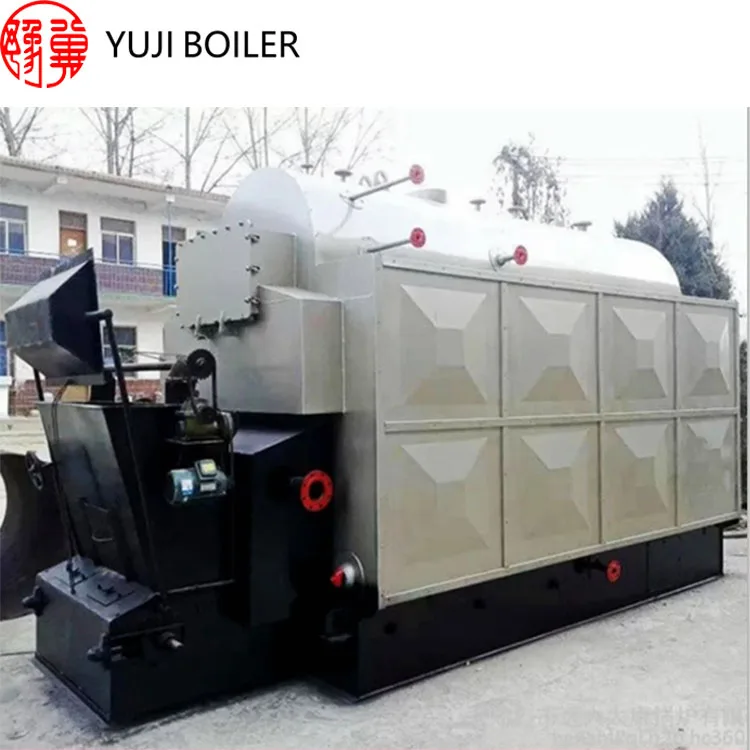

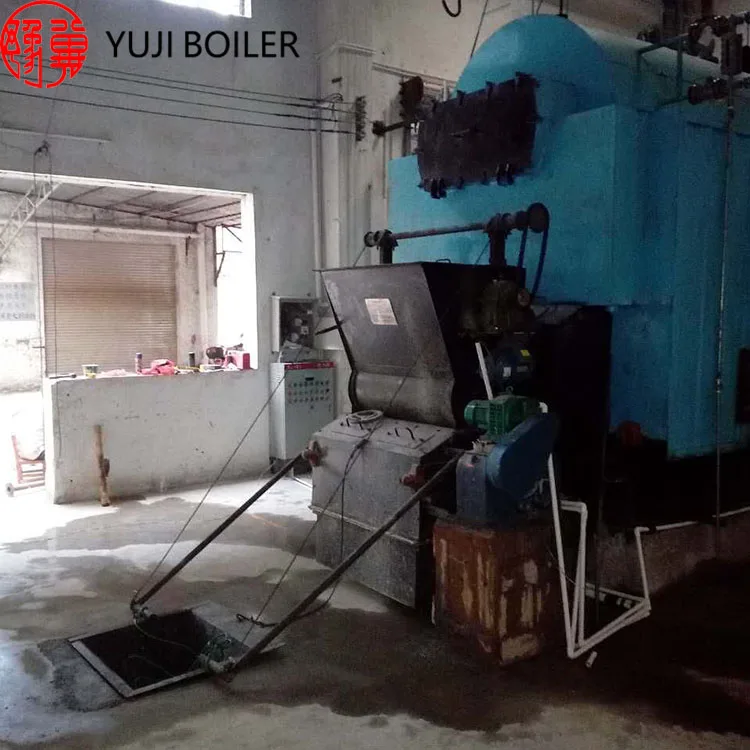

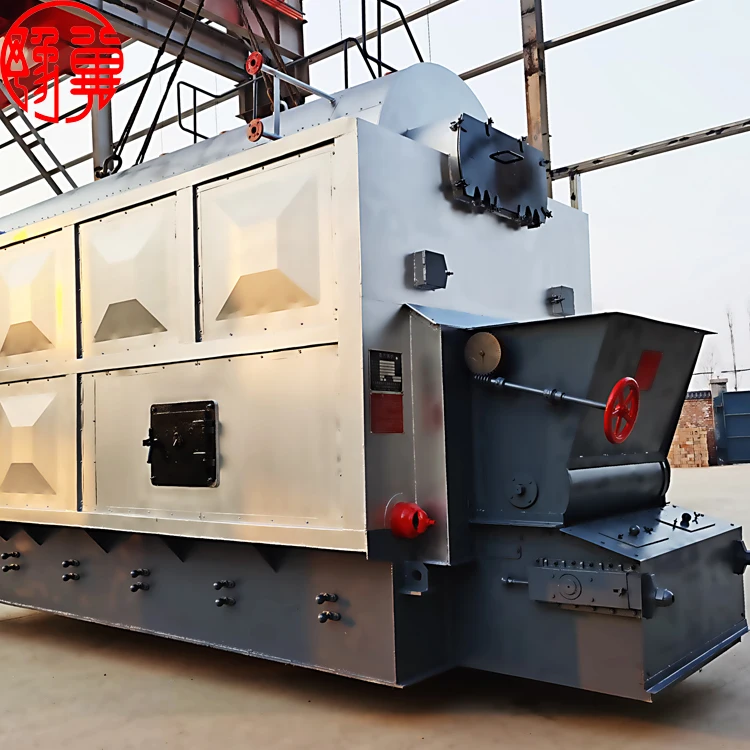

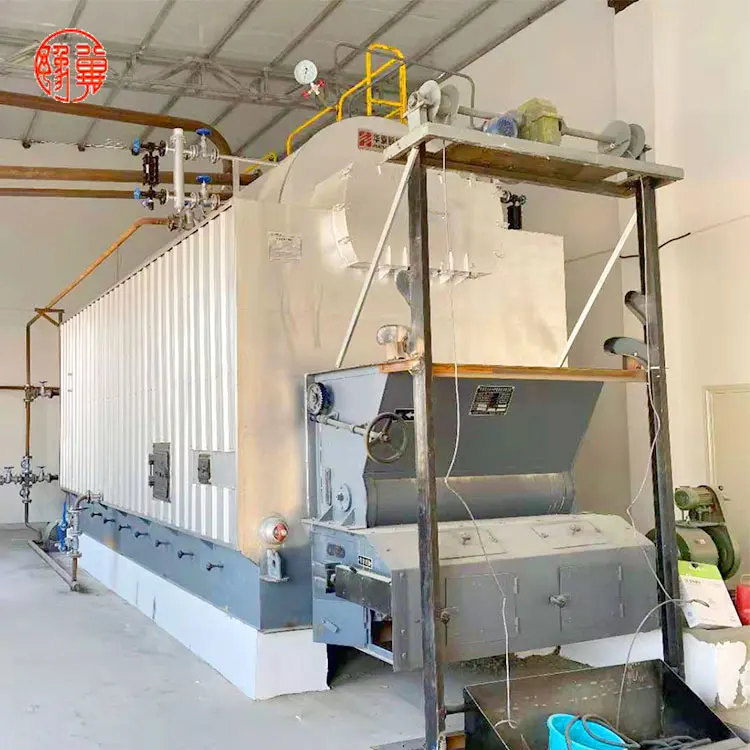

China Industrial Manufacture DZL 1ton 2ton 3ton 4ton 6ton Wood Firewood Log Waste Sugarcane Bagasse Solid Fired Steam Boiler
DZL series chain grate coal fired steam boiler is designed with single drum boiler with fire tube and water pipe. It has fast heat conduction and steam pressure rise quickly. It can adapt to various kinds of coal with compact structure and high thermal efficiency. This series of boilers adopt the latest science and technology such as arched tube sheet and spiral corrugated smoke pipe, which effectively improves the overall efficiency of the boiler, and prevents the occurrence of grate coking, tube sheet leakage and other failures.
Steam output:
- Steam volume: 1t / h-25t / h
- Steam pressure: 0.7mpa-2.5mpa (optional as required)
- Steam temperature: 0 ℃ - 226 ℃
- Fuel: coal, anthracite, bituminous coal, lignite, etc.
Hot water output:
- Rated thermal power: 0.7~7Mw
- Work Pressure: 0.7~1.25Mpa
- Rated outlet temperature: 95~115°C
PS: Customizable according to the fuel, steam quantity and steam pressure
Structure and parameters:
- PLC intelligent control system can realize automatic operation of feeding, grate operation, fan start-up and stop, water feeding and slag discharging.
- Safety valve, water level alarm, pressure gauge and pressure controller ensure safe operation
- The boiler drum is equipped with limit low water level sensing safety device to avoid water shortage accident.
| DZL Steam Boiler | |||||||
| Model | Rated evaporation(t/h) | Rated pressure(MPa) | Steam temperature(℃) | thermal efficiency (%) | Fuel consumption (kg/h) | Size L×W×H (m) | Weight(t) |
| DZL1-1.0/1.25-AII | 1 | 1.0/1.25 | 193/204 | ≥83 | 176.6 | 5.1×2.2×2.9 | 15 |
| DZL2-1.0/1.25-AII | 2 | 352.3 | 6.14×2.6×3.3 | 18 | |||
| DZL3-1.25/1.6-AII | 3 | 1.25/1.6 | 522 | 6.33×2.7×3.3 | 24 | ||
| DZL4-1.25/1.6-AII | 4 | 571 | 6.88×2.7×3.3 | 27 | |||
| DZL6-1.25/1.6-AII | 6 | 1044 | 7.29×3.2×3.7 | 31 | |||
| DZL8-1.25/1.6-AII | 8 | 1396.5 | 7.8×3.4×3.7 | 33 | |||
| DZL10-1.25/1.6-AII | 10 | 1743.3 | 8.5×3.4×3.7 | 41 | |||
| DZL Hot Water Boiler | |||||||
| Model | Rated power(mw) | Rated pressure(MPa) | thermal efficiency (%) | Fuel consumption (kg/h) | Size L×W×H (m) | Weight(t) | |
| DZL0.7-0.7/95/70 | 0.7 | 0.7/1.0 | ≥83 | 174.3 | 5.1×2.2×2.9 | 15 | |
| DZL1.4-1.0/95/70 | 1.4 | 1 | 348.6 | 6.14×2.6×3.3 | 18 | ||
| DZL2.1-0.7/95/70 | 2.1 | 517 | 6.33×2.7×3.3 | 24 | |||
| DZL2.8-0.7/95/70 | 2.8 | 687.2 | 6.88×2.7×3.3 | 27 | |||
| DZL4.2-0.7/95/70 | 4.2 | 1.0/1.25 | 1024 | 7.29×3.2×3.7 | 31 | ||
| DZL5.6-1.25/95/70 | 5.6 | 1374.3 | 7.8×3.4×3.7 | 33 | |||
| DZL7-1.25/95/70 | 7 | 1708 | 8.5×3.4×3.7 | 39 | |||
Related Products
Packaging & Shipping
Main Products
Company Information
Henan Yuji Boiler Vessel Co., Ltd. is the general administration of quality supervision, inspection and quarantine of the People’s Republic of China approved the boiler and pressure vessel designated manufacturing enterprise, The company passes ISO 9001 international quality system certification, and gains the EU CE and other international certification ect.
We ensure the quality of our products with our life. Quality assurance systems are set, include the design production, technology management, material experiment, welding control, inspection and audit, measurement and production management. The technology center has enterprise cooperation relationship with Many famous universities in China, leading the industry with innovation and new technology, and building a strong research and development system.
We ensure the quality of our products with our life. Quality assurance systems are set, include the design production, technology management, material experiment, welding control, inspection and audit, measurement and production management. The technology center has enterprise cooperation relationship with Many famous universities in China, leading the industry with innovation and new technology, and building a strong research and development system.
Customer Feedback
FAQ
Q. Are you manufacturer?
A: Yes, we are professional manufacturer of boiler and pressure vessels in Henan, China.
Q: Do you have any Certificate?
A: Yes. Our boiler have got China GB ISO certificates and CE certificate of EU. We also can provide ASME, GHOST and other necessary certificates if you need.
Q: How can I pay you?
A: T/T, Western Union, Money Gram and Ali Trade Assurance is better.
Q: What about the delivery time?
A: 5-10 working days for single machine, and 30-40 working days for bulk order and door to door delivery service is also available.
Q. What about the warranty?
A: We provide 1 year warranty for free and life-long time maintenance
Q. What about installation?
A: We provide 1 or 2 technicians overseas services for installation, debugging and training.
Q. What about the boiler fuel?
A: We provide boiler can use coal, charcoal, wood, rice husk, straw, biomass pellet, diesel, light oil, natural gas, city gas, liquefied gas etc.
Get Quotation
Похожие товары
5Q0122291P Фланец охлаждающей жидкости для VW GOLF VII 2013-шланг охлаждающей жидкости 5Q0 122 291P
3,00 $ - 8,00 $
Рождественские пожелания, украшение для елки в клетку буйвола, деревянное подвесное Рождественское украшение, украшения для елки, деревянные подвесные поделки
0,04 $ - 0,06 $
Адипиновая кислота ди-Н-октиловый эфир CAS 123-79-5 DOA

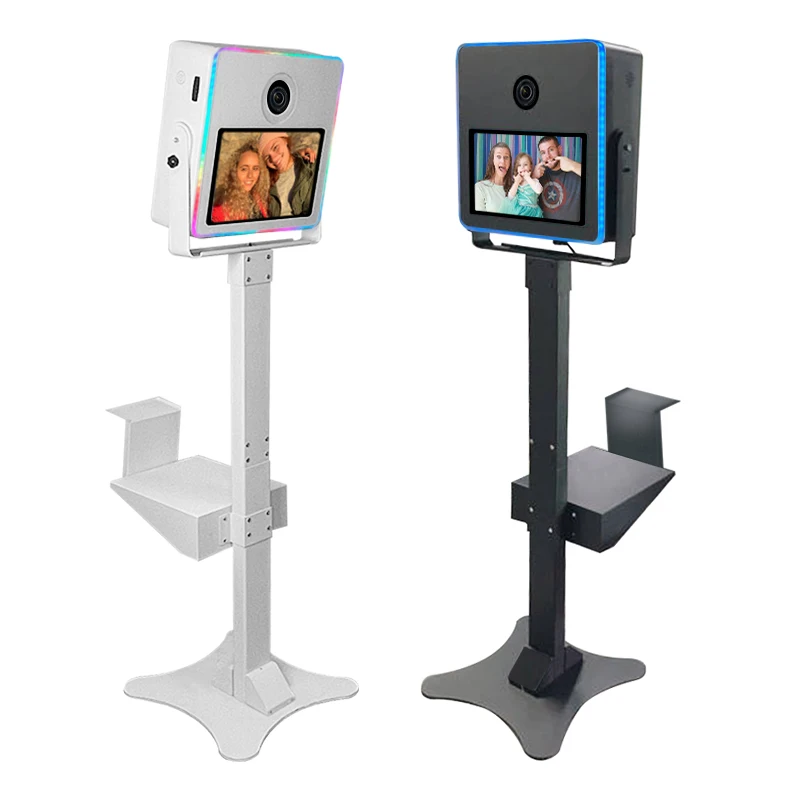

Матричный фотобут под открытым небом dlsr glam t12 корпус фотобудки dslr surface pro
707,00 $ - 998,00 $

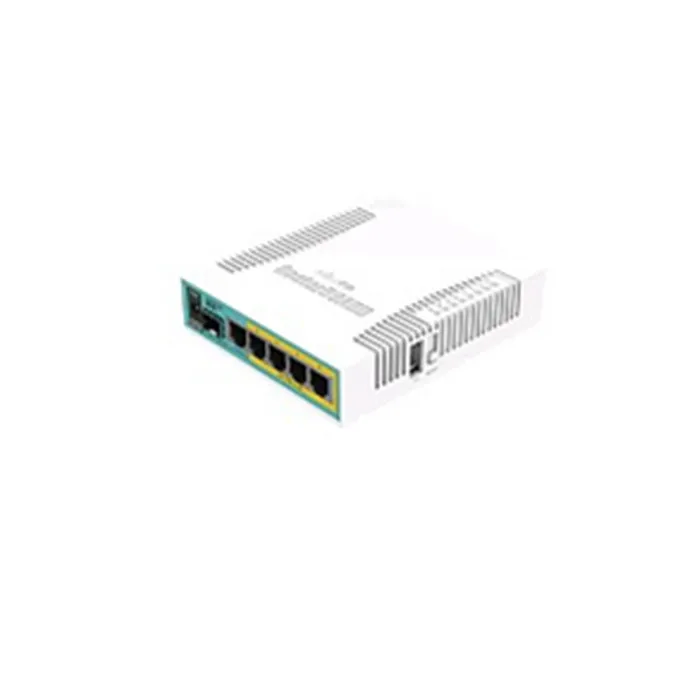

MikroTik hEX PoE RB960PGS 5x Gigabit Ethernet с выходом PoE для четырех портов, SFP

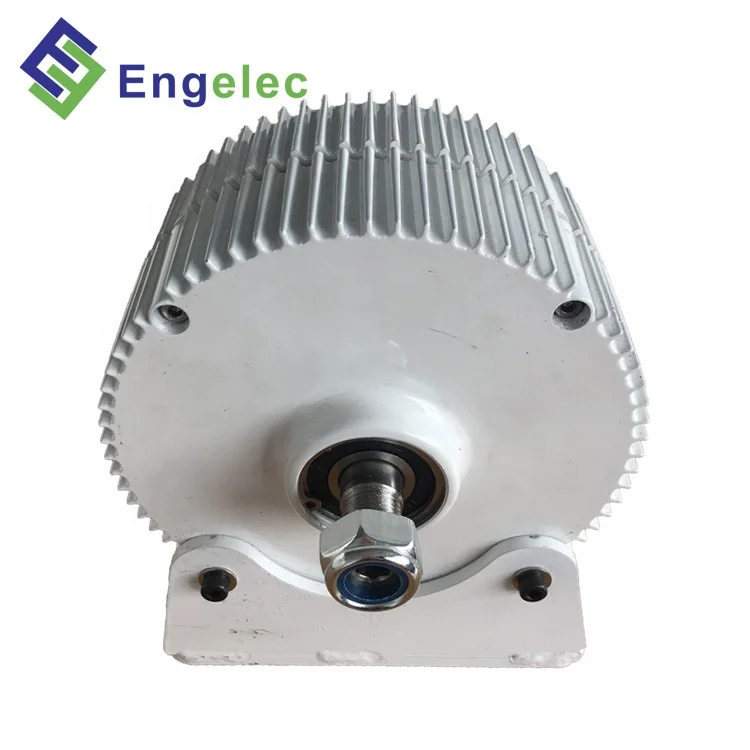

100 Вт-800 Вт PMG 12/24 В медный провод небольшой водный генератор переменного
