Эффективный SMT Pcb погрузчик/PCB журнал погрузчик/SMT сборка линии погрузчик
- Категория: >>>
- Поставщик: Shenzhen Eton Automation Equipment Co. Limited
Сохранить в закладки 1600284155620:
Описание и отзывы
Характеристики
Products Description
Item:Loader machine smt production line
Strong and stable design
Easy operation and LED touch screen panel;
Top bottom pneumatic clamps to secure magazine rack
No PCB breakage guaranty during loading & unloading
General Description
Loader\\ PCB Loader
Strong and stable design
Easy operation and LED touch screen panel;
Top bottom pneumatic clamps to secure magazine rack
No PCB breakage guaranty during loading & unloading
Model | LD250 | LD330 | LD390 | LD460 |
PCB size(L*W) (MM) | 80*50 - 330*250 | 80*50- 460*330 | 80*50- 510*390 | 80*50- 510*460 |
Dimension（L*W*H）(mm) | 1455*800*1200 | 1755*950*1200 | 2000*1010*1200 | 2000*1100*1200 |
Size of turnover fram (mm) | 355*320*565 | 460*400*565 | 535*460*570 | 535*530*570 |
Weight （KG） | 140 | 160 | 220 | 240 |
Description ( This machine is used for the board loading operation of the circuit board in the production line)
Number of turnover frame: One box on working,two boxes out of the frame segment,two boxes onto the frame segment
Send board time: Around 6s
Frame change time : Around 25S
PCB Thickness0.4-3mm
Step pitches selection : 1-4（10mm step pitches）
Transmission hight : 900±20mm
Transmission direction :Left - right, Right -left
Air pressure and air flow: 4-6 Bar, Up to 1L/Min
Power Consumption: Single -phase AC110-220V,Max 300 VA
Application
1.Strong,firm and stable design.
2. Effective design ensures no PCB breakage guaranty.
3. Aluminum structure, Bottom weight design, not easy to shift.
4. increased load without interference.
5.Minimize clearance between conveyor.
6.Compatible SMEMA interface
2. Effective design ensures no PCB breakage guaranty.
3. Aluminum structure, Bottom weight design, not easy to shift.
4. increased load without interference.
5.Minimize clearance between conveyor.
6.Compatible SMEMA interface

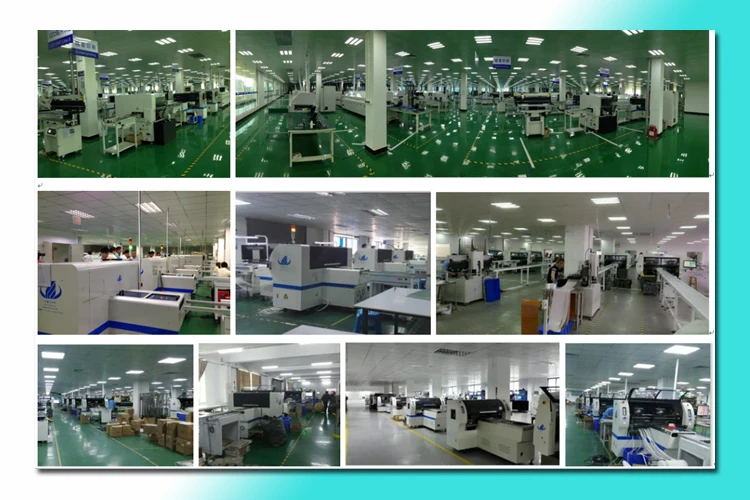

Company Profile
Certificate of Honor
We got 9 invention Patents, 112 practical patents,12 software copyrights.
Patent number: ZL 2011 2 0237740.9\\ ZL 20 11 2 0334606.0\\
ZL 2012 2 0178869.1\\ ZL 2012 2 0415505.0\\
ZL 2012 2 0415044.7\\ ZL 2012 2 0415356.8\\
ZL 2012 2 0415061.0
We worked with many brands, and received a lot good reputations because of our excellent services and good quality products , we cherish each opportunity to service for all our customers, aimed to a long term cooperation .

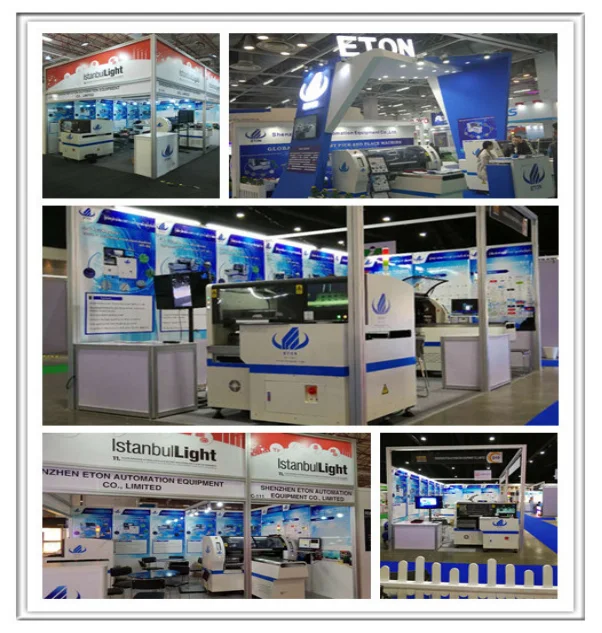

Exhibition
Product packaging
Excellent service
※ Maintenance period 1year.
We'll provide maintenance services for you in one years after you place the order. So you no worry about the quality
issues while you using our machine.
※ Software and hardware lifetime maintenance
※ Software and hardware lifetime maintenance
Free service for you , we are on line 24 hours all the time , we would provide the best services for you if you need .
※ Visit customers regularly and gather information.
We would make a schedule plan to visit all our customers to see if there is any more we can do for you. best
service for you all the time ,
※ Provide latest information about technology and equipment
The technology updated so fast, so we would share you the newest good information to you .
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(65.00%),South Asia(18.00%),Southern Europe(8.00%),Southeast Asia(3.00%),Africa(3.00%),South America(00.00%),Mid East(00.00%),Eastern Asia(00.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Multi-functional pick and place machine,High-speed pick and place machine,Glue dispenser machine,Multifunctional Pick And Place Machine,High Speed Pick And Place Machine
4. why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of smt machine with more than 10 years with good quality and reputation.We have rich experience in helping client to start new factory and new line."Professional,high-effective,cost-saving" are our advantages.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese
We are based in Guangdong, China, start from 2011,sell to Domestic Market(65.00%),South Asia(18.00%),Southern Europe(8.00%),Southeast Asia(3.00%),Africa(3.00%),South America(00.00%),Mid East(00.00%),Eastern Asia(00.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Multi-functional pick and place machine,High-speed pick and place machine,Glue dispenser machine,Multifunctional Pick And Place Machine,High Speed Pick And Place Machine
4. why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of smt machine with more than 10 years with good quality and reputation.We have rich experience in helping client to start new factory and new line."Professional,high-effective,cost-saving" are our advantages.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese
