China 6-Speed drilling fluid tester rheometer rotational viscosity meter for evaluating the rheological properties of fluids




Product Description




Qingdao Haitongda 6-Speed rotational viscometers are direct-reading instruments which are available in six- speed designs for use on either 50 Hz or 60 Hz electrical power. The standard power source is 220 volts, but all models may be fitted with a transformer, making operation with 220/110 volts possible.

Qingdao Haitongda 6-Speed rotational viscometers are used in research and production. These viscometers are recommended for evaluating the rheological properties of fluids, Newtonian and non-Newtonian. The design includes a Rotor Sleeve, Bob, F1 or F0.2 Torsion Spring, and a stainless steel sample cup for testing according to American Petroleum Institute Recommended Practice for Field Testing Water Based Drilling Fluids, API RP 13B-1/ISO 10414-1 Specification.


Model
Name
Configuration
Power supply
ZNN-D6
6-Speed rotational viscometer
F1 Torsion spring measure component
220V±5% 50Hz
ZNN-D6V
6-Speed rotational viscometer
F1 Torsion spring measure component
110V±5% 50Hz/60Hz
ZNN-D6F
6-Speed rotational viscometer
F0.2 Torsion spring measure component
220V±5% 50Hz
ZNN-D6VF
6-Speed rotational viscometer
F0.2 Torsion spring measure component
110V±5% 50Hz/60Hz


Type Specification

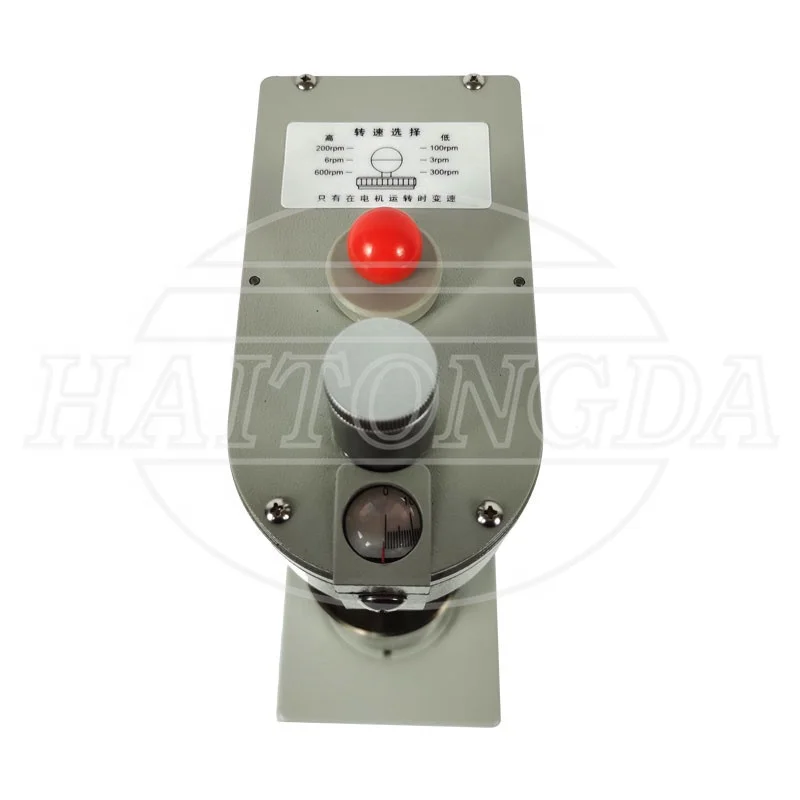

Detailed Images

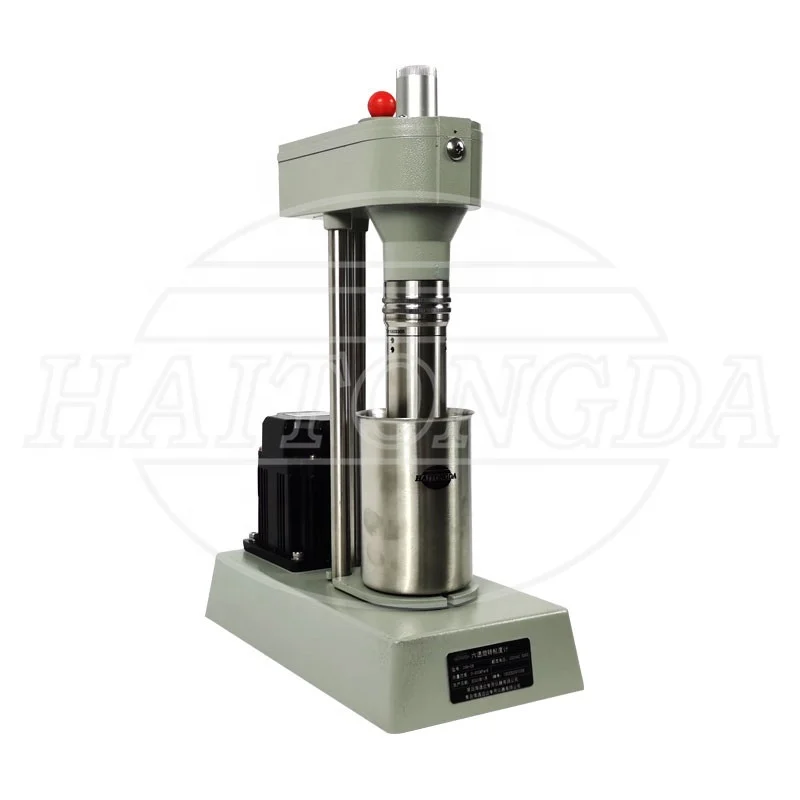

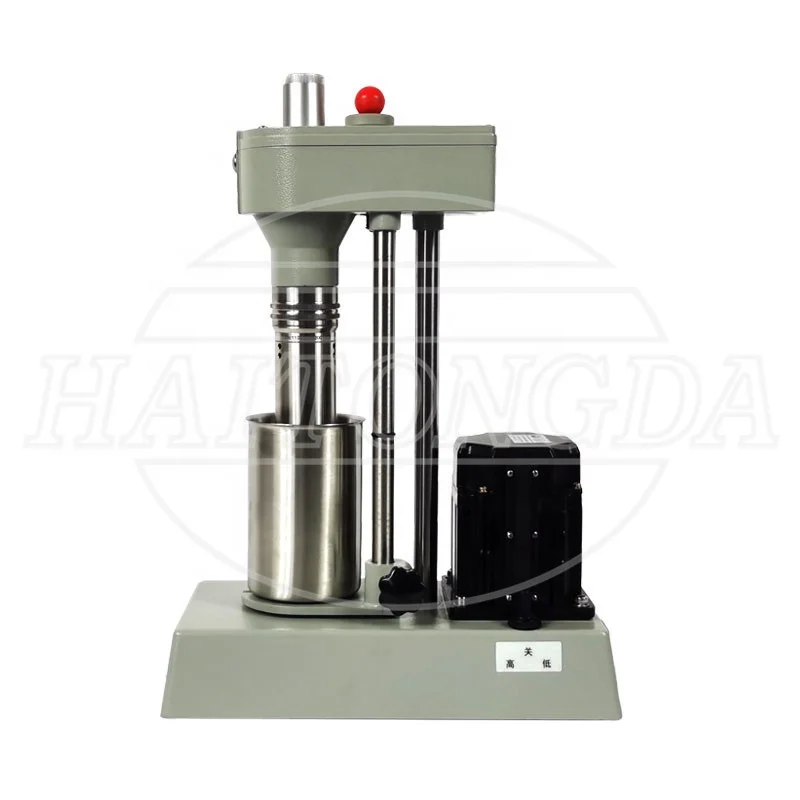

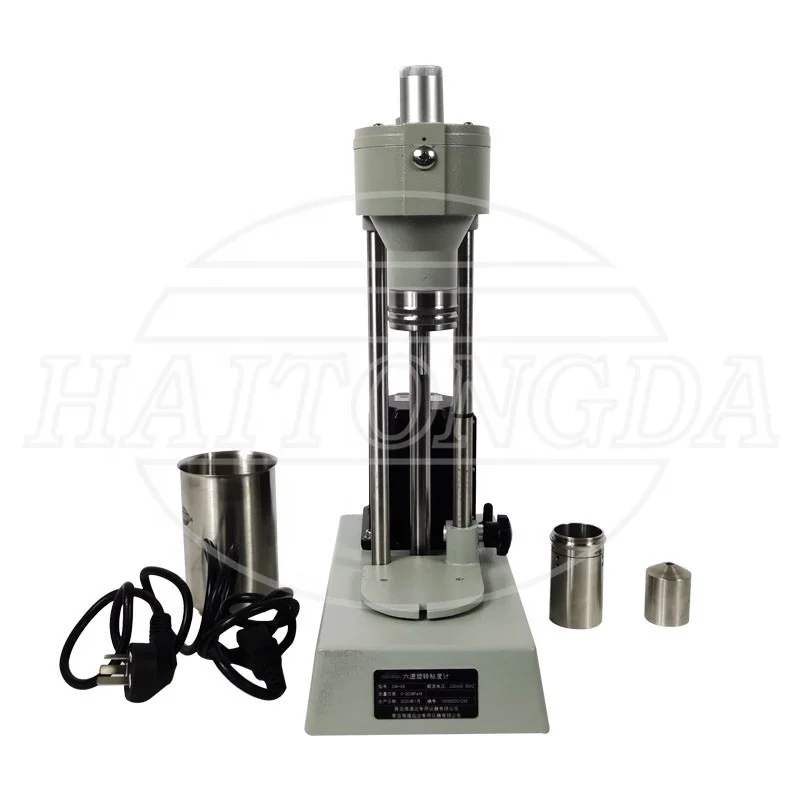

ZNN-D6 six-speed rotational viscometer is a direct reading viscosity measuring instrument for measuring viscosity at different shear rates.

The instrument is composed of power part, speed changing part, measuring part and bracket part.

The instrument has two adjustable rotating speeds with the characteristics of convenient operation and accurate test, beneficial to safe, fast and scientific drilling.




Technical Specification


No.
Item
Specification
1
Power supply
AC(220±11)V 50Hz
2
Motor rated power
7.5W/15W
3
Motor speed
750/1500(r/min)
4
Variable speed range
3、6、100、200、300、600(r/min)
5
Velocity gradient
5、10、170、340、511、1022 S-1
6
Measurement accuracy
1~25 mPa·s±1 mPa.s( Newtonian fluid )
25 mPa·s以上±4%( Newtonian fluid )
7
Viscosity measurement range
Newtonian fluid :
0.5~30000mPa.s (F1 Measuring assembly )
Non-Newtonian fluid :
0~150 mPa.s (F1 Measuring assembly )
Shear stress :
0~153.3Pa (F1 Measuring assembly )
8
Net weight/Gross weight
9.28kg/9.76kg
9
Dimensions
105×285×400(mm)
10
Packing dimensions (cardboard box)
480×190×390(mm)


Related Products




Company Introduction








Packing&Shipping




FAQ




Q1 : Are you a manufacturer or a trading company ?
A1: We are manufacturer.

Q2: What is your main brand?
A2: Our brand is Haitongda, which is famous in China and other nation. Also we do OEM.

Q3: What are your business scope and product classification?
A3:Business scope: mud analysis instrument, electronic products, special instrument, mold design and manufacturing; Instrument maintenance and sales; Import and export of goods and technologies.
Product classification: including drilling fluid analysis instrument, oil well cement testing instrument and field overall solution, including 22 small categories and over 120 products.

Q4: What is your MOQ for the order?
A4: Testers per 1 set.

Q5: What is the warranty period of your instrument?
A5: One year.

Q6: Can I get better offer if our order can be bigger?
A6: Certainly. We will give you better prices based on the quantity for your order.

Q7:What certificate do you have for your instrument?
A7: ISO and so on

Q8: What is your lead time for our order?
A8: For new order: 3 weeks; For stock order: 3 working days after T/T. Based on FOB Qingdao.

Q9: What is your advantage of your factory?
A9: We are the original oil ministry designated drilling fluid analysis equipment manufacturer in China, which was founded in 1968.

Q10: What is the process to become an agency?
A10: Please send us mail enquiry, then we will reply you as soon as possible.
