STAINLESS STEEL CAMLOCK COUPLINGS
Standard:
♠ Our camlock couplings are made to stardard of A-A-59326 (superseding MIL-C-27487) or DIN2828.
Casting method:
♠ PRECISION CASTING ( SILICASOL )
Size:
♠ From 1/2" to 6", more big size can also be custom-made to suit customers' own requirements
Type:
♠ A, B, C, D, E, F, DC, DP, DA
Body material:
♠ SS316 or SS304
Cam arm material:
♠ Stainless Steel ( SS304 )
Assembly:
♠ Body + Gaskets + Handles + Pins + Pull Rings + Safety Clips
Gaskets material:
♠ NBR ( Temp Range °C - 30°C ~ + 100°C )
♠ EPDM ( Temp Range °C - 50°C ~ + 150°C )
♠ Viton ( Temp Range °C - 20°C ~ + 200°C )
♠ PTFE envelop gasket ( Temp Range °C - 190°C ~ + 260°C )
♠ Silicone ( Temp Range °C - 60°C ~ + 200°C )
Other material are available on request.
Thread:
♠ NPT
♠ BSP ( We usually produce the female thread parallel BSPP , male thread tapered BSPT )
Working Pressure ( Stainless steel )
Size (Inch) | 1/2" | 3/4"~2" | 2-1/2" | 3" | 4"~6" |
Working Pressure (Psi) | 150 Psi | 250 Psi | 225 Psi | 200 Psi | 100 Psi |

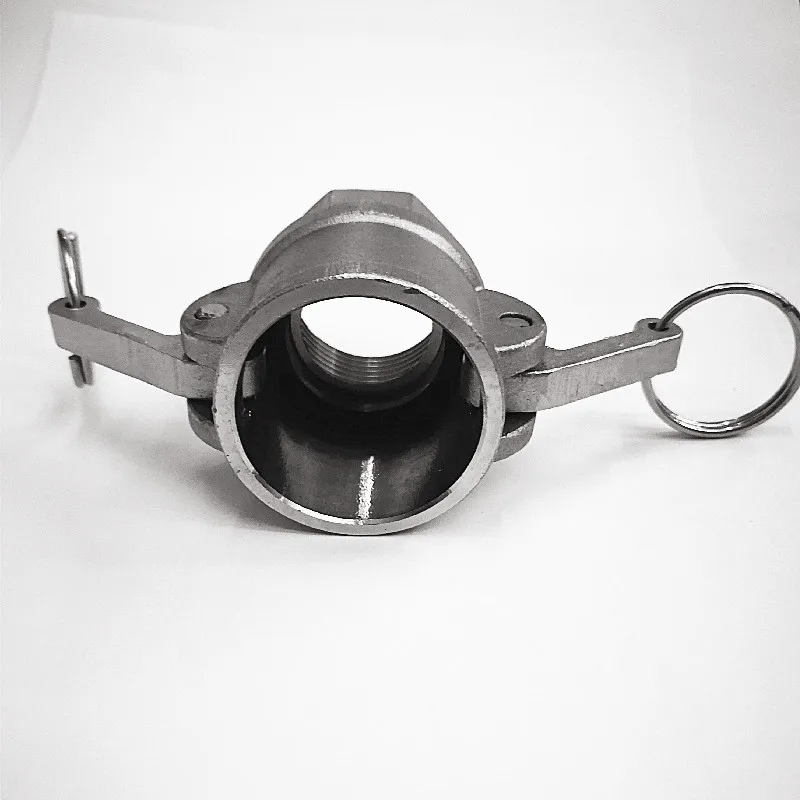

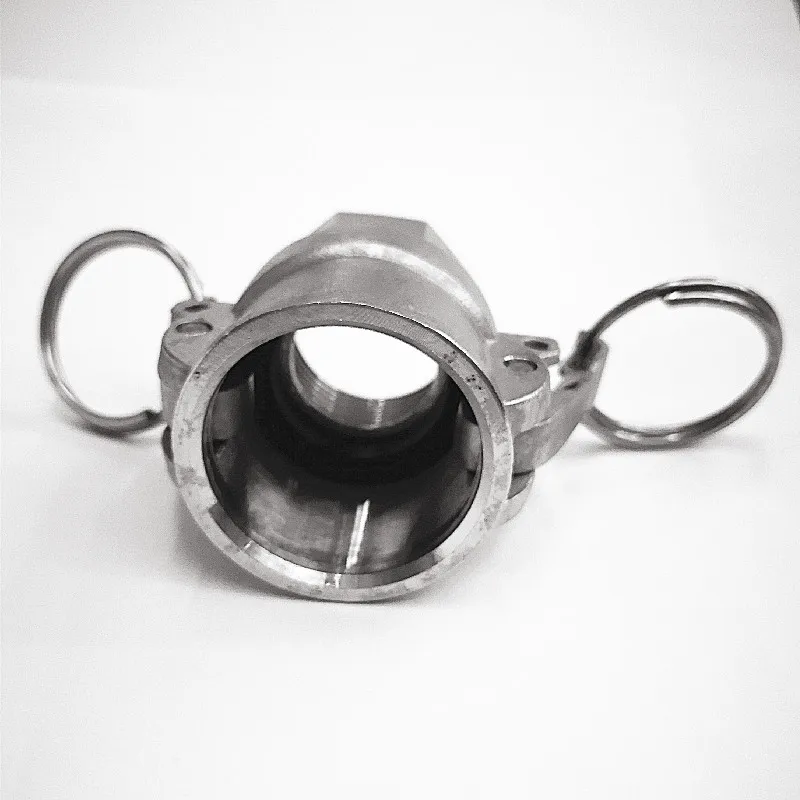

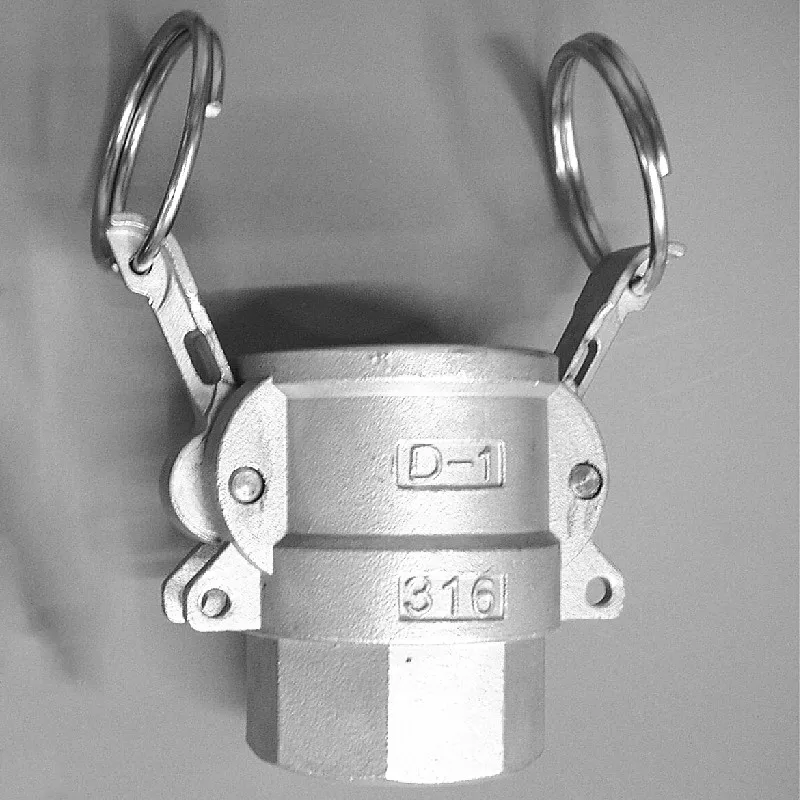

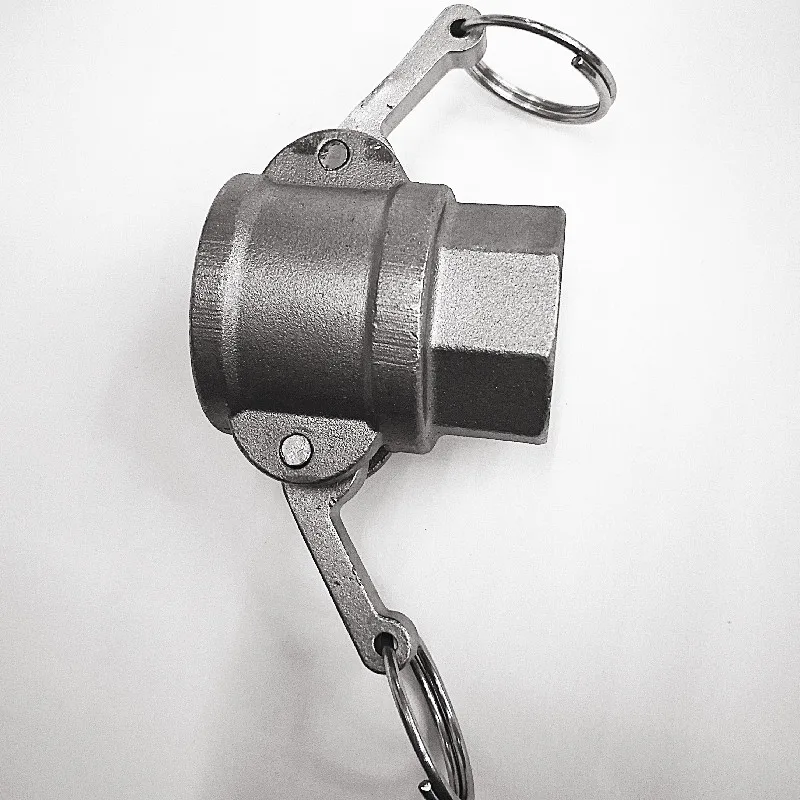

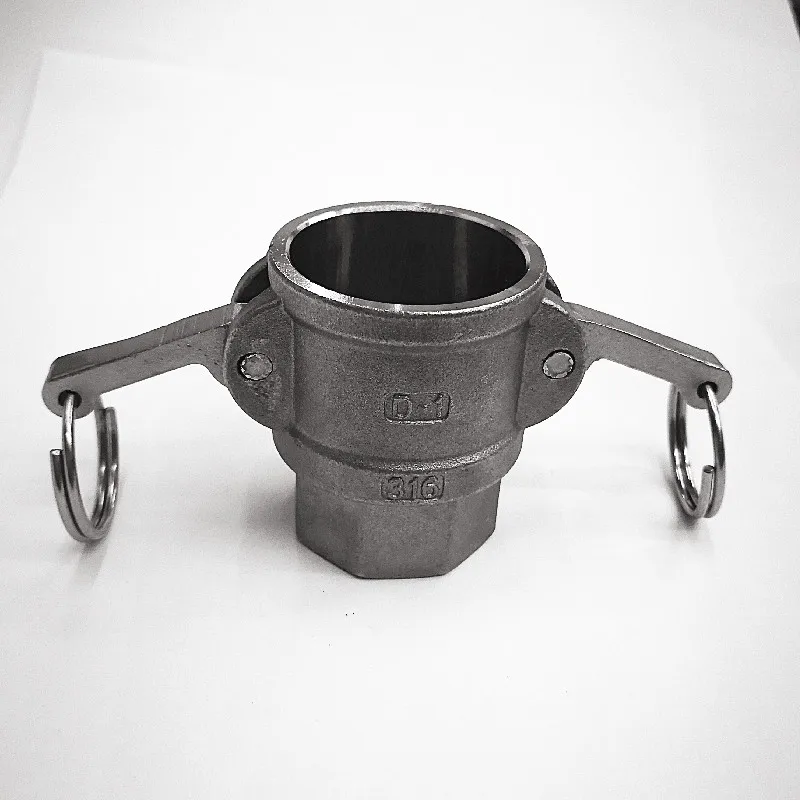

CHA-0164-D Stainless Steel Camlock Coulpings - Female Coupler x Female Thread Type -D | |||||
Size (Inch) | Part #1 | Part #2 | Weight | pcs/ctn | |
(kg) | |||||
1/2" | D050 | SS316 | SS304 | ||
3/4" | D075 | SS316 | SS304 | ||
1" | D100 | SS316 | SS304 | ||
1-1/4" | D125 | SS316 | SS304 | ||
1-1/2" | D150 | SS316 | SS304 | ||
2" | D200 | SS316 | SS304 | ||
2-1/2" | D250 | SS316 | SS304 | ||
3" | D300 | SS316 | SS304 | ||
4" | D400 | SS316 | SS304 | ||
5" | D500 | SS316 | SS304 | ||
6" | D600 | SS316 | SS304 |
