Product Overview
Single Stage Reverse Osmosis Plant
Adopt pretreatment and reverse osmosis process, finished water conductivity less than 10μS/cm.
About Reverse Osmosis System:
Reverse osmosis (R/O) is a water treatment process in which water is forced through a semi-permeable membrane that has very small holes or "pores". Clean water passes through and impurities that are too big to pass through the membrane are left behind and flushed away. In a word, it is a machine to make pure/ultra pure water.
The purification process：
The Original Water Tank → The Original Water Pump → The Quartz Sand Filter → The Activated Carbon Filter → The Water Softener → The Security Filter → The High-Pressure Pump → The Ro Membrane Module → The Pure Water Tank
FEATURES AT A GLANCE
Stable water quality.
Intelligent remote control.
No pollution, less energy consumption.
Small in size, easy operation, well adapted.
Modular production, full automatic control.
Modular production, full automatic control.
Online real-time monitoring of water quality.

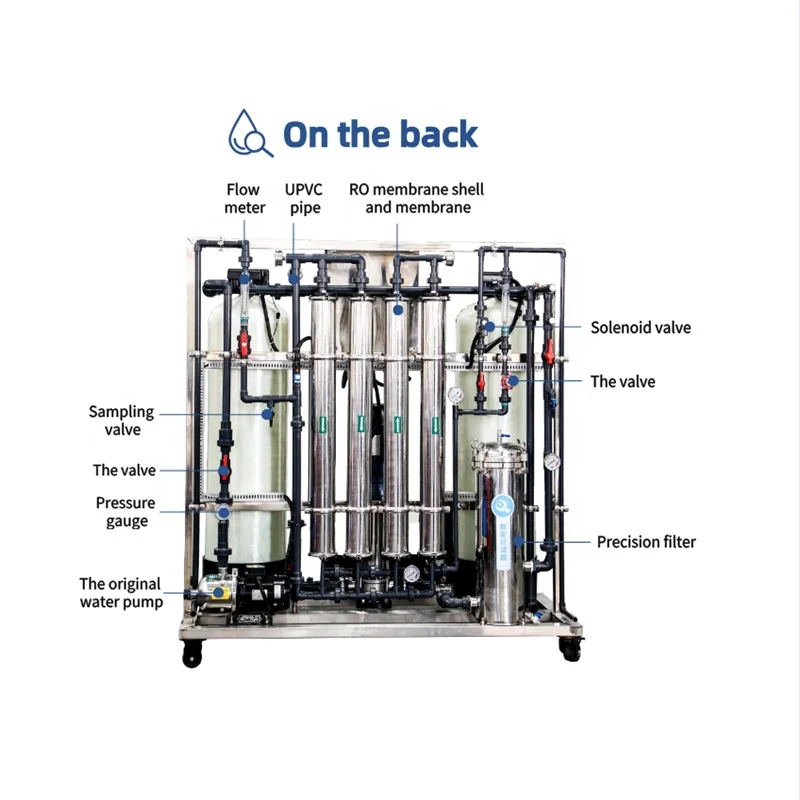

Back elevation
Side elevation

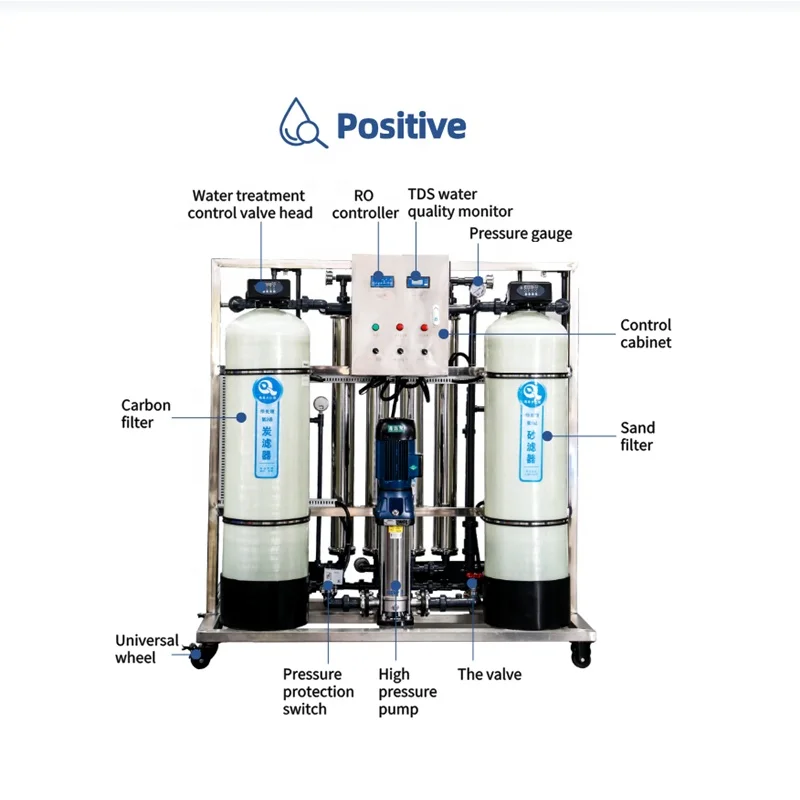

Front elevation
PRODUCT SPECIFICATIONS
Model | Purified water flow | Power supply | Dimension | ||
YQ-RO-250-F | 250 L/H | 220V / 380 V / 50Hz | 1400x520x1600 mm | ||
YQ-RO-500-F | 500 L/H | 220V / 380 V / 50Hz | 1400x520x1600 mm | ||
YQ-RO-1000-F | 1000 L/H | 220V / 380 V / 50Hz | 1600x620x1750 mm | ||
YQ-RO-2000-F | 2000 L/H | 220V / 380 V / 50Hz | 2500x720x1850 mm | ||
YQ-RO-3000-F | 3000 L/H | 220V / 380 V / 50Hz | 2500x720x1950 mm | ||
Pretreatment tank | Stainless steel or FRP | 60kN | |||
Pipe material | Stainless steel or UPVC | 6750ml | |||
Process configuration | Sand filter + carbon filter + precision filter + RO Sand filter + carbon filter + softening + precision filter + RO Sand filter + carbon filter + anti scale + precision filter + RO | ||||
Application
Suitable Industry | Detailed Application |
Electronic industrial | Electronic components.(Integrated circuits,silicon chips,display tube,electrode foil) |
Pharmaceutical industry | Transfusion, injections, tablets, biochemical products, equipment cleaning, etc. |
Chemical industry | chemical recycling water,chemical products manufacturing,chemical fertilizer |
Electric power/Boiler feed water | Thermal power boiler, low pressure boiler power system in factories and mines |
Food industry | Pure drinking water, beverages, beer, wine, health products |
Brackish water desalination | Island, ships, offshore drilling platforms, brackish water |
Direct drinking water | Estate, communities, enterprises, school and college |
Others | Grey water reuse, coated glass, fine chemicals, printing and dyeing |
PRODUCT CONFIGURATION
Replacement cycle of consumables
Quartz sand
Replacement Cycle：6-12 months
Activated Carbon
Replacement Cycle：6-12 months
Softening Resin
Replacement Cycle：6-12 months
softener salt
Replacement Cycle：10-15 days
PP Cotton
Replacement Cycle：6-12 months
RO Membrane
Replacement Cycle：12-24 months
The specific replacement period depends on the water quality and the use situation.
Successful Project
Project in China State Construction
Project in China Sources
Project in Postal Savings Bank of China
SIMILAR PRODUCTS
Certifications
Packing & Delivery
In order to better ensure the safety of your goods, we will provide professional, environmental protection, convenient and efficient packaging services. Export standard wooden frame case, seaworthy.
FAQ
Q: Are you trading company or manufacturer?
Q: What is your main products?
A: Our main products are industrial RO pure water plant, EDI ultra pure water plant, direct drinking water plant.
Q: Which machine should I choose?
A: It depends on your raw water quality ,pure water requirement and the water production you need.
Q: How to Buy?
a. Please tell us the raw water/source of water.
b. Please Provide us water analysis report if it is available for you.
c. Please tell us your required production capacity( 500L/H, 1000L/H, 2000L/H..)
d. What's the producing pure water used for( drinking, bottle water or industrial use...)
e. If you have any requirements or some new idea, please contact with us freely, we shall try our best to serve you.
Q: What is your terms of payment?
A: 30% T/T in advance, 70% T/T balance before shipment.
Q: How long is your delivery time?
A: Generally it is 7-20 days, Depends on your project.
Q: How can you control the quality and delivery?
A: All our machines will be tested before packaging. wooden packing is strong and safety for long delivery.
Q:What’s your warranty?
A: Our warranty is 1 year. But normally, our machine can work 5 years before repair.
Q: How is your after-sales service?
A: Machine’s English operation manual and relative technical documents.
Free technical advice and installation training services by video/telephone/Online instruction.
Spare parts service with corresponding cost .
Q: What is your plant price?
A: Price base on finished water quality requirement/different materials(Stainless steel or FRP)/full auto and semi auto.
So it is recommended for different configuration. Customize is welcomed.
A: we are a manufacture with designing, manufacturing, marketing and exporting.
Q: What is your main products?
A: Our main products are industrial RO pure water plant, EDI ultra pure water plant, direct drinking water plant.
Q: Which machine should I choose?
A: It depends on your raw water quality ,pure water requirement and the water production you need.
Q: How to Buy?
a. Please tell us the raw water/source of water.
b. Please Provide us water analysis report if it is available for you.
c. Please tell us your required production capacity( 500L/H, 1000L/H, 2000L/H..)
d. What's the producing pure water used for( drinking, bottle water or industrial use...)
e. If you have any requirements or some new idea, please contact with us freely, we shall try our best to serve you.
Q: What is your terms of payment?
A: 30% T/T in advance, 70% T/T balance before shipment.
Q: How long is your delivery time?
A: Generally it is 7-20 days, Depends on your project.
Q: How can you control the quality and delivery?
A: All our machines will be tested before packaging. wooden packing is strong and safety for long delivery.
Q:What’s your warranty?
A: Our warranty is 1 year. But normally, our machine can work 5 years before repair.
Q: How is your after-sales service?
A: Machine’s English operation manual and relative technical documents.
Free technical advice and installation training services by video/telephone/Online instruction.
Spare parts service with corresponding cost .
Q: What is your plant price?
A: Price base on finished water quality requirement/different materials(Stainless steel or FRP)/full auto and semi auto.
So it is recommended for different configuration. Customize is welcomed.
