CHM T48VA высокой точности небольшой настольный SMT захвата и установки машины для производства печатных плат сборочный конвейер
- Категория: >>>
- Поставщик: Hunan Charmhigh Electromechanical Equipment Co. Ltd.
Сохранить в закладки 1600286024281:
Описание и отзывы
Характеристики

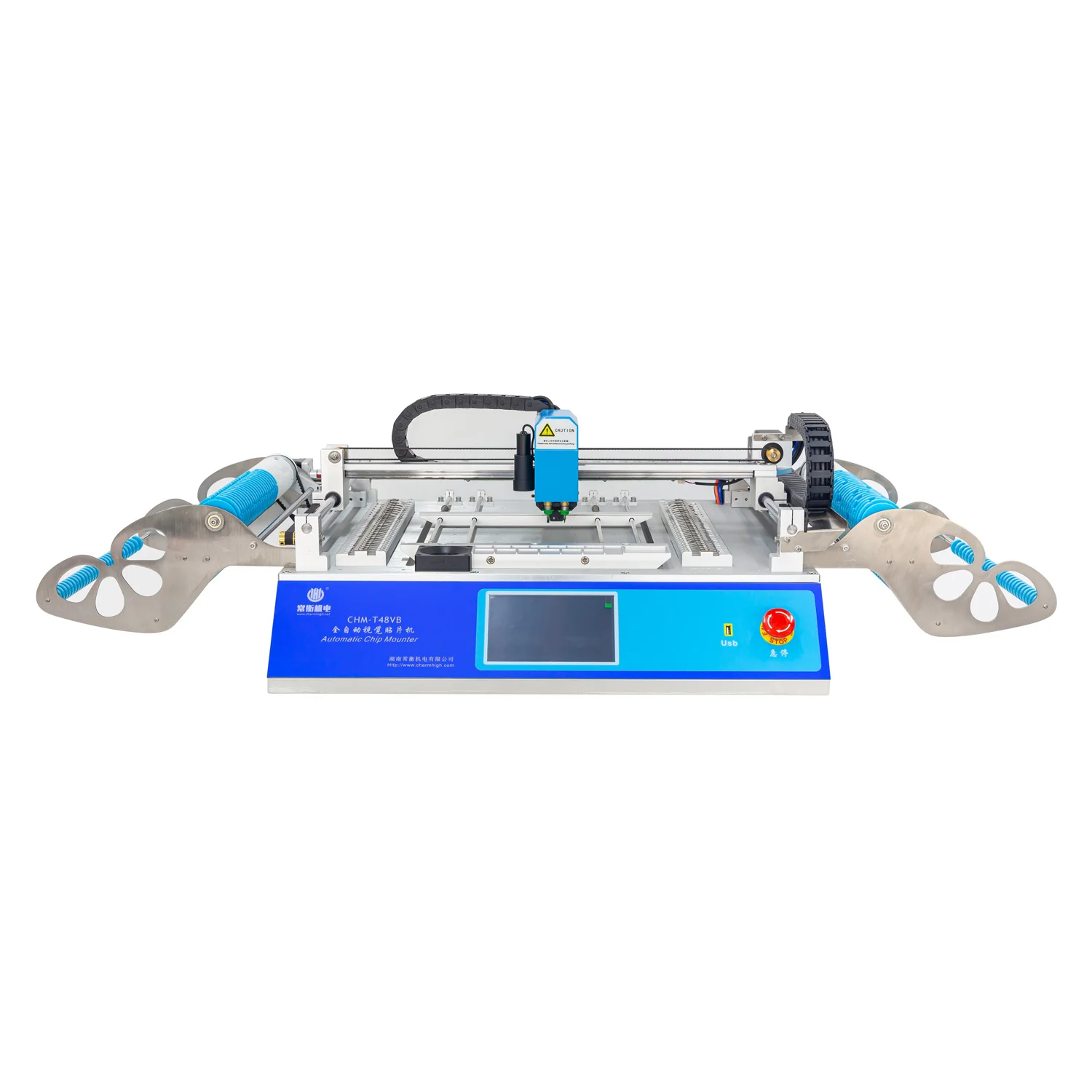

CHM-T48VA high precision small desktop SMT pick and place machine for Pcb Production assembly Line
CHM-T48VASpecifications | |
Dimensions | 940mm(L)×710mm(W)×340mm(H) |
Weight | 39kg |
Power Supply | AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 300W |
Air Supply | No external air supply required |
Vacuum Generation | Built-in vacuum pump |
Mounting Head Quantity | 2 |
Mounting Speed | 6000cph(optimalwithout vision detection); 4000cph (optimal with vision detection) |
Control Accuracy | 0.025mm |
Component Type | 0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
PCB Thickness | 0.6mm~3.5mm |
PCB Size | 10mm(L)×10mm(W)~345mm(L)×360mm(W) |
PCB Conveying | Manual operation |
Nozzle Change | Manual operation |
Control System | Built-in computer (embedded Linux operating system), 7-inch touch screen |
Drive System | X&Y-axis driven by stepping motors in the way of closed-loop control realized by encoder; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported |
Transmission System | Synchronous belt+polished rod |
Feeding System | 29 tape feeding stacks(8mm:22,12mm:4,16mm:2,24mm:1;customization supported), 14 preset general IC stacks, worksurface custom IC trays and stick feedersupported |
Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |
Product Description
Product Specification | |
Dimension | L 960mm*W 705mm*H 335mm |
PCB Area | 10*10~355*355mm |
XY Axis travel | 400*460mm |
Z axis move range | 15mm |
Pick and Place head | 2pcs |
Mounting Speed | With vision 3000~4000cph |
| without vision 6000cph (Note: cph means chip per hour) |
Working Precision | ±0.025mm |
Stack | 8mm=22 stack; 12mm=4 stack; 16mm=2 stack; |
| 24mm=1 stack; Front IC stack=12pcs; |
| User-defined IC tray |
Vacuum pump | 2pcs in-build (mute) |
Vision system | Up view and down view dual cameras |
Computer system inside | Linux system inside, very stable, no need external PC |
Software to generate CSV file | By Protel 99SE ; Altium Designer |
Support files | .csv file |
Touch screen | 7’’ (15.6cm*9.3cm) industry touch screen |
Support packages | 0402,0603,0805,1206,1210,3528,5050, SO-16,SOT-23,SOT-89, |
| TO252,SOP,QFN, LQFP....different kinds of IC (max size 22*22mm) |
Voltage | AC 110V/ 220V, 50/60HZ (supply the plug for your country) |
Gross weight | 76kg (with wooden box packing) |
Competitive Advantage: With Vision system , and embedded computer with Linux system.
With closed loop control. can move more faster and smoothly
With 29pcs feeders, more effective. can work with more kinds of components.
With 9 kinds of different nozzles, can place with 0201 0402. 0603, 0805-505etc, and QFN, SOP, LQFP. all kinds of IC. and diode, triode.
With Z axis detection can self-checking the height and angle during placement. can make sure this machine work well with various kinds of components.
We can supply English machine operation manual and technical support. Please be confident to make the purchase.
