Пневматический напорный шаровой клапан из нержавеющей стали CF8 A216Cr WCB 2 дюйма DN50 регулирующие клапаны с позиционером EP
- Категория: >>>
- Поставщик: Shanghai Thinktank Process Management Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1600286460017:
Описание и отзывы
Характеристики

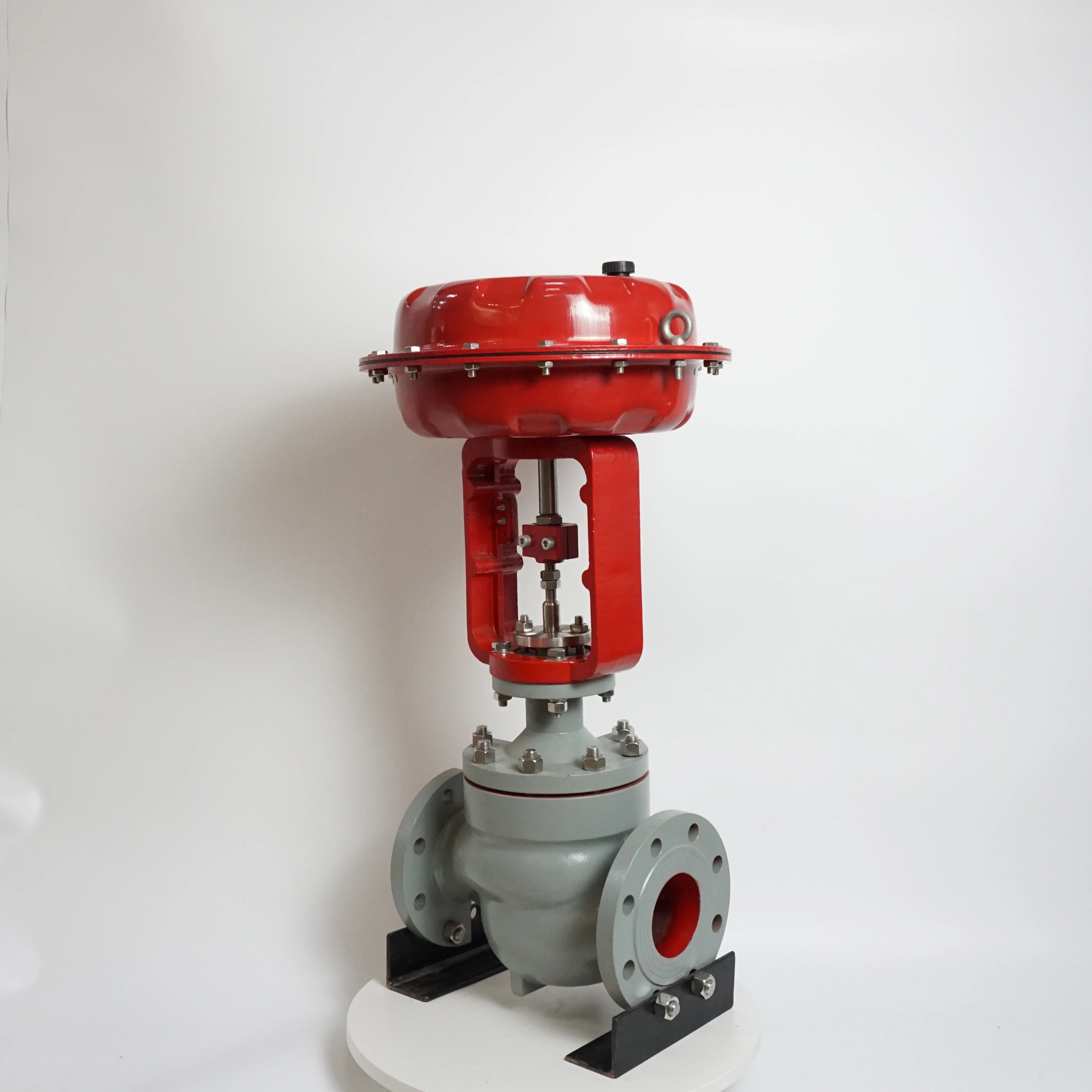

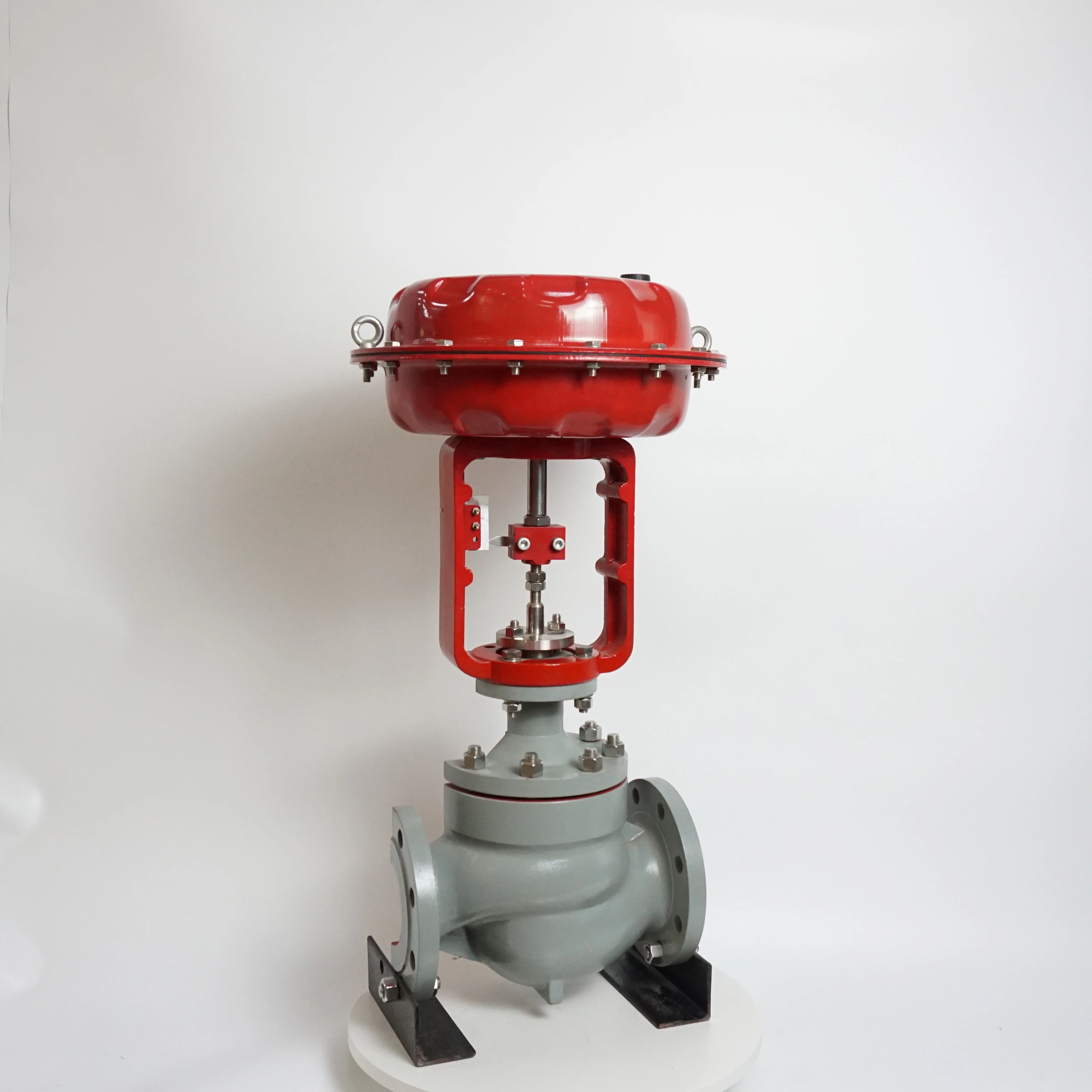

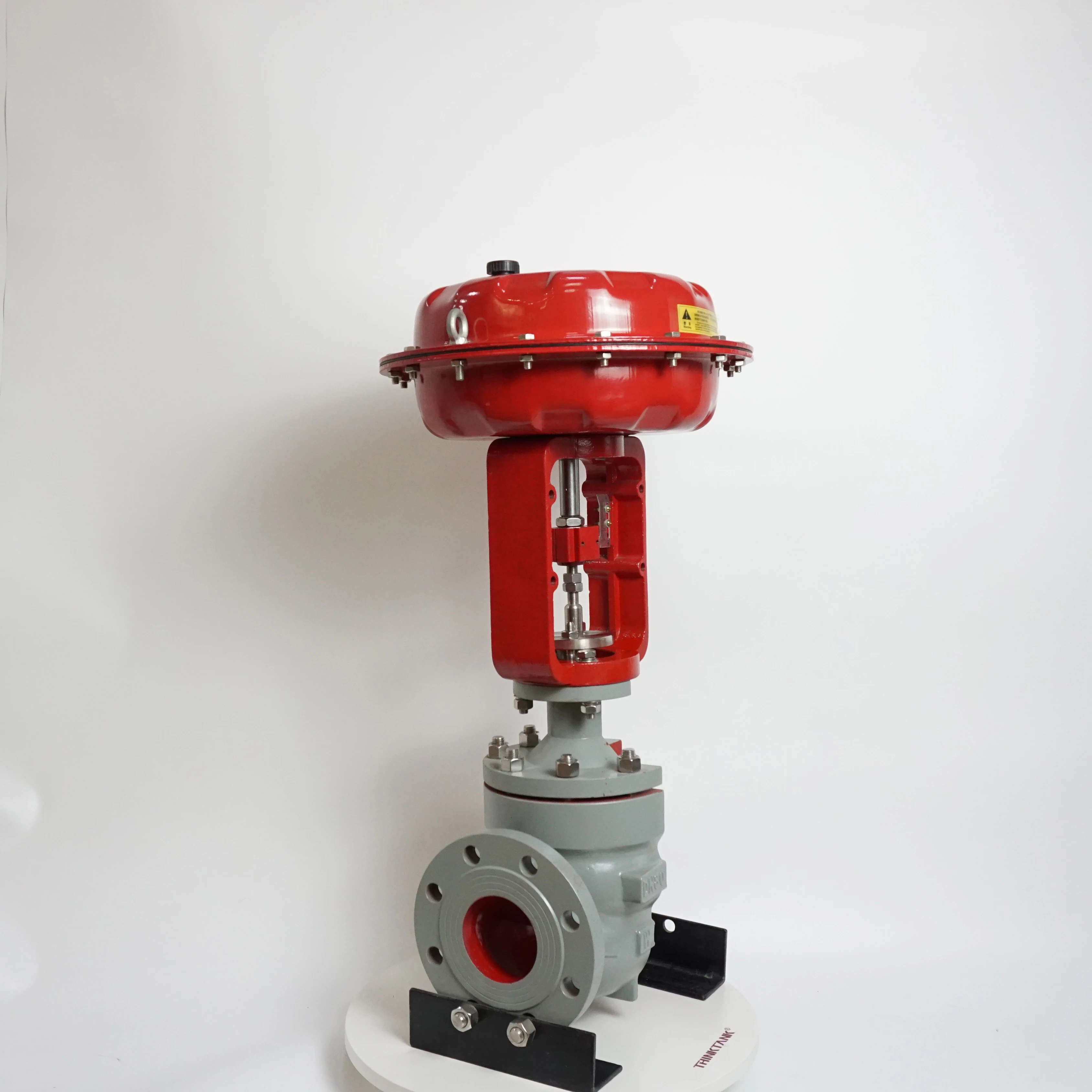

Pneumatic Top-Guided Single-Seated Control Valves
Steam Control Valves

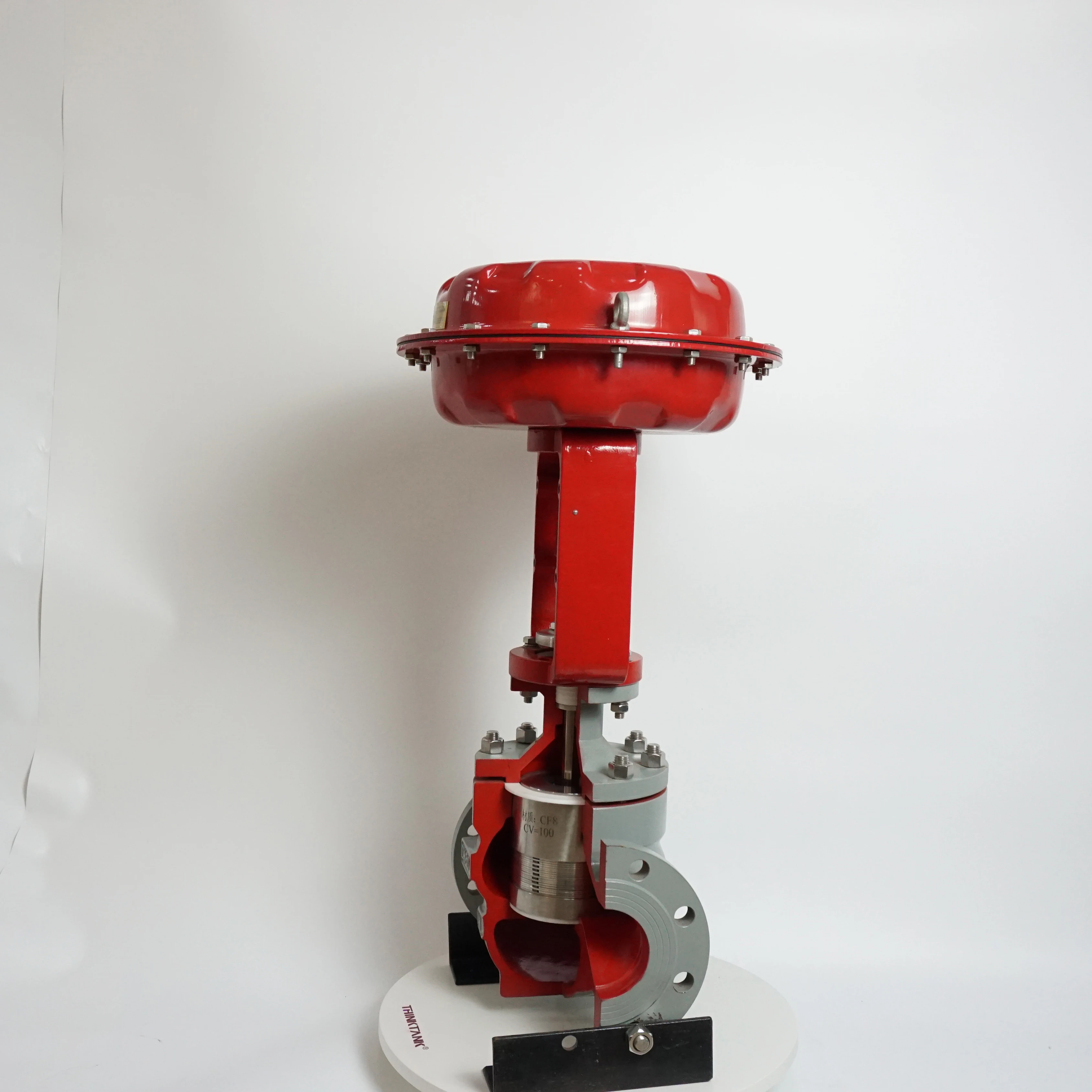

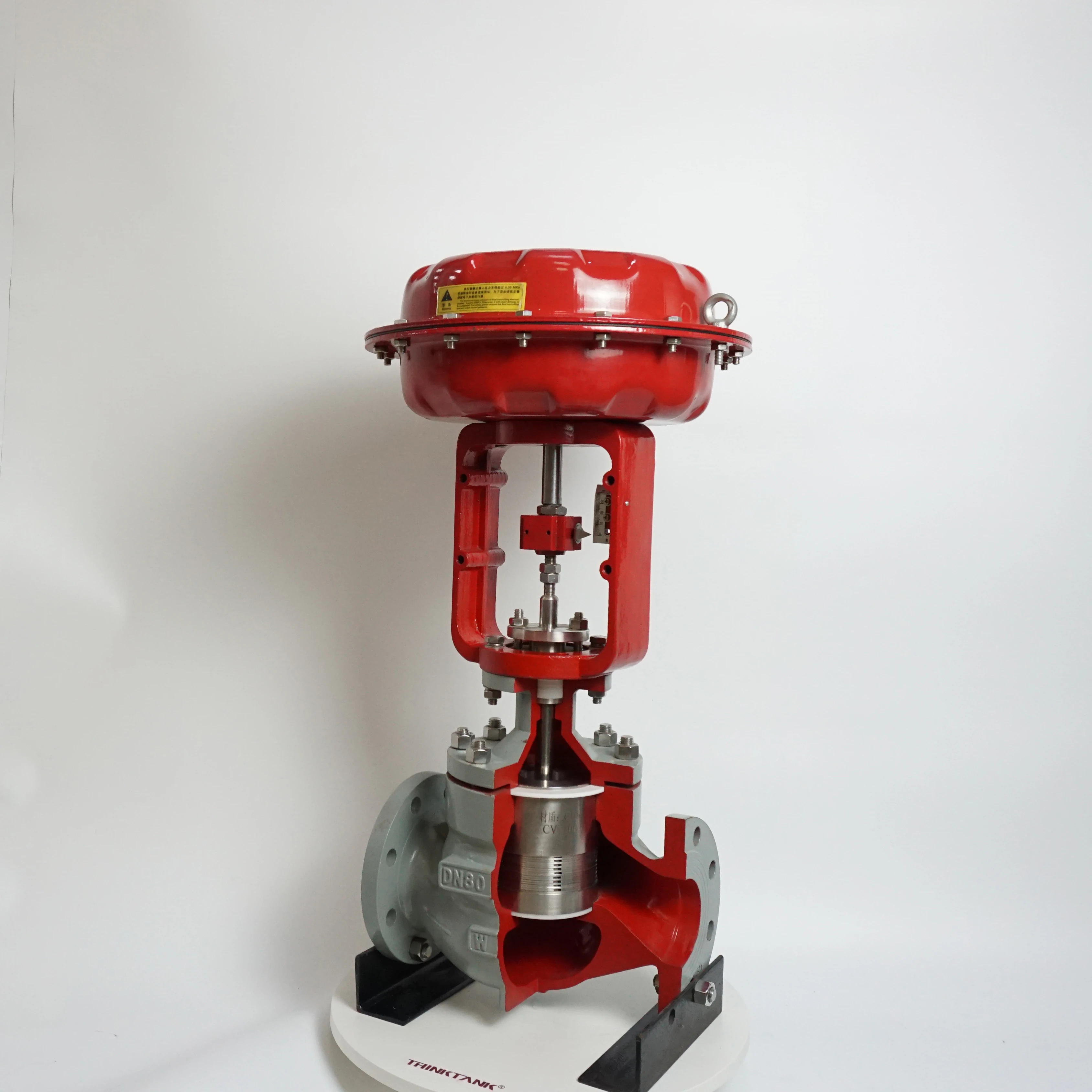

Model HSC Cage Type Single Seated Control Valves are designed for high differential pressure heavyduty service where
flashing/cavitation may occur.
Further, they are ideal for preventing erosion from the valve body, because their guides are sturdy and the valve body is
protected by a cage. The compact valve body, having an S-shaped flow passage that features low pressure loss, allows a large flow
capacity and rangeability.
The valve plug is highly vibration-resistant as it is held by a top guide section which has a large sliding area. The flow shutoff
performance complies with the IEC or JIS Standards. The actuator, integrated with simplest mechanisms, utilizes a compact yet
powerful diaphragm actuator loaded with multiple springs.
The model HSC Control Valves are widely applicable for reliable control of flows in high- or lowtemperature, high differential
pressure process lines
flashing/cavitation may occur.
Further, they are ideal for preventing erosion from the valve body, because their guides are sturdy and the valve body is
protected by a cage. The compact valve body, having an S-shaped flow passage that features low pressure loss, allows a large flow
capacity and rangeability.
The valve plug is highly vibration-resistant as it is held by a top guide section which has a large sliding area. The flow shutoff
performance complies with the IEC or JIS Standards. The actuator, integrated with simplest mechanisms, utilizes a compact yet
powerful diaphragm actuator loaded with multiple springs.
The model HSC Control Valves are widely applicable for reliable control of flows in high- or lowtemperature, high differential
pressure process lines
Product Description
Standard Industry Application | ||||||||
Product Name | Size | ANSI Class | Standard Materials | Temperature Range | ||||
Globe Control Valve | 1/2" to 12" | 125 to 300 | Cast Iron, Carbon Steel, Stainless Steel, Monel, Hastelloy, (Special Materials on Request) | '-325 to 842oF (-196 to 450oC) | ||||
3-Way Control Valve | 1/2" to 6" | 150 to 300 | Carbon Steel, Stainless Steel | -325 to 842oF (-196 to 450oC) | ||||
Cryogenic Control Valve | 1/2" to 10" | 150 to 900 | Cast Stainless Steel (A351 CF8) | -325 to 149oF (-196 to 65oC) | ||||
Top-Entry Cryogenic Control Valve | 1" to 6" | 150 to 600 | Cast Stainless Steel (A351 CF8) | -425 to 149oF (-254 to 65oC | ||||
On/Off Globe Valve | 1/2" to 4" | 150 to 300 | Carbon Steel, Stainless Steel | 58 to 482oF (-50 to 250oC) | ||||
Heavy Duty Industry Application | ||||||||
Product Name | Size | ANSI Class | Standard Materials | Temperature Range | ||||
Heavy Duty Globe Control Valve | 1/2" to 20" | 150 to 2500 | Carbon Steel, Stainless Steel, Monel, Hastelloy, (Special Materials on Request) | '-325 to 1022oF (-196 to 550oC) | ||||
High Pressure Control Valve | 1/2" to 1" | 150 to 2500 | Forged Stainless Steel | '-325 to 842oF (-196 to 450oC) | ||||
Heavy Duty 3-Way Control Valve | 1/2" to 20" | 150 to 2500 | Carbon Steel, Stainless Steel | '-325 to 1022oF (-196 to 550oC) | ||||
Double-Guided Globe Control Valve | 3" to 20" | 150 to 2500 | Carbon Steel, Stainless Steel | '-325 to 1022oF (-196 to 550oC) | ||||
Heavy Duty Angle Control Valve | 1/2" to 20" | 150 to 2500 | Carbon Steel, Stainless Steel | '-325 to 1022oF (-196 to 550oC) | ||||
Heavy Duty Globe Control Valve | 1/2" to 8" | 150 to 900 | Carbon Steel, Stainless Steel | '-325 to 842oF (-196 to 450oC) | ||||
Heavy Duty Angle Control Valve | 1/2" to 8" | 150 to 900 | Carbon Steel, Stainless Steel | '-325 to 842oF (-196 to 450oC) | ||||
Microflow Control Valve | 1/4" to 1" | 150 to 2500 | Forged Stainless Steel | '-325 to 842oF (-196 to 450oC) | ||||
Globe Control Valve | 1" to 3" | 600 to 1500 (and 1700) | Cast Steel A352 LCC | '-50 to 400oF (-46 to 204oC) | ||||
Heavy Duty Cage Control Valve | 16" to 32" | 150 to 900 | Carbon Steel, Stainless Stee | '-50 to 932oF (-46 to 500oC) | ||||
Cage Guided Globe and Angle Valve | 3/4" to 32" | 150 to 2500 | A216 WCC, A217 WCA, A351 CF8M (Other Materials on Reques | '-325 to 1292oF (-196 to 700oC) | ||||
Contact Us Now
Company Profile
Production Process
About Us
FAQ
1. who are we?
We are based in Shanghai, China, start from 2012,sell to Mid East(30.00%),South America(20.00%),Western Europe(10.00%),Southern Europe(10.00%),Southeast Asia(5.00%),Eastern Asia(5.00%),Domestic Market(5.00%),North America(5.00%),Africa(2.00%),Eastern Europe(2.00%),South Asia(2.00%),Northern Europe(2.00%),Central America(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Control Valves,Ball Valves,Butterfly Valves,Globe Valves,Pressure Regulators
4. why should you buy from us not from other suppliers?
1. Qualified Vendor for ABB.
2. Provide OEM & ODM service for over 26 international brands.
3. With 30 experience of manufacturing industrial valves field.
4. Deep cooperate with 35 countries distributors
5. Achieved CE, ISO9001-2015, SIL, AAA Credit.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Korean
We are based in Shanghai, China, start from 2012,sell to Mid East(30.00%),South America(20.00%),Western Europe(10.00%),Southern Europe(10.00%),Southeast Asia(5.00%),Eastern Asia(5.00%),Domestic Market(5.00%),North America(5.00%),Africa(2.00%),Eastern Europe(2.00%),South Asia(2.00%),Northern Europe(2.00%),Central America(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Control Valves,Ball Valves,Butterfly Valves,Globe Valves,Pressure Regulators
4. why should you buy from us not from other suppliers?
1. Qualified Vendor for ABB.
2. Provide OEM & ODM service for over 26 international brands.
3. With 30 experience of manufacturing industrial valves field.
4. Deep cooperate with 35 countries distributors
5. Achieved CE, ISO9001-2015, SIL, AAA Credit.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Korean
Похожие товары
Лучшая цена одинарные электрические электромагнитные регулирующие клапаны электромагнитный клапан для управления воздушным управлением
Высокое качество электромагнитный клапан паровой Пневматический коллектор высокого качества 4 2-ходовой управления
953,57-1 271,42 ₽
Низкотемпературный соленоидный топливный клапан российского рынка
Китайский завод 12 В постоянного тока для системы воды электромагнитный клапан
AC220V высокое качество воды электромагнитный клапан управления нормально открыт/закрыт
5 721,39 ₽
Фланцевый ножной клапан из нержавеющей стали SAE 304 316 с винтовым концом

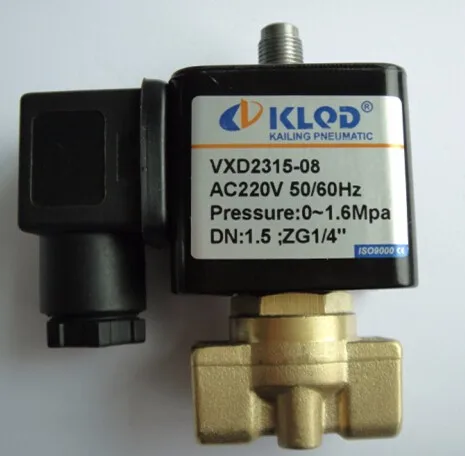

Соленоидный клапан компрессора прямого действия с 2/2 VXD23-08 серией нормально закрытый/нормально открытый воздух
