HEPA Air Supply Outlet Unit for Clean Room Class 1000


Products Description



DOP HEPA Box
Cabinet material: Cold rolled steel with powder coated / Stainless steel
Air intake position: At side / At top

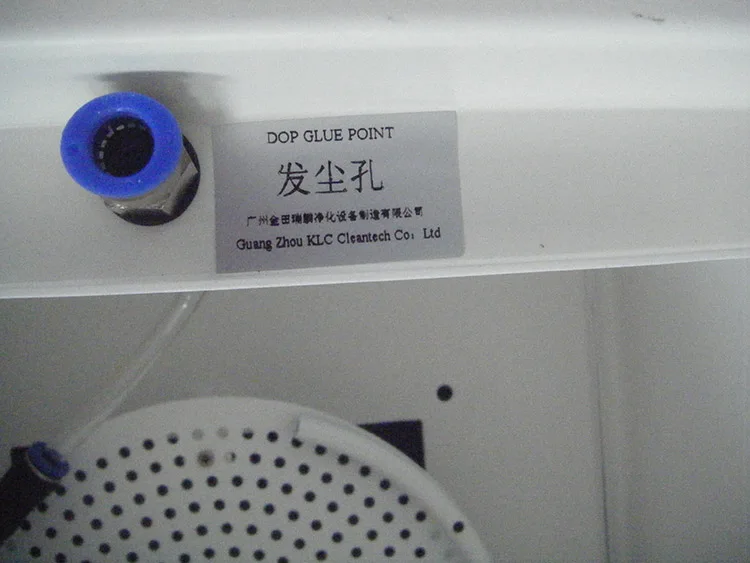

Advantage: Equipped with DOP monitoring port and injection port which allows in time testing after installed
Optional flange port / flange / damper position: at side / at top;
Optional filter type: HEPA / ULPA gel sealant filter;








Product information

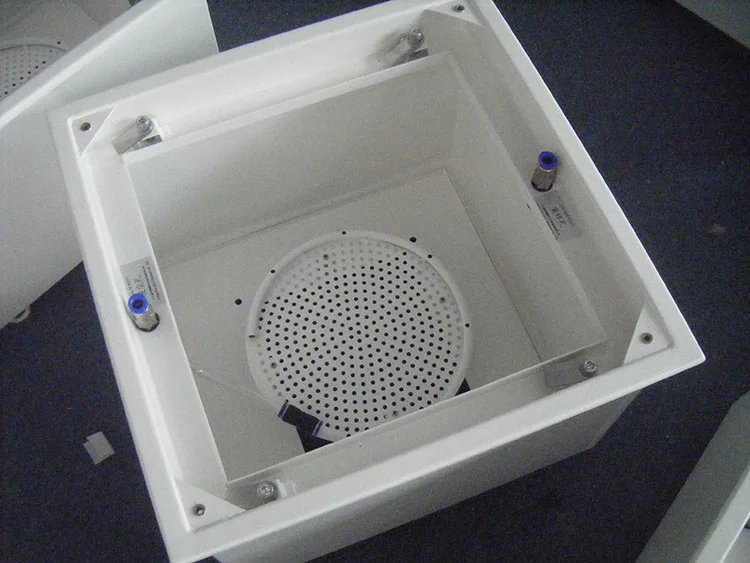

DOP HEPA Box is includes the plenum chamber, HEPA filter and diffuser. With characteristics of less investment and simple construction in the roof of transformation and foundation of new clean room, the DOP HEPA Box can be used as the terminal HEPA filtration setting system to install.

Product feature
1.The DOP HEPA Box adopts the gel mini-pleat HEPA filter with better sealing.
2.It can test HEPA filter’s leakage and check the airproofing status of gasket, frame and glass fiber media. It is more convenient to leak leakage to HEPA filter of the aseptic workshop.


Custom Design




Specification


Model
HUDOP-500-T
HUDOP-1000-T
HUDOP-1500-T
HUDOP-2000-T
Cabinet Size
(WxLxHmm)
410x410x400
574x574x400
700x700x400
1005x700x400
Filter Size
(WxHxDmm)
346x346x90
510x510x90
636x636x90
941x636x90
Air Flow
(m³/h)
500
1000
1500
1000




Application
Widely used in different classes & structure uneven clean rooms.
