Products Description

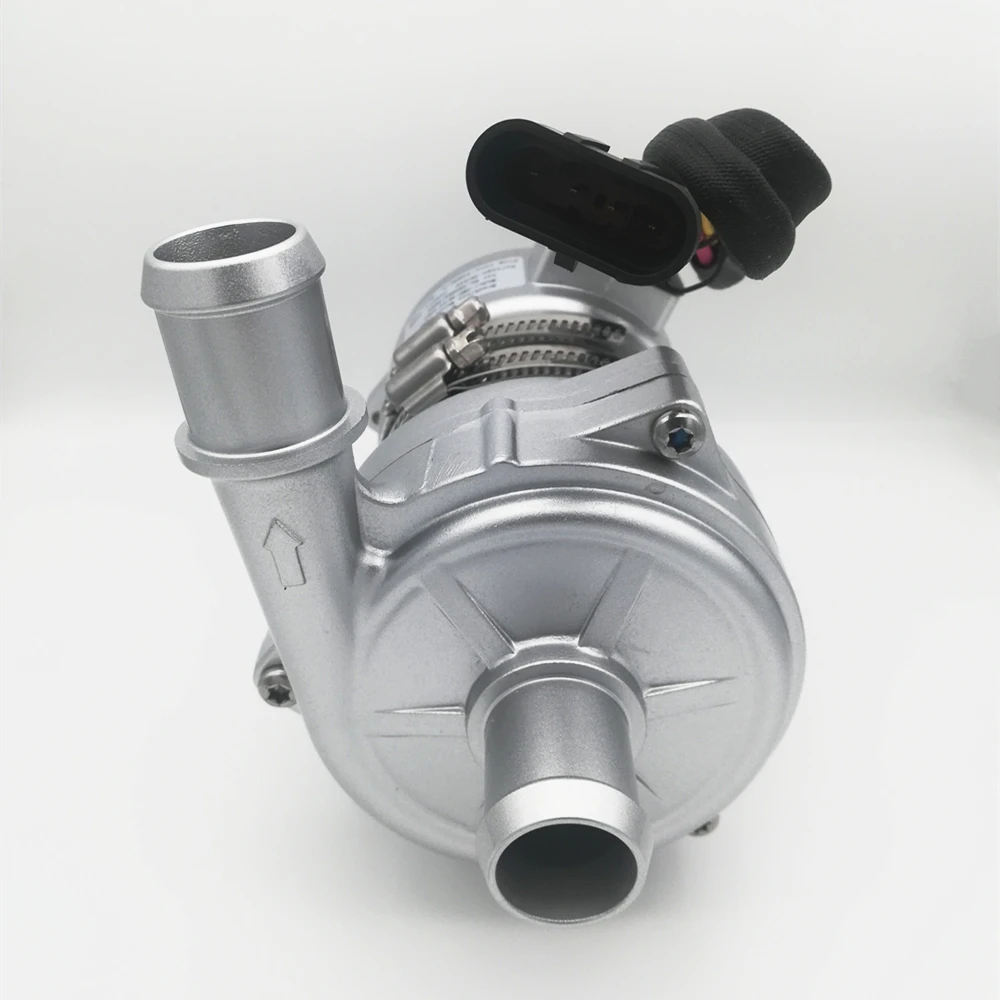

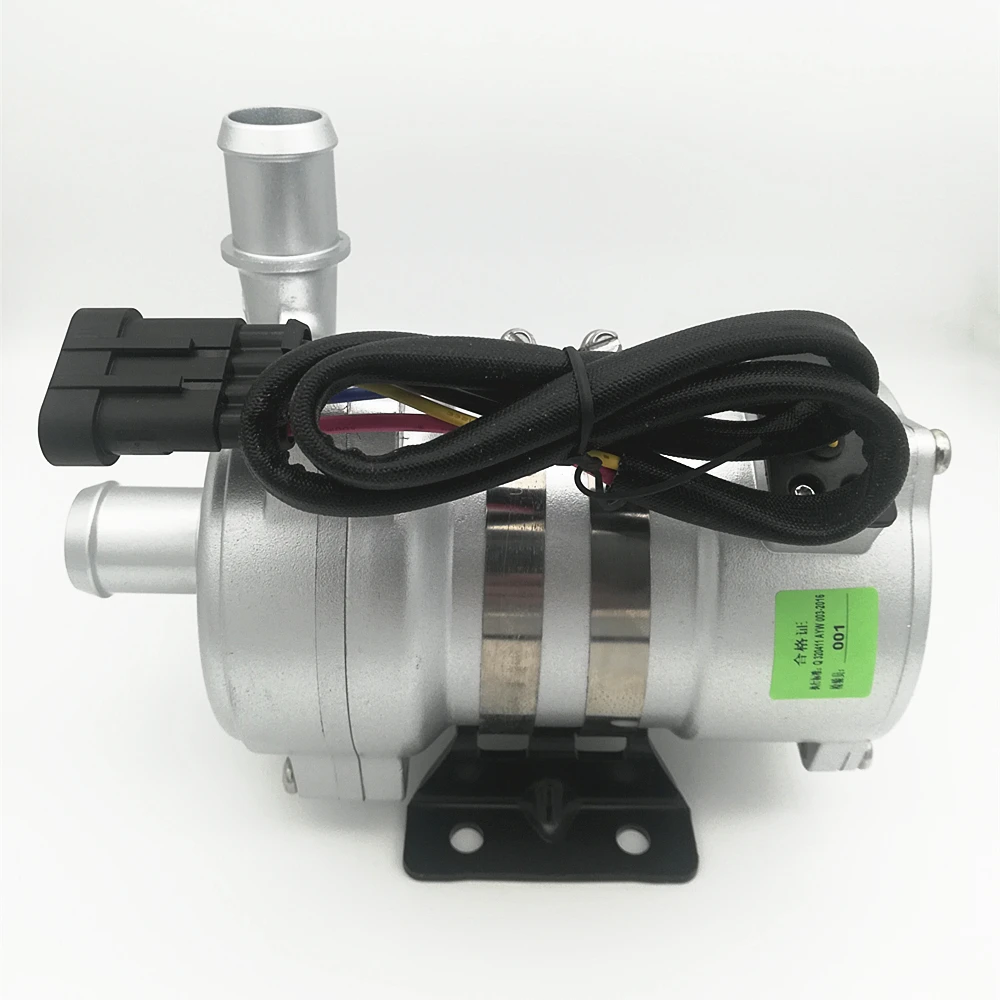

DSP43-2XX Brushless ELECTRIC WATER PUMP
Features
1. Mainly used in new energy vehicle cooling or battery heat pipe system
2. This pump has a high head, which is especially suitable for systems with large water resistance
2. This pump has a high head, which is especially suitable for systems with large water resistance
3. The brushless DC motor has good reliability, high efficiency and energy saving, low noise and long life
4.Soft start protection: small starting current
5. Overvoltage/undervoltage protection: When the voltage exceeds the available range,the pump will stop running, and when the voltage returns to the proper voltage range, the pump will resume normal operation.
6.Locked-rotor protection: When the pump is stuck due to foreign matter, the pump will stop running. After the foreign matter is removed, the pump will resume normal operation.
7. Reverse connection protection: when the positive and negative poles are connected reversely, the pump will automatically cut off the power for protection
Technical parameters
Working medium: antifreeze
Ambient temperature: -40℃~+85℃
Medium temperature: -40℃~+85℃, the limit temperature is 105℃
Rated voltage: DC24V DC24V voltage range: DC18V~DC32V
Weight: 900g (without base)
Life: ≥20000h
Protection level: IP68
Protection function: overvoltage/undervoltage, locked rotor, reverse connection, overcurrent, idling
Ambient temperature: -40℃~+85℃
Medium temperature: -40℃~+85℃, the limit temperature is 105℃
Rated voltage: DC24V DC24V voltage range: DC18V~DC32V
Weight: 900g (without base)
Life: ≥20000h
Protection level: IP68
Protection function: overvoltage/undervoltage, locked rotor, reverse connection, overcurrent, idling
Related performance parameters
Model | Power (W) | Flow (LPH) | Head (M) | Inlet (mm) | Outlet (mm) |
DSP43-2XX | 250 | 2800 | 16 | 38 | 25 |
190 | 2400 | 15 | 38 | 25 |
The technical parameters above are only a few for your reference. You can tell us what you use for, then we'll offer you suitable pumps.
Dimensional drawing and working curve diagram
application scope pictures are only for reference.
Widely used for hydroponics, water heaters, hot water circulation, small air conditioner, mini aquarium, fish tank, water circulation, desktop fountain, Handicraft decoration water cycle, humidifier, Water and soil cultivation, pet fountain, etc...
We supply Full Customization Service, please contact us for the details.
Suppot both submersible and unsubmersible installation
Our Advantages
Category
Company Profile
Packaging
FAQ
Do you accept OEM/ODM Service?
Yes, we have been the professional OEM/ODM supplier for many years.
What's your main products?
Brushless dc water pump, drinking pump, solar pump, submersible pump, centrifugal pump, diaphragm pump, booster pump, etc... for many years we develop the products with our client together, also customize the products they want.
How can I choose the pump?
We can study together for the using purpose, specification in the working condition, then we will suggest you the most suitable one from our products range.
What's your product MOQ?
We accept sample order, the MOQ can be negotiated.
How long is your delivery time?
Sample order within one week. Bulk order within 25 days. If the pumps in stock, within2 days.
How long is your warranty of pump?
Warranty is one year, can be repaired free of charge
What's the payment method?
By Trade Assurance, Paypal, T/T, L/C, Western Union, etc...
What certificates have your pumps passed?
All our products have passed CE, RoHs, Reach. Parts of pumps met UL.
How do you ship the goods?
Shipping by express (sample order) and by air or by sea (bulk order). Pls contact us before order because the freight fee base on quantity
What's your port of loading?
Yes, we have been the professional OEM/ODM supplier for many years.
What's your main products?
Brushless dc water pump, drinking pump, solar pump, submersible pump, centrifugal pump, diaphragm pump, booster pump, etc... for many years we develop the products with our client together, also customize the products they want.
How can I choose the pump?
We can study together for the using purpose, specification in the working condition, then we will suggest you the most suitable one from our products range.
What's your product MOQ?
We accept sample order, the MOQ can be negotiated.
How long is your delivery time?
Sample order within one week. Bulk order within 25 days. If the pumps in stock, within2 days.
How long is your warranty of pump?
Warranty is one year, can be repaired free of charge
What's the payment method?
By Trade Assurance, Paypal, T/T, L/C, Western Union, etc...
What certificates have your pumps passed?
All our products have passed CE, RoHs, Reach. Parts of pumps met UL.
How do you ship the goods?
Shipping by express (sample order) and by air or by sea (bulk order). Pls contact us before order because the freight fee base on quantity
What's your port of loading?
Shenzhen port, Dongguan port, Guangzhou port, for other we can communicate it.
