ZNC350 мощность рабочей жидкости 280 л Электрический тонущий станок D7135 edm
7 900,00 $ - 9 400,00 $

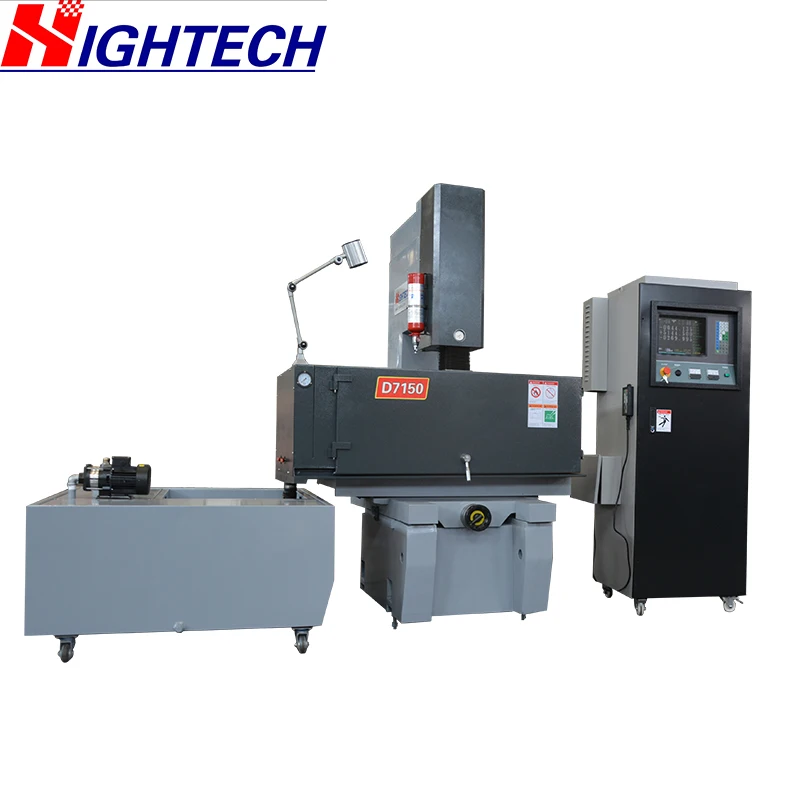

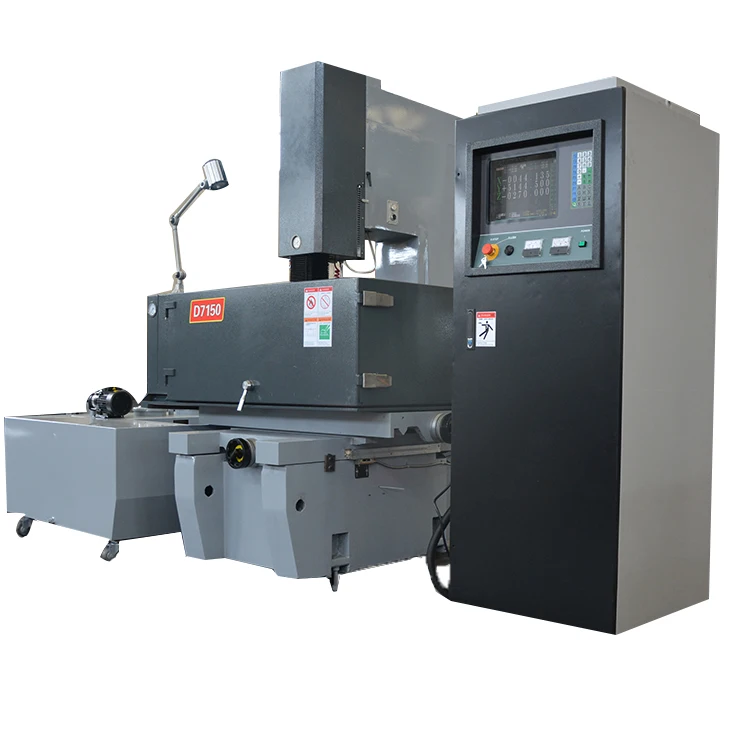

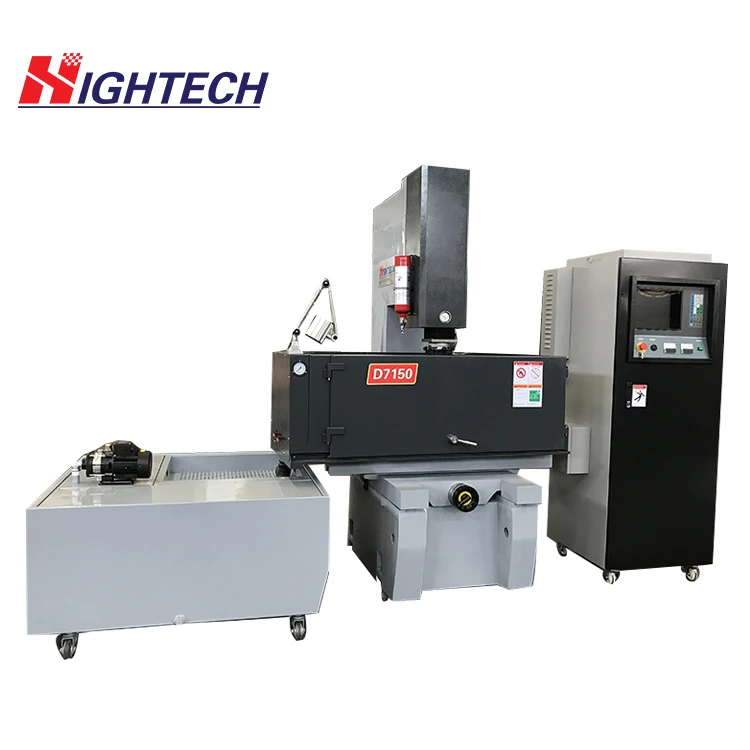

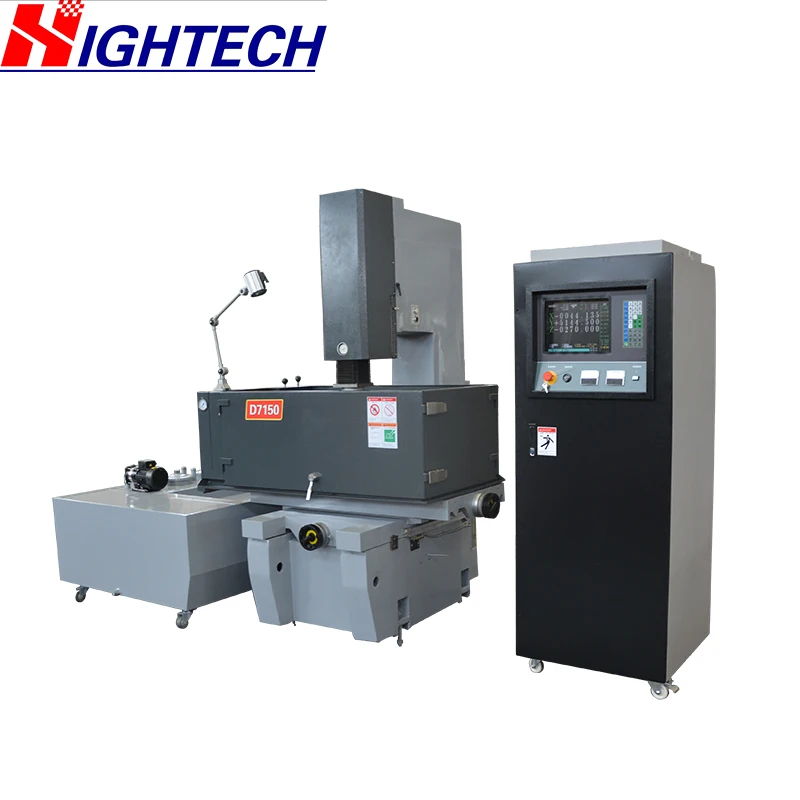

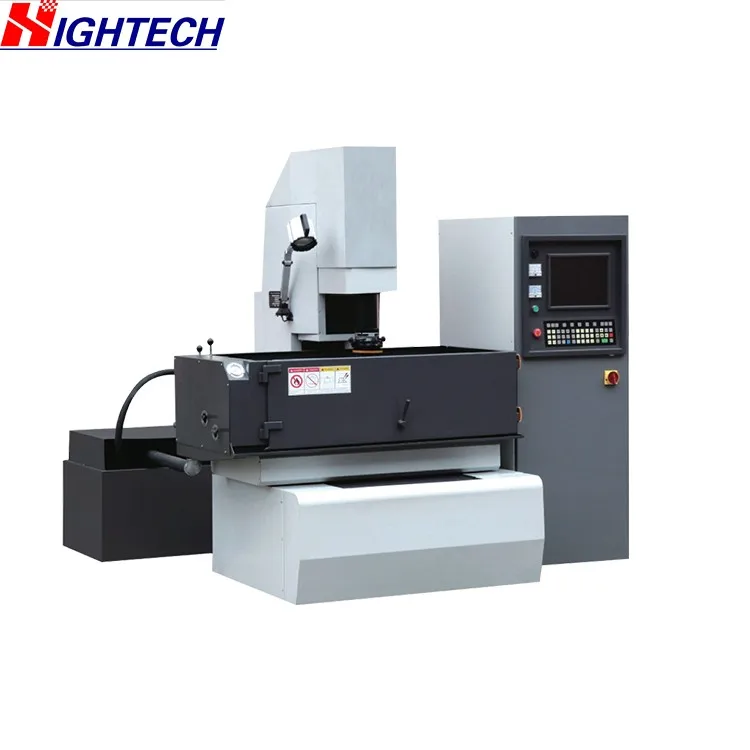

CNC d7140 искрящая эрозия Edm Die Sinker Machine
- Категория: >>>
- Поставщик: Taizhou Hitech Nc Machine Tool Co. Ltd.
Сохранить в закладки 1600287591762:
Описание и отзывы
Характеристики
Item | D7125 | D7132 | D7140 | D7145 | D7150 | D7160 |
Worktable size | 400x250 | 500x200 | 650x400 | 720x450 | 800x500 | 1000x600 |
Worktank size | 1030x520x320 | 1030x560x320 | 1050x630x410 | 1400x710x410 | 1450x780x500 | 1680x850x580 |
X axis travel | 250 | 320 | 400 | 450 | 500 | 600 |
Y axis travel | 150 | 250 | 300 | 350 | 400 | 450 |
Z axis travel | 240 | 240+240 | 250+250 | 250+250 | 250+300 | 250+350 |
Distance between electrode and worktable | 400 | 550 | 650 | 680 | 700 | 800 |
Max. workpiece weight | 250 | 550 | 750 | 800 | 800 | 1000 |
Max. electrode weight | 50 | 60 | 70 | 80 | 100 | 150 |
Machine weight | 1100 | 1200 | 1800 | 2000 | 2200 | 3000 |
Machine size | 1100x1200x2040 | 1100x1400x2120 | 1100x1200x2040 | 1500x1500x2250 | 1600x1500x2300 | 1700x1600x2400 |
Main Features☆☆☆☆☆
1) Japan SANYO DC servo motor in Z axis.
2) X,Y axes adopts precise ball screw.
3) Professional database system.
4) High speed 400mm3/min.
5) Surface roughness Ra0.8.
6) Taiwan control system.
7) Germany guideway.PVC coating for wear resistance.
8) SIEMENS,Germany AC contactor.
9) OMRON relay.
10) Japan high frequency power tube.
11) Harbin bearings.P5 grade.
12) Castings,HT250 resin sand.
2) X,Y axes adopts precise ball screw.
3) Professional database system.
4) High speed 400mm3/min.
5) Surface roughness Ra0.8.
6) Taiwan control system.
7) Germany guideway.PVC coating for wear resistance.
8) SIEMENS,Germany AC contactor.
9) OMRON relay.
10) Japan high frequency power tube.
11) Harbin bearings.P5 grade.
12) Castings,HT250 resin sand.
Electroerosion JS EDM Introduction
The electrical discharge machining are used with impulse electric cabinet.Z axis is driven by Japan SANYO DC servo motor,with Z axis numerical control feature.
X,Y axes adopt precise ball screw,and precision optical grating digital display shows the coordinate which make coordinates have high positioning accuracy.
Electric cabinet of electrical discharge machining adopts the most advanced industry-specific control board,strong function,good stability,simple operation.
As long as input a few parameters,such as Z axis depth,it will select a set of suitable date from the expert database system that matches the processing,and process from the rough processing to finish once automatically.
The electrical discharge machining are used with impulse electric cabinet.Z axis is driven by Japan SANYO DC servo motor,with Z axis numerical control feature.
X,Y axes adopt precise ball screw,and precision optical grating digital display shows the coordinate which make coordinates have high positioning accuracy.
Electric cabinet of electrical discharge machining adopts the most advanced industry-specific control board,strong function,good stability,simple operation.
As long as input a few parameters,such as Z axis depth,it will select a set of suitable date from the expert database system that matches the processing,and process from the rough processing to finish once automatically.
Control Cabinet of Electroerosion JS EDM
We always keep our enterprise mission--"Quality Changes The World" in mind.We start our work from each trivial matter and do our best to complete each detail well and offer solid technical service and good service to our customers.
Q:Are you manufacturer?
A:Yes,we are manufacturer of brass wire EDM cutting machine.Welcome to visit us!
Q:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q:What information do you need before making quotation?
A:Worktable size or table travel you need.Surface roughness and cutting speed requirements.
Q:What should I do to start a new business in EDM wire cutting machine area?
A:Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine.
Q:Why choose you?What is the difference between you and other Chinese supplier?
A:We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia,India,UAE,South
Korea,Canada,Vietnam,Thailand,Mexico,Turkey and etc.
You can get higher quality product & better professional service from Hitech with same price.
Q:I`m worried about after-sales service!
A:Warranty is one year.
Any parts damaged during warranty will be replaced for free!
We provide spare parts for life time at cost price.
Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price.
Our engineers are available to service overseas!
A:Yes,we are manufacturer of brass wire EDM cutting machine.Welcome to visit us!
Q:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q:What information do you need before making quotation?
A:Worktable size or table travel you need.Surface roughness and cutting speed requirements.
Q:What should I do to start a new business in EDM wire cutting machine area?
A:Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine.
Q:Why choose you?What is the difference between you and other Chinese supplier?
A:We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia,India,UAE,South
Korea,Canada,Vietnam,Thailand,Mexico,Turkey and etc.
You can get higher quality product & better professional service from Hitech with same price.
Q:I`m worried about after-sales service!
A:Warranty is one year.
Any parts damaged during warranty will be replaced for free!
We provide spare parts for life time at cost price.
Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price.
Our engineers are available to service overseas!
