Стабильное качество кузнец мощность кованый кузнечный молот для продажи предварительно окрашенная оцинкованная сталь) с низкой ценой C41 25KG
- Категория: Metal Forging Machinery >>>
- Поставщик: Henan Wadley CNC Machinery Co. Ltd.
Сохранить в закладки 1600287911530:
Описание и отзывы
Характеристики
Product Description

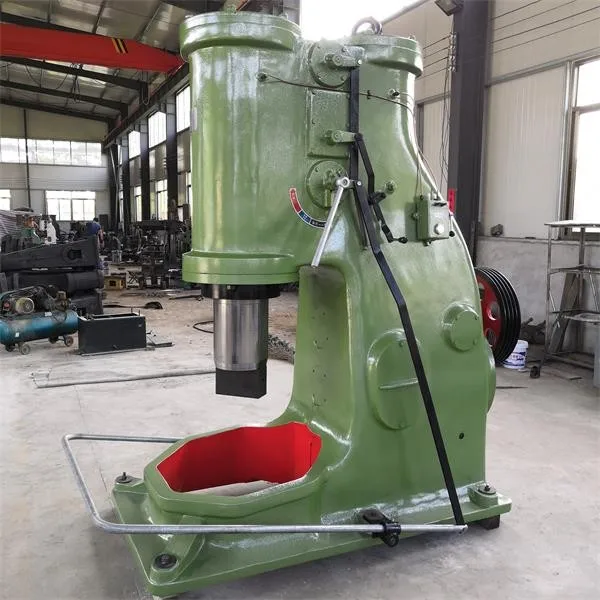

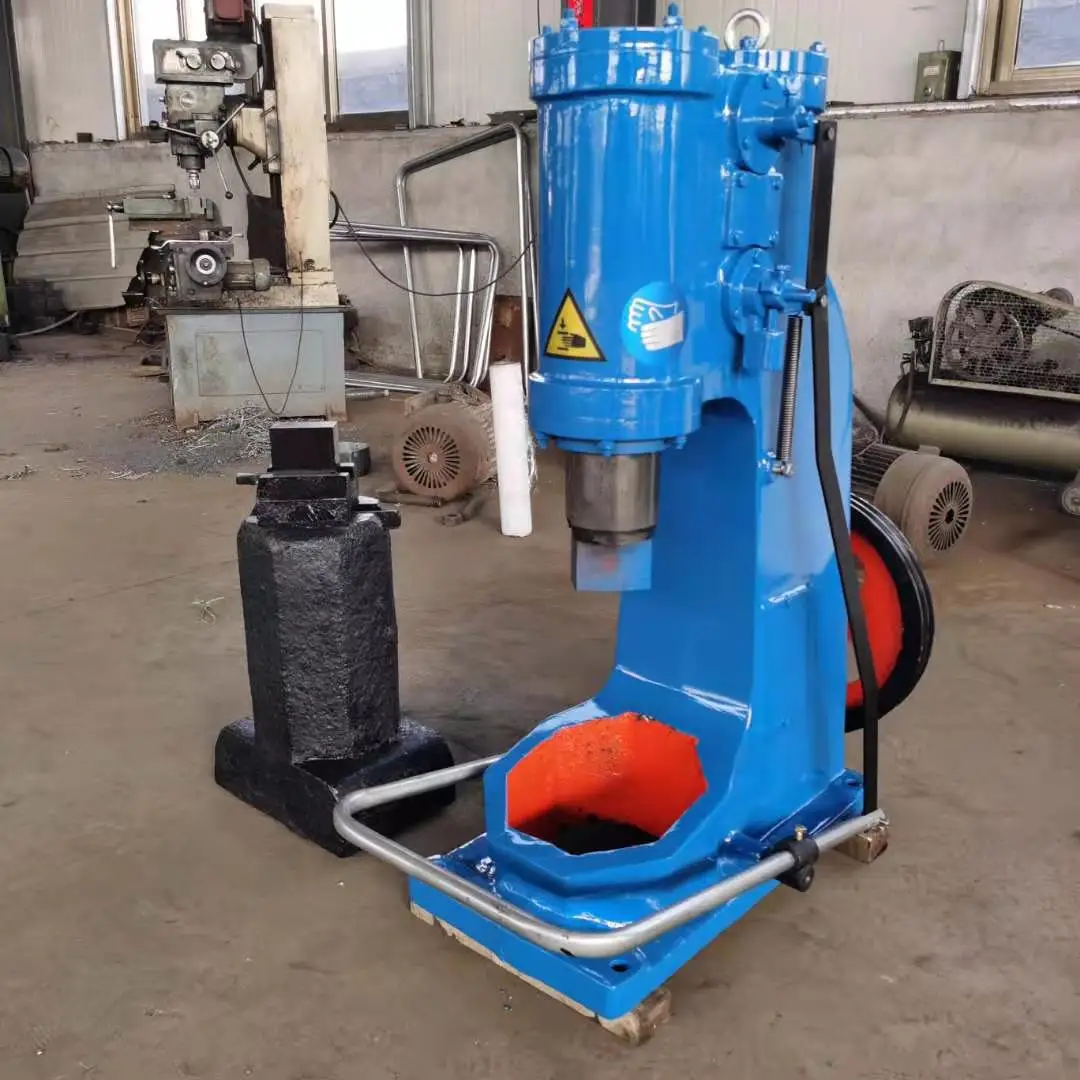

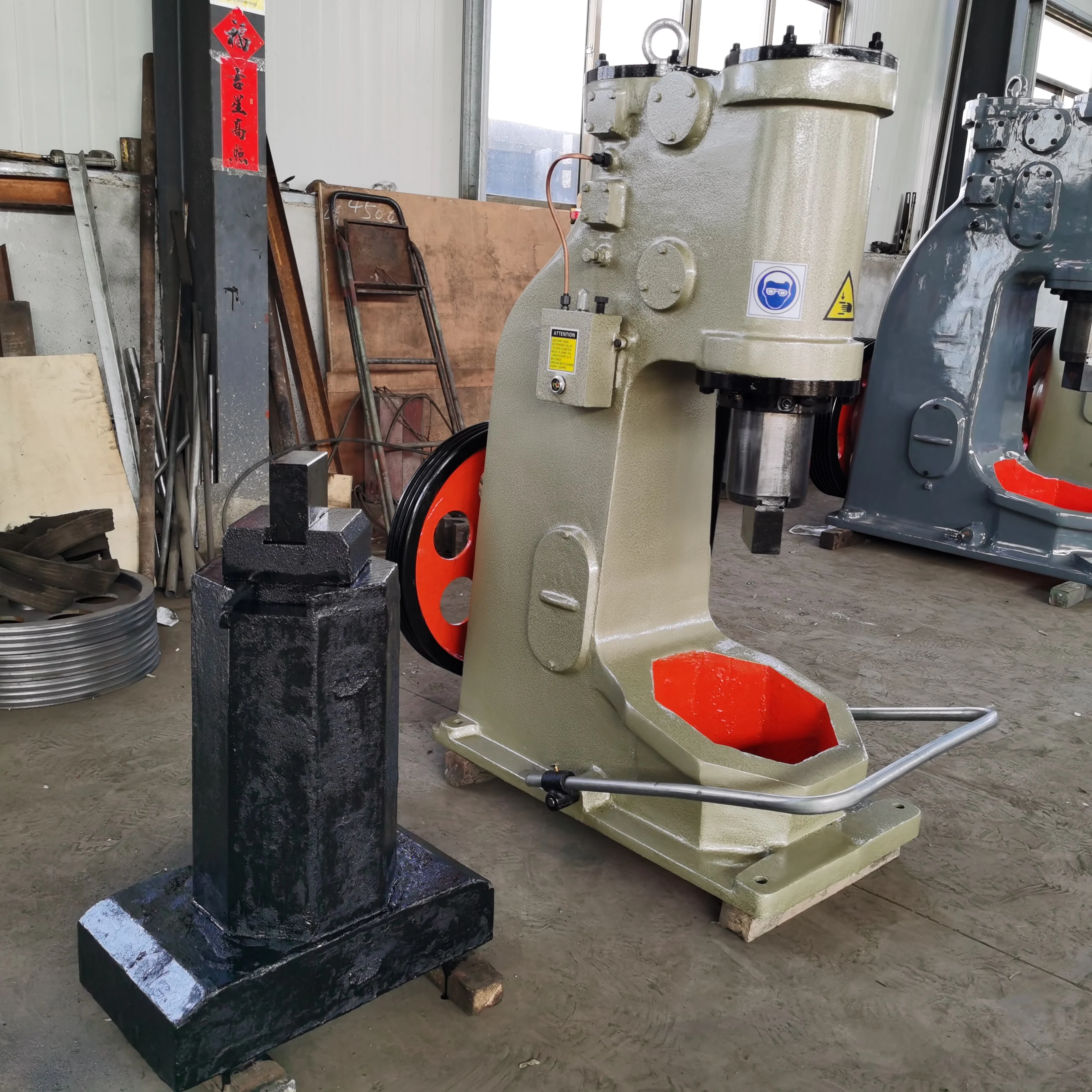

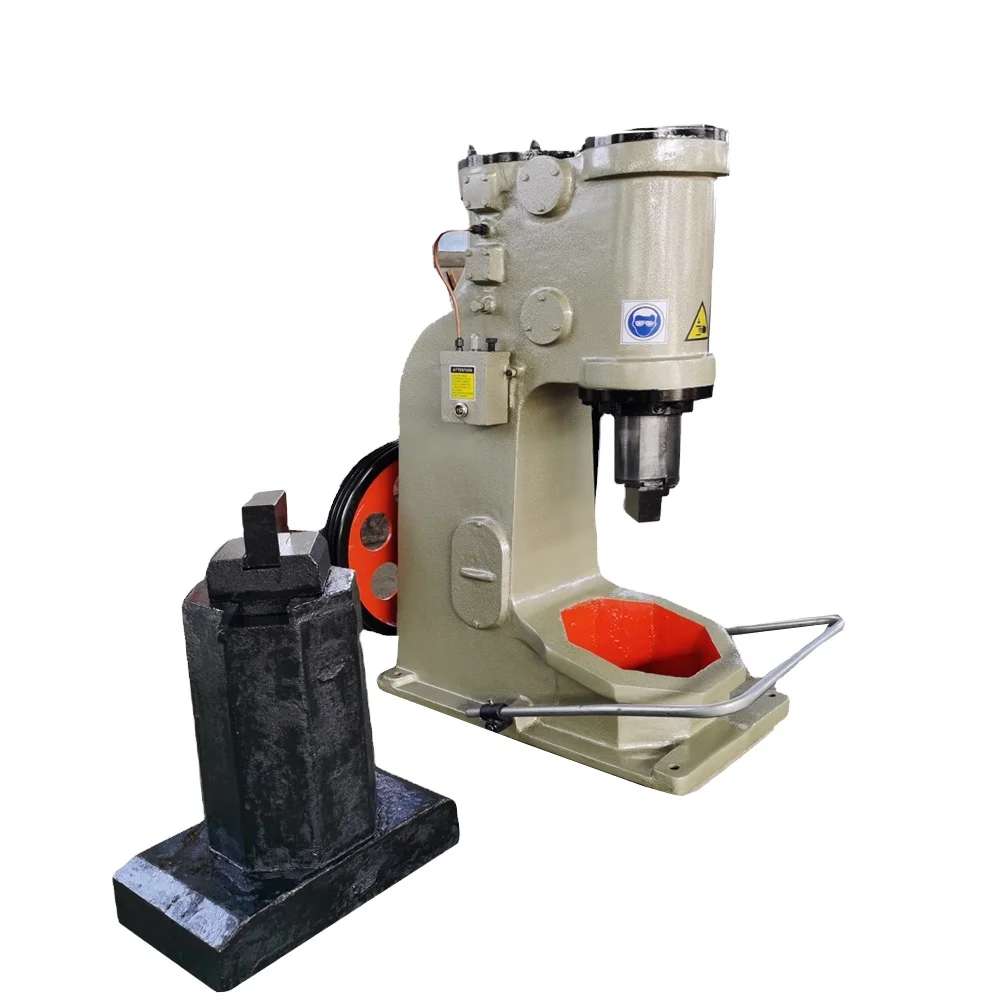

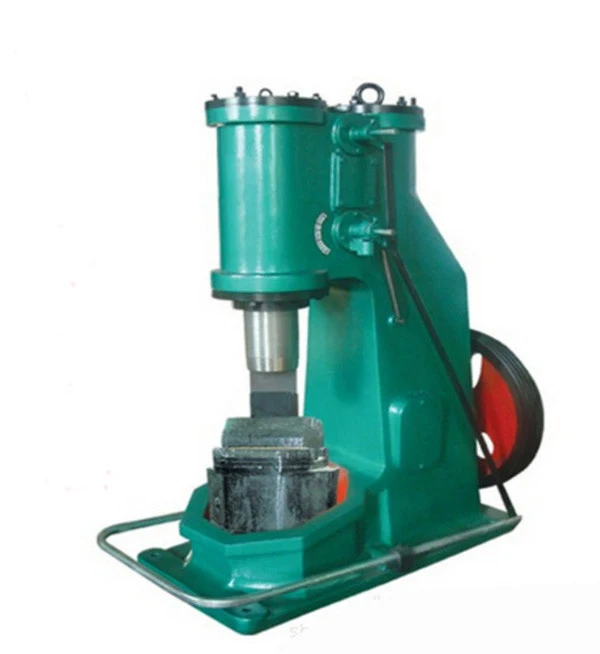

Stable quality blacksmith power forging hammer for sale with low price C41-25KG
Stable quality blacksmith power forging hammer for sale with low price C41-25KG, a kind of free forging machine. Air Hammer Forging Machine The compression cylinder compresses the air and sends it into the working cylinder through the distribution valve, pushing the piston together with the hammer head to move up and down for hammering. Flexible operation, widely used in the production of small and medium forgings. The air hammer is mainly composed of a frame, a transmission mechanism, a compression cylinder and a working cylinder, a compression piston, a falling part, an air distribution mechanism and an anvil.
Model | C41-25 | C41-40 | C41-75 | C41-200 |
Max hit power KJ | 0.27 | 0.53 | 1.0 | 5.6 |
Dropping weight KG | 25 | 40 | 75 | 200 |
Working area mm | 240 | 230 | 300 | 450 |
Hit frequency per min | 250 | 245 | 210 | 140 |
Distance mm from center line to body | 200 | 235 | 280 | 420 |
Motor power KW | 2.2 | 4 | 7.5 | 22 |
Total weight KG | 770 | 1500 | 2500 | 7500 |
Dimension mm | 900*510*1200 | 1200*600*1500 | 1440*850*1800 | 2650*1200*2600 |
Details Images
Stable quality blacksmith power forging hammer for sale with low price C41-25KG

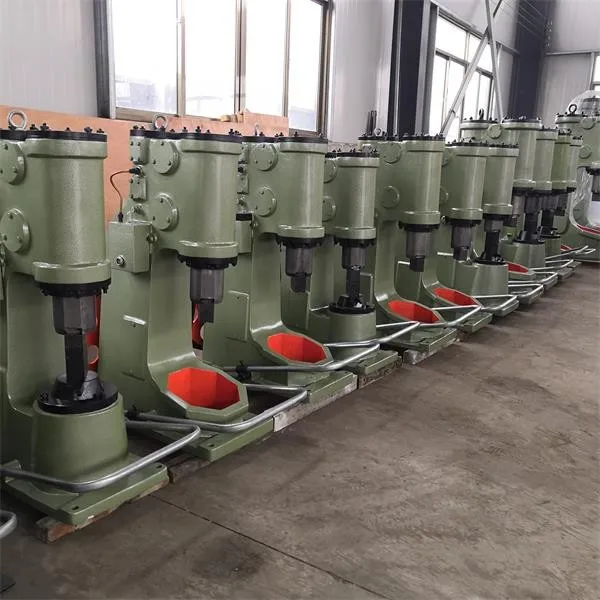

Machine frame
Air Hammer Forging Machine The air hammer is mainly composed of a frame, a transmission mechanism, a compression cylinder and a working cylinder, a compression piston, a falling part, an air distribution mechanism and an anvil.
The frame is the main body of the air hammer. Motors, transmission devices, working mechanisms and operating mechanisms are installed on the frame. These mechanisms are compactly combined into a whole on the frame.
The frame is the main body of the air hammer. Motors, transmission devices, working mechanisms and operating mechanisms are installed on the frame. These mechanisms are compactly combined into a whole on the frame.

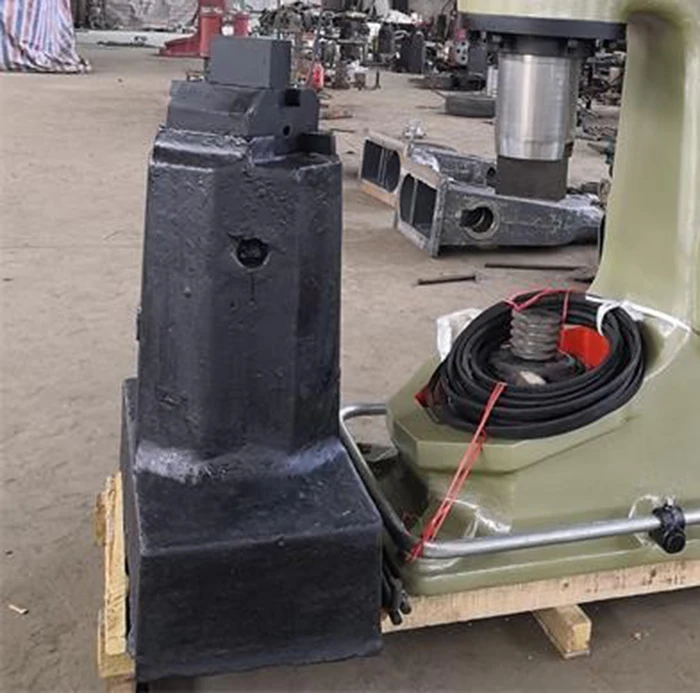

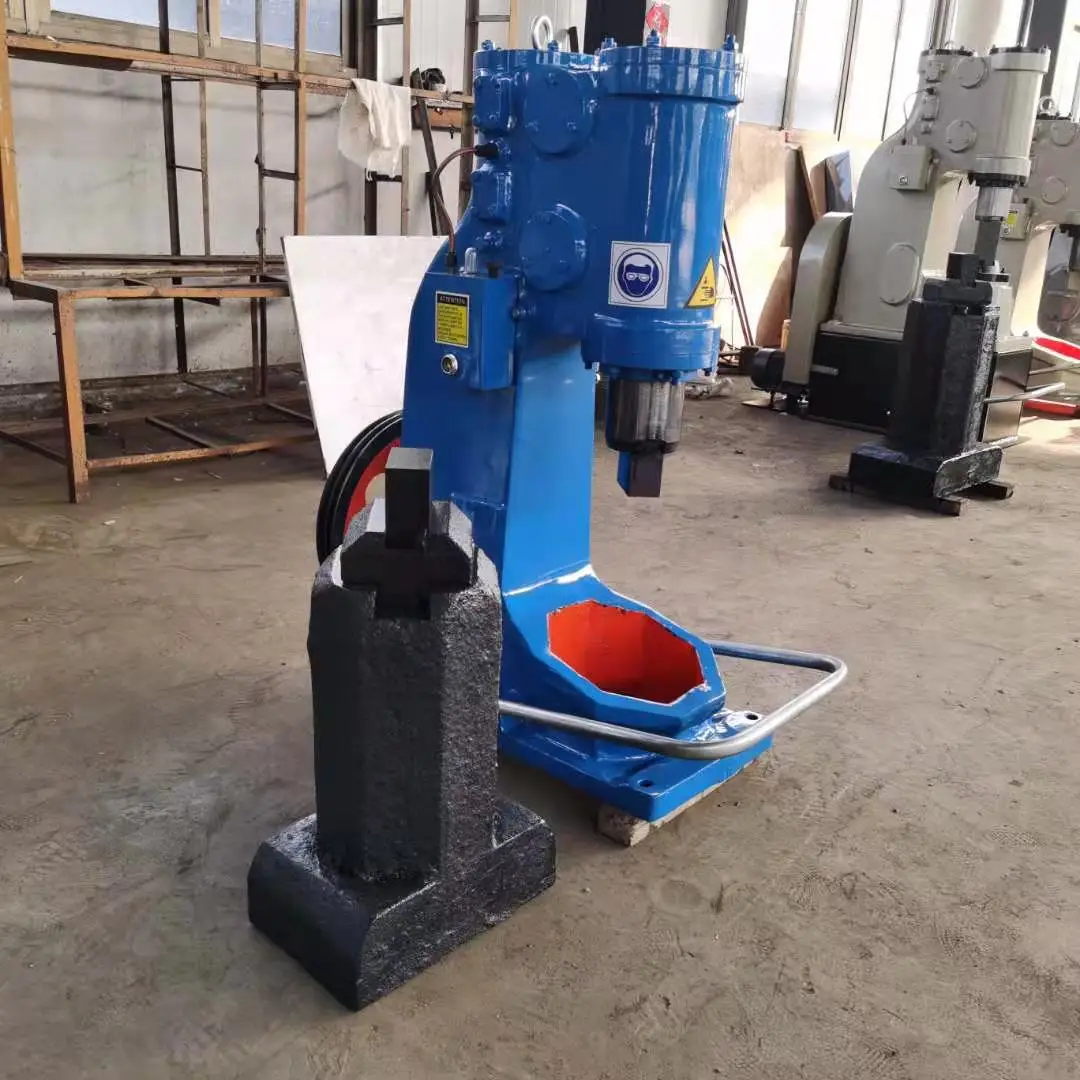

Anvil
Air Hammer Forging Machine anvil pad and the lower anvil are installed on the anvil. In order to meet the stability of forging, the quality of the anvil is 12-15 times the mass of the dropped part. It is installed on a solid reinforced concrete foundation with a pad in between. Eliminate the vibration caused by hammering.
Company Profile

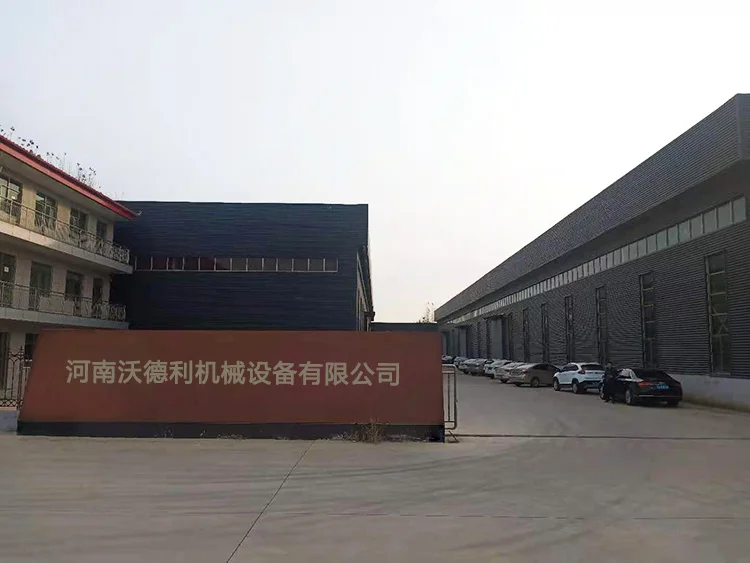

Henan Wadley is specialized in the production of machine tools and roll forming machinery.Our company was established in 2017, it is located in the capital of Henan Province - Zhengzhou, which is the center of the business and economy. Our products have passed the international ISO9001: 2008 quality management system certification. We have established good relationship with our customers from more than 100 countries .
Main products: Roll forming machine, CNC lathe, CNC machine center, boring machine, drilling machine, milling machine, sawing machine, gear hobbing machine, metal tapping machine and so on. any requires please contact us
Packing & Shipping
Packing & delivery according to your demands.Sea, air, truck all available!
