Automatic Eliquid Filler and Sealer Auto Filling Sealing Capping Machine for Dropper Bottles E Liquid
Product Description
Overview:
This machine is one of the traditional filling stoppering and capping equipment, advanced design, reasonable structure, can automatically complete filling,stoppering and capping process, is suitable for eye drop,e juice,and other vial bottles such as, no bottle no filling, no bottle no stoppering(plug), and other functions. Can be used stand-alone, and also can be used for filling line. This machine completely accords with the new GMP requirements.
Application:
The equipment is ideal for filling small volume bottles, we customize machine for different size and shape of bottles, both glass and plastic are OK. It is widely used in Food (olive oil, honey etc.) Beverage( juice, E juice). Cosmetics (essential oil,perfume, nail polish etc) chemical (glass adhesive, sealant, white latex, etc.) industries etc.
Features:
1. This machine adopts constant torque screw caps, equipped with automatic sliding device, to prevent the cap damage;
2. Peristaltic pump filling, measuring precision, convenient manipulation;
3. Filling system has function of suck back, avoid liquid leak through;
4. Color touch screen display, PLC control system, no bottle no filling, no adding plug, no capping;
5. Adding plug device can choose fixed mold or mechanical vacuum mold;
6. Machine is made by 316 and 304 stainless steel, easy to dismantle and clean, full compliance with GMP requirements.
2. Peristaltic pump filling, measuring precision, convenient manipulation;
3. Filling system has function of suck back, avoid liquid leak through;
4. Color touch screen display, PLC control system, no bottle no filling, no adding plug, no capping;
5. Adding plug device can choose fixed mold or mechanical vacuum mold;
6. Machine is made by 316 and 304 stainless steel, easy to dismantle and clean, full compliance with GMP requirements.
Detailed Images
222
The inserting dropper will save your product and save your cost.

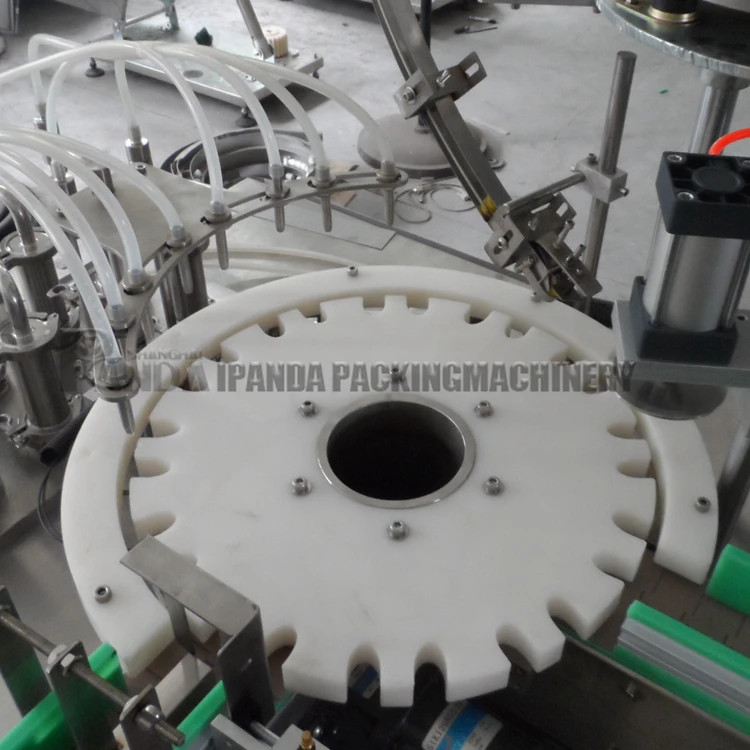

The filling and capping are made of SS304/316.
The filling and capping are made of SS304/316.

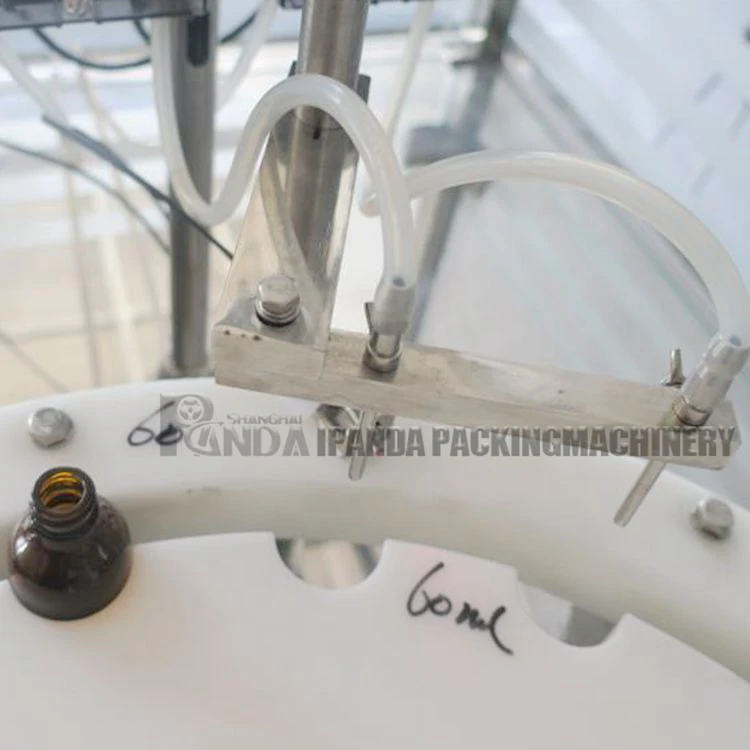

We can custom made different nozzles according to your speed.

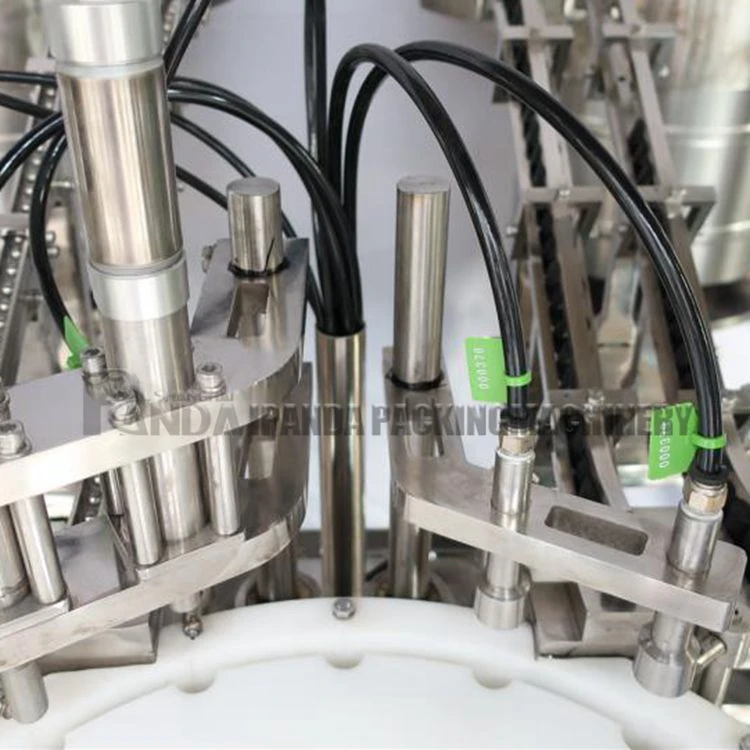

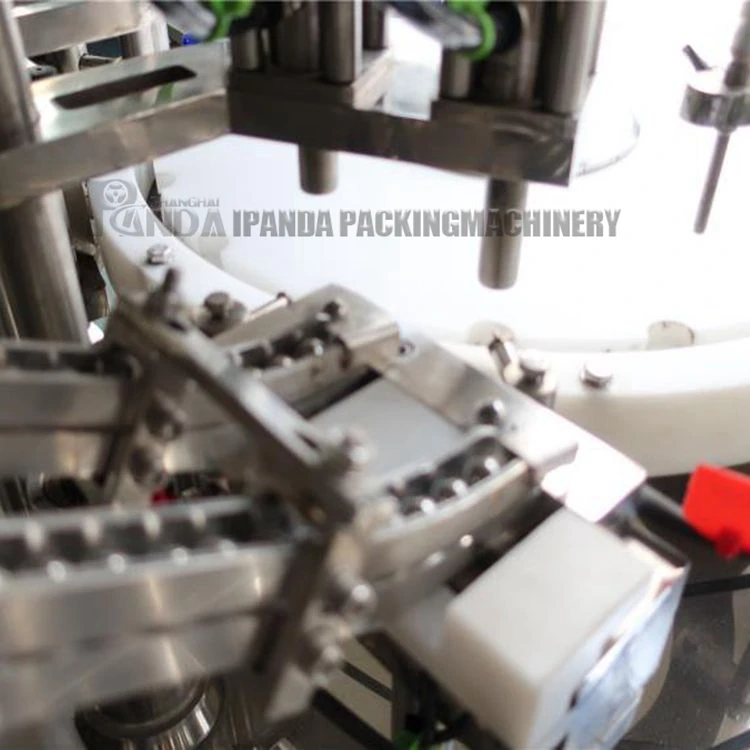

The caps unscrambler and dropper unscrambler;

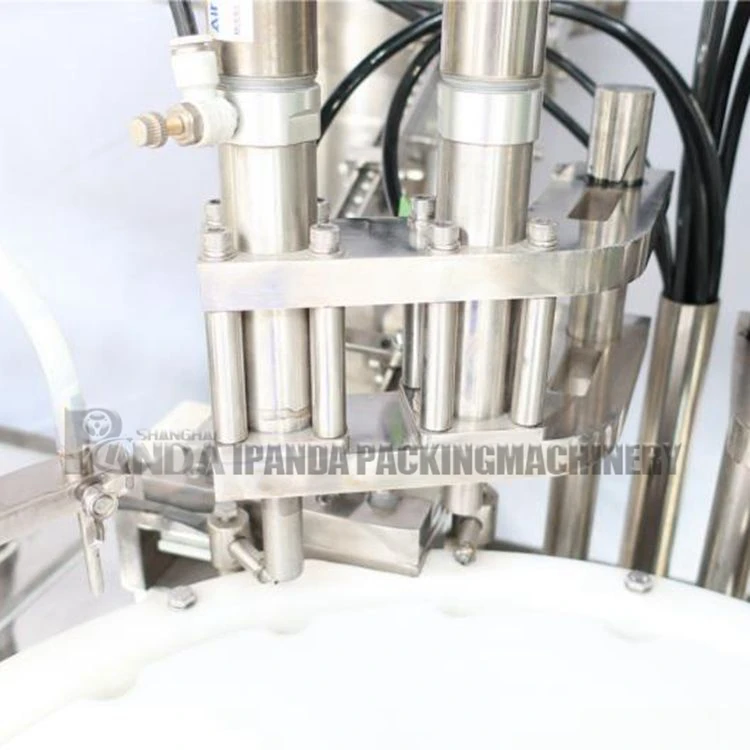

The machine for inserting dropper and caps.
The machine for inserting dropper and caps.
Specification
Filling Volume | 2-30ml（customize） | |
Output | 50-60 bottles/min | |
Filling Precision | ≤±1% | |
Power Supply | 380V/50Hz | |
Capping Rate | ≥99% | |
Stoppering rate | ≥99% | |
Air Supply | 1.3 m3/h 0.4-0.8Mpa | |
Power | 2.0 kw | |
Weight | 550 kg | |
Dimension | 1800*1000*1500mm | |
Click Here for More Details | ||
Famous Brand Electrical Parts:
Item | Name | Brand |
1 | Filling model | Aguer |
2 | Inverter | Mitsubishi |
3 | Touch screen | Siemens |
4 | PLC | Siemens |
5 | Main motor | ABB |
6 | low-voltage apparatus | Schneider |
7 | carrier plate | Japan POM plastic material |
8 | Air cylinder | Airtac |
Our Advantages
Company Profile
Packing & Delivery
FAQ
Q1: What is vour company's main products?
Q2: What is delivery date of vour products?
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Where are you located?
Is it convenient to visit you? We are located in Shanghai. Traffic is very convenient.
Q5:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is conflrmed,and will always operate this process,
sovery experienced.
3. The electrical pneumatic components are from the world famous companies,such as Germany^ Siemens, Japanese Panasonic etc.
4. We will do strict test running after the machine is finished. 5.0ur machines are certified by SGS,ISO.
Q6:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technicaldrawing, but also can he new machine according to your requirements.
Palletizer, Conveyors, Filling Production line, Sealing machines, Capping
Machines,Packing Machines, and Labeling Machines.
Machines,Packing Machines, and Labeling Machines.
Q2: What is delivery date of vour products?
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Where are you located?
Is it convenient to visit you? We are located in Shanghai. Traffic is very convenient.
Q5:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is conflrmed,and will always operate this process,
sovery experienced.
3. The electrical pneumatic components are from the world famous companies,such as Germany^ Siemens, Japanese Panasonic etc.
4. We will do strict test running after the machine is finished. 5.0ur machines are certified by SGS,ISO.
Q6:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technicaldrawing, but also can he new machine according to your requirements.
