Product Description
full automatic SMT SMD soldering machine ZM-R8650A for motherboard bga repair machine
The purpose of BGA rework station is to desolder, mount and solder BGA chip of laptop, xbox360, computer motherboard, ps3, etc.
For large and small service centers of; mobile phone and radio systems, PDA's, handhelds, notebooks, mother boards, communication systems, military and medical systems, etc. Suitable for all SMT parts; BGA, CBGA, CSP, QFN, MLF, PGA, uBGA, QFP, PLCC, SOIC, SOJ, etc.
SMD soldering machine
Recommended for plastic parts; PTH, sockets, connectors and metal covers.SMD soldering machine
Usage: desolder, clean, reball, solder, replace BGA, FBGA, CBGA, QFP chips all surface mount chips.
ZM-R8650 Optical BGA rework station introduction:
As a full automatic BGA rework station, it can repair the motherboard automatically. The mainly automatic repairing process including 3 parts: zhuomao bga rework station
1.Automatic desoldering the BGA– Remove.
SMD soldering machine
2. Automatic alignment the BGA – Mount.
SMD soldering machine
3. Automatic soldering the BGA- Solder.
SMD soldering machine
After finish the3 process, the motherboard repairing finsihed.
SMD soldering machine
Beside the BGA rework station, we also manufacture the X-ray inspection machine. We can use the X-ray machine to test & analyze the rework quality for your viewing. It works perfect. zhuomao bga rework station
Q: What kind of company will need the full automatic high value BGA rework station?
R: There have no specific definition. But this full automatic BGA rework station ZM-R8650 has been sold to many company to repair the high value motherboard, they strict requirements for the rework quality and efficiency and they have stable big quantity that need to be repaired.zhuomao bga rework station
Main Features:zhuomao bga rework station
1. 3 independent control heaters:
SMD soldering machine
\\
The top and bottom heaters of ZM-R8650 can heat PCB from upper and bottom at the same time, and large preheating area can prevent the PCB board from deformation. The top and bottom heaters work independently,controlled by software, it makes the lead-free repair easily. The external sensors can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time.

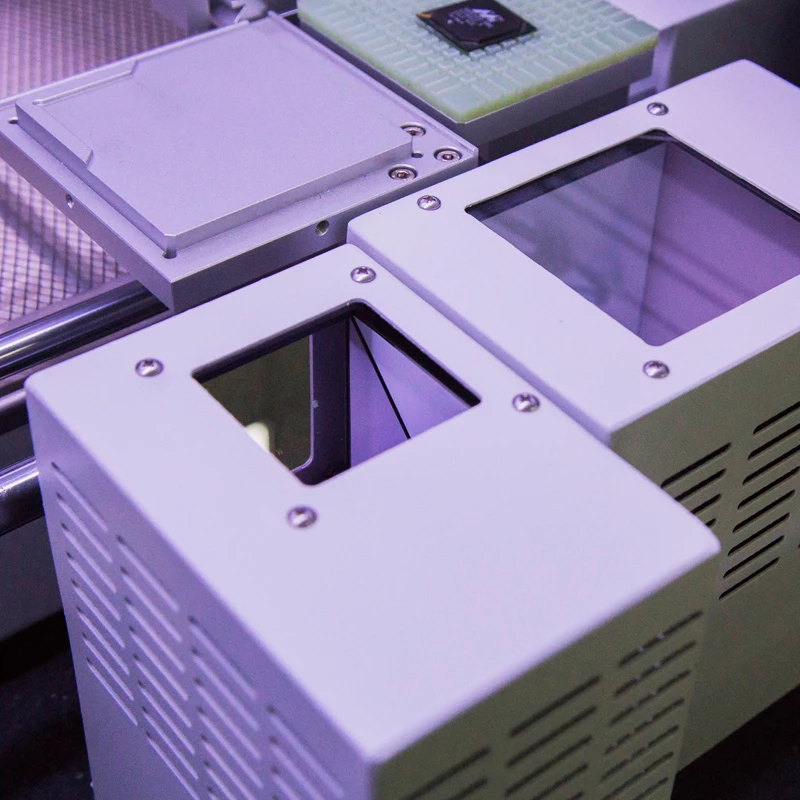

2. Precise vision alignment system
SMD soldering machine
ZM-R8650 adopt Panasonic automatic vision alignment system,it can get the image of BGA and the PCB through the CCD camera and collect them on the image positioning processing system, calculate the offset position and angle through image processing software then re-transmission to motor drive of servo controller to correct the position,thus completing the BGA placement. The positioning accuracy within ±0.025mm; The image can zoom in ,zoom out and micro adjust. zhuomao bga SMD soldering machine
3. Advance intelligent operation system
SMD soldering machine
It is operated by keyboard, mouse and 15 inch HD LCD monitor; high accuracy K type close-loop thermocouple, and PID parameters automaitc adjustment system;the top heater and mount head are designed independently;the X,Y,Z axis and angle are controlled by panasonic servo control system to get accurate aligning point and heating point, with full automatic identify the height of BGA chips and mounting ,it is of automatic positioning, mounting,soldering and desoldering function.There are 8 segments rising temperature and 8 activity temperatures. And it can save millions of temperature profiles and alignment parameters, for easy option desire profiles according to the different BGA chips. SMD soldering machine
4. Superior safety functions
SMD soldering machine
With optical grating protection, when the machine is working, if the optical grating signal was blocked, then the machine iwill stop immediately;When the servo motor collide with other objects, it will stop working. There are 3 color lamps to monitor the machine working at any time,it is of superior safety protect function

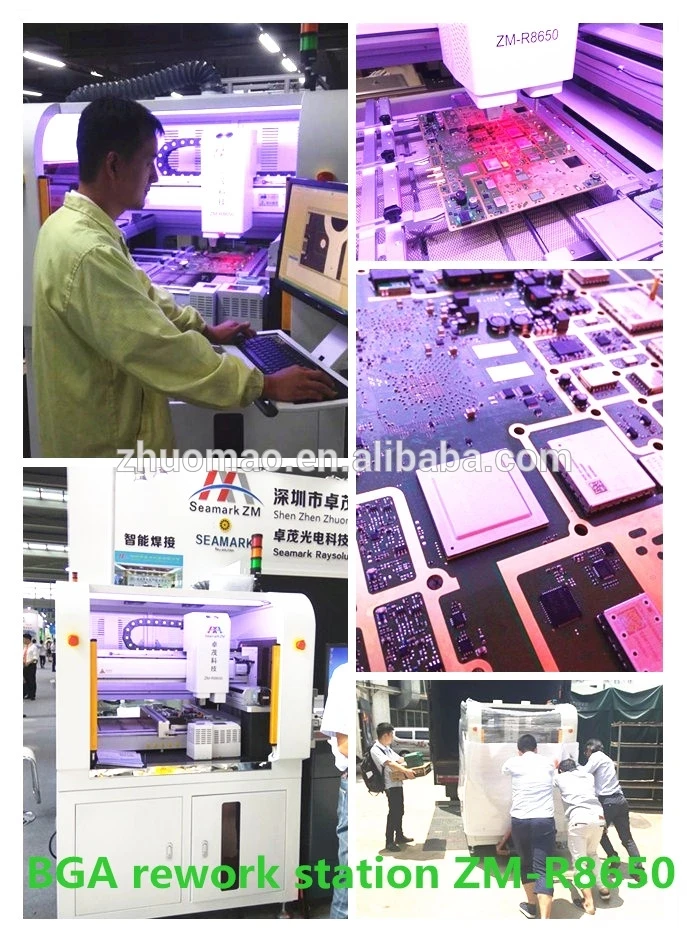

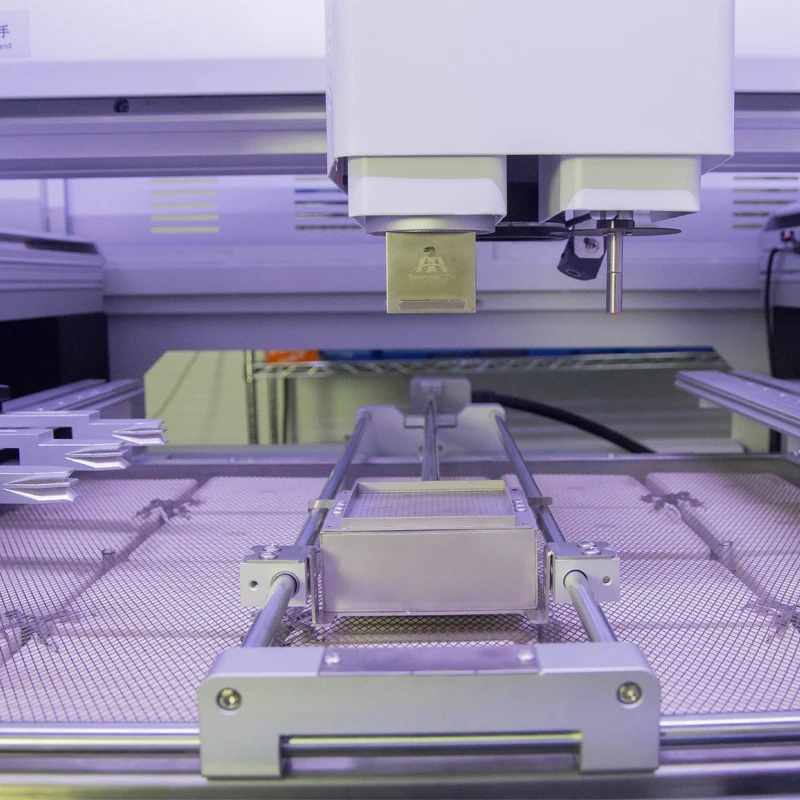

Detailed Picture
The ZM-R8650 full automatic BGA rework station can be applied to repair different BGA / CGA / IC and various shielding devices, meet the requirement high quality automatic rework of lead-free soldering process.zhuomao bga rework station
Can repair maximum PCB size: 600×560mm.
Detailed Images

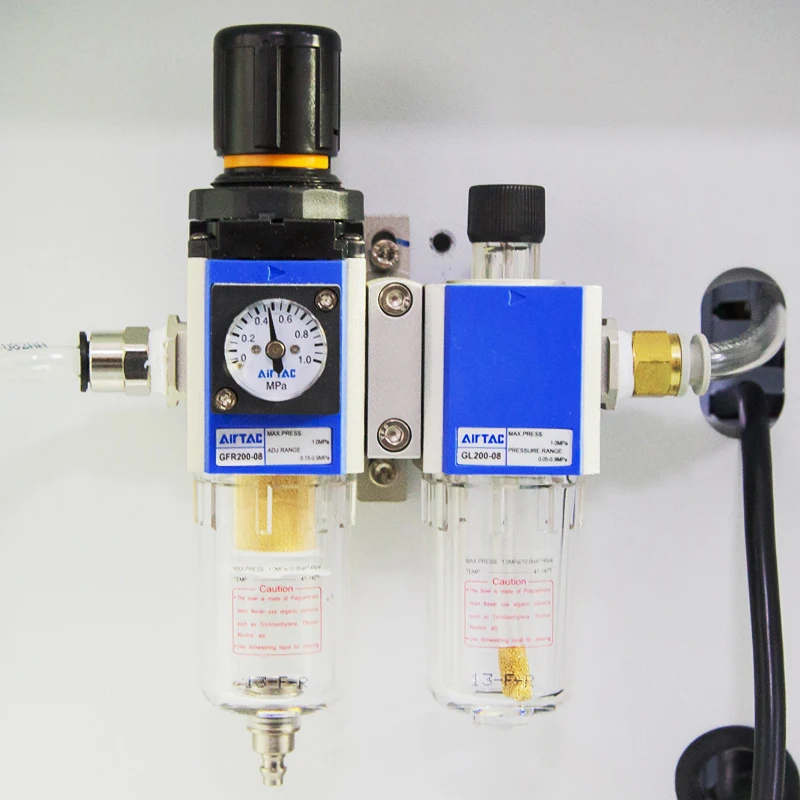

Nitrogen & compressed air control system
Our company provides one-stop BGA rework repair station:
Our Company
Seamark ZM Technology Group (Zhuomao Technology) was established 15 years with over 200 employees and 5000 square meter. Zhuomao has been specializing in SMT BGA Rework Equipments ect. We gained more than 40 patents, and all machines passed the international CE Certification, ISO9001 Quality System Inspection Certification and so on. Zhuomao SMT Equipments not only meets the demand of domestic market, but has also been sold around the world. We have around 100 agents and cooperator in Europe, Asia, Australia and Africa, the Middle East and other countries.
In order to meet the international market demand and customer customization requirement, we keep developing and researching different level of machines for different customer choice.
Why Choose us: bga rework equipment
1. 13 years experience of LED BGA rework station and X-ray inspection machine.
2. All BGA rework station models with CE certificate. zhuomao bga rework station
3. High reputation around the world. zhuomao bga rework station
4. Professional service and technology support. zhuomao bga rework station
5. Competitive price with good quality. zhuomao bga rework station
Our Service:
1. Your inquiry will be replied in 12 hours. zhuomao bga rework station
2. Offer free spare parts and service within one year of warranty.
3. Technology Support Provide Demo operation videofor training.
4. Professional after-sales service team. zhuomao bga rework station
5. Give great discount to AGENCY to ensure agents profit.
Packing & Delivery
FAQ
1. How about the package ? Is it safe during the delivery ?
full automatic SMT SMD soldering machine ZM-R8650A for motherboard bga repair machine
All PCB bga repair machine is packed by standard strong wooden carton.
It is safe when shipping.
full automatic SMT SMD soldering machine ZM-R8650A for motherboard bga repair machine
2. What is the delivery way ? How many days will the machine arrrive us ?
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.
full automatic SMT SMD soldering machine ZM-R8650A for motherboard bga repair machine
3. Do you provide the Warranty ? How about the after sales service ?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
full automatic SMT SMD soldering machine ZM-R8650A for motherboard bga repair machine
4, If we come to your factory, if you will provide the free training ?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
full automatic SMT SMD soldering machine ZM-R8650A for motherboard bga repair machine
5. What is the payment way ?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Cash, etc.
full automatic SMT SMD soldering machine ZM-R8650A for motherboard bga repair machine
For more details of the automatic BGA rework station solution, please feel free to inquire us. We're 24-hour online for you.
Contact information:
Angela Luo
E-mail: luoxiaojuan(@)zhuomao.com.cn
Mobile/ Wechat: +8615013511044
Skype: bgajuan
Related Products
Laser Optical alignment BGA Rework station ZM-R7220A
High Performance BGA rework Station ZM-R7830A
SMT X-RAY Inspection Machine X5600
Похожие товары
XH Силиконовое кольцо для ключей, браслет, брелок, браслет, брелок, кольцо для ключей
1,05 $ - 1,50 $

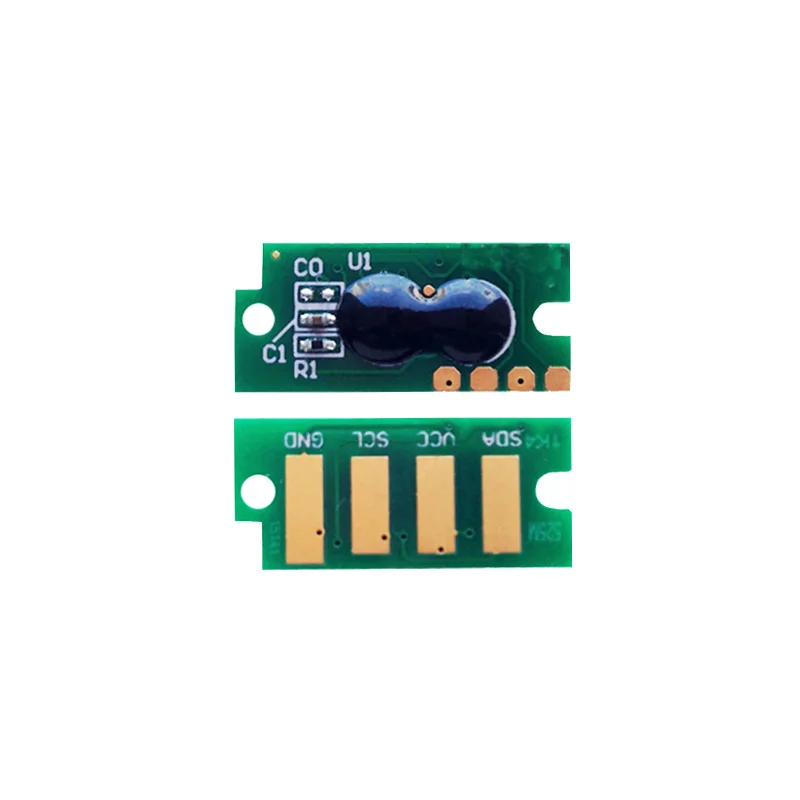

Лазерный Принтер Поставщик чипов тонер-картриджей производство чипованный картридж-тонер лазерный чип сброса для Samsung CLP-310/315/CLX-3175/3170

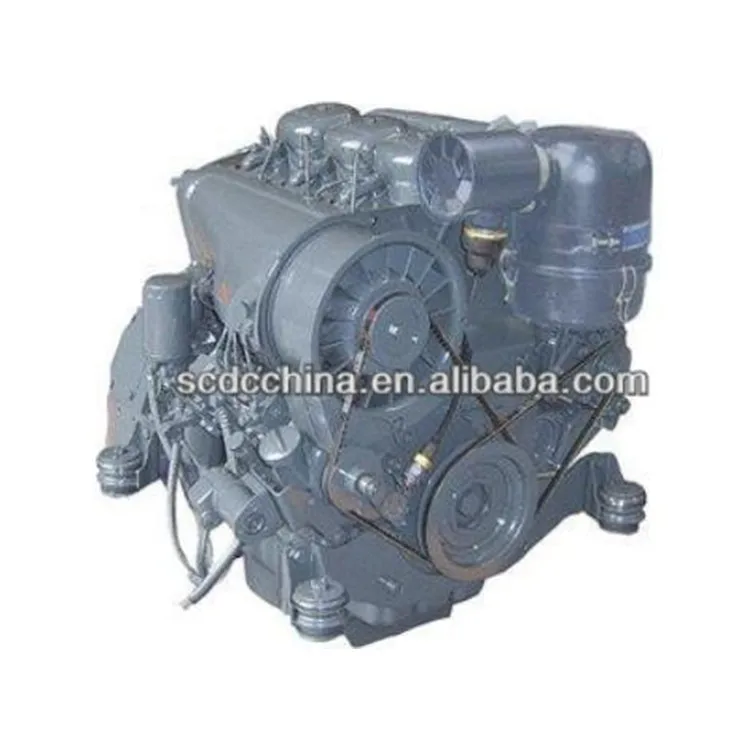

Новый высококачественный дизельный двигатель Deutz f3L913, 25 кВт/1500 об/мин, л
Бесщеточный двигатель 65 км дальнее расстояние вождения взрослых электрических мотоциклов
1 000,00 $ - 1 180,00 $
Сертифицированный CE медицинский твердый прямой наконечник, точное предсказание, индивидуальный электронный цифровой термометр
0,75 $ - 1,50 $

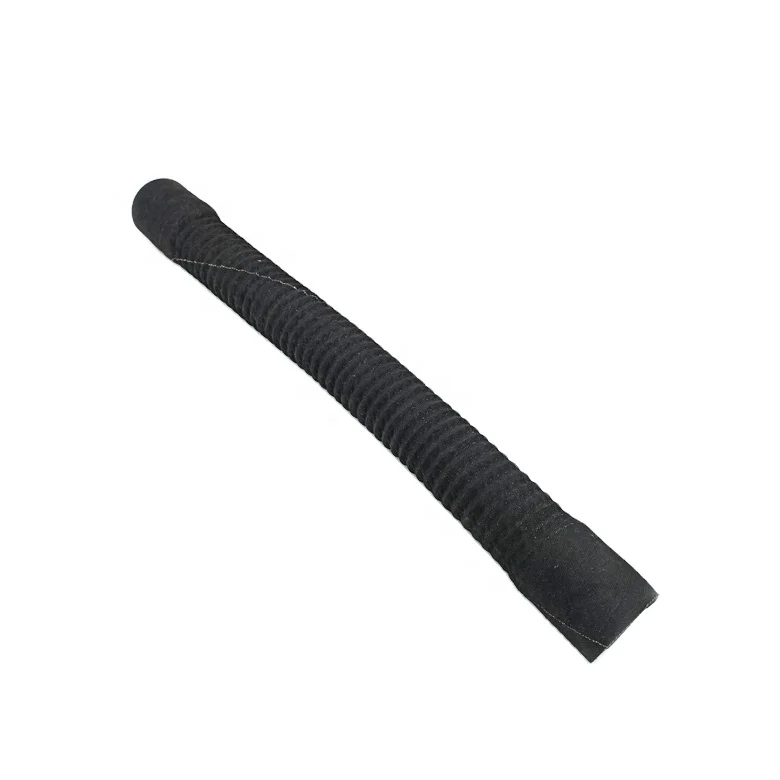

Гибкий гибкий резиновый шланг, армированный Стальной Проволокой Резиновый Шланг

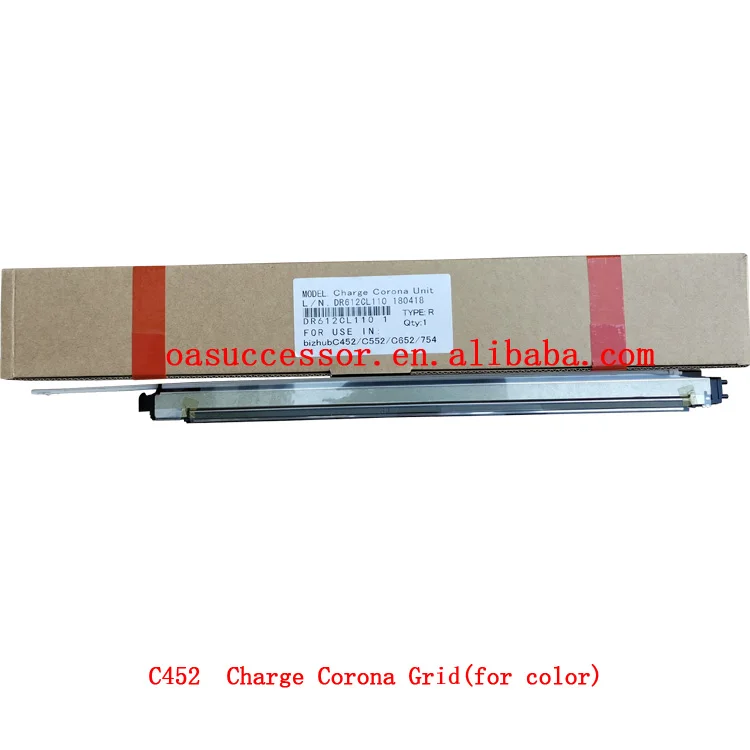

Корона заряда C451, для цвета, подходит для Konica Minolta bizhub C652 C654 C754 C552 C452 C451 C550 C650
