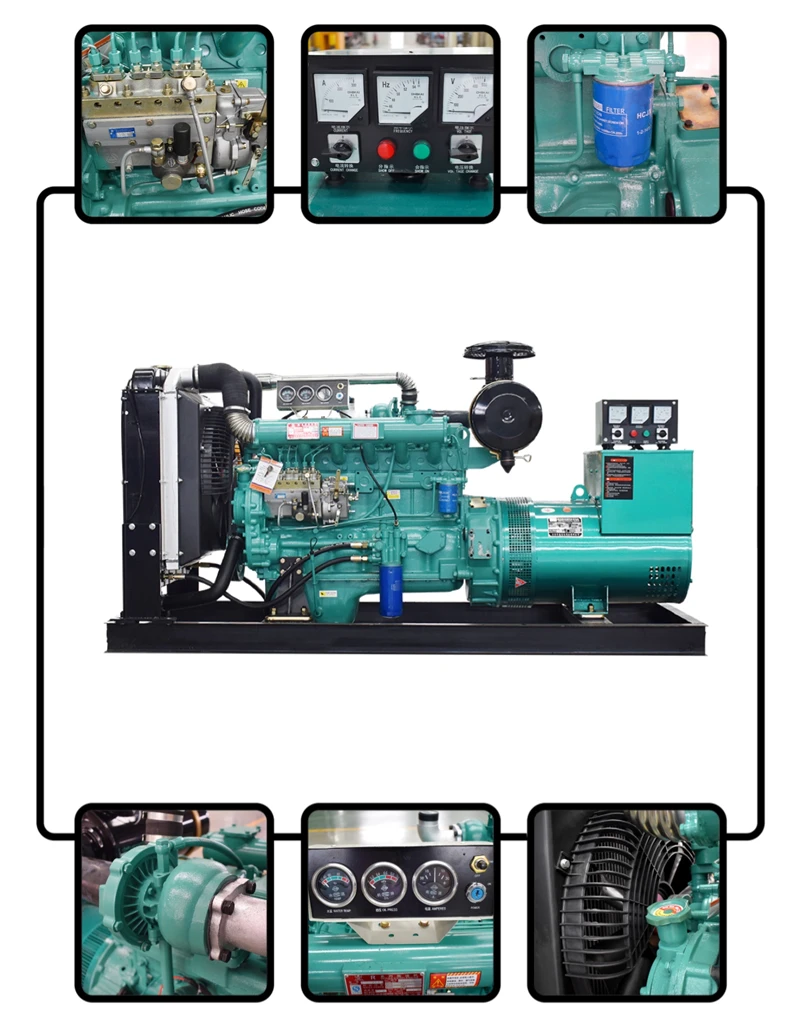

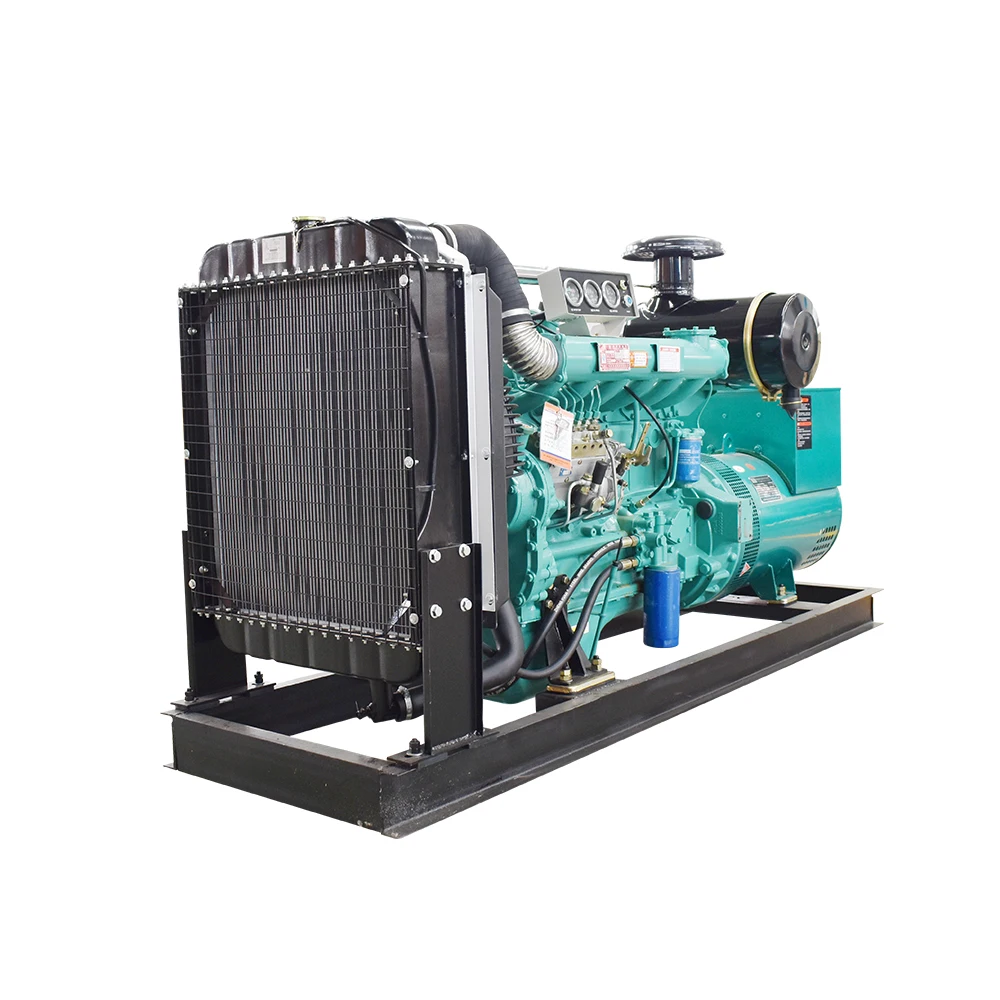

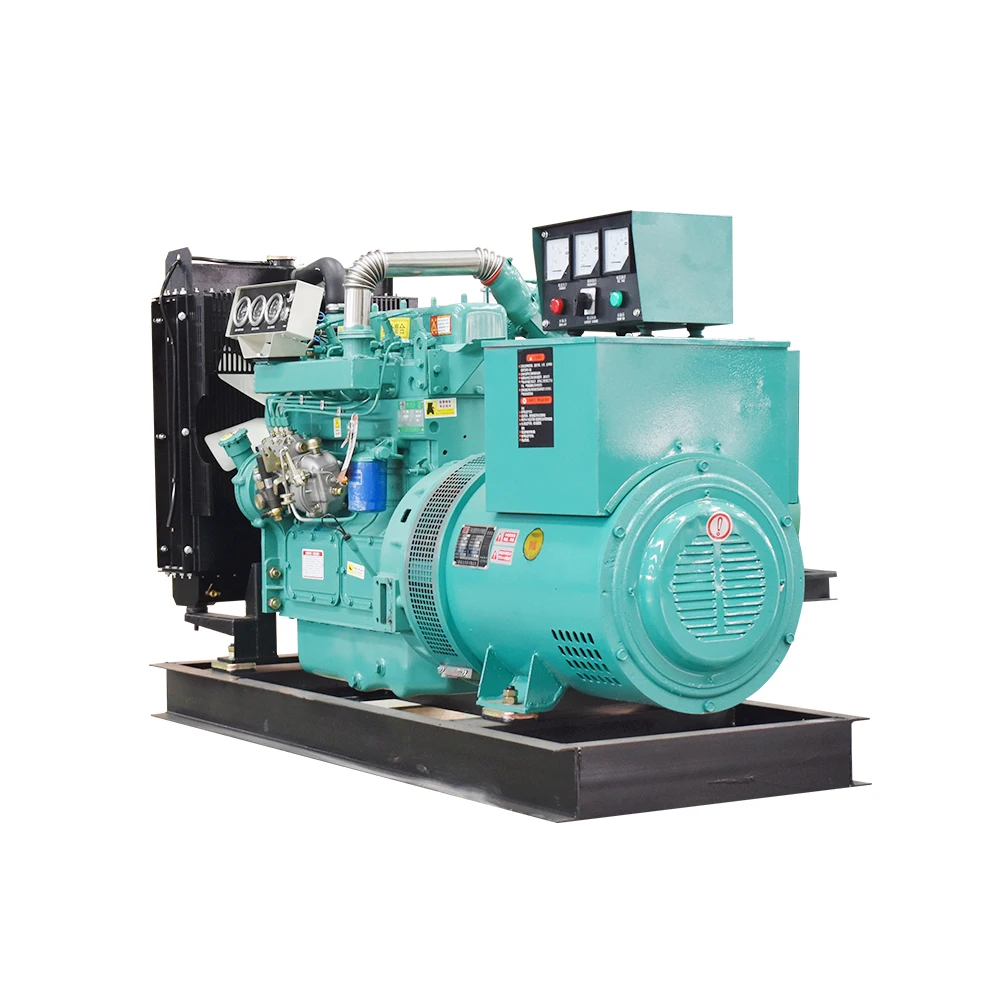

Generator set
| Output Power (kW) | 75 |
Open Type Size (mm) | 2320*930*1630 | |
Open Type Weight (kg) | 800 | |
Engine
| Brand & Model | Ricardo |
Engine Model | R6105AZD | |
Cylinder Number | 6 | |
Rated Current | 135A | |
Speed | 1500/1800rpm | |
Frequency | 50/60HZ | |
Rated Voltage | 400/230V | |
Bore*Stroke (mm) | 105*130 | |
Displacement (L) | 6.49 | |
Consumption (g/kw.h) | 224 | |
Output Type | AC Three Phase | |
Alternator
| Brand | Stamford, Lingyu , Meccalte etc |
Exciter Type | Brushless, Self-exciting | |
Phase & Wire | 3 Phase 4 Wires | |
Protection Grade | IP23 | |
Insulation Grade | H |
WEIFANG BEST POWER EQUIPMENT CO.,LTD
Established in 1992, Weifang Best Power Equipment Co., Ltd. is a collectivized company integrating
production, sales, and trade. Now we have five subordinate factories, a product development
team including 30 professional researchers and 300 staff members. The production fields include
construction machinery, power machinery and food machinery. The main products, like concrete
mixer truck, gensets, and pumps, have been exported to Australia, the Middle East, Malaysia,
Mongolia, Russia, etc. we have 7 dealers worldwide. With the tenet, "Credit First, Mutual Benefit
and Common Development", Best power has become an excellent enterprise which is deeply
trusted by customers.
Producing the top-class products.
Providing the top-class services.
Best power,
Do it best!
The features of Control Module :
The control panel is the one with automatic start function, and the controller uses
LCD display,optional Chinese and English display interface with operation easy
and reliable. It can be widely used in all types of generator automatic control
system for compact structure, advanced circuits, simple connections and high
reliability.
The protection functions of Control Module :
Protection functions: It will give alarm signals when the output parameters
exceed the items stated below and at the same time the generator set should
be stopped or delay stopping and fails to self start;Over voltage and low
voltage,over frequency,over speed,low oil pressure,high temperature,low
water level and over load.
Silent Box:
1. Small size, compact structure, excellent craftsmanship, beautiful appearance, easy to
transport and install.
2. The top of the cabinet is equipped with lifting lugs and rope buckles. The chassis is
designed with forklifts, hauling holes and mounting holes for easy transportation and installation.
3. Safe operation: The unit is equipped with grounding protection, emergency button, alarm
system and automatic stop alarm.
4. Excellent heat dissipation: efficient ventilation and cooling system to ensure adequate heat
dissipation and exhaust
5. Advanced waterproof and dustproof design.
6. The box body design is more reasonable in material use, good in sealing and noise
prevention performance, and high in waterproof and dustproof.
7. Easy to operate: integrated control, easy to operate and connect.
Rain-proof Trailer
The rain-proof mobile trailer is a simple mobile trailer developed by the engineering construction
unit. The outer cover is made of high-quality steel plate with anti-corrosion treatment. It has the
characteristics of corrosion resistance and good sealing. The four-sided window door adopts
automatic air pressure support. , it is light and flexible.
According to the actual working conditions, it can be designed as two-wheel, three-wheel,
four-wheel, six-wheel, eight-wheel, twelve-wheel and sixteen-wheel trailers. The steering mode
of the wheel is wheel steering, single turn steering or multi-turn steering, and parking brake,
service brake and emergency brake device can be set.
The rain-proof mobile trailer has the characteristics that the outer cover and the trailer chassis
are separable, the trailer travels at a high speed, the brake is flexible, and the reliability and
safety are high.
Q1. What is your terms of packing?
A: We pack our goods in cartons or poly-wood case.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB/ CIF or as your requirement.
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q7:What to do if there is a problem with the product ?
1.We offer 1 year or 1000 hours runing time for warranty.
2.We offer technical support for free all the time.
3.We offer the spare parts for our generators all the time,any time you can contact us for spare parts.
