Медицинские катетеры или канюли Термоформовочная Машина с трубчатой головкой
- Категория: Tube End Forming Machines >>>
- Поставщик: Shenzhen Aituo Automation Technology Co. Ltd.
Сохранить в закладки 1600290139213:
Описание и отзывы
Характеристики

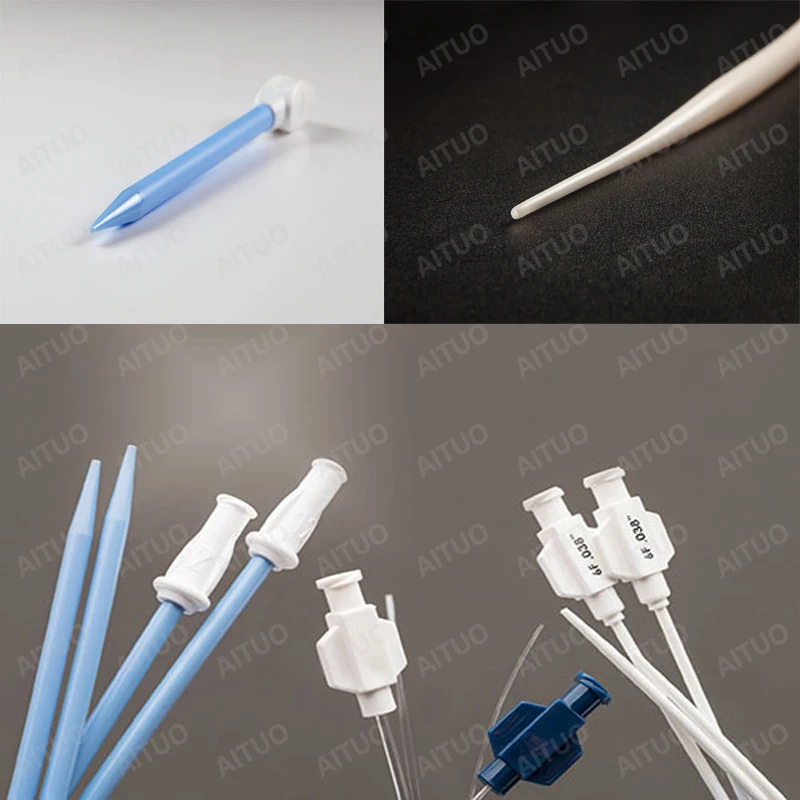

medical catheters or cannulas tube-head thermoforming machine
Products Description

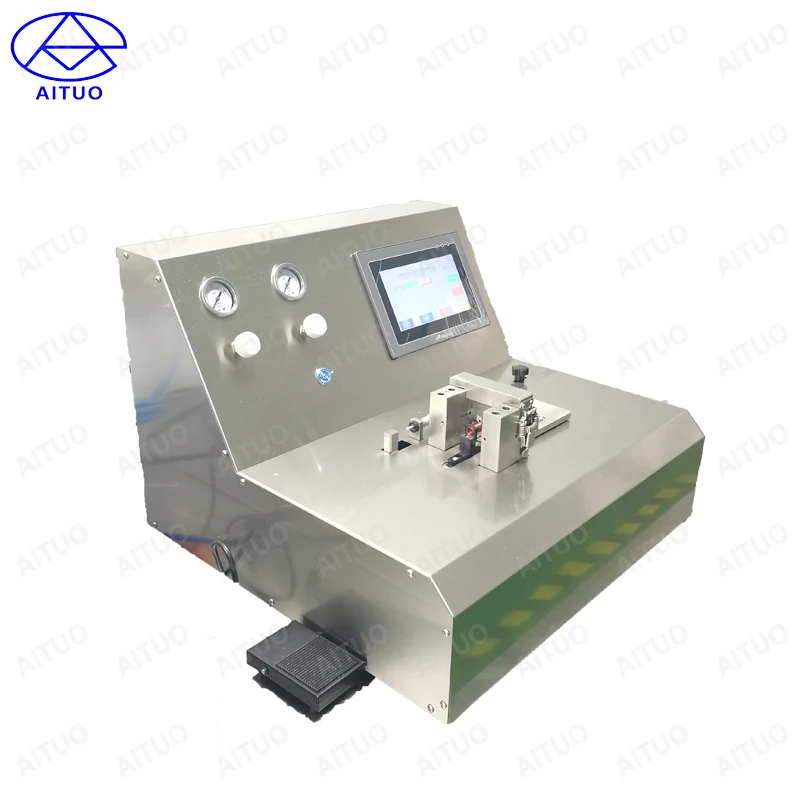

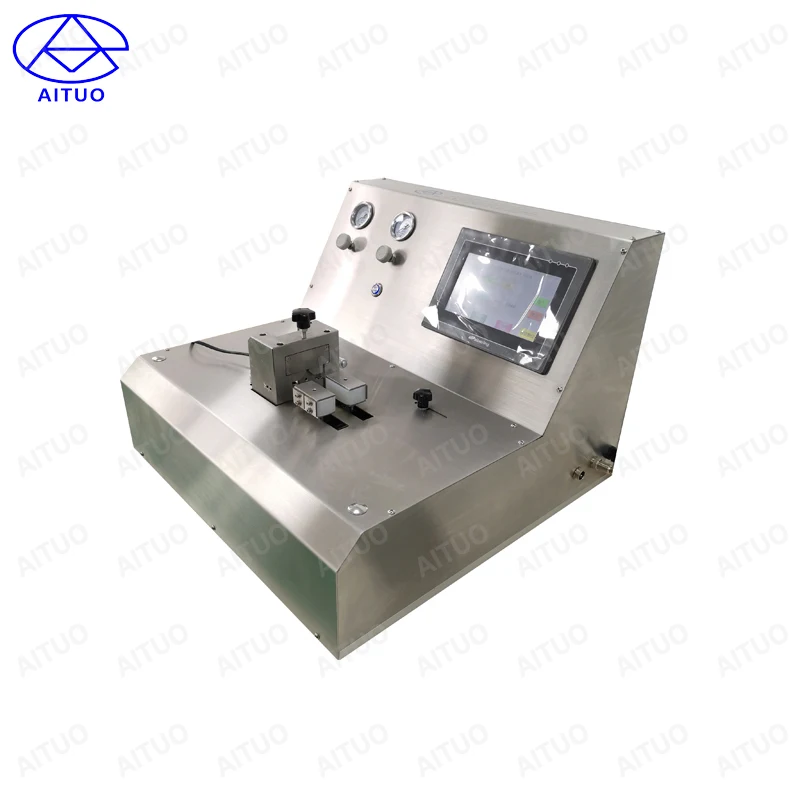

AM20401 End tip forming machine
1. We will provide the operation instructions for all required machines
2. Warmly welcome to visit our factory and we will provide filed operating training
3. After-Sale Service: Professional after-sale Team, video technical support, online support.
And our engineer team also can go to your factory to provide field operating training

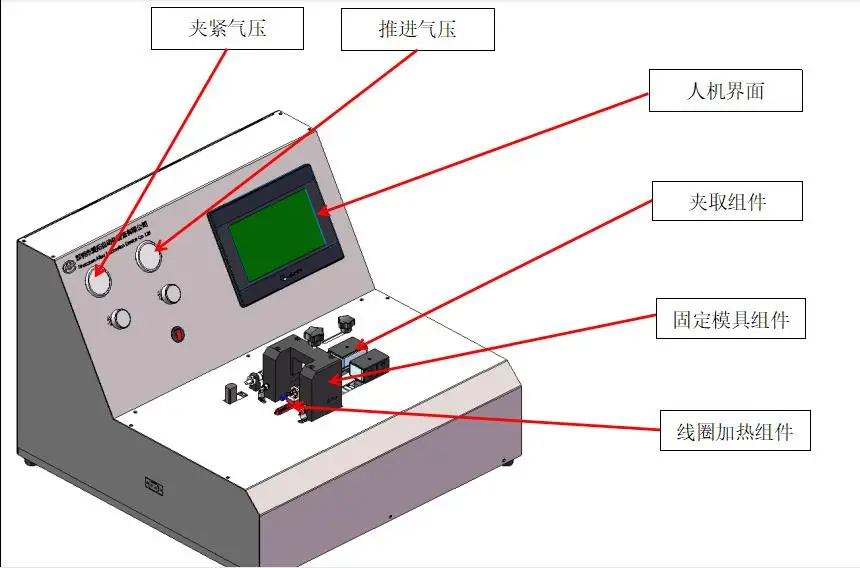

This equipment is mainly used for post-processing of medical plastic catheter ends. It adopts manual feeding and consists of three stations: clamping components, mold clamp fixing components, coil heating components,etc. The equipment has a compact structure, composite material welding, butt joint, pipe end rounding, sealing and tip forming.The mold is heated by electromagnetic induction, and the pipe is clamped and pushed into the mold with an air cylinder to form the end of the pipe. The user can input parameters through the touch screen to adjust the process.
The mechanical part is composed of the frame, the clamping jaw cylinder, the sliding table cylinder, the heating coil, the air
source, and the precise adjustment of the air pressure.
The electrical part is composed of PLC integrated machine, stepping motor, switching power supply, heating module and so on.
source, and the precise adjustment of the air pressure.
The electrical part is composed of PLC integrated machine, stepping motor, switching power supply, heating module and so on.
Voltage | AC220V/10A/50HZ |
Power | 0.3KW |
Air Pressure | 0.5-0.8MPA |
Productivity | 500-700pcs/h |
Mounting | desktop |
Soldering angle | 90 degree |
Temperature | -20℃＋50℃ |
Operate Worker Qty | 1 |
Dimension | 500*520*370MM(L*W*H) |
Apply for
Packaging & Shipping
Packing
All machines we sell will be packed with wood box, covered with steel tie on the surface in order to avoid damaging duringdelivery.Before the shipment, we will provide you some pictures of the goods and the package.Or the machine can be packed per your request.
Shipping
The machines will be shipped out by Express delivery, by Air, by Sea. Or if you have your own shipment forwarder, you also can ask them to arrange the shipment.
By DHL, FedEx, UPS,etc (Door to Door Service), around 5-7days to arrive.
By Air, to your airport (Door to Airport Service), around 3-5 days to arrive.
By Sea, to the seaport (Door to Seaport service), around 30 days to arrive.
The machines will be shipped out by Express delivery, by Air, by Sea. Or if you have your own shipment forwarder, you also can ask them to arrange the shipment.
By DHL, FedEx, UPS,etc (Door to Door Service), around 5-7days to arrive.
By Air, to your airport (Door to Airport Service), around 3-5 days to arrive.
By Sea, to the seaport (Door to Seaport service), around 30 days to arrive.
Related Products
Our Company
Shenzhen Aituo Automation Device Co., Ltd is a production-oriented high-tech company, which in the field of automation machine and equipment with strong technological, has a strong research&design team. We have advanced production equipment, professional technical personnel and experienced domestic and foreign sales, and the ISO quality anagement system.
Our productions mainly are wire terminal processing equipment, which includes: Automatic USB soldering machine, automatic wire strip&tin machine, full/semi automatic cable bundling machine, automatic wire stripping cutting machine, automatic teminal crimping machine, injection molding machine, gas wire stripping machine, copper strap machine and so on. specially, automatic USB soldering machine and automatic wire trip&tin machine are our latest sesearch and development new equipment, which greatly improve production efficiency, and greatly save production cost.
For many years, we adhere to the business philosophy“Quality first, integrity innovation, to meet customer demands”. Our company and products have been widely recognized by customers at home and abroad. And our products with high quality and competitive price have been exported to Asia, America, Europe, ( India,Russia, Japan, Korea, Singapore, the United States, Argentina, Brazil, France, Poland, the Czech republic,Turkey, Italy, the United Kingdom etc.)
Certifications
Our service
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
---After Sale Service
Don’t worry, we are here to help.We provide professional after-sale Team, video technical support, online support. And our team also can go to your factory to provide field operating training
---Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. AM engineers are here for your assistance.
---OEM
AM provides OEM services to our customers.
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
---After Sale Service
Don’t worry, we are here to help.We provide professional after-sale Team, video technical support, online support. And our team also can go to your factory to provide field operating training
---Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. AM engineers are here for your assistance.
---OEM
AM provides OEM services to our customers.
Tips: We can provide complete line machines for manufacturing USB cable/ DC power cable/ Power cord/ Headphone etc.
FAQ
1.Why choose Aituo?
For many years, we adhere to the business philosophy“Quality first, integrity innovation, to meet customer demands”. Our company and products have been widely recognized by customers at home and abroad. And our products with high quality and competitive price have been exported to India, Japan, Korea, Singapore, the United States, Argentina, Brazil, France, Poland, the Czech republic, Turkey, Italy and so on.
For many years, we adhere to the business philosophy“Quality first, integrity innovation, to meet customer demands”. Our company and products have been widely recognized by customers at home and abroad. And our products with high quality and competitive price have been exported to India, Japan, Korea, Singapore, the United States, Argentina, Brazil, France, Poland, the Czech republic, Turkey, Italy and so on.
2.Is Aituo a factory?
Yes, Aituo is a factory. We have production department, engineering department, quality department, sales department and so on.Our factory address is No.1 building, ZhaoFuDa Industry Park,SongGang,Baoan District, Shenzhen, 518105, China. We are warmly welcome you to visit our factory.
3.Is this machine easy to use and if we have no experience, can we also operate it well ?
Yes,our machine is designed to use easily. And we will provide operation instructions file.
3.Is this machine easy to use and if we have no experience, can we also operate it well ?
Yes,our machine is designed to use easily. And we will provide operation instructions file.
4. What kind of payment terms do you accept?
We accept the payment terms: Bank transfer, WesterUnion, Cashes, Paypal, etc.
5. If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
6.What's your delivery time?
About 10-15 days
7.How about the package? Is it safe during the transportation?
All machines will be packed with wood box, covered with steel tie and foam on the surface in order to avoid damaging during transportation.
Похожие товары
SG60NC Liye Стабильная производительность гидравлическая медная труба формовочная машина окончания трубы
4 800,00 $ - 5 000,00 $
Машина для тиснения металлических труб MINGYI гидравлическая формовочная машина кованого железа
6 937,00 $ - 7 571,00 $
SG-60NC конец трубы формируя машину усаживаясь
После того как Hongli РСЗ 916 международного стандарта 12
960,00 $ - 990,00 $
SG40NC, 24 В, Концевая гидравлическая машина для развальцовки труб
3 800,00 $ - 4 000,00 $
Низкая цена арматуры Бендер изгиба кабеля машины

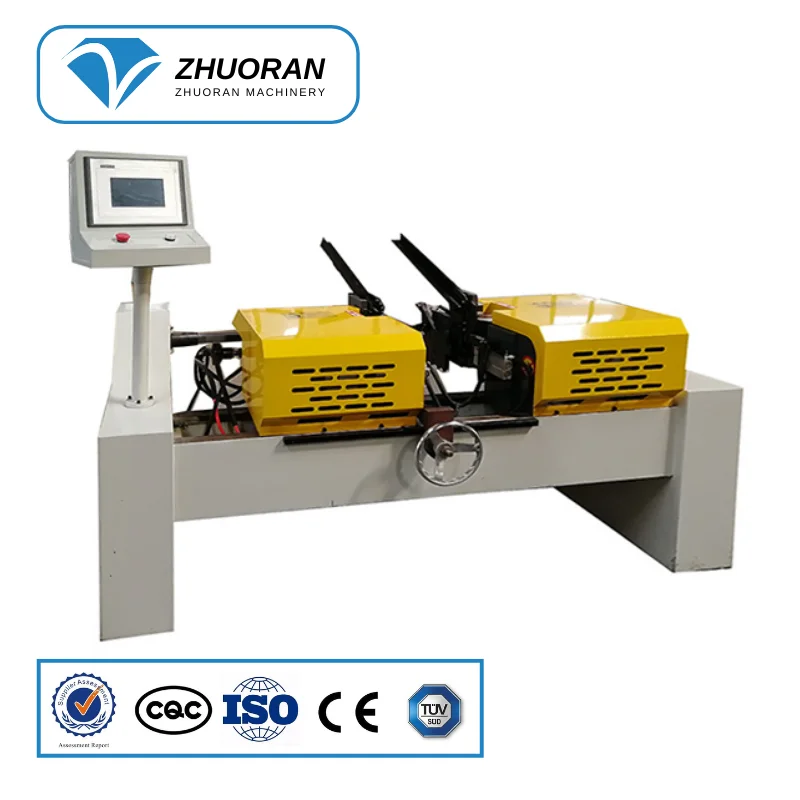

Полуавтоматическая cnc алюминиевая медная выхлопная труба Zhuoran Концевая формовочная
