7kw 14kw 22kw Wallbox электрическая Автомобильная зарядная станция с приложением Ocpp Smart Charge
300,00 $ - 380,00 $

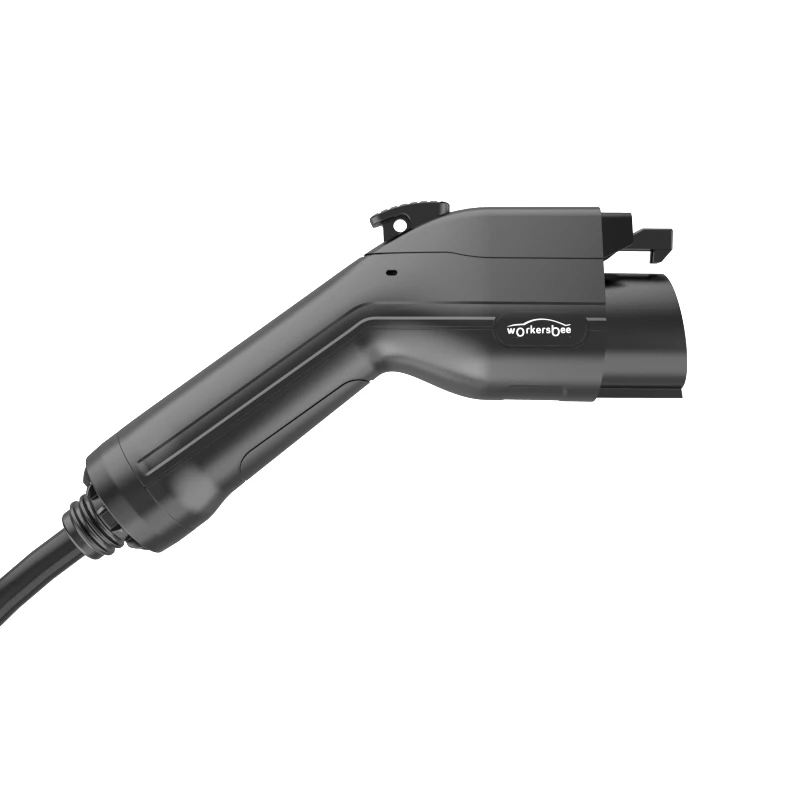

Зарядное устройство для электромобилей типа 1 с ЖК экраном и штепсельной вилкой
- Категория: >>>
- Поставщик: HIVE WALLBOX CO. LTD.
Сохранить в закладки 1600290861396:
Описание и отзывы
Характеристики
Products Description
* Easy: Charge at home, at work or anywhere with the socket. No installation is required, just an intuitive pairing process. Plug and charge, wherever you are.
*Safe: Protecting Earthing detection.

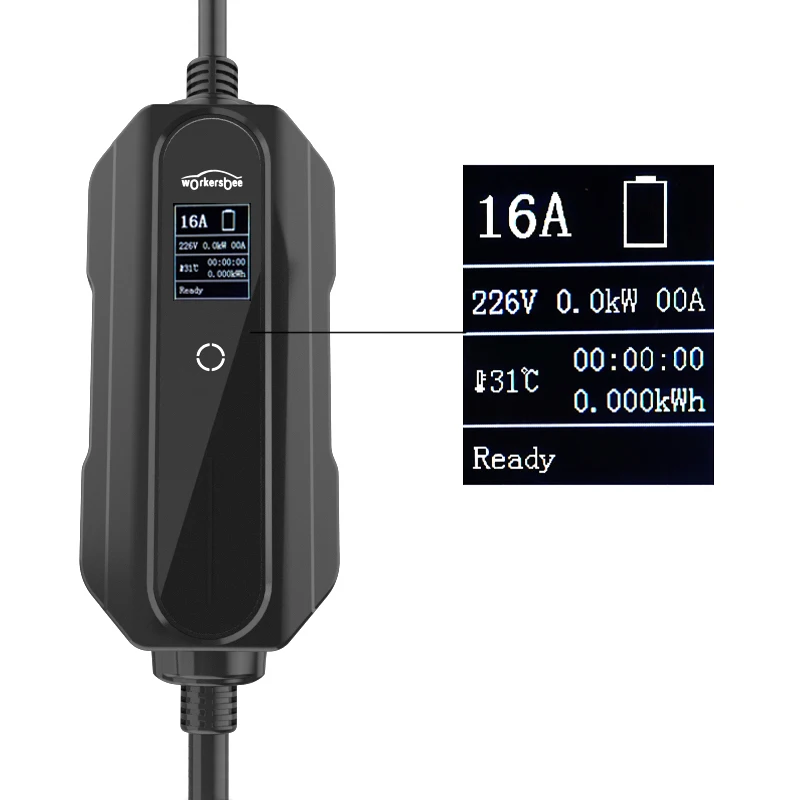

*Visual: LED screen show the real-time charging data
*Safe: Protecting Earthing detection.
*Visual: LED screen show the real-time charging data
Product Paramenters
Product Definition | Electric Parameter | ||||
Stadnard | IEC 62196-2:2016 | Rated Current | 10-32A adjustable | ||
Charging Mode | Mode 2 | Rated Voltage | 240V | ||
Plug Type | Type 1 to Schuko | Power Pin Numbert | 3 ( L, N, PE ) | ||
Current Type | AC | Signal Pin Numbert | 2 ( PP, CP ) | ||
Housing Color | Black | Signal Pin Current | 2A | ||
Cable Color | Black | Insulation Resistance | ≥5MΩ | ||
Ambient Condition | Mechanical Performance | ||||
AmbientTemperature （ working ） | -30℃--50℃ | Insertion & Pullout Times | ＞10000 times | ||
AmbientTemperature （ storage ） | -40℃--80℃ | Insertion & Pullout Force | 45N～100N | ||
Ingress Protection | IP54 （ IP55 in working state） | Withstanding Impact Force | Affordable 1 meter height fell or 2 ton car run over presure | ||
Major Material | ||||||
Plug Material | Reinforced Thermoplastic, UL94V-0 | |||||
Housing Material | Reinforced Thermoplastic, UL94V-0 | |||||
Cap Material | PUR | |||||
Pin Material | Copper Alloy, Silver Plated | |||||
Cable Configuration | ||||||
Single Phase 16A | 3*2.5mm²+1*0.5mm² | |||||
Details Images
Why Choose Us
Company Profile
Founded in June 2007 on the bank of JinjiLake in Suzhou Industrial Park, Suzhou Yihang Electronic Science and Technology Co., Ltd. is specialized in R&D and production of electric vehicle charging products and precision parts for automotive shock absorbers and transmissions.
Equipped with advanced R&D laboratories and a special R&D team, Yuhanghas obtained more than 20 invention patents, and over 30 utility patents for appearance and structure designs."Workersbee" is Yihang's own brand for EV charging products. Meanwhile the company provides customers with ODM/OEM services. With refined products of high-per- formance and good services, Yihang helps customers achieve their goals faster and more effectively than its competitors.
In 2019,Jiangsu Yihang Electric Technology Co,Ltd. was established in Wuxi High tech Zone, focusing on the R&D and manufacturing of auto- motive precision parts and EV charging products like plugs, sockets, charging connectors,portable ev chargers and charging cables. In 2020, Hive Wallbox Co., Ltd.was established in Suzhou Industrial Parkin order to fully compete in the global EV charging market. Customers,old and new,are welcome to visit Yihang for cooperation and communication.
Equipped with advanced R&D laboratories and a special R&D team, Yuhanghas obtained more than 20 invention patents, and over 30 utility patents for appearance and structure designs."Workersbee" is Yihang's own brand for EV charging products. Meanwhile the company provides customers with ODM/OEM services. With refined products of high-per- formance and good services, Yihang helps customers achieve their goals faster and more effectively than its competitors.
In 2019,Jiangsu Yihang Electric Technology Co,Ltd. was established in Wuxi High tech Zone, focusing on the R&D and manufacturing of auto- motive precision parts and EV charging products like plugs, sockets, charging connectors,portable ev chargers and charging cables. In 2020, Hive Wallbox Co., Ltd.was established in Suzhou Industrial Parkin order to fully compete in the global EV charging market. Customers,old and new,are welcome to visit Yihang for cooperation and communication.
FAQ
1.Can we require you to do our trademark?
2.What are your terms of payment?
T/T 30%as deposit， and 70% balance before delivery.
3.What are your terms of delivery?
1.Can we require you to do our trademark?
Trademark service is available，
and the order quantity should be more than 100pcs.
2.What are your terms of payment?
T/T 30%as deposit， and 70% balance before delivery.
For small orders,Paypal is available
3.What are your terms of delivery?
EXW, FOB, CFR, CIF, DDU, etc.
4.Can you produce according to the samples?
Yes,we could produce based on your samples or technical drawings.
Yes,we could produce based on your samples or technical drawings.
We could build corresponding molds and fixtures.
5.What is your sample policy?
We can provide a sampleupon request.
5.What is your sample policy?
We can provide a sampleupon request.
Customers need to pay for the shipping cost.
CAUTION
1. Don't submerge the EV charging cable in water.
3. Don't drop the EV charging box place a heavy object on it.
5. Don't operate the EVSE in temperatures beyond its operating range of-25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5 mm recommended 3*4 mm), with a standard 16A socket. It is suggested that the power distribution is done by the professionals.
7. Don't put your fingers into the charging connector when the power plug is still connected to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging.
10. Don't use this device with another brand's extension cord or adaptor.
1. Don't submerge the EV charging cable in water.
2. Don't step on, fold, or knot the cable.
3. Don't drop the EV charging box place a heavy object on it.
4. Don't place the charging cable near a high-temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of-25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5 mm recommended 3*4 mm), with a standard 16A socket. It is suggested that the power distribution is done by the professionals.
7. Don't put your fingers into the charging connector when the power plug is still connected to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging.
10. Don't use this device with another brand's extension cord or adaptor.
