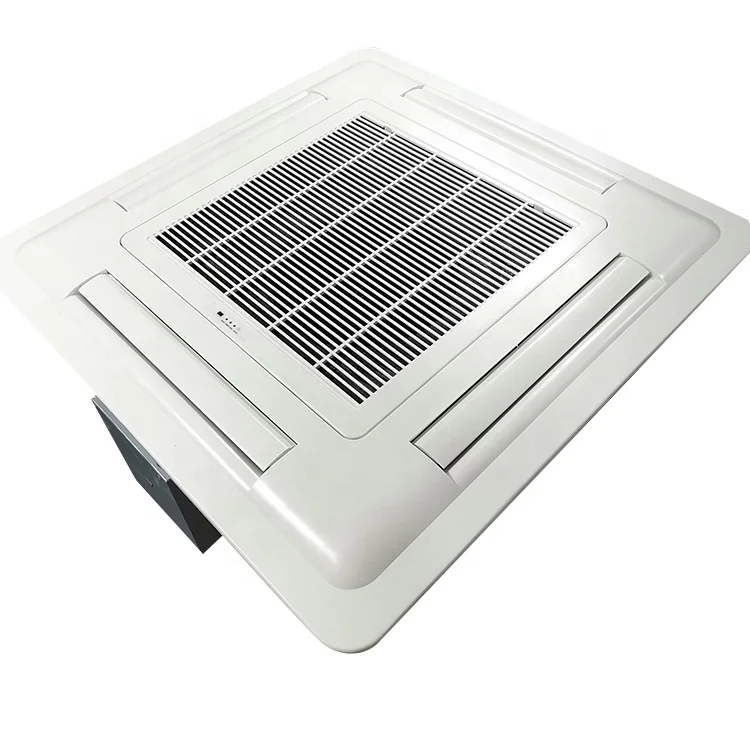

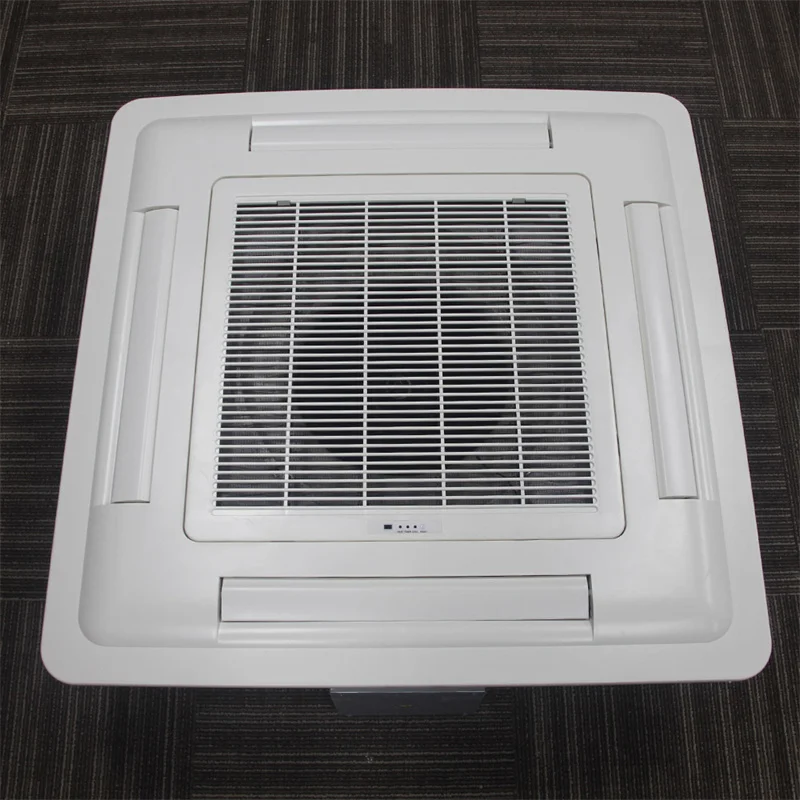

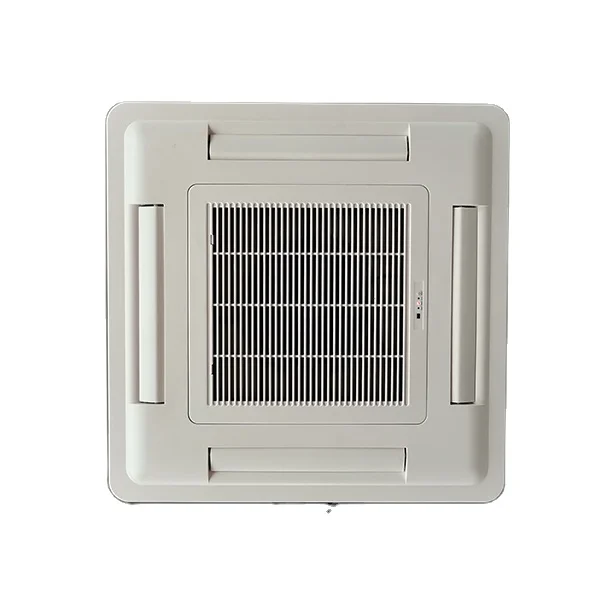

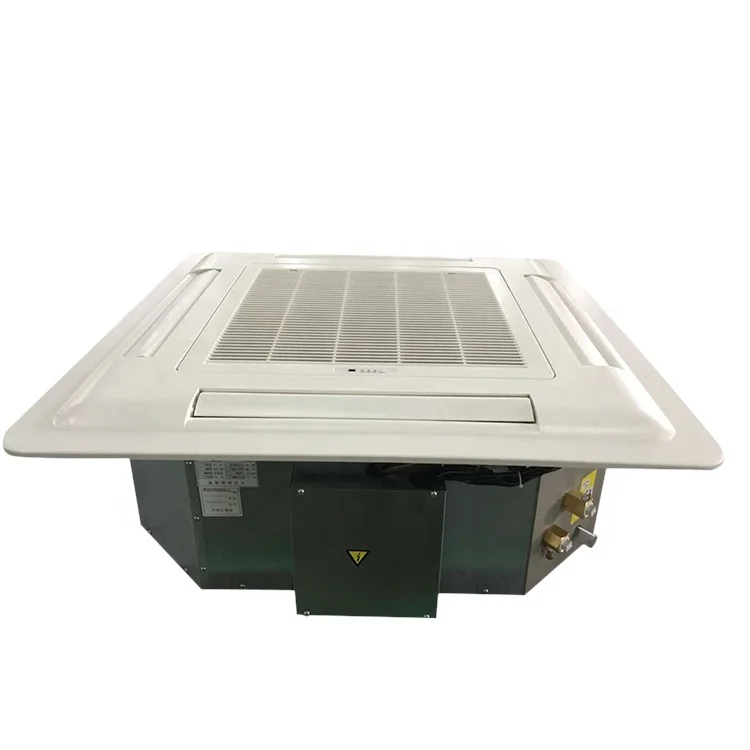

Monchrui горизонтальный потолочный Fcu холодильная 2 производственного цикла 4 полосная кассетного типа блок катушки вентилятора воды
- Категория: >>>
- Поставщик: Shenzhen Monchrui Industrial Development Co. Ltd.
Сохранить в закладки 1600291230513:
Описание и отзывы
Характеристики
Product Overview
2 PIPE 4 ways fan coil unit
Hiefficiency coil design
Silent hi-quality plastic wheel fan
built- in drein Pump and float switch
100% on line test
Specifications 2-pipe 4-way Cassett A series
Controal system
> Wireless remote controller is standard; Wired wall controller is optional;
> Auto reset, operation mode control; with room sensor & coil sensor;
> Dailytimerorweeklytimer
> Auto-diagnose, protections and error code display; jumpers configurations on electronic board
> RS485 ModBus, master-slave network control-Optional
Suitable for hot/chilled water system, ceiling installation;
> Wireless remote controller is standard; Wired wall controller is optional;
> Auto reset, operation mode control; with room sensor & coil sensor;
> Dailytimerorweeklytimer
> Auto-diagnose, protections and error code display; jumpers configurations on electronic board
> RS485 ModBus, master-slave network control-Optional
Suitable for hot/chilled water system, ceiling installation;
Design features

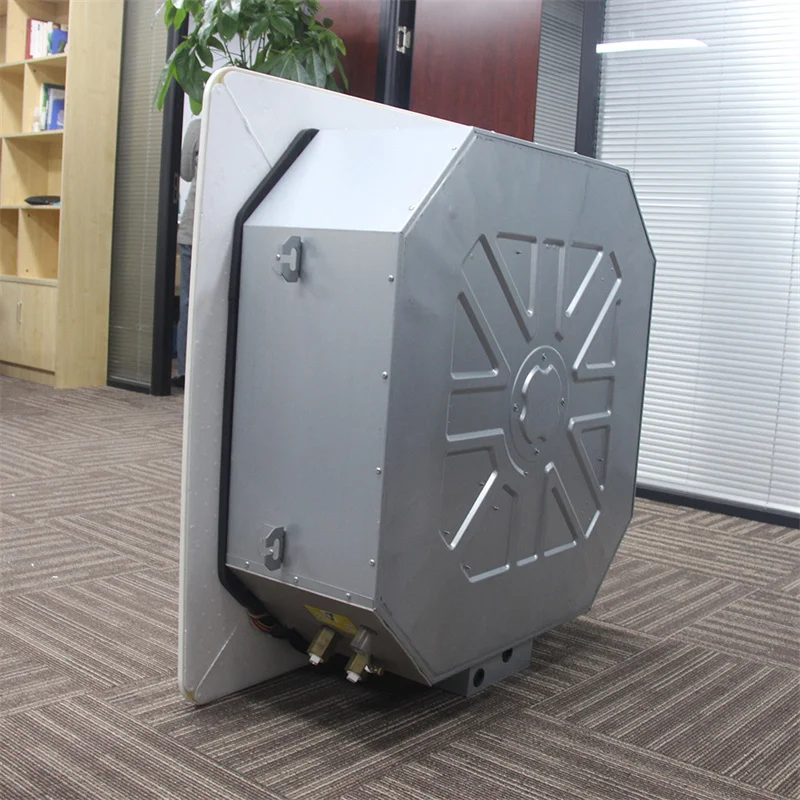

1 Unit Body
Made of Galvanized steel, with pre-formed expanded polystyrene air passages suitable shaped to allow passage of air, thickness enough for thermal and acoustical insulation.
2 Panel Assembly
Aesthetic panel design, in ABS material with synthetic washable and removal air filter, auto-swing.
3 Plastic Wheel-Quite running
One-time injection forming, no welding between the fan blades and inlet cone/end plate, it makes the wheel good balancing; an anti-vibration rubber is installed on the hub to ensure less vibration, low noise on the wheels and motors. Each wheel will be balanced under G0.5mm/s.
4 Fresh air intake
Fresh air intake is optional.
5 High Efficiency Coil
Coil are made of copper tubes and high exchange surface area aluminum blue fins. All coils are 100% tested against leaks by 3obar(3Mpa) air pressure. with 3/4” pipe connections and air bleed vent.
6 Condensate Drain Pan
In thermoforming high density expanded polystyrene, covered with a vacuum forming polyvinyl chloride, fitted with a condensates draining pump and a safety float.
7 Drain pump and Float Switch
700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking. If the water raising to a certainly position, the float switch will act and alarm, then the unit will cut off the water valve or stop the fan motor.
Made of Galvanized steel, with pre-formed expanded polystyrene air passages suitable shaped to allow passage of air, thickness enough for thermal and acoustical insulation.
2 Panel Assembly
Aesthetic panel design, in ABS material with synthetic washable and removal air filter, auto-swing.
3 Plastic Wheel-Quite running
One-time injection forming, no welding between the fan blades and inlet cone/end plate, it makes the wheel good balancing; an anti-vibration rubber is installed on the hub to ensure less vibration, low noise on the wheels and motors. Each wheel will be balanced under G0.5mm/s.
4 Fresh air intake
Fresh air intake is optional.
5 High Efficiency Coil
Coil are made of copper tubes and high exchange surface area aluminum blue fins. All coils are 100% tested against leaks by 3obar(3Mpa) air pressure. with 3/4” pipe connections and air bleed vent.
6 Condensate Drain Pan
In thermoforming high density expanded polystyrene, covered with a vacuum forming polyvinyl chloride, fitted with a condensates draining pump and a safety float.
7 Drain pump and Float Switch
700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking. If the water raising to a certainly position, the float switch will act and alarm, then the unit will cut off the water valve or stop the fan motor.
PRODUCT SPECIFICATIONS
Dimensions
Specifications 2-pipe 4-way Cassett A series
Specifications 2-pipe 4-way Cassett A series | ||||||||||||||
Model:M4KM*AP-A(E) | M4KM 500AP | M4KM 600AP | M4KM 800AP | M4KM 1000AP | ||||||||||
CFM | 500 | 600 | 800 | 1000 | ||||||||||
Air Flow Rate | High | m3/h | 850 | 1020 | 1360 | 1700 | ||||||||
Medium | m3/h | 640 | 790 | 7030 | 1290 | |||||||||
Low | m3/h | 430 | 520 | 690 | 860 | |||||||||
Cooling | Total Capacity | high | KW | 4.5 | 6.5 | 7 | 9.1 | |||||||
Medium | KW | 4.2 | 4.3 | 5.7 | 7.9 | |||||||||
Low | KW | 3 | 3.6 | 5 | 6.4 | |||||||||
Sensible Capacity | High | KW | 3.5 | 3.9 | 6.45 | 4.3 | ||||||||
Medium | KW | 3.2 | 3.3 | 4.9 | 5.3 | |||||||||
Low | KW | 2.8 | 2.9 | 3.6 | 4.9 | |||||||||
Water Flow Rate | L/H | 780 | 970 | 1260 | 1710 | |||||||||
Water Pressure Drop | kPa | 16 | 17 | 19 | 17 | |||||||||
Heating | Heating Capacity | High | KW | 7 | 8.4 | 11.2 | 13.9 | |||||||
Heating Capacity | Medium | KW | 6.3 | 8.5 | 8.5 | 12 | ||||||||
Heating Capacity | Low | KW | 5 | 5.2 | 6.7 | 9 | ||||||||
Power Supply | 220~240V/1PH/50Hz(or 60HZ) | |||||||||||||
Power Input | W | 76 | 96 | 132 | 152 | |||||||||
Sound Pressure | dB(A) | 43 | 45 | 46 | 47 | |||||||||
Fan | Type | Centrifugal Fan | ||||||||||||
Model | MM | 380 | 380 | 380 | 476 | |||||||||
Quantity | 1 | |||||||||||||
Motor | Type | 3-speed Motor | ||||||||||||
Quantity | 1 | |||||||||||||
Coil | Coil Rows | 2 | ||||||||||||
Max. Working Pressure | mPa | 1.6 | ||||||||||||
Tube Diameter | Inch | 3/8” | ||||||||||||
Dimensions | Unit Body | MM | 580x580x250 | 832x832x290 | ||||||||||
Panel Assembly | MM | 830x830x30 | 980x980x30 | |||||||||||
Connection | Water Inlet/Outlet Pipe | Inch | ZG3/4”/ZG3/4” | |||||||||||
Condensate Discharge | Inch | 26 | ||||||||||||
Weight(with feet, with casing) | KG | 25 | 34 | |||||||||||
1.Cooling: inlet air temp. DB+27oC/WB+19.5oC, water inlet/outlet temp. +7oC/+12oC 2.Heating: +21oC, water inlet temp. +60oC; Same water flow rate as for the cooling | ||||||||||||||
Dynamic drainage
1 High-speed automatic pump solves drainage problem 2 Water evaporation accelerates the heat dissipation of the condenser,
improves the heat exchange rate ,and truly saves energy and electricity
improves the heat exchange rate ,and truly saves energy and electricity
Remote control + strong wind
Keep track of the air conditioner's operating status: cooling / heating / dehumidification / air supply / purification smart sleep
/ one -key swithing
/ one -key swithing
EC motor fan coil unit
Pure copper wire advanced motor running more power saving
High efficiency and environmental protection, strong heart, safe and quiet ,strong power, long life
The EC motor fan is a DC brushless inverter fan with infinitely variable speed, high efficiency and energy saving, and more accurate air volume control.
360 Degree omnidirectional wind
Simple design concept. The air outlet can swing freely left and right, automatically close when standby, and can also effectively prevent dust
Title goes here.
Filters airborne particle s such as pet hair and dust
Похожие товары
Оболочка германиума с AR-покрытием для инфракрасной тепловой камеры 9.2x
Профессиональный жаккард для одежды, Гобеленовая ткань
Американские широкие фланцевые балки W12X26 W12X30 W12X35 W12X40 с классом ASTM A36
Оптовая продажа, белый пигмент Tio2 Рутиловый диоксид титана Lomon Billion TR52 для печати и чернил

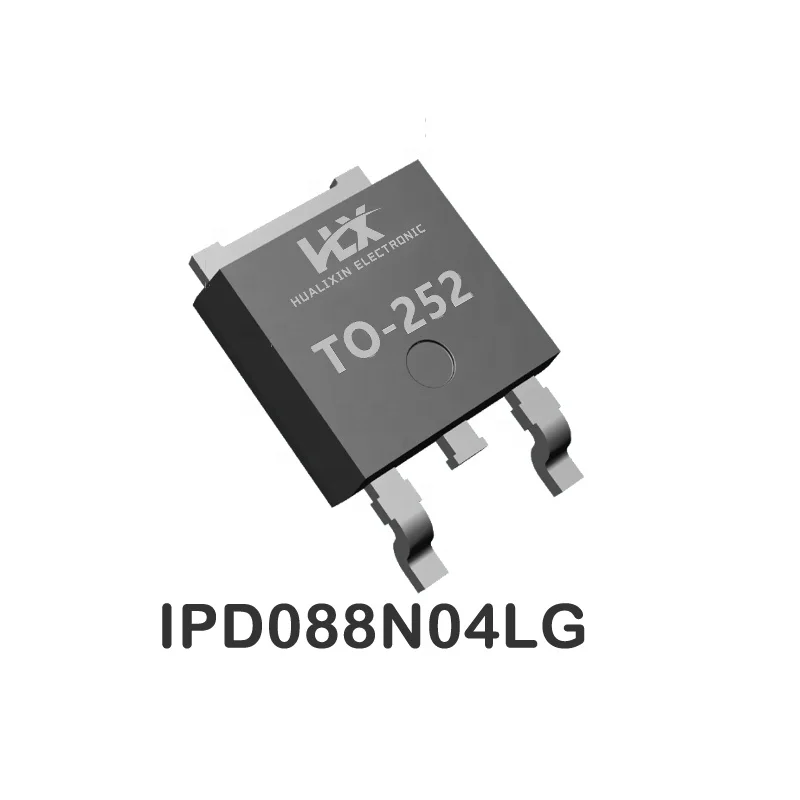

IPD088N04LG TO252 N канал 40 в 85A мощность MOSFET smd транзистор hualichip интегральная схема ic mos IPD088N04LG
0,13 $ - 0,17 $

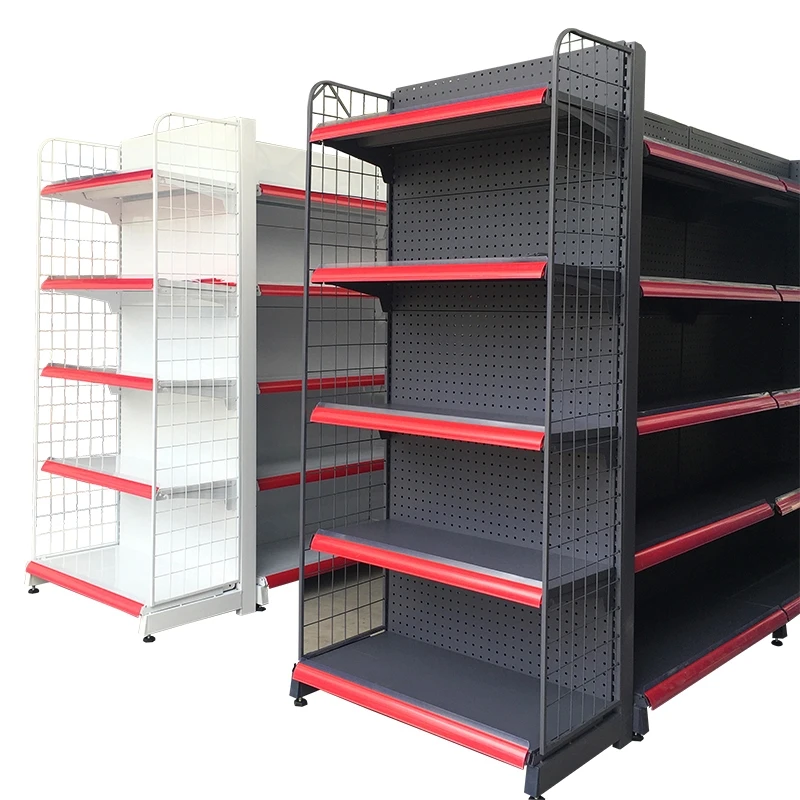

Современный дисплей для супермаркета двухсторонняя полка розничная продажа продуктов хранения полки гондолы металлический стеллаж 480
24,90 $ - 34,90 $

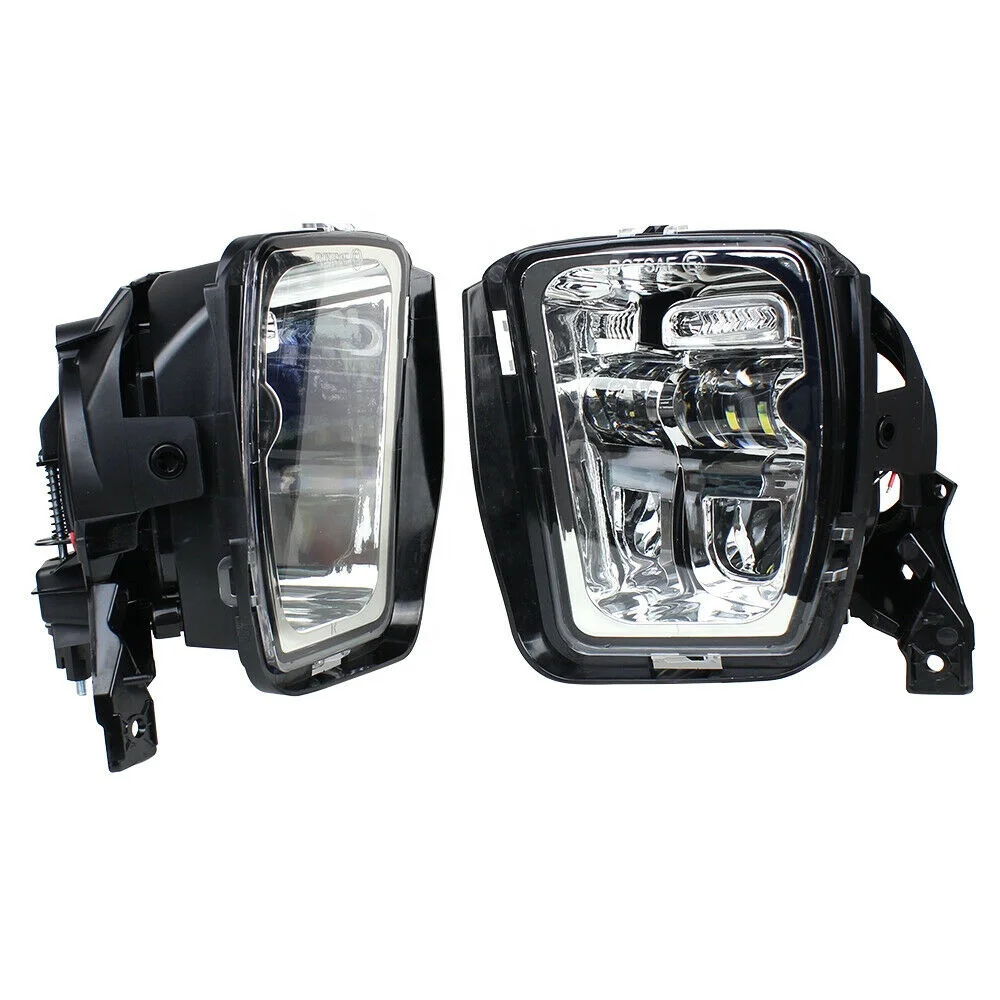

36 Вт для Dodge ram грузовые Противотуманные фары подходят для dodge ram 1500 фары OEM Сменные фары для 2013-2017 dodge ram противотуманные фары
