Circulation fan and exhaust fan

Product Description

MP Push Pull Type Exhaust Fan

MP series high class fan is mainly made up of blade, centrifugal opening device, motor, outer frame, protecting nets, supporting frame, shutters. It is made based on aerodynamic, effectively reduce the wind resistance. The major parts are made of galvanized steel sheets and stainless steel sheets. All the products are windly used in various typs of buildings as farms, greenhouse, factory building.

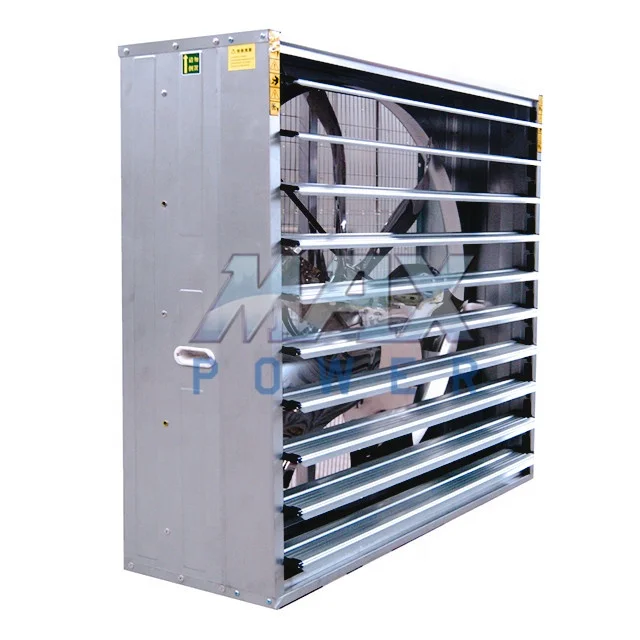

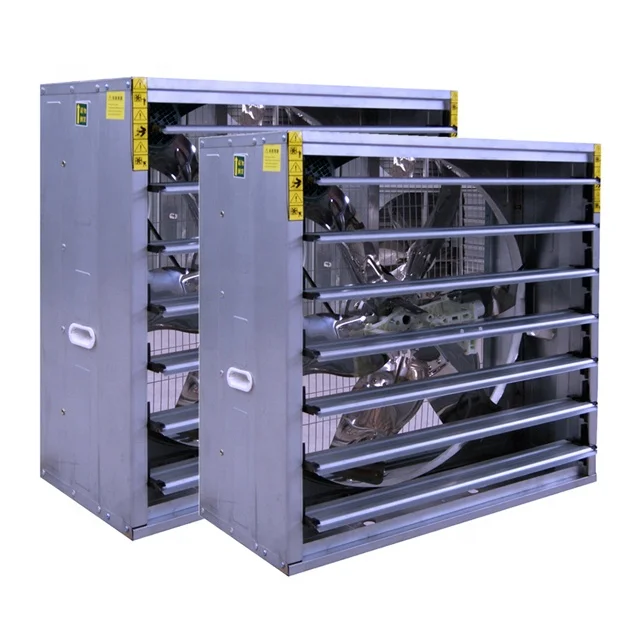

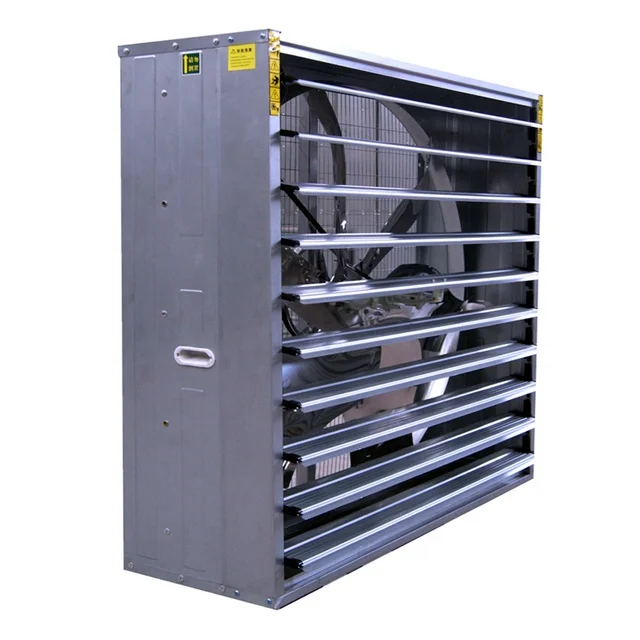

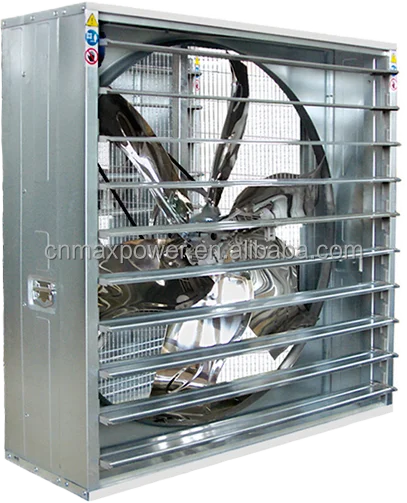

MP Heavy Type Exhaust Fan

Fans mainly consists of blade, motor, frame, protect net, bracing cage, shutters. The motor drives blade to cause air flow and louver window can open and close automatically to keep the dust from entering.

MP Circulation Fan

1. The electric machine use excellent brand

2. International advansed energy conservation technology testing

3. Light alumimum board punch fan blade, wide angle, heavy wind and low noise

4. Outer covering is stainless or steel spraying available

5. Equipped with beautiful and convenient button type hanging articles

6. Long service life over 10 years

MP Push Pull Type Exhaust Fan
Model specification	Diameter blade (mm)	Frequencey (Hz)	Motor rotational speed rpm	Air flow (m³/H)	Import power (W)
MP-PP-800	710（29in）	50/60	≥1400	26000	370
MP-PP-1000	900（36in）	50/60	≥1400	32000	750
MP-PP-1100	1000（44in）	50/60	≥1400	40000	750
MP-PP-1380	1270（50in）	50/60	≥1400	44800	1100
MP-PP-1530	1400（56in）	50/60	≥1400	58000	1500

MP Push Pull Type Exhaust Fan
Model specification	Noise decibels (db)	Total pressure (pa)	Rated voltage (v)	Height (mm)	Width (mm)	Thickness (mm)
MP-PP-800	≤64	60	380	800	800	450
MP-PP-1000	≤64	70	380	1000	1000	450
MP-PP-1100	≤64	70	380	1100	1100	450
MP-PP-1380	≤64	56	380	1380	1380	450
MP-PP-1530	≤64	60	380	1530	1530	450

MP Heavy Type Exhaust Fan
Model specification	Diameter blade (mm)	Blades rpm	Motor rotational speed rpm	Air flow (m³/H)	Import power (W)
MP-HH-620(24in)	500	680	1400	6500	370
MP-HH-800(29in)	710	660	1400	22000	370
MP-HH-900(30in)	750	630	1400	28000	550
MP-HH-1000(36in)	900	610	1400	30000	550
MP-HH-1100(40in)	1000	600	1400	32500	750
MP-HH-1220(44in)	1100	460	1400	38000	1100
MP-HH-1380(50in)	1250	439	1400	44000	1100
MP-HH-1530(56in)	1400	325	1400	55800	1500

MP Heavy Type Exhaust Fan
Model specification	Total pressures (Pa)	Noise decibels	Rated voltage (V)	Height (mm)	Width (mm)	Thickness (mm)
MP-HH-620(24in)	60	≤60	380	620	620	400
MP-HH-800(29in)	60	≤60	380	800	800	400
MP-HH-900(30in)	65	≤65	380	900	900	400
MP-HH-1000(36in)	70	≤70	380	1000	1000	400
MP-HH-1100(40in)	70	≤70	380	1100	1100	400
MP-HH-1220(44in)	73	≤70	380	1220	1220	400
MP-HH-1380(50in)	56	≤70	380	1380	1380	400
MP-HH-1530(56in)	60	≤70	380	1530	1530	400
